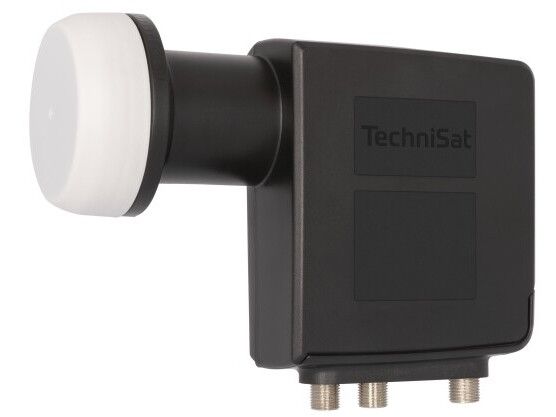

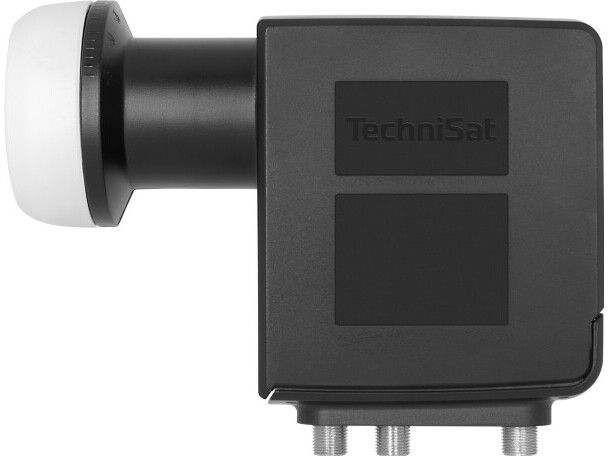

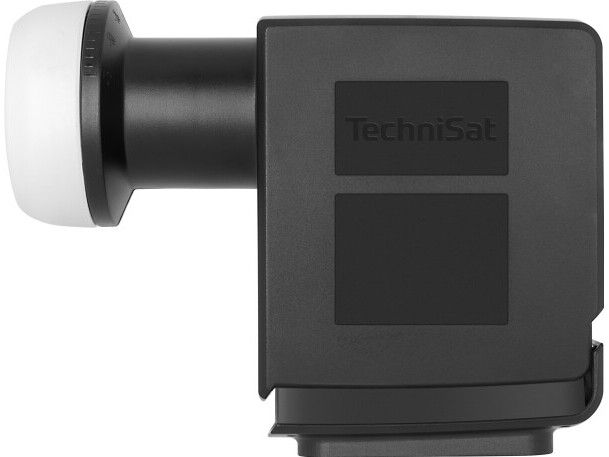

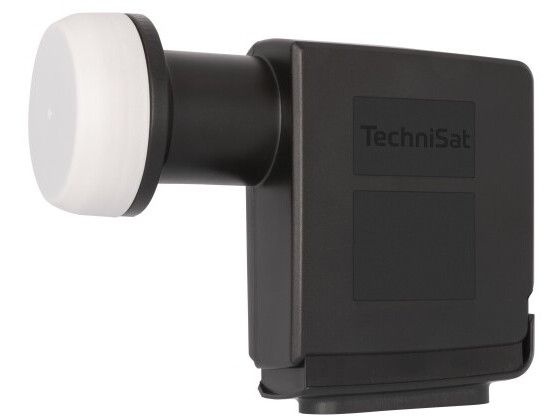

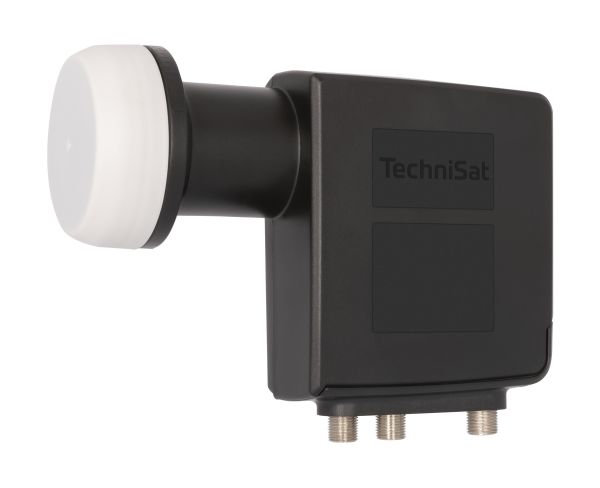

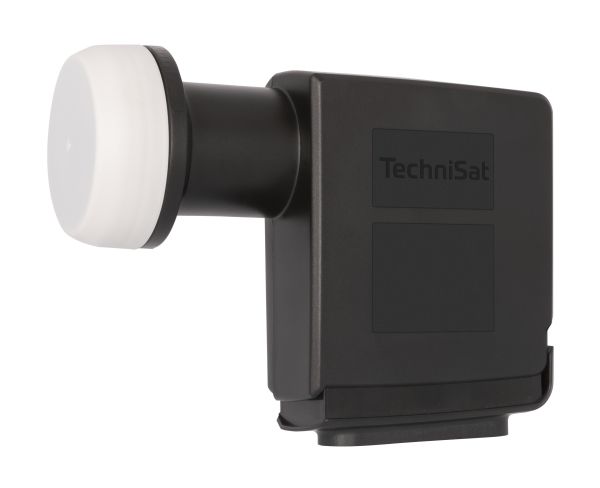

The TechniSat SCR LNB can provide up to 8 participants via one coaxial cable with the complete programs of a satellite. This is also the ideal solution for signal feed-in of multi-tuner devices (twin / quad receiver) to watch a program while recording one or more other (DVR). The two additional LNB legacy outputs offer additional flexibility for the connection of non-SCR-compatible receivers. So can be operated without the use of a multi-switch up to 10 different digital TV sets or receiver.
Type
Unicable (SCR) LNB
Input frequency range
10.7 - 12.75 GHz
Low band input frequency range
10.7 - 11.7 GHz
High band input frequency range
11.7 - 12.75 GHz
Low band LO frequency
9.75 GHz
High band LO frequency
10.6 GHz
Output frequency range
950 - 2150 MHz
High band output frequency range
1100 - 2150 MHz
Low band output frequency range
950 - 1950 MHz
Local Oscillator (LO) phase noise (10 kHz)
80 dBc/Hz
Noise figure
1 dB
Output impedance
75 Ω
Product colour
Black, White
Temperature drift (±)
1 MHz
Initial accuracy (±)
0.4 MHz
Control signal Cc (band switching)
22 kHz
Supply voltage Ca (vertical polarization)
11 - 14 V
Supply voltage Cb (horizontal polarization)
16 - 20 V
Maximum number of users
10
Compliance certificates
CE
RF ports quantity
3
RF connector type
F
Power consumption
400 mA
Feedhorn diameter
4 cm
Width
58 mm
Depth
150 mm
Height
117 mm
Weight
254 g
Quantity
1
Package width
157 mm
Package depth
125 mm
Package height
68 mm
Package weight
334 g
Operating temperature (T-T)
40 - 60 °C
