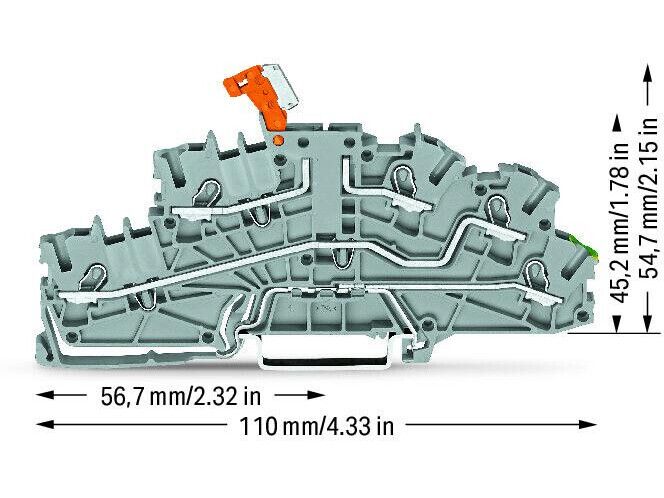

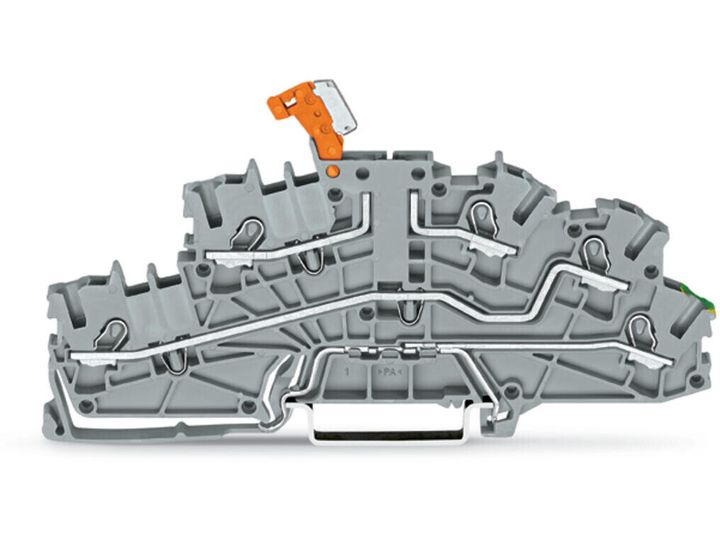

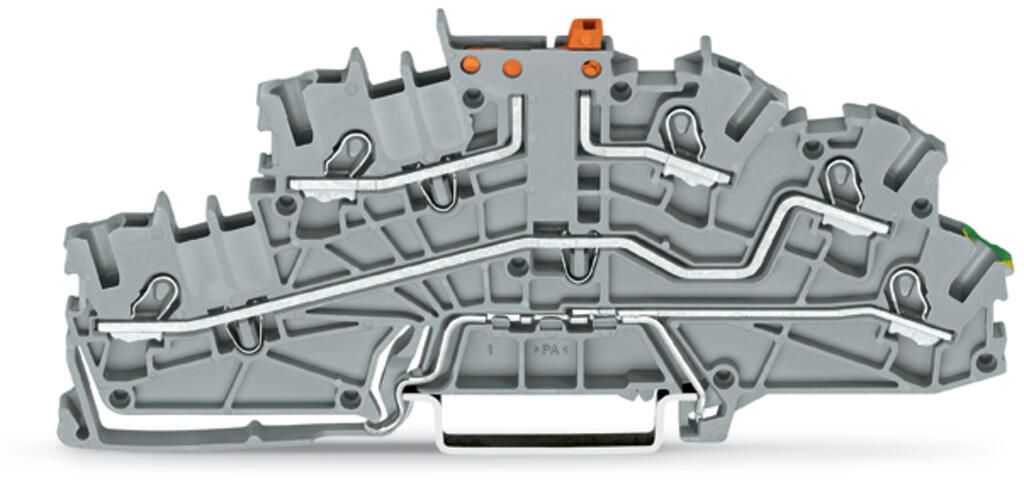

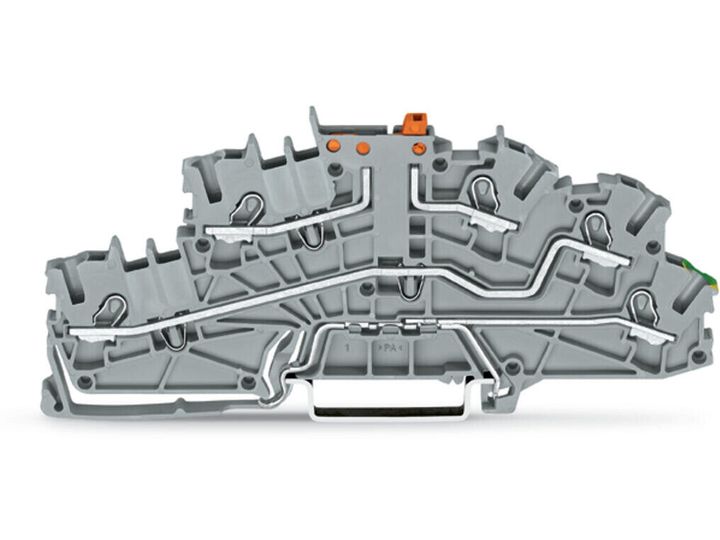

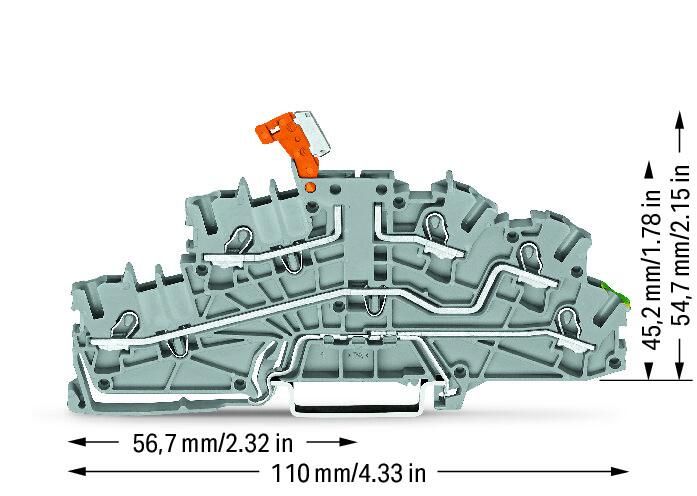

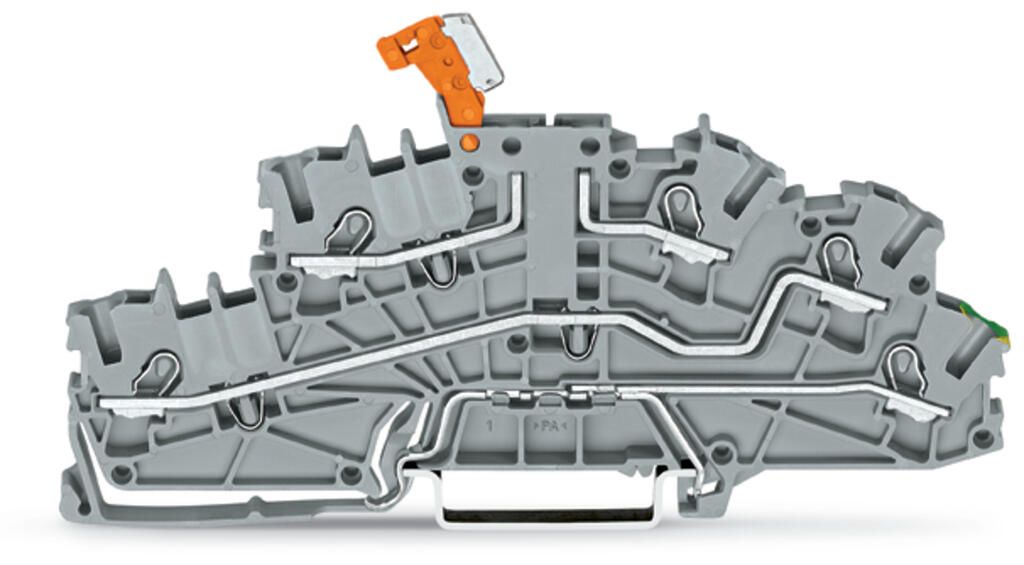

Wago TOPJOB S Series Multi Level Terminal Block, 2.5mm??, 3-Level, Push In Termination, 5.2 mm, 110 mm, 50 pc(s)

Item no.: [10017372] | Manufacturer: WAGO | Model no.: 2003-6644 | EAN: 4050821654292
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options  - Select at checkout
Shipping @price - GLS
12,00
EUR 6,90
Incl. VAT 8,63
Total incl. delivery 23,63
Read further specifications and description
Multilevel installation terminal block, 2003 Series, gray Quick and easy connections are guaranteed with this multilevel installation terminal block (item number 2003-6644). Strip lengths must be between 10 and 12 mm when connecting conductors to this multilevel installation terminal block. This product features conductor terminals and utilizes Push-in CAGE CLAMP. Our Push-in CAGE CLAMPis a universal, maintenance-free connection solution for all conductor types, boasting a key feature: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. This multilevel installation terminal block is suitable for conductor cross sections ranging from 0.25 mm² to 4 mm².
