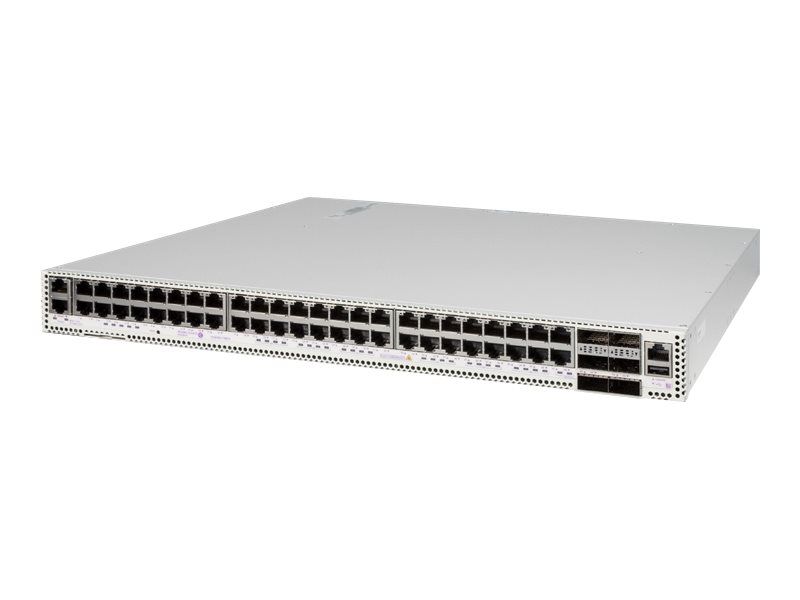

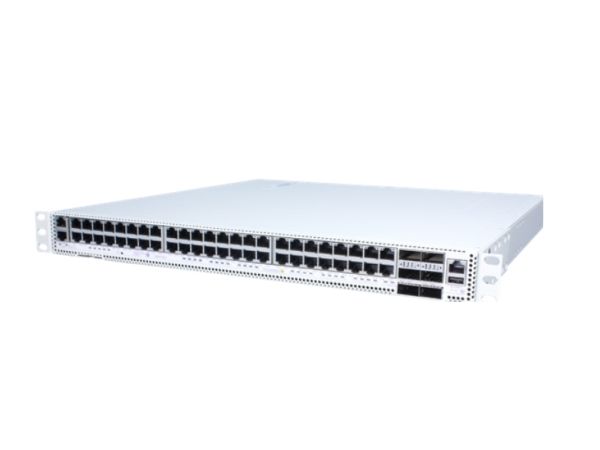

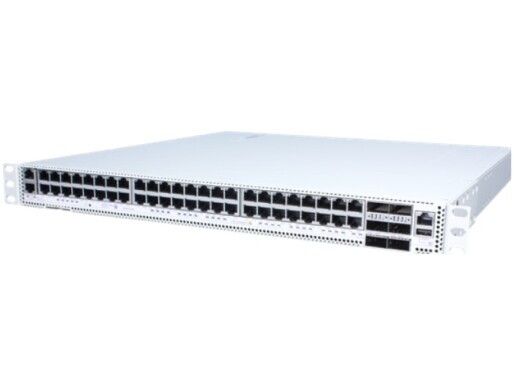

Alcatel-Lucent Enterprise OS6900T48-F-EU, Managed, L2/L3, Full duplex, Rack mounting, 1U

Item no.: [10038535] | Manufacturer: Alcatel-Lucent | Model no.: OS6900T48-F-EU | EAN: 3326744973262

Remote stock (14-21 days)

The item is in a remote warehouse, delivery time is 14-21 business days. More info

Shipping @price - GLS

12,00

EUR 18.242,92

Incl. VAT 22.803,65

Total incl. delivery 22.818,65

Read further specifications and description

The Alcatel-Lucent OmniSwitch 6900 Stackable LAN and data center switches are compact, high-density 10 Gb Ethernet (GigE), 25 GigE, 40 GigE and 100 GigE platforms. In addition to high performance and extremely low latency, they offer Virtual Extensible LAN (VXLAN), OpenFlow, Shortest Path Bridging (SPB), and data center bridging (DCB) capabilities, QoS, Layer-2 and Layer-3 switching, as well as system and network level resiliency. They are designed for the most demanding software-defined operations in virtualized or physical networks and converged data centers. With their modular approach, the OmniSwitch 6900s support lossless configurations and native Fiber Channel (FC) ports for high-speed storage I/O consolidation. They can be positioned as converged top-of-rack or spine switches in data center environments, or as core and aggregation devices in campus networks.

Produktbeskrivelse	Alcatel-Lucent OmniSwitch 6900-T48C6 - switch - 48 porte - Administreret - monterbar på stativ - TAA-kompatibel
Enhedstype	Switch - 48 porte - L3 - Administreret - kan stables
Pakningstype	Front til ryg-luftstrøm monterbar på stativ 1U
Undertype	10 Gigabit Ethernet
Porte	48 x 10GBase-T + 6 x 10/25/40/100 Gigabit QSFP28
Præstation	Non-blocking switching-kapacitet: 2,16 Tbps Kapacitet: 1600 Mpps Forsinkelse: < 650 ns
Kapacitet	Bufferkapacitet (MB): 12
Jumborammesupport	Ja
Routingprotokol	BGP-4, IS-IS, RIP-1, RIP-2, SAP, BGP, IGMPv2, IGMP, DVMRP, VRRP, OSPFv2, PIM-SM, statisk IP routing, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Bidirectional PIM, RIPng, MLDv2, MLD, VRRPv2, Bidirectional Forwarding Detection (BFD), VRRPv3, CIDR, BGP-MP, MSTP, RSTP, STP, IS-ISv4
Protokol til fjernadministration	SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, SFTP, OAM, NTP, ICMP, DHCP, IPv4, IPv6, JSON, RSTP, TACACS+, LDAP, RADIUS
Egenskaber	Datatransport, understøttet af BOOTP, understøttet af ARP, understøttet af OCSP, ISL support, Syslog understøttet, portspejling, DiffServ understøttet, IP-adresse filtrering, DCBX support, DHCP snooping, ACL support, RDP support, QoS, VRF-Lite, PVST+, STP Root Guard, UDLD, LLDP support, DHCP videresendelse, LACP, Port Security, DCB, MIB, VRF, MVRP, NDP, Transparent (N_Port ID Virtualization - NPIV) modussupport, CoS, sFlow v5, Loopback, EVB, 802.1x autentificering, PTP, OpenFlow support, SRTCM, ISSU, VOQ, FCoE Initialization Protocol (FIP), VTEP-support, SPB, PFC, VXLAN, FPMA, SSM, EVPN, DDM, 4+1 redundante blæsere, PIM, port mapping, HOL Blocking Prevention, VLAN Tagging, EVC, trTCM, Q-i-Q tunnelering, SVLAN tagging, PPP, BSR Mechanism, BPDU-beskyttelse, DNS support, MED, UDP support
Overensstemmelsesstandarder	IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, X.509, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3an, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg, ITU-T G.8032, IEEE 1588-2008, IEEE 802.1aq, IEEE 802.3bm, IEEE 802.3by, ITU-T Y.1344
Effekt	AC
Overskudsspænding	Ja
Dimensioner (B x D x H)	43.3 cm x 55.9 cm x 4.4 cm
Vægt	7.78 kg
Lokalisering	Europa
TAA kompatibel	Ja

Generelt
Enhedstype	Switch - 48 porte - L3 - Administreret - kan stables
Pakningstype	Front til ryg-luftstrøm monterbar på stativ 1U
Undertype	10 Gigabit Ethernet
Porte	48 x 10GBase-T + 6 x 10/25/40/100 Gigabit QSFP28
Præstation	Non-blocking switching-kapacitet: 2,16 Tbps Kapacitet: 1600 Mpps Forsinkelse: < 650 ns
Kapacitet	Bufferkapacitet (MB): 12
Jumborammesupport	Ja
Routingprotokol	BGP-4, IS-IS, RIP-1, RIP-2, SAP, BGP, IGMPv2, IGMP, DVMRP, VRRP, OSPFv2, PIM-SM, statisk IP routing, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Bidirectional PIM, RIPng, MLDv2, MLD, VRRPv2, Bidirectional Forwarding Detection (BFD), VRRPv3, CIDR, BGP-MP, MSTP, RSTP, STP, IS-ISv4
Protokol til fjernadministration	SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, SFTP, OAM, NTP, ICMP, DHCP, IPv4, IPv6, JSON, RSTP, TACACS+, LDAP, RADIUS
Krypterings algoritme	MD5, AES, TLS, FIPS 140-2, PKI, TLS 1.1, TLS 1.2, ESP, CRL, HMAC
Autentificeringsmetode	Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP, Extensible Authentication Protocol (EAP)
Egenskaber	Datatransport, understøttet af BOOTP, understøttet af ARP, understøttet af OCSP, ISL support, Syslog understøttet, portspejling, DiffServ understøttet, IP-adresse filtrering, DCBX support, DHCP snooping, ACL support, RDP support, QoS, VRF-Lite, PVST+, STP Root Guard, UDLD, LLDP support, DHCP videresendelse, LACP, Port Security, DCB, MIB, VRF, MVRP, NDP, Transparent (N_Port ID Virtualization - NPIV) modussupport, CoS, sFlow v5, Loopback, EVB, 802.1x autentificering, PTP, OpenFlow support, SRTCM, ISSU, VOQ, FCoE Initialization Protocol (FIP), VTEP-support, SPB, PFC, VXLAN, FPMA, SSM, EVPN, DDM, 4+1 redundante blæsere, PIM, port mapping, HOL Blocking Prevention, VLAN Tagging, EVC, trTCM, Q-i-Q tunnelering, SVLAN tagging, PPP, BSR Mechanism, BPDU-beskyttelse, DNS support, MED, UDP support
Overensstemmelsesstandarder	IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, X.509, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3an, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg, ITU-T G.8032, IEEE 1588-2008, IEEE 802.1aq, IEEE 802.3bm, IEEE 802.3by, ITU-T Y.1344
RAM	8 GB
Flashhukommelse	16 GB
Statusindikatorer	Strøm, system, link/aktivitet
Ekspansion / Konnektivitet
Interface	48 x 10GBase-T RJ-45 6 x 10/25/40/100Gbit LAN QSFP28 1 x administration RJ-45 1 x USB Type A 1 x konsol RJ-45
Effekt
Strømenhed	Intern strømforsyning - hot-plug
Antal installeret	2
Maks. antal understøttet	2
Overskudsspænding	Ja
Strømforsyning	400 Watt
Nødvendig spænding	AC
Strømforbrug ved drift	330 Watt
Diverse
Rackmonteringspakke	Inkluderet
MTBF (forventet tid mellem fejl)	195,000 timer
Overensstemmelsesstandarder	CISPR 22 Klasse A, GOST, EN 61000-3-2, EN 61000-3-3, UL 60950, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Klasse A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL-AR, EN 60825-1, AS/NZS 3548 Klasse A, EAL 2, AS/NZS 60950, CDRH, ERP, EN 60825-2, CAN/CSA C22.2 No. 60950-1-03, Directive 89/336/EEC, VCCI Class A, EN60950-1:2001, JITC, IEC 60950-1:2001, EN 55022 Class A, FCC CFR47 Part 15 A, EN 55024:1998+A1:2001+A2:2003, AS/NZ TS-001, UL-GS
TAA kompatibel	Ja
Lokalisering	Europa
Mål og vægt
Bredde	43.3 cm
Dybde	55.9 cm
Højde	4.4 cm
Vægt	7.78 kg
Miljømæssige parametre
Min. driftstemperatur	0 °C
Maks. driftstemperatur	45 °C
Fugtighedsgrad ved brug	5 - 95 % (ikke-kondenserende)
Min. lagertemperatur	-10 °C
Maks. Opbevaringstemperatur	70 °C
Lagerfugtighedsgrad	5 - 95 % (ikke-kondenserende)

The item is known under the following item numbers in our system

EAN:	3326744973262
SKU:	OS6900T48-F-EU

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
