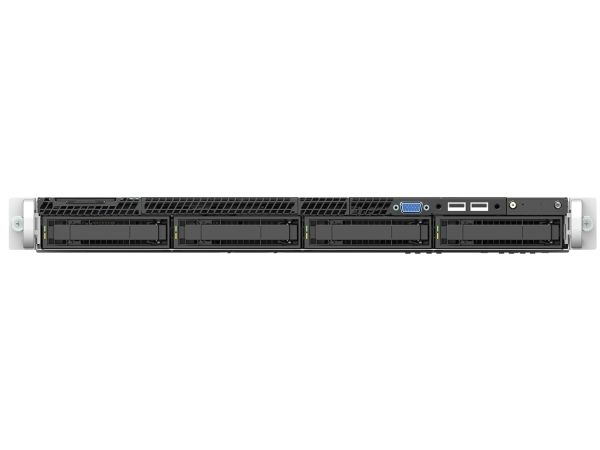

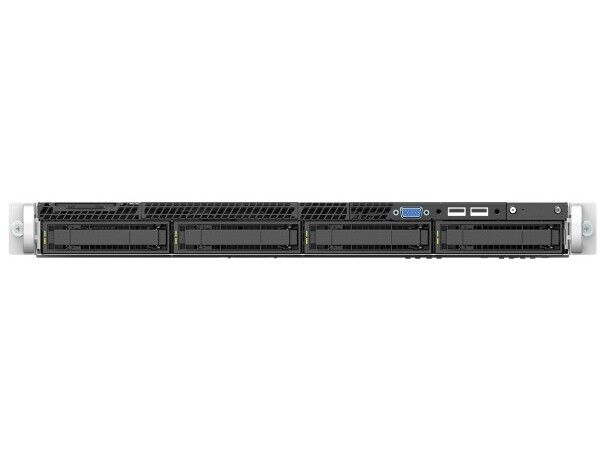

Intel R1304WF0ZSR, Intel® C624, LGA 3647 (Socket P), Intel, Intel® Xeon®, DDR4-SDRAM, 6 TB

Item no.: [10050933] | Manufacturer: Intel | Model no.: R1304WF0ZSR | EAN: 5032037247023

out of stock

The item is not in stock. More info

Varen er ikke på lager.

Brug funktionen ”Giv mig besked..." herunder for opdateringer.

Shipping @price - GLS

12,00

EUR 938,92

Incl. VAT 1.173,65

Total incl. delivery 1.188,65

Notify me when the item is in stock again

Read further specifications and description

These 1U rack systems feature memory capacity, networking, storage and I/O flexibility to scale as your business grows and evolves. Supporting the Intel Xeon Scalable processor, these Intel server board S2600WF-based systems are designed to address the requirements of your most demanding workloads.

Produktbeskrivelse	Intel Server System R1304WF0ZSR - rack-monterbar uden CPU - 0 GB - ingen HDD
Type	Server - rack-monterbar
Højde (rackenheder)	1U
Serverskalerbarhed	2-vejs
Processor	Uden CPU
Processor-socket	Socket P
Processor, hovedegenskaber	Intel Virtualization Technology for Directed I/O
RAM	0 GB (installeret) / 6 TB (maks.) - DDR4 SDRAM - ECC
Controller for lagring	RAID (SATA 6Gb/s)
Server-lagringsenheder	Hot-swap 2.5", 3.5"
Harddisk	Ingen HDD
Optisk lagring	Intet optisk drev
Netværk	1GbE, 10GbE
Overskudsspænding	Valgfri
Dimensioner (B x D x H)	43 cm x 71 cm x 4.37 cm
Producentgaranti	Begrænset garanti - 3 år

Generelt
Type	Server
Produktmodel	Rack-monterbar - 1U
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Serverskalerbarhed	2-vejs
Antal interne bays	2
Antal bays med frontadgang	4
Antal hot-swap bays	4
Processor / Chipset
CPU	Uden CPU
Maks. antal CPU'er	2
Opgraderbarhed af CPU	Kan opgraderes
Processor, hovedegenskaber	Intel Virtualization Technology for Directed I/O
CPU Socket	Socket P
Chipsættype	Intel C624
RAM
Installeret størrelse	0 GB (installeret) / 6 TB (maks.)
Teknologi	DDR4 SDRAM - ECC
Model	DIMM 288-PIN
Holdere	24 (Total) / 24 (ubrugt)
Egenskaber	Registreret, Load-Reduced DIMM (LRDIMM), understøtter Intel Optane DC Persistent Memory (DCPMM)
Harddisk
Type	Ingen HDD
Egenskaber	Intel Rapid Storage Technology
Controller for lagring
Type	RAID
Controller-grænsefladetype	SATA 6Gb/s
Antal kanaler	10
RAID-niveau	RAID 0, RAID 1, RAID 10
Optisk lagring
Type	Intet optisk drev
Monitor
Monitortype	Ingen.
Netværk
Ethernet Ports	2 x 10 Gigabit Ethernet
Dataforbindelsesprotokol	Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Protokol til fjernadministration	IPMI 2.0
Egenskaber	Integreret BMC med IPMI, Intel Remote Management Module Support
Ekspansion / Konnektivitet
Båse	4 (total) / 4 (fri) x hot-swap 2,5" / 3,5" delt 2 (total) / 2 (fri) x intern M.2
Holdere	2 (total) / 2 (fri) x PCIe 3.0 x16
Interface	5 x USB 3.0 (2 front, 3 bag) 1 x USB 2.0 - Type A (1 intern) 2 x LAN (10Gigabit Ethernet) - RJ-45 2 x seriel 1 x administration (Gigabit Ethernet) - RJ-45
Diverse
Udstyr inkluderet	Chassis med Quick Reference Label påsat topdække, Intel Server Board S2600WF0R, 2 x PCI-Express (1x16) Riser Card, 4 x 3,5" hot-swap drevbåse, standard kontrolpanelsamling, front I/O panelsamling, luftkanal, 6 x systemblæsere, 2 x CPU Heatsink, 2 x CPU kølelegem "NO CPU" mærkatindstik, 2 x standard CPU-bærere, 8 x DIMM-åbningsemne, chassisafstiverbarre, strømforsyningsbås blank indstik
Medfølgende ledninger	I2C-kabel Mini SAS HD-kabel
Effekt
Enhedstype	Strømforsyning - hot-plug
Overskudsspænding	Valgfri
Skema til overskudsspænding	1+1 (med valgfrit netaggregat)
Antal installeret	1
Maks. antal understøttet	2
Strømforsyning	1300 watt
80 PLUS certificering	80 PLUS Titanium
Producentgaranti
Service & Support	Begrænset garanti - 3 år
Mål og vægt
Bredde	43 cm
Dybde	71 cm
Højde	4.37 cm
Mål & vægt (forsendelse)
Bredde ved forsendelse	57.7 cm
Dybde ved forsendelse	98.3 cm
Højde ved forsendelse	25.9 cm
