Socket Mobile S720, Handheld bar code reader, 1D/2D, Linear, Codabar, Code 11, Code 128, Code 39, Code 93, Discrete 2 of 5, EAN-13, EAN-8, GS1 DataBar,..., Aztec Code, Data Matrix, Han Xin, Micro QR Code, MicroPDF417, PDF417, QR Code, 1280 x 960 pixels
Item no.: [10060003] | Manufacturer: Socket Mobile | Model no.: CX4063-3126 | EAN: 0758497122421
Remote stock (4-5 days)
The item is in a remote warehouse, delivery time is 3-4 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
351,65
Incl. VAT 439,56
Total incl. delivery
454,56
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.

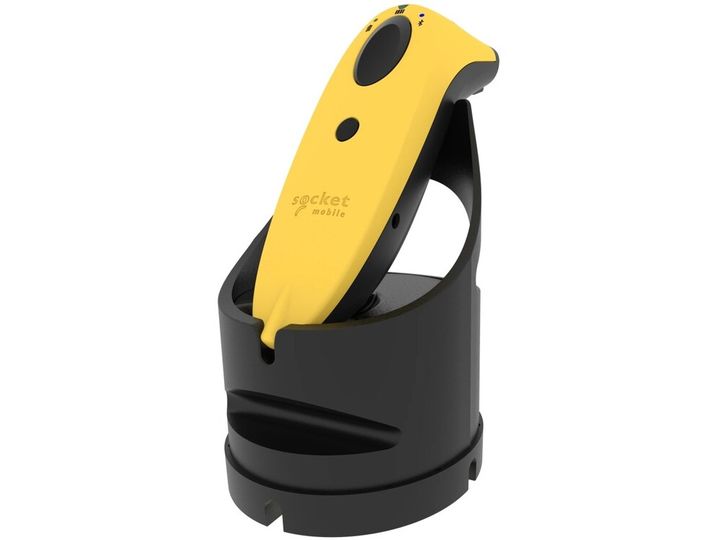

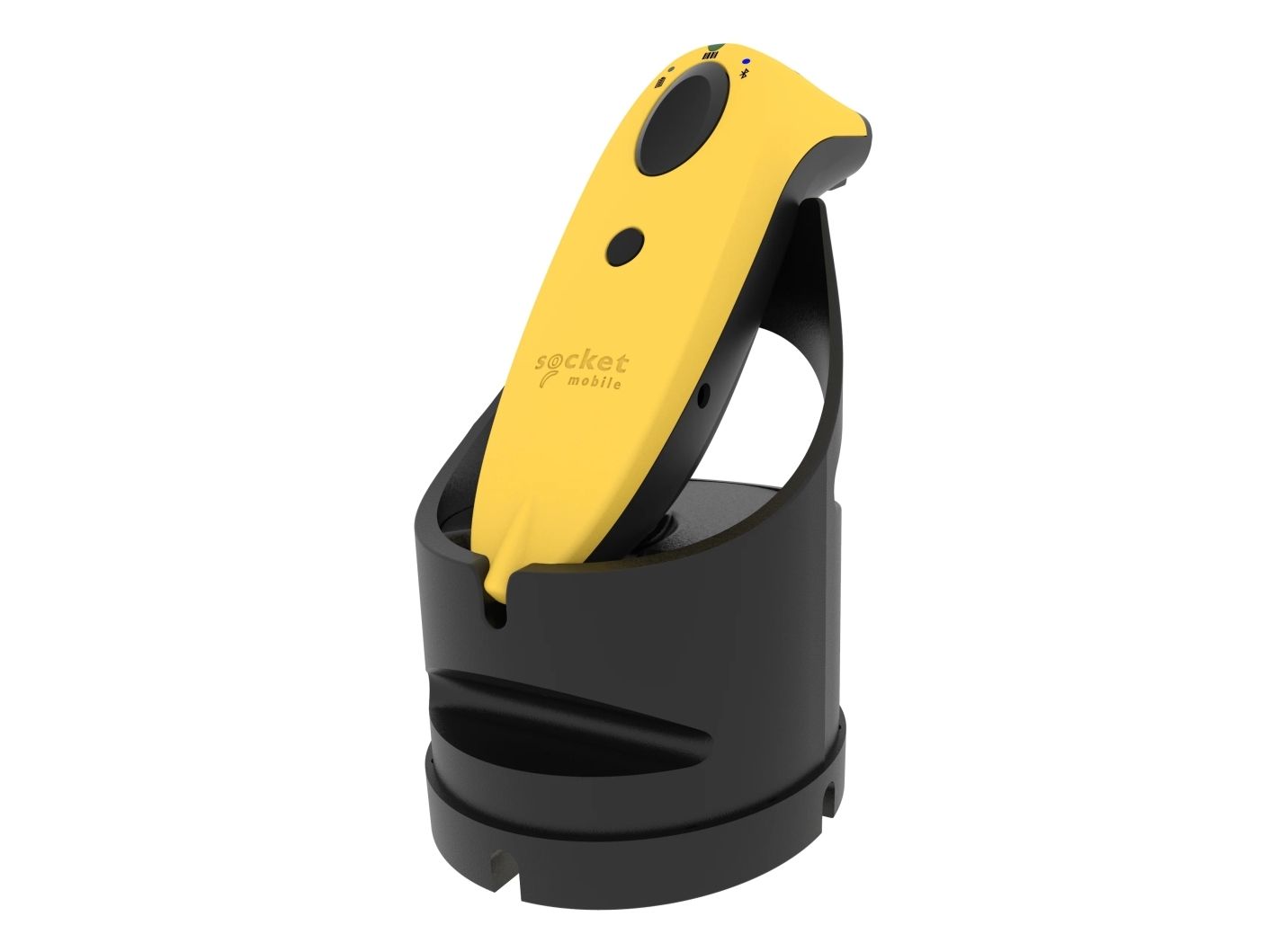

The SocketScan S720 is a Bluetooth Barcode Scanner that reads 1D and 2D barcodes on paper and screen. It’s lightweight, ergonomically designed and comes with long-lasting batteries. Great for everyday general-purpose scanning, the S720 2D barcode reader scans popular 2D barcodes such as PDF417, QR Codes and Data Matrix. It is exceptionally easy to use, with intuitive notifications for battery level, Bluetooth connection, and scanning status.
The S720 is wireless, providing increased mobility and productivity, helping reduce human error. 2D barcodes offer the next step in versatility, functionality, and efficiency that cannot be achieved with linear 1D barcodes. Using 2D barcodes with an effective barcode reader gives your business an accurate and easy way to track inventory and assets, scan products, digital IDs and/or credentials from mobile wallets. Designed for the budget-conscious business, the S720 is a great everyday general-purpose 2D barcode reader that scans the most popularly used 2D barcodes such as PDF417, QR Codes and Data Matrix.
Type
Handheld bar code reader
Scanner type
1D/2D
Sensor type
Linear
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, Discrete 2 of 5, EAN-13, EAN-8, GS1 DataBar, Industrial 2 of 5, Interleaved 2 of 5, MSI, Matrix 2 of 5, Plessey, UPC-A
2D (matrix & stacked) barcodes supported
Aztec Code, Data Matrix, Han Xin, Micro QR Code, MicroPDF417, PDF417, QR Code
Optical sensor resolution (W x H)
1280 x 960 pixels
Working distance
38 cm
Light levels (direct sunlight)
0 - 100000 lx
Connectivity technology
Wireless
Standard interfaces
Bluetooth
Wireless range
10 m
Bluetooth version
2.1+EDR
Product colour
Black
LED indicators
Battery level, Bluetooth, Status
Ambient lighting
Yes
Print contrast
25%
Country of origin
China
Power source type
Battery
Battery technology
Nickel-Metal Hydride (NiMH)
Number of batteries supported
2
Battery capacity
2000 mAh
Battery voltage
2.4 V
Battery life
20 h
Charging time
6 h
Weight
117 g
Width
37.1 mm
Depth
40.1 mm
Height
132.2 mm
Cables included
USB
Charging base
Yes
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
40 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Rechargeable battery
Yes
Warranty period
1 year(s)
Compliance certificates
RoHS
Sustainability compliance
Yes
