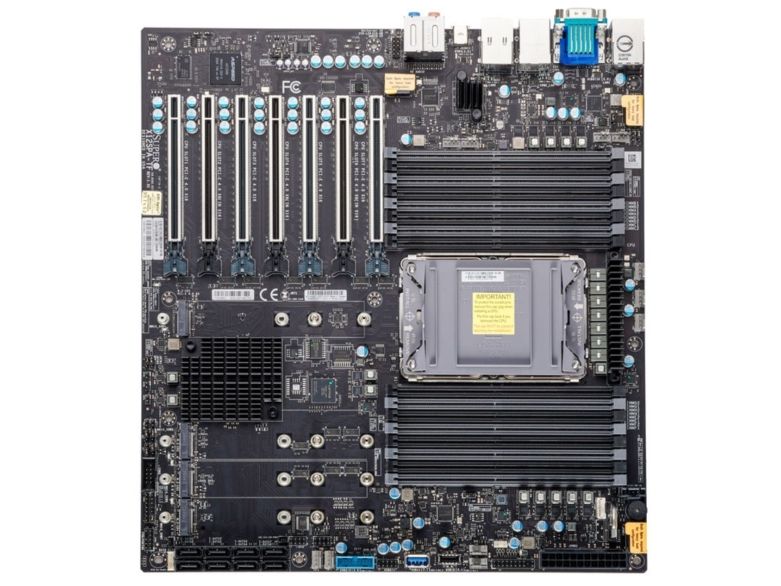

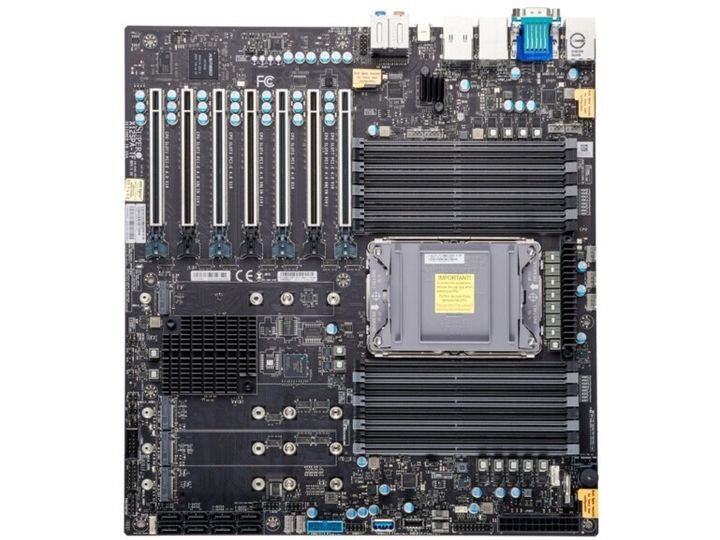

Supermicro X12SPA-TF-B server motherboard Intel C621A LGA4189 E-ATX DDR4
Item no.: [10109307] | Manufacturer: SUPER MICRO Computer | Model no.: MBD-X12SPA-TF-B | EAN: 0672042438396
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
973,41
Incl. VAT 1.216,76
Total incl. delivery
1.231,76
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Supermicro X12SPA-TF-B server motherboard E-ATX LGA4189 Intel C621A up to 4 TB RAM (MBD-X12SPA-TF-B)
Processor manufacturer
Intel
Processor socket
LGA 4189
Compatible processor series
Intel Xeon W
Intel Xeon series
W3300
Supported memory types
DDR4-SDRAM
Number of memory slots
16
Maximum internal memory
4 TB
Memory slots type
DIMM
Memory voltage
1.2 V
ECC ?ompatibility
ECC
Supported memory module capacities
4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Supported storage drive interfaces
SATA III
Number of storage drives supported
8
RAID support
Yes
RAID levels
0, 1, 5, 10
On-board graphics card model
Aspeed AST2500
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of SATA III connectors
8
Number of COM connectors
2
TPM connector
Yes
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
3
VGA (D-Sub) ports quantity
1
HDMI ports quantity
0
DVI-D ports quantity
0
IPMI LAN (RJ-45) port
Yes
COM ports quantity
1
USB connector type
USB Type-A
Ethernet LAN
Yes
LAN controller
Intel® I210-AT
Component for
Server
Motherboard form factor
Extended ATX
Motherboard chipset family
Intel
Motherboard chipset
Intel® C621
Audio chip
Realtek ALC888S
PC health monitoring
Fan, LED, Temperature, Voltage
PCI Express x8 slots
3
PCI Express x16 (Gen 4.x) slots
4
Number of M.2 (M) slots
4
BIOS type
AMI
BIOS memory size
256 Mbit
ACPI version
3.0
System Management BIOS (SMBIOS) version
2.7
Storage temperature (T-T)
0 - 50 °C
Operating temperature (T-T)
20 - 60 °C
Width
330.2 mm
Depth
304.8 mm
