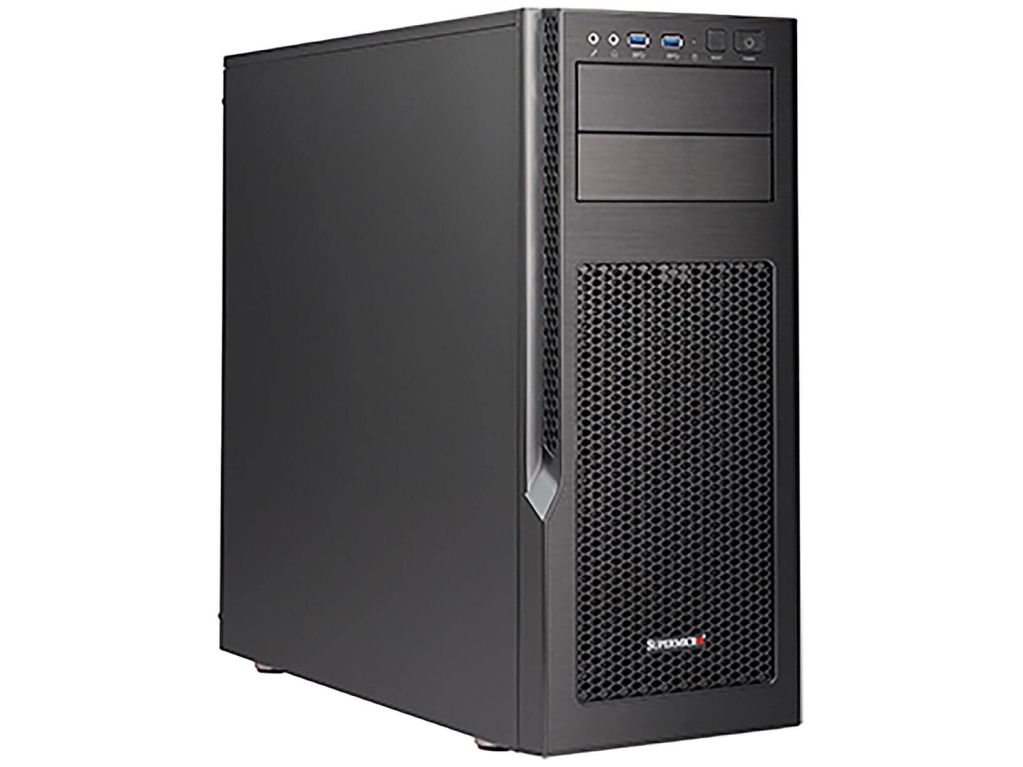

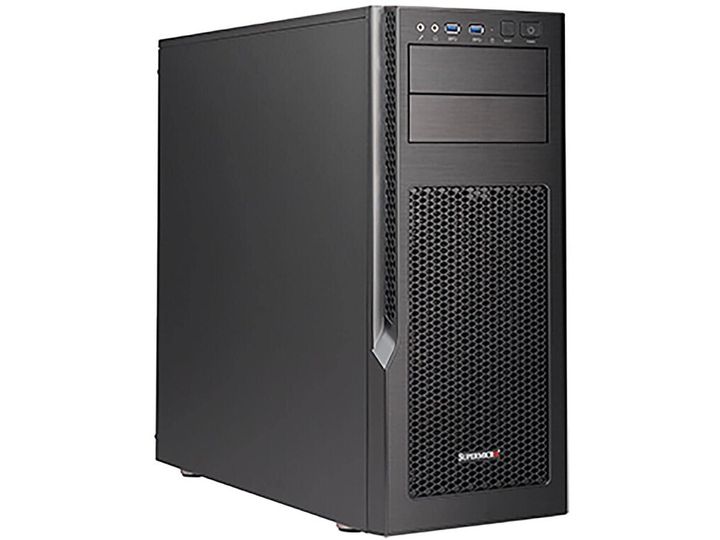

Supermicro SYS-530AD-I, Midi-Tower, Workstation barebone, Intel Z590, LGA 1200 (Socket H5), DDR4-SDRAM, Serial ATA

Item no.: [10109319] | Manufacturer: SUPER MICRO Computer | Model no.: SYS-530AD-I

Remote stock (5-7 days)

The item is in a remote warehouse, delivery time is 5-7 business days. More info

Shipping @price - GLS

12,00

EUR 1.030,71

Incl. VAT 1.288,39

Total incl. delivery 1.303,39

Read further specifications and description

Advanced performance, server-grade reliability, and highly customizable, make SYS-530AD-I an ideal high-end desktop system for both gaming and business environment. Featuring a wide array of high-speed I/Os, the SYS-530AD-I is the perfect choice for content creation, and digital entertainment.

Produktbeskrivelse	Supermicro UP Workstation 530AD-I - mid tower uden CPU - 0 GB - ingen HDD
Type	Arbejdsstation - mid tower
Processor	Uden CPU
Processor-socket	LGA1200 sokkel
RAM	0 GB DDR4 SDRAM - ikke-ECC
Controller for lagring	SATA (SATA 6Gb/s)
Harddisk	Ingen HDD
Optisk lagring	Intet optisk drev
Grafik controller	Uden grafik
Lydudgang	7.1 surroundkanal
Netværk	1GbE, 10GbE
Effekt	(50 - 60 Hz)
Med OS	Intet operativt system
Farve	Sort, grå
Dimensioner (B x D x H)	20 cm x 49.3 cm x 46 cm
Vægt	9 kg
Producentgaranti	Begrænset garanti - reservedele - 1 år Begrænset garanti - arbejde - 3 år

Generelt
Type	Arbejdsstation
Produktmodel	Mid tower
Farve	Sort, grå
Processor / Chipset
CPU	Uden CPU
Maks. antal CPU'er	1
Opgraderbarhed af CPU	Kan opgraderes
CPU Socket	LGA1200 sokkel
Chipsættype	Intel Z590
Motherboardnavn	Supermicro C9Z590-CG
RAM
Installeret størrelse	0 GB
Teknologi	DDR4 SDRAM - ikke-ECC
Model	DIMM 288-PIN
Holdere	4 (Total) / 4 (ubrugt)
Egenskaber	Ikke bufferet
Harddisk
Type	Ingen HDD
Controller for lagring
Type	1 x SATA
Controller-grænsefladetype	SATA 6Gb/s
Antal kanaler	4
Optisk lagring
Type	Intet optisk drev
Monitor
Monitortype	Ingen.
Grafik controller
Grafik-processor	Uden grafik
Lydudgang
Lydudgangsmodus	7.1 surroundkanal
Overensstemmelsesstandarder	High Definition Audio
Netværk
Ethernet Ports	1 x 10 Gigabit Ethernet, 1 x Gigabit Ethernet
Ethernet Controller	Intel I219-V, Marvell AQC113C
Dataforbindelsesprotokol	Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Ekspansion / Konnektivitet
Båse	2 (total) / 2 (fri) x ekstern 5.25" 6 (total) / 6 (fri) x intern 3.5"
Holdere	3 (total) / 3 (fri) x M.2 Card 1 (total) / 1 (fri) x PCIe 3.0 x1 2 (total) / 2 (fri) x PCIe 4.0 x16 (x0/x16, x8/x8 tilstande) 1 (total) / 1 (fri) x PCIe 3.0
Interface	1 x LAN (Gigabit Ethernet) 1 x LAN (10Gigabit Ethernet) 1 x audio linje-ind 1 x audio linje-ud (bagtil) 1 x audio linje-ud (center/subwoofer) 1 x TOSLINK 1 x audio linje-ud 1 x hovedtelefoner (1 foran) 2 x mikrofon (1 front, 1 bag) 1 x DisplayPort 1 x HDMI 2 x USB-C 3.2 Gen 2x2 4 x USB 2.0 2 x USB 3.2 Gen 2 2 x USB 3.2 Gen 1 (2 foran)
Effekt
Enhedstype	Strømforsyning
Nødvendig spænding	AC 100-240 V (50 - 60 Hz)
Strømforsyning	750 Watt
80 PLUS certificering	80 PLUS Gold
Operativsystem / Programmer
Med OS	Intet operativt system
Producentgaranti
Service & Support	Begrænset garanti - reservedele - 1 år Begrænset garanti - arbejde - 3 år
Mål og vægt
Bredde	20 cm
Dybde	49.3 cm
Højde	46 cm
Vægt	9 kg
Mål & vægt (forsendelse)
Bredde ved forsendelse	36.1 cm
Dybde ved forsendelse	61 cm
Højde ved forsendelse	63.2 cm
Vægt ved forsendelse	11.8 kg
Miljømæssige parametre
Min. driftstemperatur	10 °C
Maks. driftstemperatur	35 °C
Fugtighedsgrad ved brug	8 - 90 % (ikke-kondenserende)
