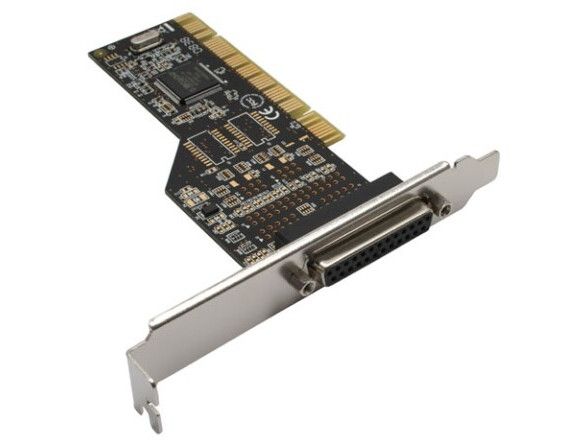

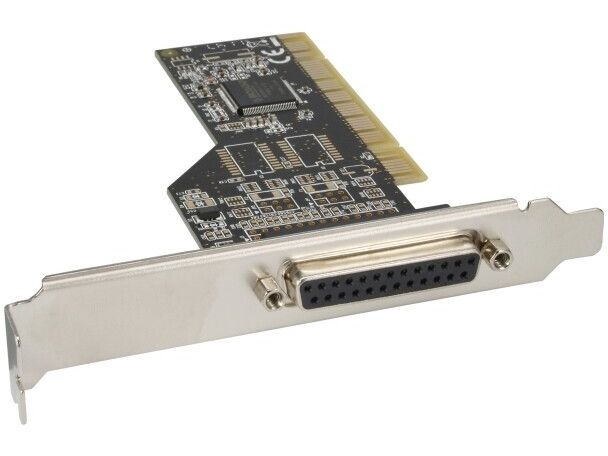

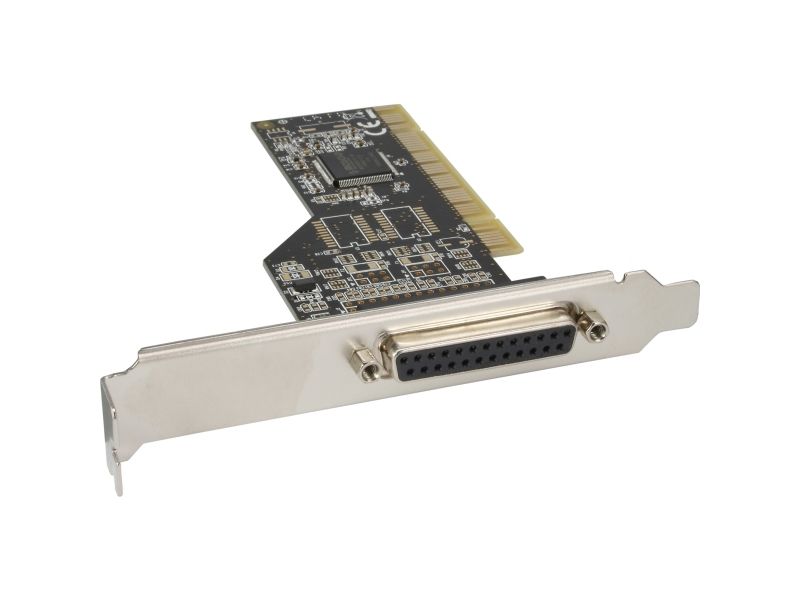

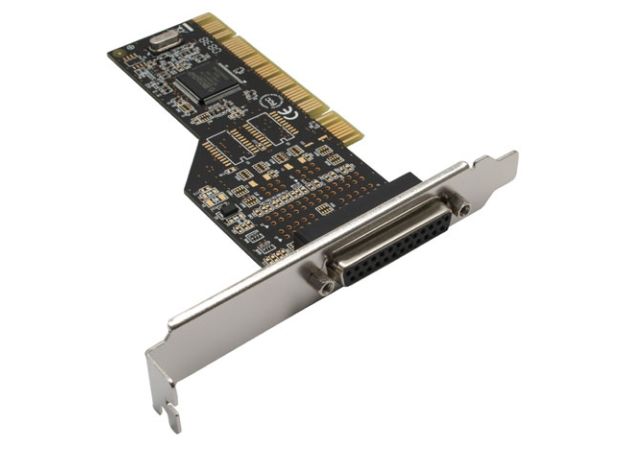

InLine PCI Multi I/O Controller Card 1 Parallel Port 25 Pin, PCI, MCS9865, 1.28 mm, 55 g, 170 mm, 165 mm
Item no.: [1014895] | Manufacturer: Inline | Model no.: 66630I | EAN: 4043718122615
Remote stock (14-21 days)
The item is in a remote warehouse, delivery time is 14-21 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
16,80
Incl. VAT 21,00
Total incl. delivery
36,00
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Send på mail
Retrofit a parallel interface via PCI for existing devices
Easily add a parallel port:If an LPT port is missing, the PCI card provides an IEEE1284 port.
Multiple modes for different devices:Supports SPP, PS2, EPP and ECP 1.9.
Fast data transfer:Up to 1.5 MB/s for printers and automation.
Resource-efficient integration:PCI IRQ sharing and power management simplify operation.
The card adds a full-featured parallel LPT port according to IEEE1284 to desktop PCs. This allows you to continue integrating parallel-connected peripherals such as printers or automation devices. Automatic selection of IRQ and I/O address simplifies setup, while a 256 byte FIFO and data rates up to 1.5 MB/s deliver reliable, smooth data transfer.
In professional IT environments and existing infrastructures, the card enables seamless continued use of proven devices, for example in on-site installations and service deployments in companies and public institutions.
Port:1x LPT (parallel), IEEE1284
Bus:PCI
Specification:PCI Local Bus 2.3
Modes:SPP, PS2, EPP, ECP 1.9
Data rate:up to 1.5 MB/s
FIFO:256 bytes
Chipset:MCS9865
Functions:PCI power management, PCI IRQ sharing
Resource allocation:automatic (IRQ and I/O address)
Multi-card operation:multiple cards per PC
Operating systems:DOS 6.22; Windows 2000/XP 32/64-bit/Server 2003 32/64-bit/Vista 32/64-bit/Server 2008 32/64-bit; Linux kernel 2.6.14 or higher
Easily add a parallel port:If an LPT port is missing, the PCI card provides an IEEE1284 port.
Multiple modes for different devices:Supports SPP, PS2, EPP and ECP 1.9.
Fast data transfer:Up to 1.5 MB/s for printers and automation.
Resource-efficient integration:PCI IRQ sharing and power management simplify operation.
The card adds a full-featured parallel LPT port according to IEEE1284 to desktop PCs. This allows you to continue integrating parallel-connected peripherals such as printers or automation devices. Automatic selection of IRQ and I/O address simplifies setup, while a 256 byte FIFO and data rates up to 1.5 MB/s deliver reliable, smooth data transfer.
In professional IT environments and existing infrastructures, the card enables seamless continued use of proven devices, for example in on-site installations and service deployments in companies and public institutions.
Port:1x LPT (parallel), IEEE1284
Bus:PCI
Specification:PCI Local Bus 2.3
Modes:SPP, PS2, EPP, ECP 1.9
Data rate:up to 1.5 MB/s
FIFO:256 bytes
Chipset:MCS9865
Functions:PCI power management, PCI IRQ sharing
Resource allocation:automatic (IRQ and I/O address)
Multi-card operation:multiple cards per PC
Operating systems:DOS 6.22; Windows 2000/XP 32/64-bit/Server 2003 32/64-bit/Vista 32/64-bit/Server 2008 32/64-bit; Linux kernel 2.6.14 or higher
