5+1+1 Power Phase Design Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
High Speed M.2 Solution(PCIe Gen4 x4) Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
M.2 (KEY E) For WiFi Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

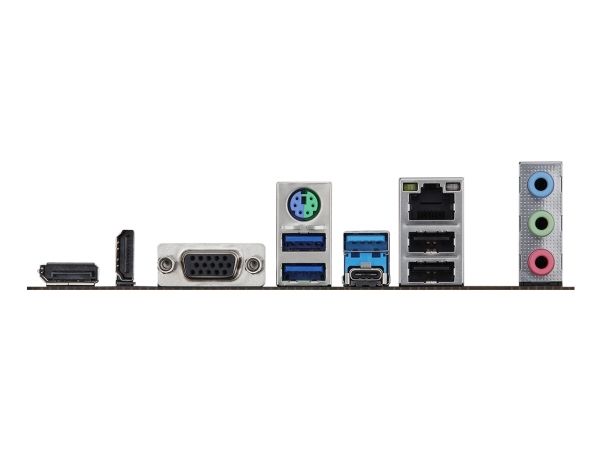

3 Graphics Outputs Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
Auto Driver Installer No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
2 DIMM slots - DDR4, ikke-ECC, ECC (drift i ikke-ECC tilstand), ikke bufferet
Lagringsporte
4 x SATA-600 (RAID), 1 x Hyper M.2, 1 x Ultra M.2
USB / FireWire porte
1 x USB-C 3.2 Gen 1 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 3 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
Gigabit Ethernet
Generelt
Produkttype
Bundkort - micro ATX
Chipsættype
Intel B760
Processor-socket
LGA1700 sokkel
Max antal processorer
1
Kompatible processorer
(understøtter 12. og 13. Generation Intel Core)
Understøttet RAM
Maks. størrelse
64 GB
Teknologi
DDR4
Bus Clock
5333 MHz (O.C.)
Understøttet RAM-integritetskon
Ikke-ECC, ECC (drift i ikke-ECC tilstand)
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur, understøttede ECC-moduler fungerer i ikke-ECC-tilstand, Intel Extreme Memory Profiles (XMP) 2.0
Audio
Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC887/ALC897
Overensstemmelsesstandarder
High Definition Audio
LAN
Netværk controller
Realtek RTL8111H
Netværks interfaces
Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger
1 x CPU 2 x DIMM 288-pins 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 1 x M.2 socket (2230 M.2 Key E-åbning) 2 x M.2 socket (2260/2280 M.2 Key M-åbning)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -stikforbindelser: 1 x M.2 SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2
Interface
1 x PS/2-tastatur/mus 1 x VGA 1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen 1 3 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (Gigabit Ethernet) 1 x mikrofon - mini-jack 1 x audio linje-ind - mini-jack 1 x audio linje-ud - mini-jack
Interne interfaces
2 x USB 3.2 Gen 1 - intern stik 3 x USB 2.0 - intern stik 1 x SPI - intern stik 1 x højttaler - intern stik 1 x audio - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
UEFI BIOS
Hardware egenskaber
5+1+1 Phase Power Design, ASRock Auto Driver Installer, Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT), ESD Protection, ASRock Easy RAID Installer, ASRock EZ Mode, ASRock Full HD UEFI, ASRock Instant Flash, ASRock My Favorites in UEFI
