Fischer 500725, Pipe clamp, Zinc steel, 10 pc(s)

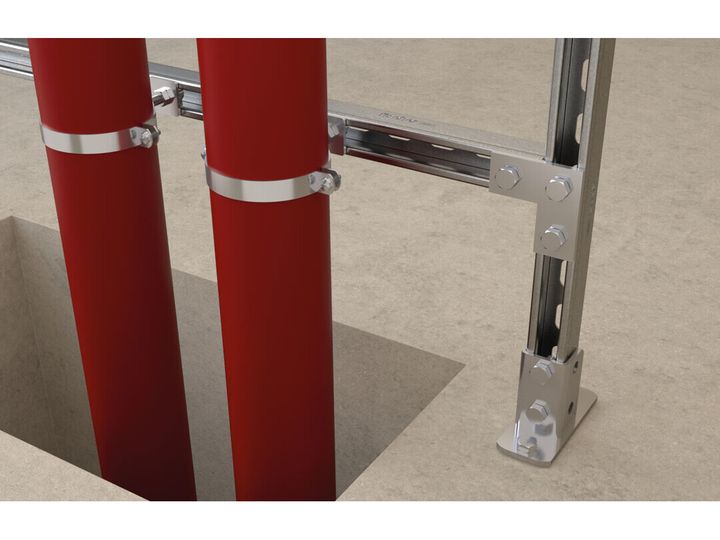

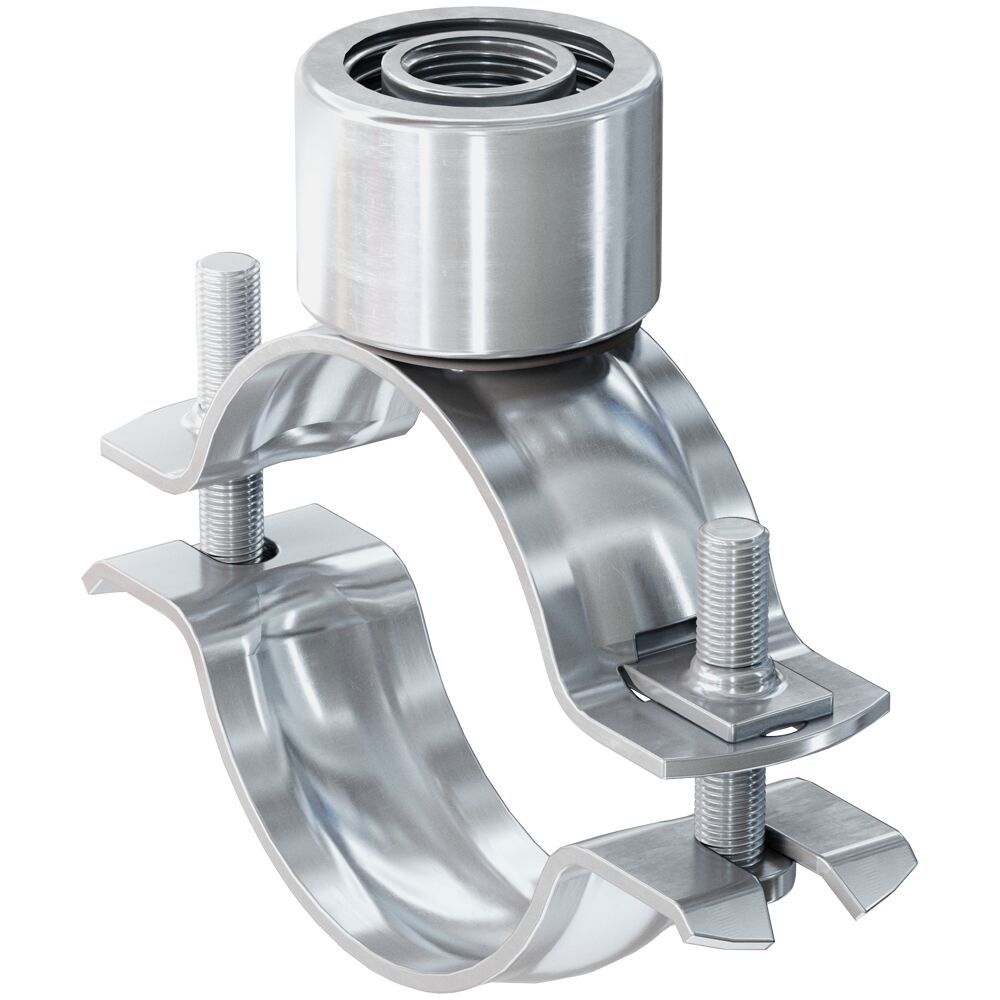

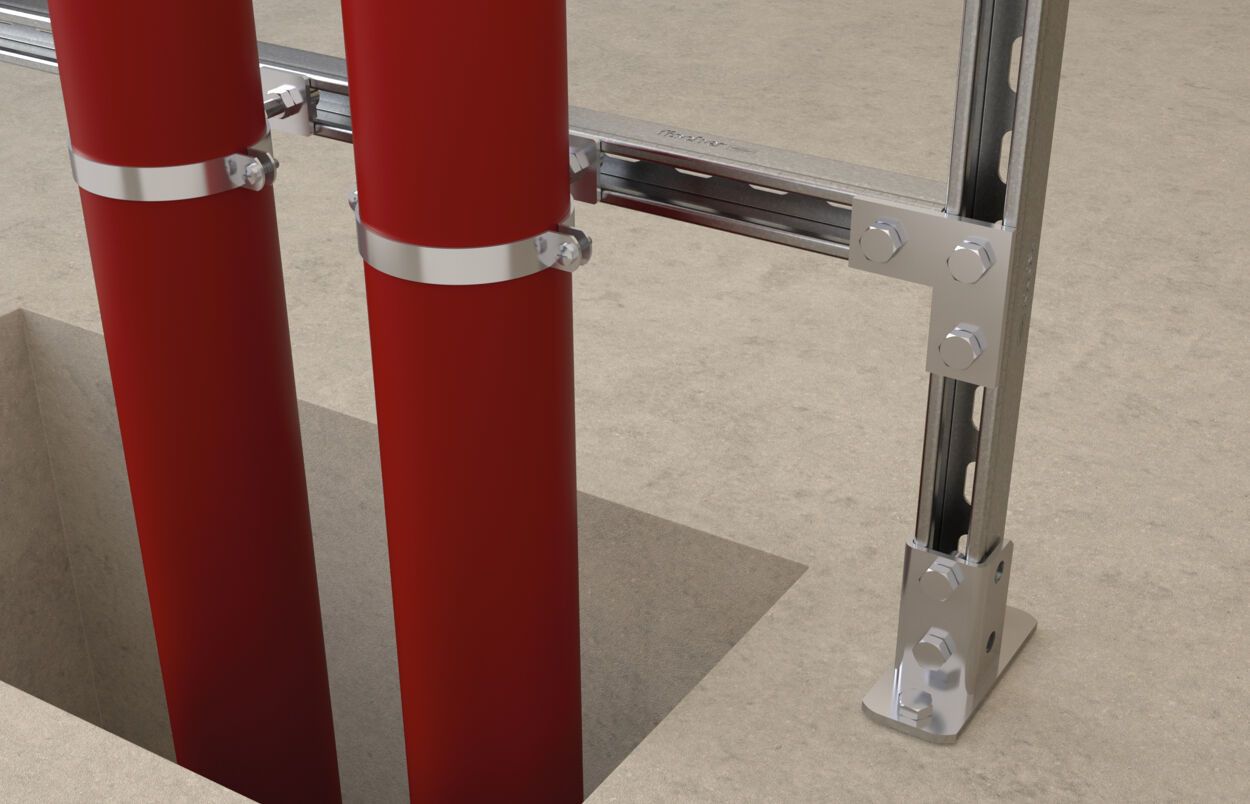

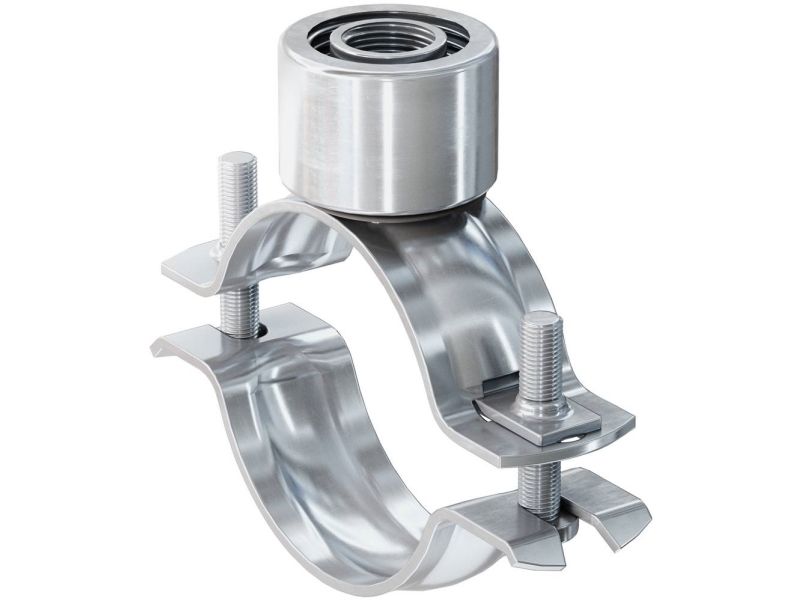

The fischer pipe clamp FRSN Triple is a two-screw pipe clamp made from zinc-plated steel in material quality DD11 with a triple M8/M10 and ½" thread without a sound insulation insert. The rapid-locking mechanism allows for a quick and easy installation. The two-screw version guarantees optimised adjustment in line with the outer diameter of the pipe. Together with the triple connecting thread, this increases flexibility. This enables pipelines with an outer diameter of 15 to 114 mm to be securely and cost-effectively fixed in buildings with a threaded rod or stud screw.

Advantages
- The connecting nut with combination thread M8 / M10 / 1/2” allows for optimised mounting positioning.
- The rapid-locking mechanism allows for fast and time-saving installation.
- The two screws allow for ideal adaptation to suit the outer pipe diameter.

Properties
- Material: steel DD11 (material no. 1.0332) acc. to DIN EN 10111
- Zinc plating: electro zinc plated
- Connecting nut: resistance welded, M8 / M10 / 1/2"
- Locking screw: flat head screw with combination recessed head
