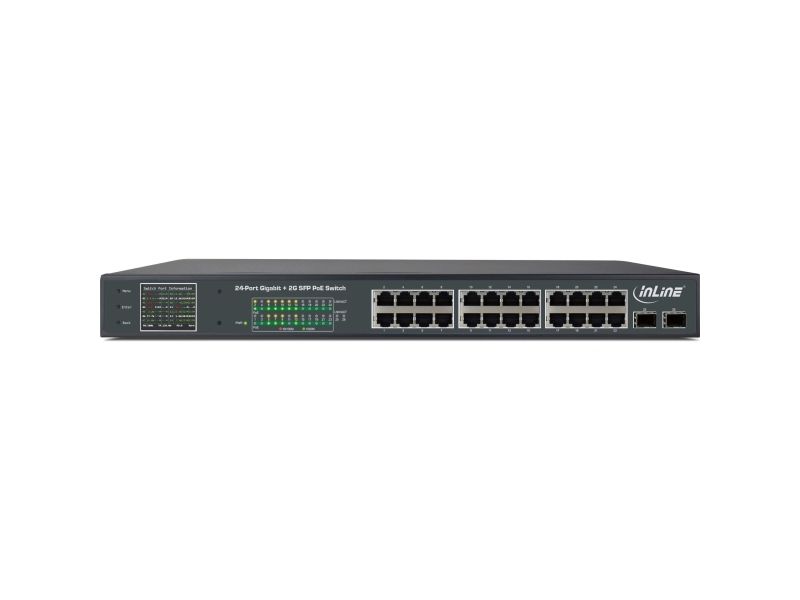

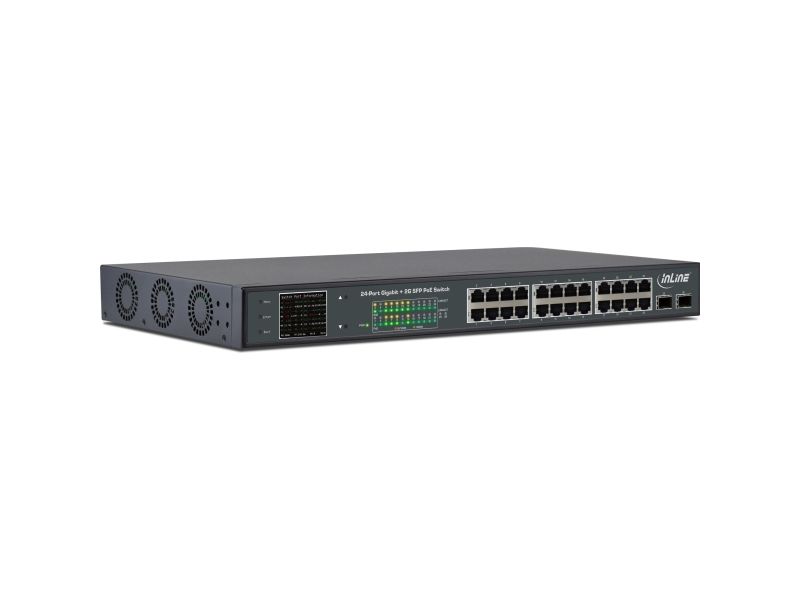

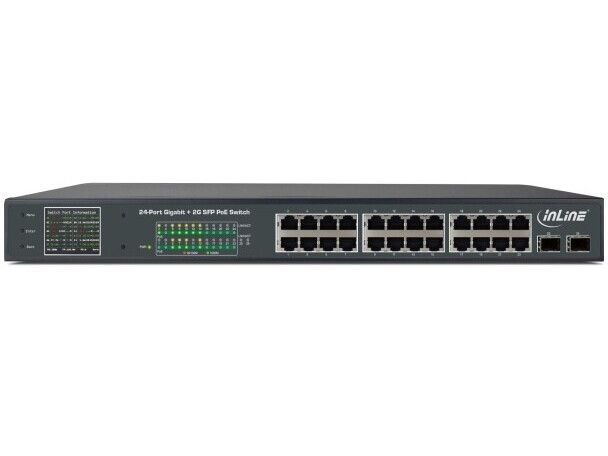

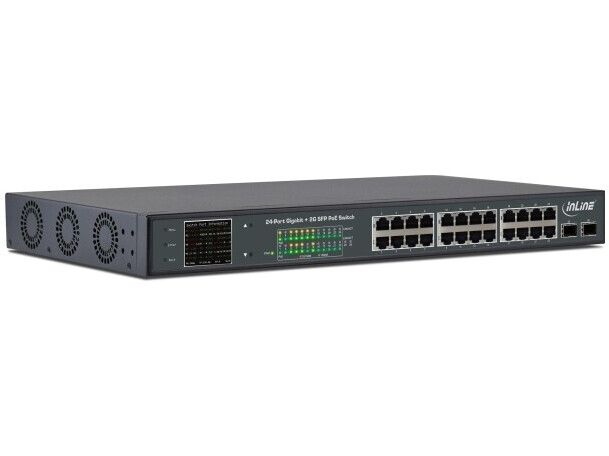

InLine PoE+ Gigabit Network Switch 24 port,1 Gb/s, 2xSFP,19"1U (incl. brackets), Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting, 1U
Item no.: [10199561] | Manufacturer: Inline | Model no.: 32324P | EAN: 4043718277810
Remote stock (14-21 days)
The item is in a remote warehouse, delivery time is 14-21 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
373,80
Incl. VAT 467,25
Total incl. delivery
482,25
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail

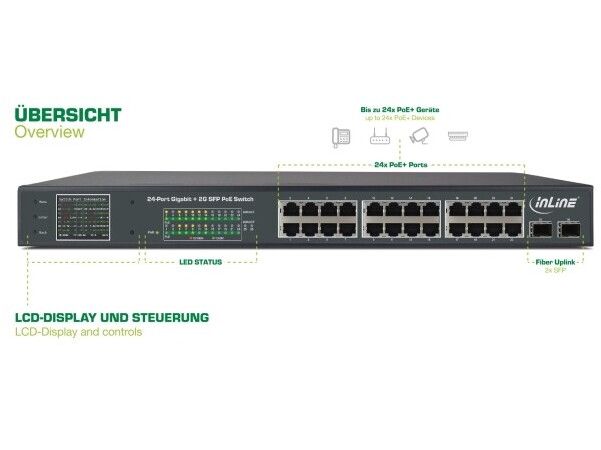

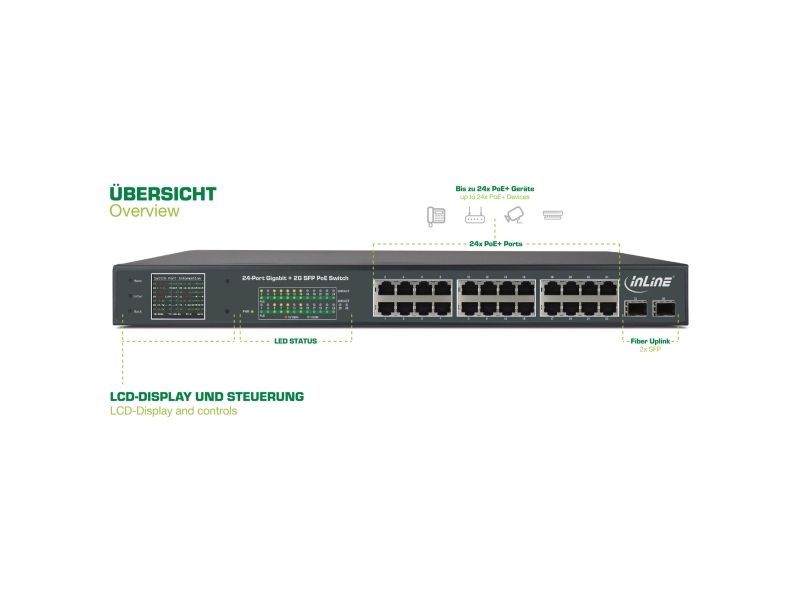

PoE+ switch with 24 ports and LC display for efficient network power supply
Comprehensive PoE power supply:Up to 32 W per port according to IEEE 802.3af/at, PoE budget 380 W for up to 24 end devices.
Direct control on the LC display:Per-port status in real time and settings for mode, prioritization and port power.
Gigabit uplinks via fiber:2x SFP reliably connect remote segments.
High packet performance under load:52 G switching capacity, 38.69 Mpps and jumbo frames 9216 bytes.
More safety in operation:Protection against overload, overvoltage and overheating per port, surge protection ± 6 kV.
With this PoE+ Gigabit switch you expand your network with reliable power over Ethernet while creating flexible uplink options. You operate IP cameras, wireless access points and other PDs directly via the network cable and reduce additional cabling and outlet requirements. A PoE budget of 380 W and up to 32 W per port provides reliable power, while two SFP slots enable Gigabit connections over longer distances.
In professional IT environments and on-site installations, the LC display accelerates setup and monitoring. Mounting in a 19 inch rack (1 U, mounting brackets included) fits ideally into existing infrastructures of companies and public institutions as well as in service deployments; selectable modes such as Normal, VLAN and CCTV support port isolation, prioritized power and distances up to 250 m at 10 Mb/s.
Ports:24x 10/100/1000Base-T RJ45 (Auto-MDI/MDI-X), 2x SFP 1000 Mb/s
PoE:IEEE 802.3af/at, ports 1-24, up to 32 W per port, budget 380 W
Total power:420 W
Display:LC display (PoE operating status), LEDs: PWR, LNK/ACT PoE
Switching capacity:52 G
Forwarding rate:38.69 Mpps
Jumbo frame:9216 bytes
Packet buffer:4.1 Mbit
MAC table:8 K, automatic learning, automatic updates
Forwarding method:store-and-forward
Operating modes:Normal, VLAN (port isolation with uplink communication), CCTV (up to 250 m at 10 Mb/s)
PD features:type selection (Advanced/Standard/Legacy), reboot per port
PSE features:power allocation, port prioritization (high/medium/low), port power 8-32 W in 2 W steps, port on/off
Fan control:always on, 20 % PB, 40 % PB
Standards:IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Network cables:10BASE-T UTP category 3/4/5 (<= 100 m); 100BASE-TX UTP category 5/Cat.5e (<= 100 m); 1000BASE-T UTP category 5/Cat.5e (<= 100 m); 1000BASE-SX MMF/SMF

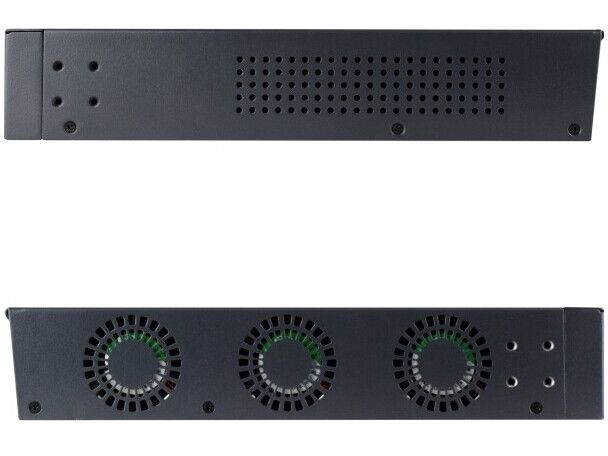

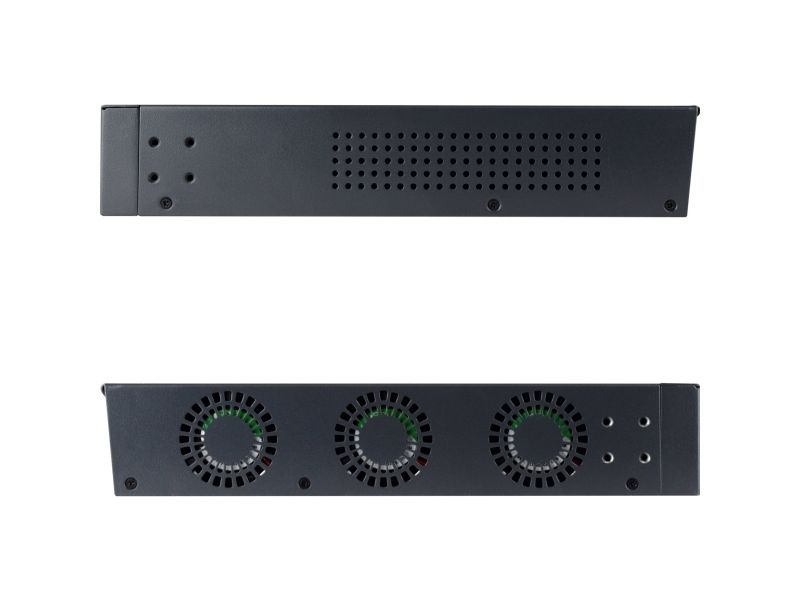

Number of fans:3
Dimensions:440 x 232 x 45 mm
Weight:approx. 3.7 kg

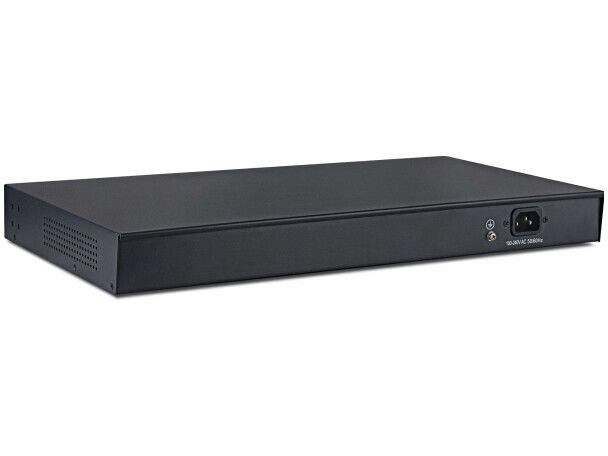

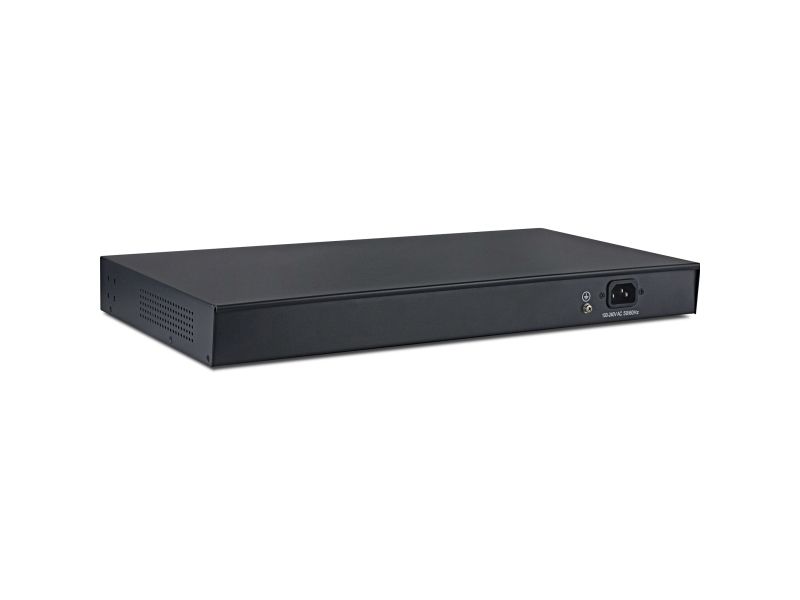

Power supply:100-240 V AC, 50/60 Hz
Environment:operation -10-60 °C; storage -40-70 °C; humidity operation 10-90 % non-condensing; storage 5-90 % non-condensing
Surge protection:± 6 kV
