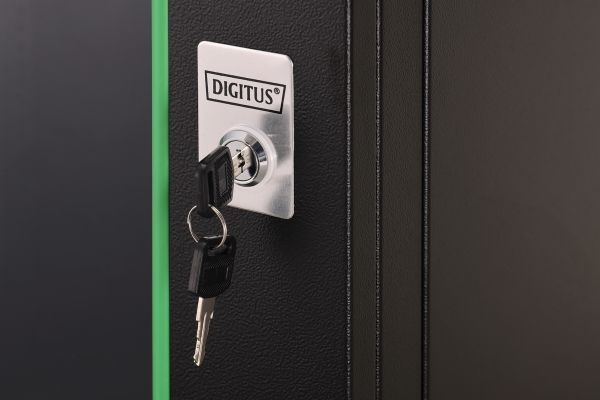

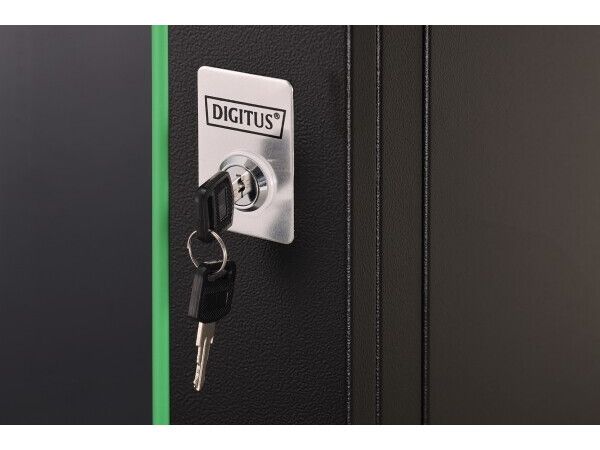

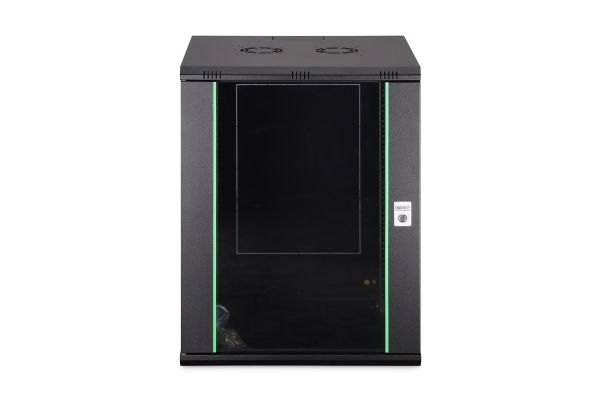

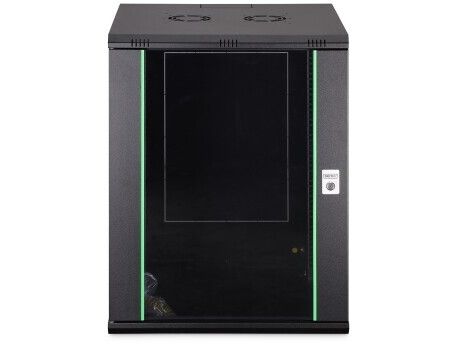

- Optimum ventilation and air extraction - Lockable glass door guarantees security - 483 mm (19") profile rails mounted at the front and rear inside the enclosure, galvanized

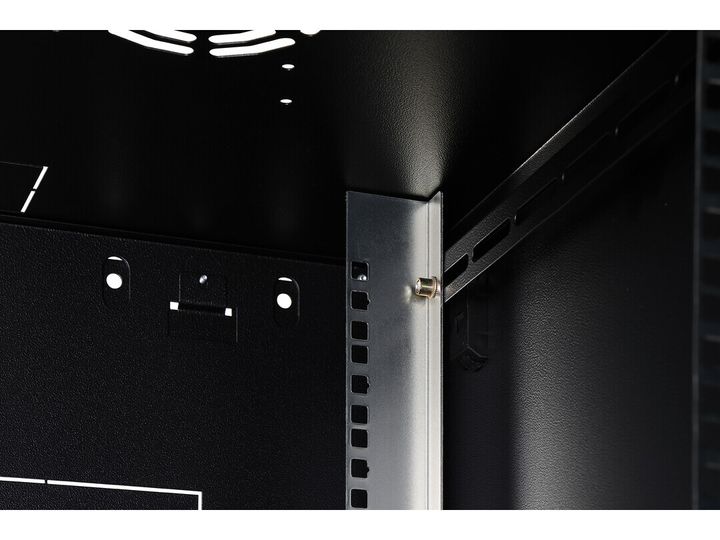

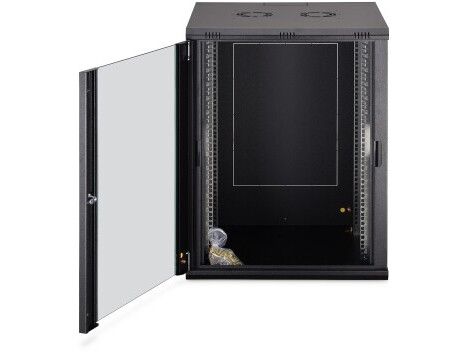

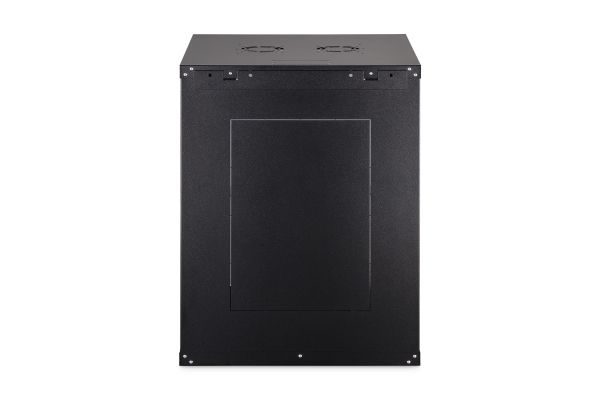

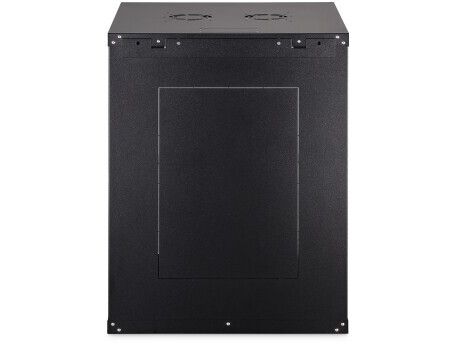

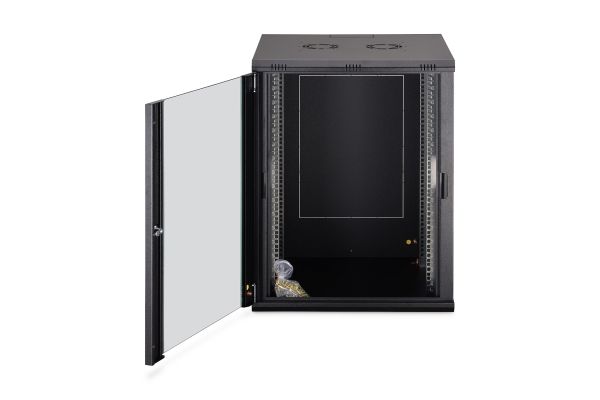

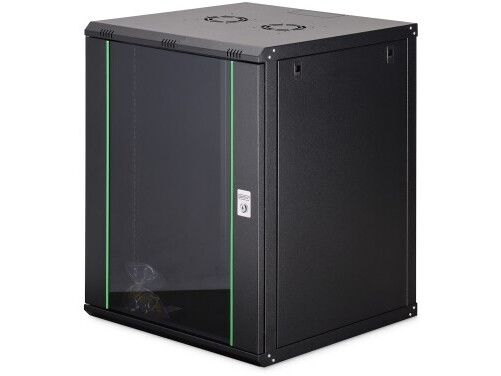

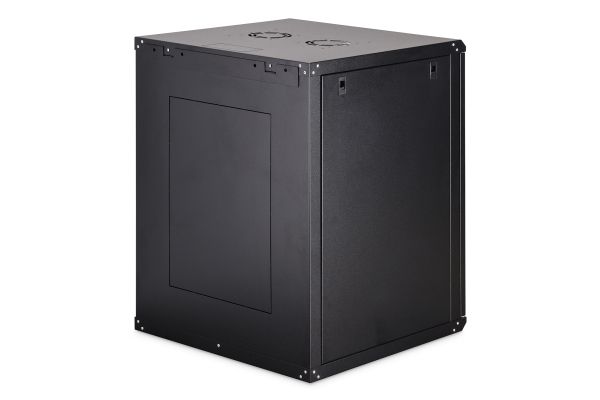

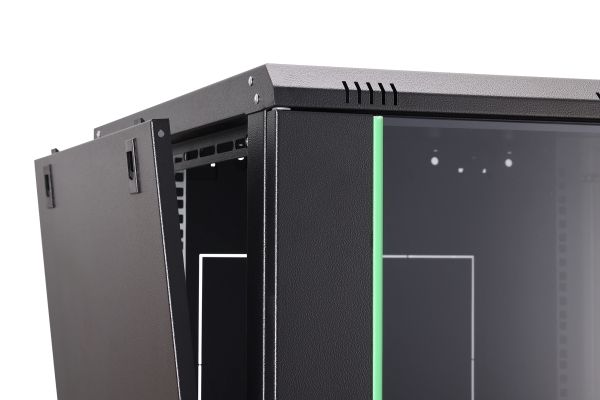

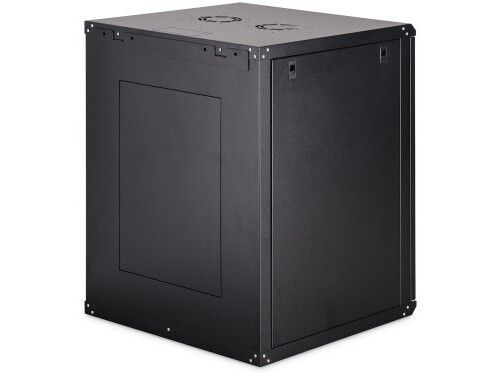

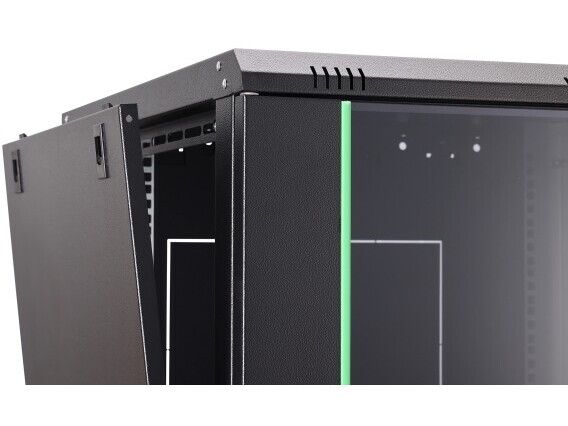

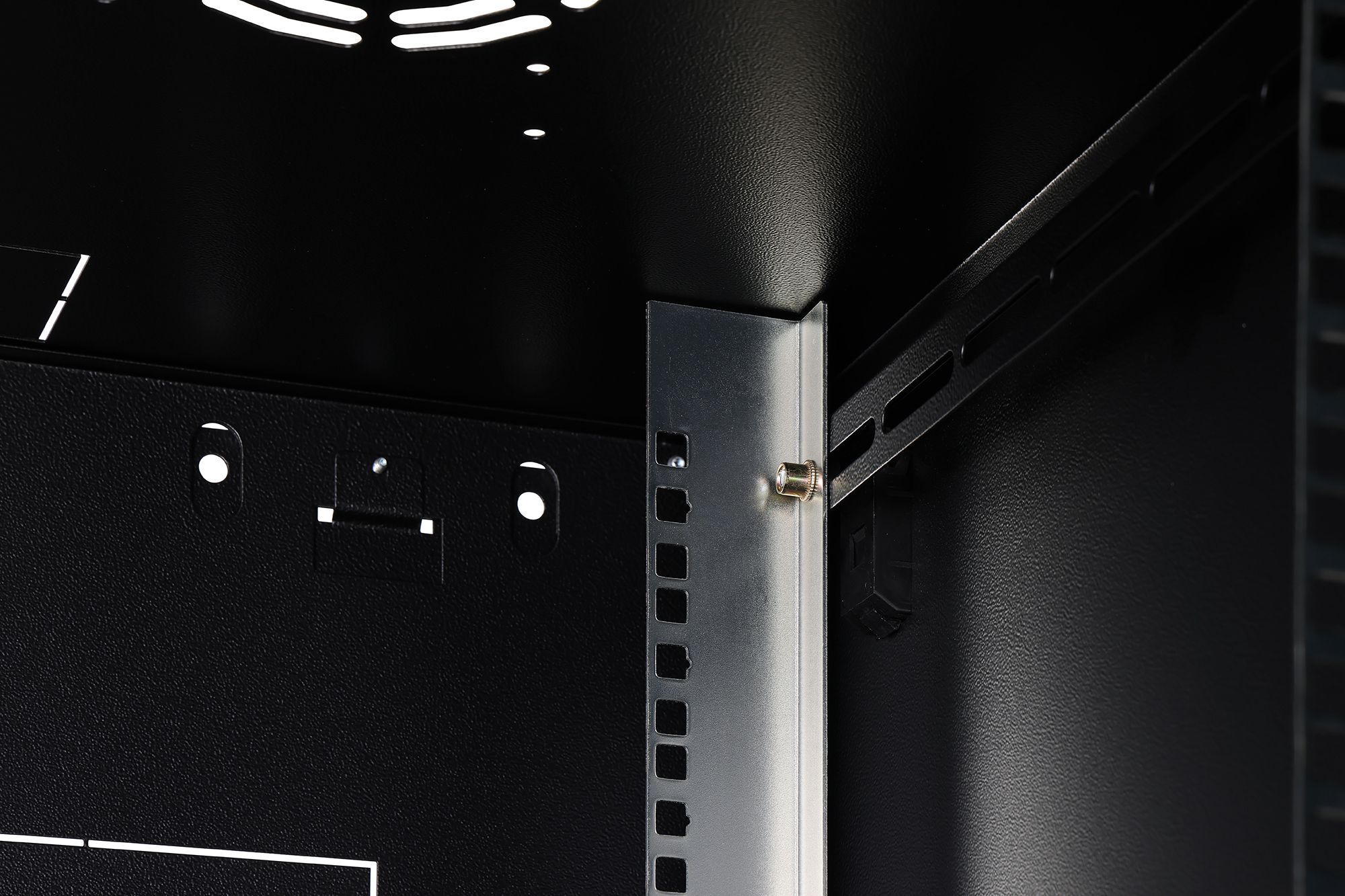

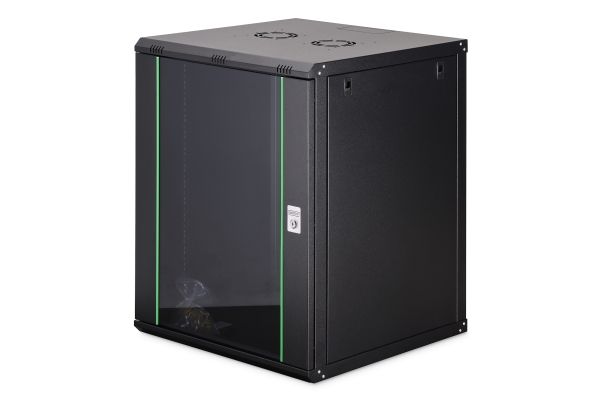

The Dynamic series wall-mounted network cabinets have been developed for simple and particularly cost-optimized network expansion. The roof, base and rear panel of each cabinet are equipped with a pre-punched cable inlet. The roof chassis is also provided with a punched-out area to accommodate a fan module. Two pairs of galvanized 483 mm (19") profile rails, labelled with height units that can be read in both directions, are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.2 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Removable side panels and the lockable and removable front door improve accessibility. The door hinges can be changed. Wall mounting is carried out in two simple steps: The supplied mounting plate is screwed to the wall and then connected to the housing.

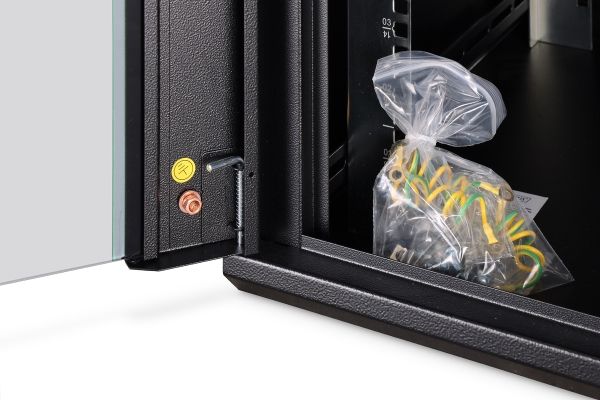

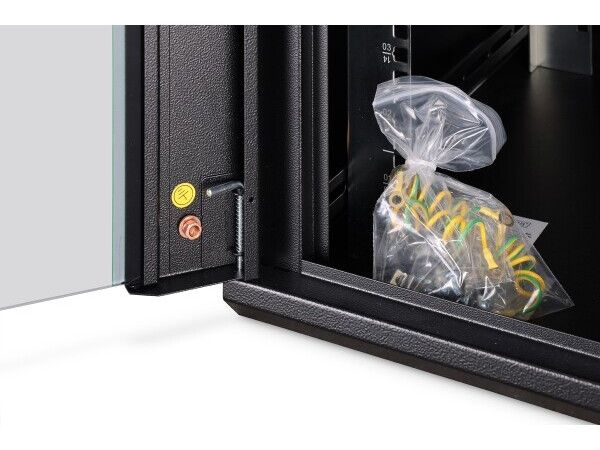

Låsbar frontdør, blæsermontering, kabelindgang bagtil, "L"-formede skinner, topkabelindgang, fordør af glas, justerbare front- og bagskinner, 210° åbningsvinkel, passiv ventlering, 4 jordepunkter (base, sidepanel og frontdør) med beskyttelseshætte, galvaniserede skinner, 1 punkt-låsemekanisme
Generelt
Produkttype
Rack
Stativtype
Kabinet
Placering/Montering
Vægmonterbar
Produktmateriale
Stål
Rackstørrelse
19"
Højde (rackenheder)
12U
Bredde
60 cm
Dybde
60 cm
Højde
63.8 cm
Vægt
29 kg
Forsendelsesdimensioner (VxDxH)/vægt
66 cm x 66 cm x 69.5 cm / 30.5 kg
Farve
Sort, RAL 9005
Finish
Pulverbelægning
Diverse
Vægtbegrænsning
60 kg
Egenskaber
Låsbar frontdør, blæsermontering, kabelindgang bagtil, "L"-formede skinner, topkabelindgang, fordør af glas, justerbare front- og bagskinner, 210° åbningsvinkel, passiv ventlering, 4 jordepunkter (base, sidepanel og frontdør) med beskyttelseshætte, galvaniserede skinner, 1 punkt-låsemekanisme
Overensstemmelsesstandarder
IP20
