Designed for 80 PLUS Platinum level of efficiency to reduce wasted heat and save on electricity.

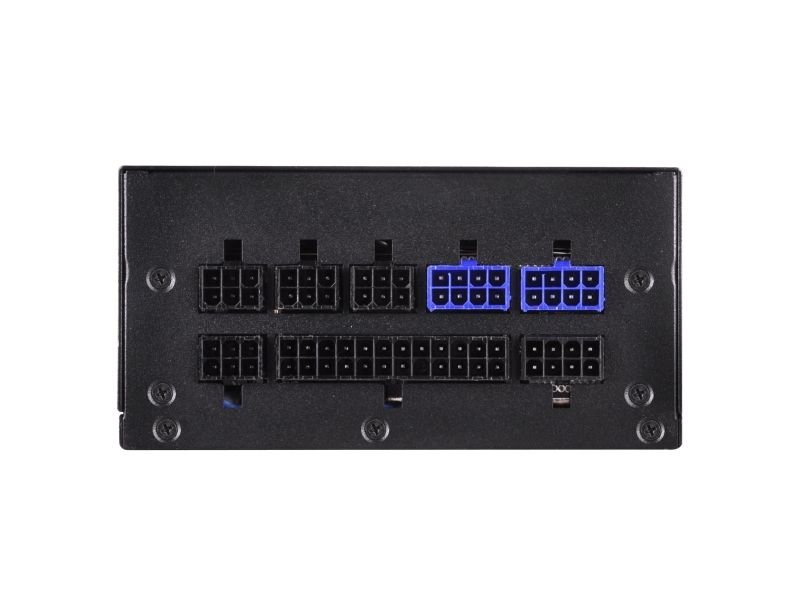

100% moudlar cable design for easy removal in a case with cable routed and tied down.
Flat cables have much greater flexibility to allow for tighter folding and management of cables.
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.
±3% regulation and low ripple & noise performance for high stability.

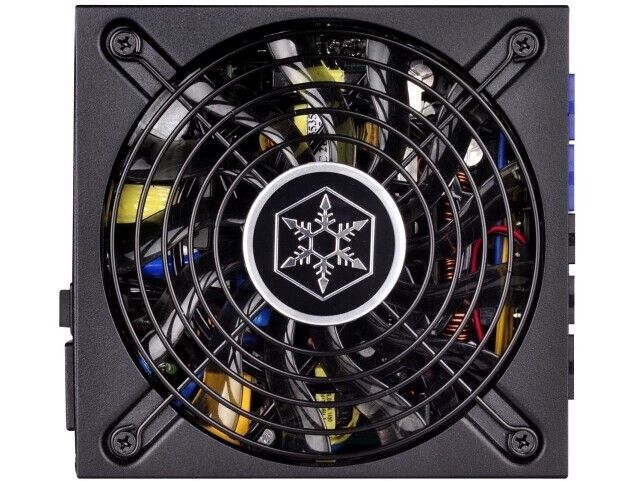

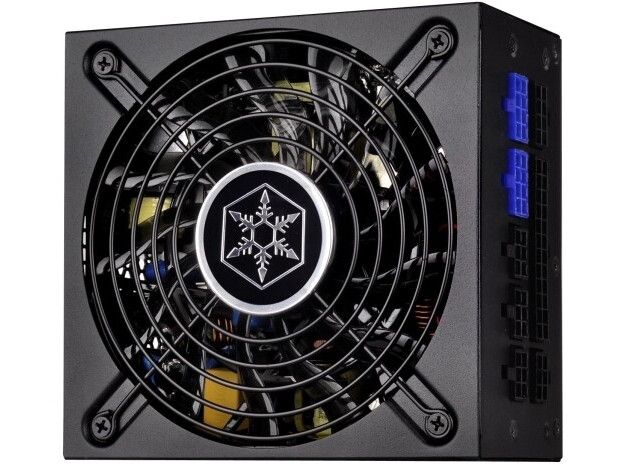

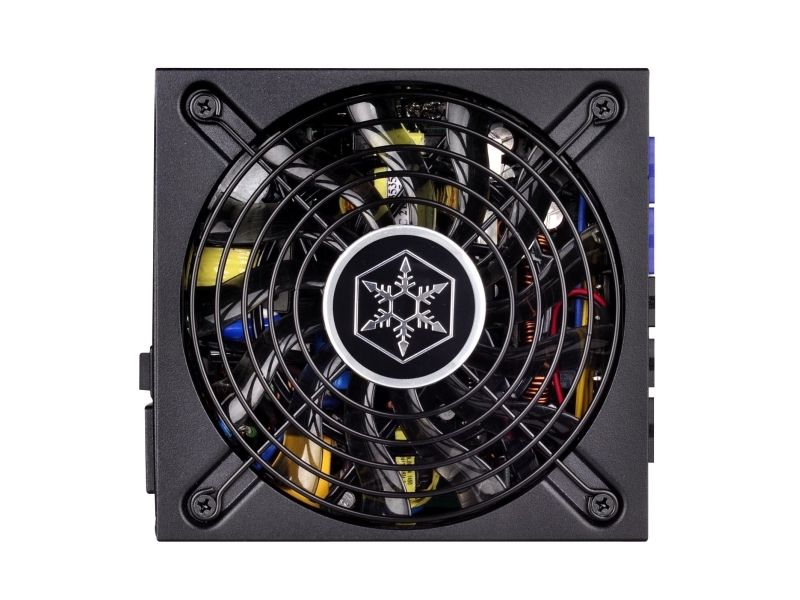

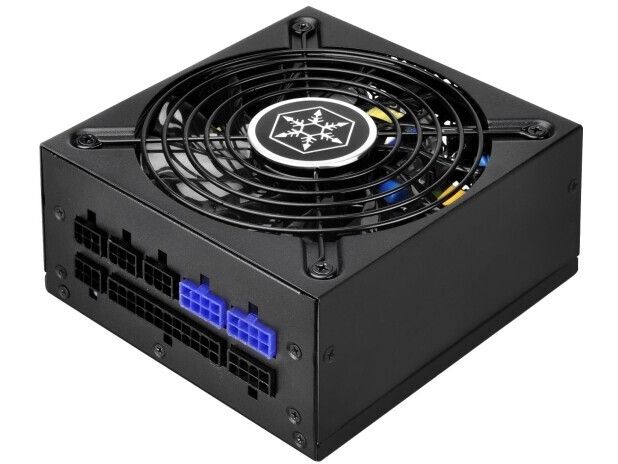

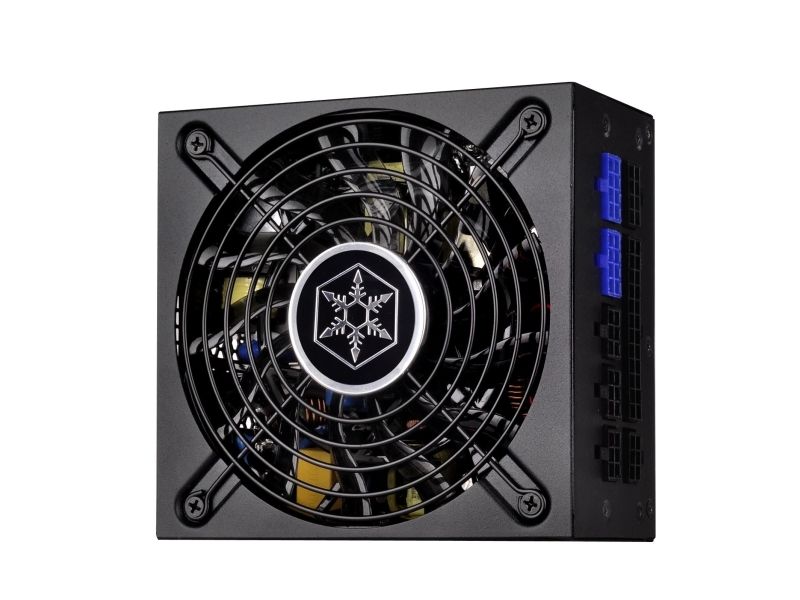

Ultra-quiet 120mm fan with intelligent RPM control guarantees cool performance and silent operation with minimum of 18dBA during fan operation. The fanless mode operation deactivates when PSU’s loading reaches 30%.
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.4/ EPS12V / SFX-L
80 PLUS certificering
80 PLUS Platinum
Vægt
1.68 kg
Indgangspænding
AC 120/230 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
700 Watt
Output Current
+3.3V - 22 A / 0 A +5V - 22 A / 0 A +12V - 58.4 A / 0 A +5VSB - 3 A / 0 A -12V - 0.3 A / 0 A
Output-stikforbindelser

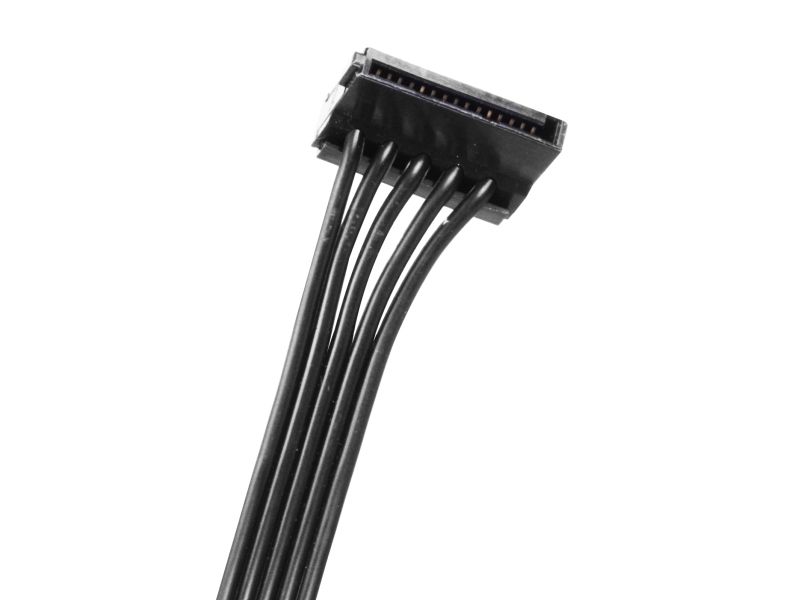

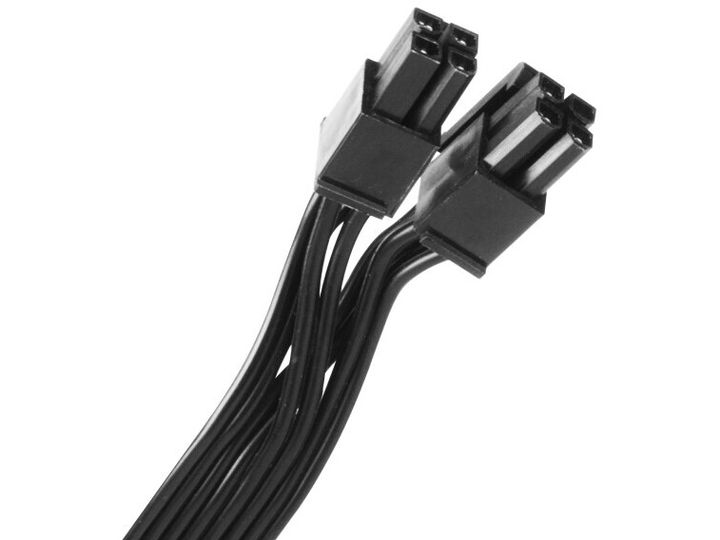

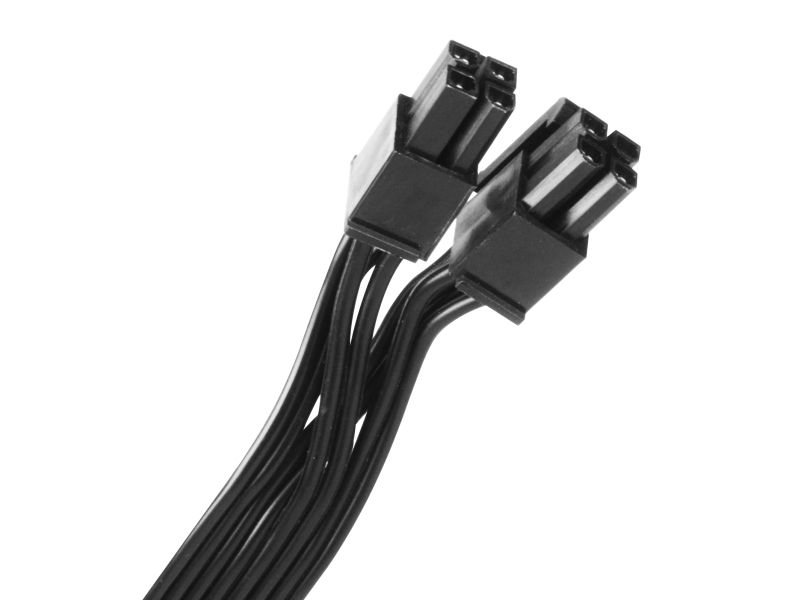

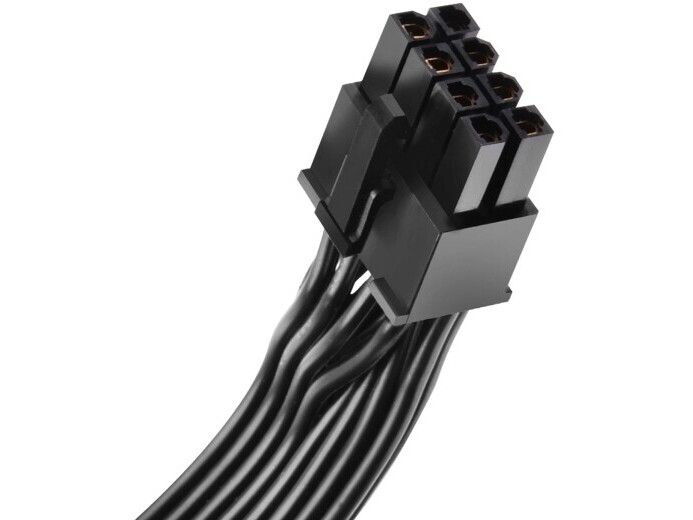

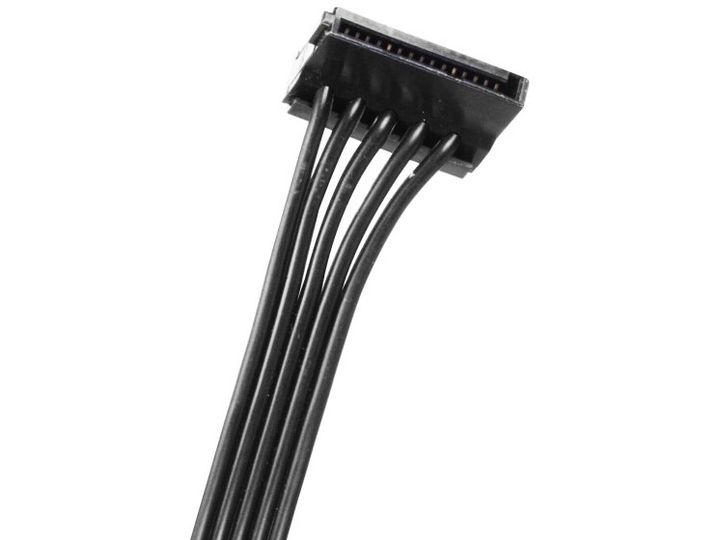

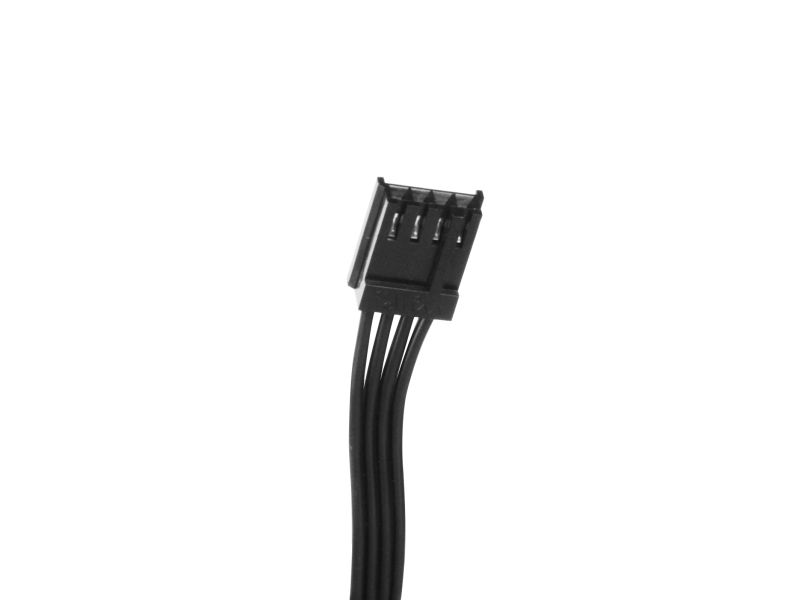

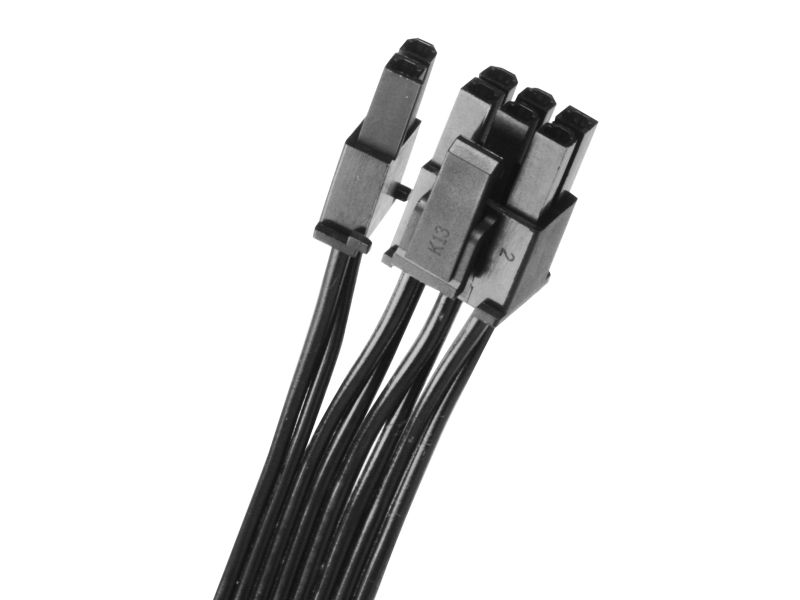

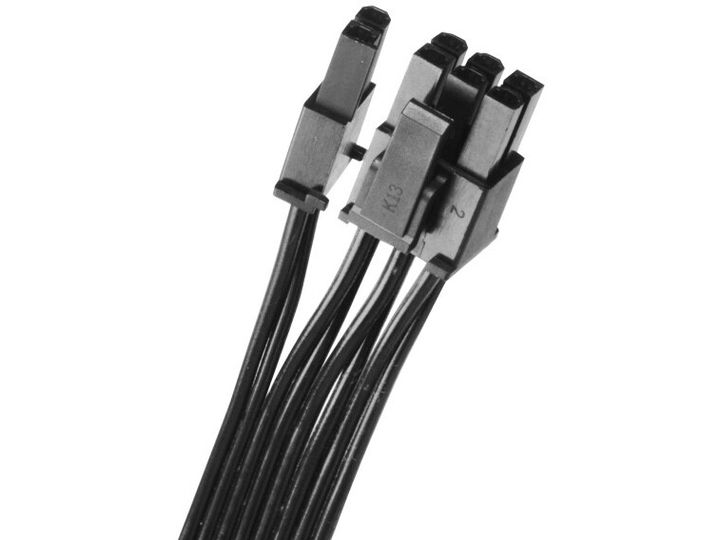

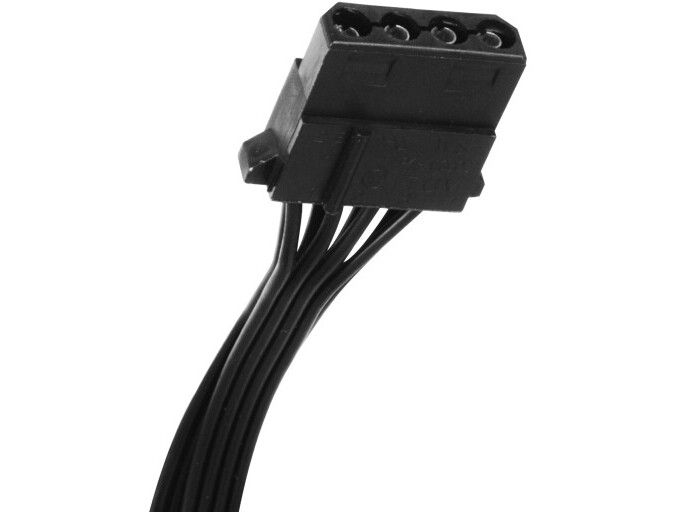

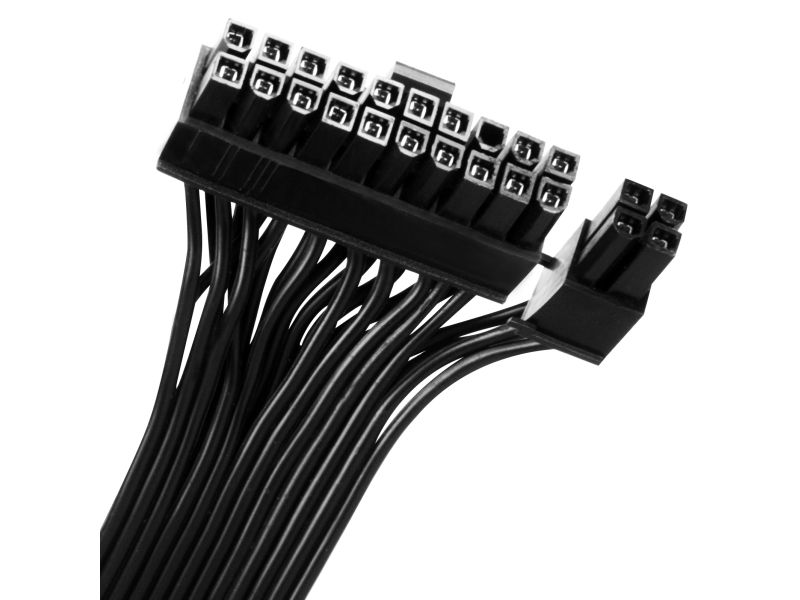

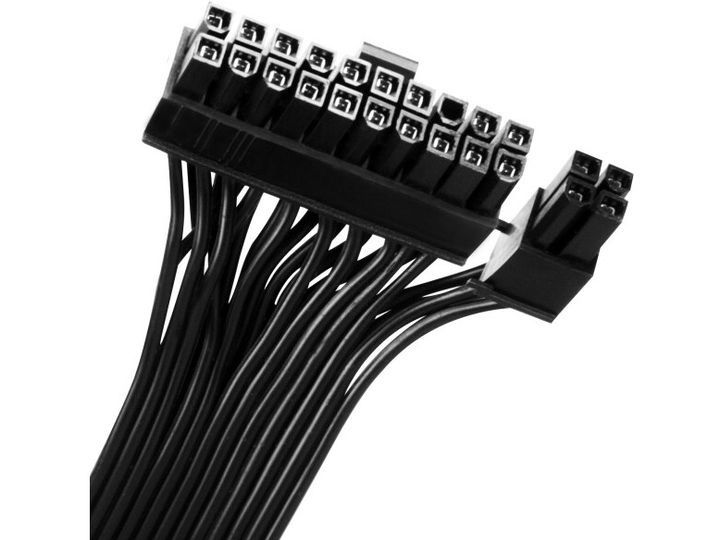

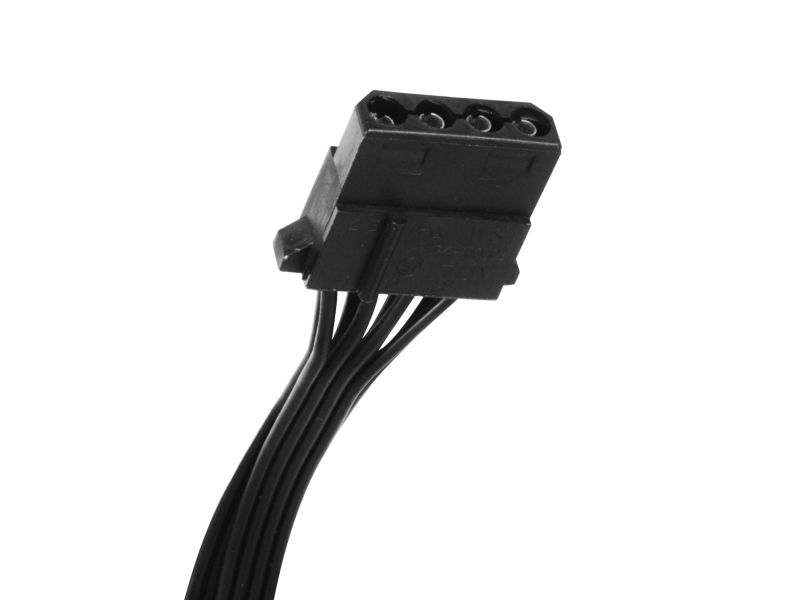

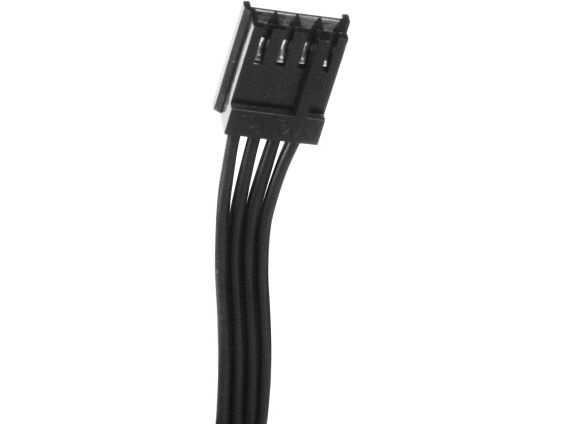

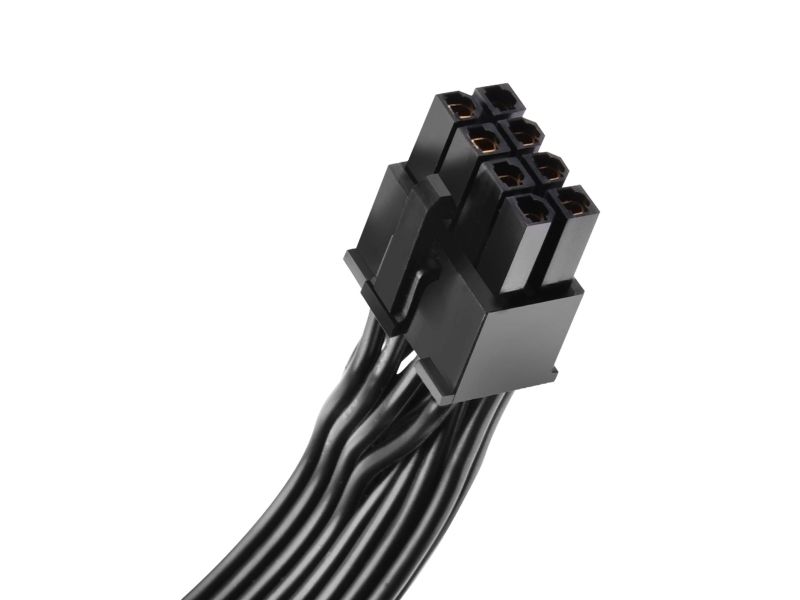

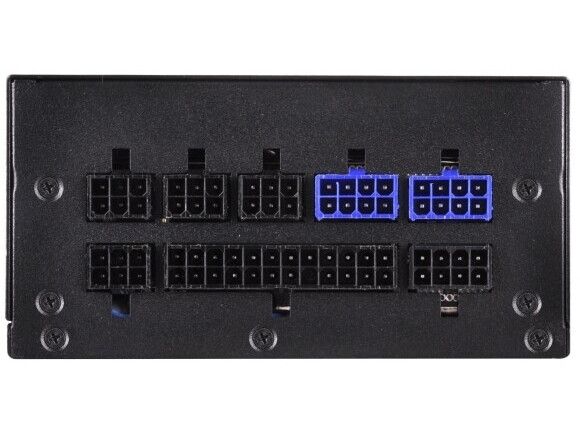

1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 9 x 15 pin Serial ATA strøm 3 x 4-PIN intern strøm 1 x 4-PIN mini-strømforsyningsforbinder 1 x strøm 8 pin EPS12 V
Kølesystem
120 mm ventilator
Farve
Sort
Dimensioner (B x D x H)
12.5 cm x 13 cm x 6.35 cm
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.4/ EPS12V / SFX-L
PSU formfaktor
SFX
Farve
Sort
Strømenhed
Indgangspænding
AC 120/230 V
Indgangspændingsområde
AC 90 - 264 V
Nødvendig frekvens
47 - 63 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 9 x 15 pin Serial ATA strøm 3 x 4-PIN intern strøm 1 x 4-PIN mini-strømforsyningsforbinder 1 x strøm 8 pin EPS12 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
700 Watt
Output Current
+3.3V - 22 A / 0 A +5V - 22 A / 0 A +12V - 58.4 A / 0 A +5VSB - 3 A / 0 A -12V - 0.3 A / 0 A
Effektivitet
89%-92% at 20%-100% Load
Strømfaktor (PF)
0.95
80 PLUS certificering
80 PLUS Platinum
Diverse
MTBF (forventet tid mellem fejl)
100,000 timer
Kølesystem
120 mm ventilator
Egenskaber
Beskyttelse mod overophedning, beskyttelse mod overstrøm, overspændingsbeskyttelse, overbelastningsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, enkelt 12V skinne
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
40 °C
Lydudbredelse
36 dBA
Mål og vægt
Bredde
12.5 cm
Dybde
13 cm
Højde
6.35 cm
Vægt
1.68 kg
Vægt (gram)
2340
