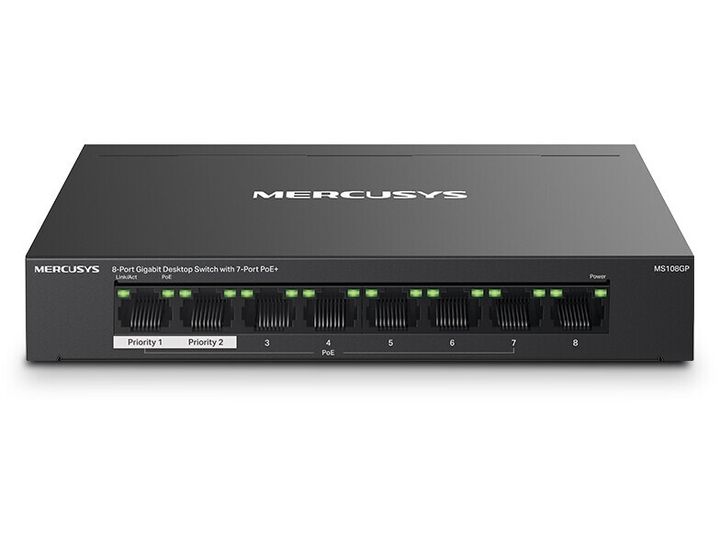

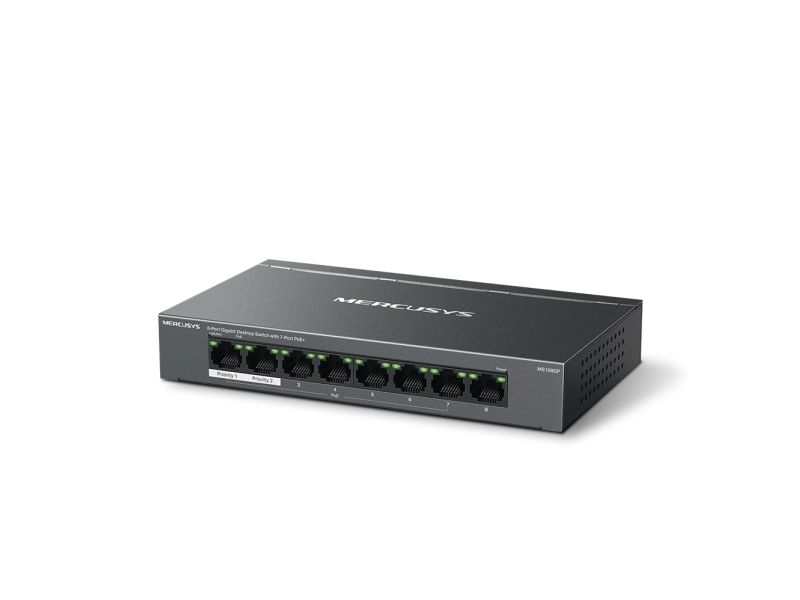

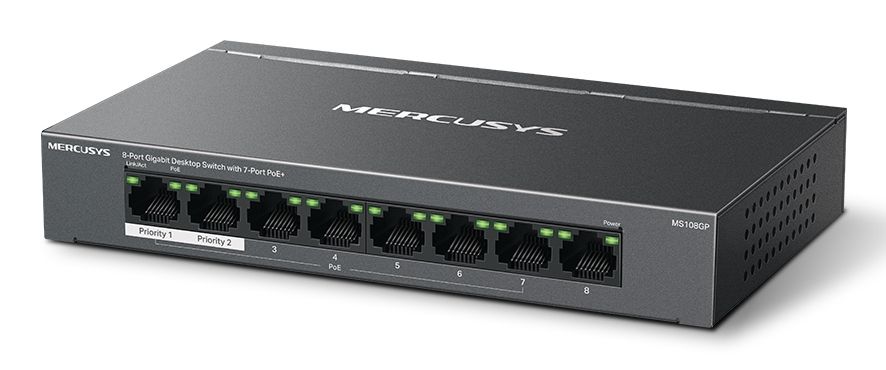

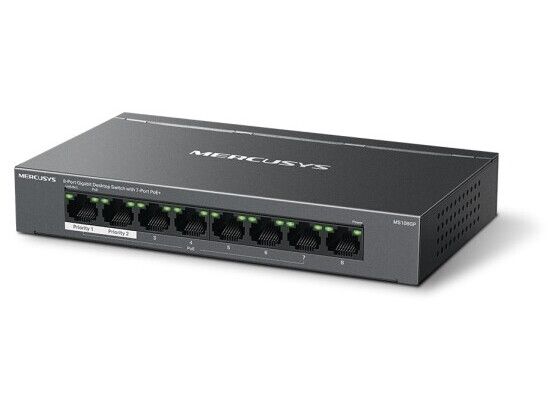

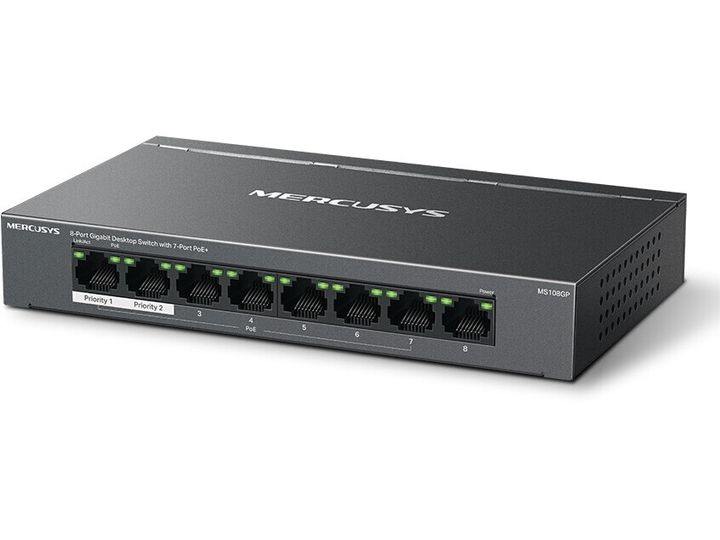

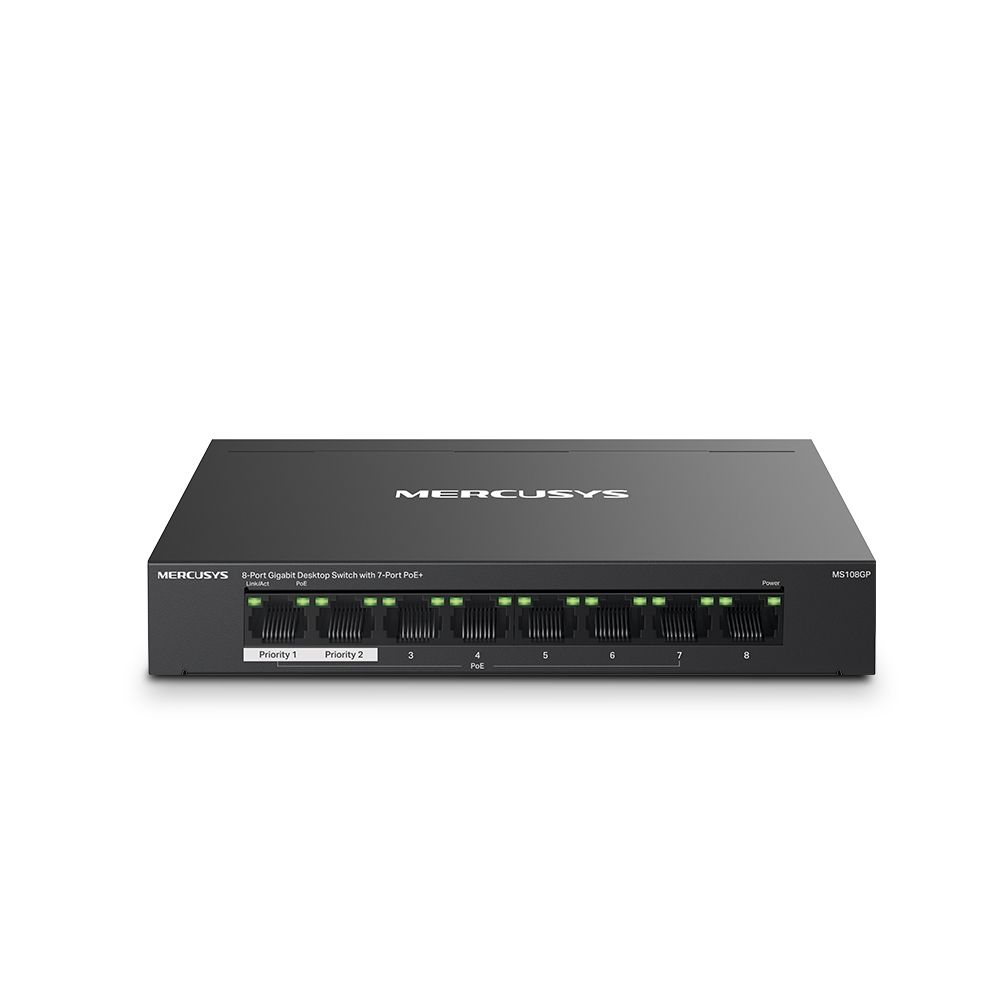

Mercusys 8-Port Gigabit Desktop Switch with 7-Port PoE+, Managed, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable
The item is in a remote warehouse, delivery time is 2-3 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
28,50
Incl. VAT 35,63
Total incl. delivery
50,63
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login
7 PoE+ Ports (65 W Budget) for Network Deployment All eight ports of the MS108GP are gigabit ports, with seven PoE+ ports (1-7). Each PoE+ port supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. The total 65 W PoE power budget* enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.
No Fuss No need for electricians; simplify installation and deployment.
Cost-Efficiency Getting rid of extra cables and power adapters will save money on infrastructure.
Flexibility Deployment in complex situations is made possible by more placement possibilities.
Power Management Improves power usage while intelligently protecting your gadgets from power surges.
IEEE 802.3af/at PoE ports compliant with the 802.3af/at Powered Devices.
Long-Range up to 250 m with Extend Mode** Extend Mode** increases PoE transmission distance to 250 m. MS108GP has 7 long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

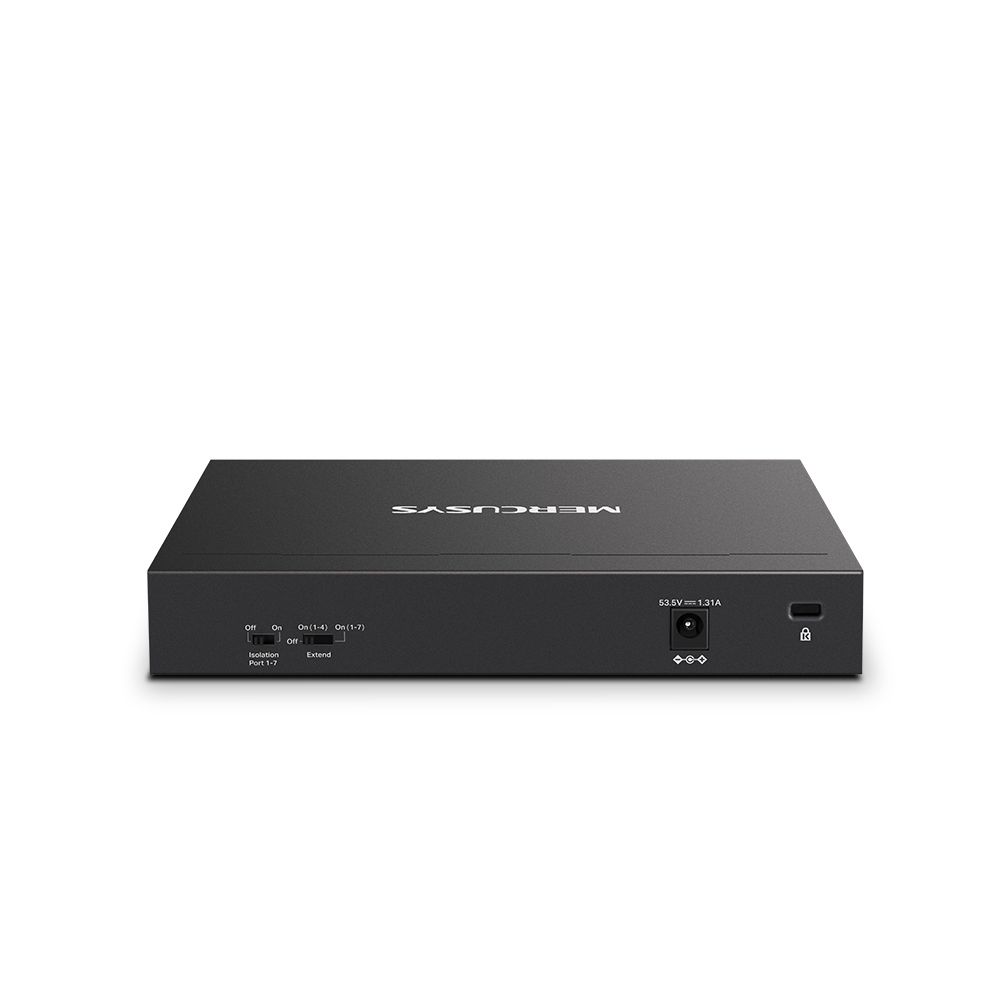

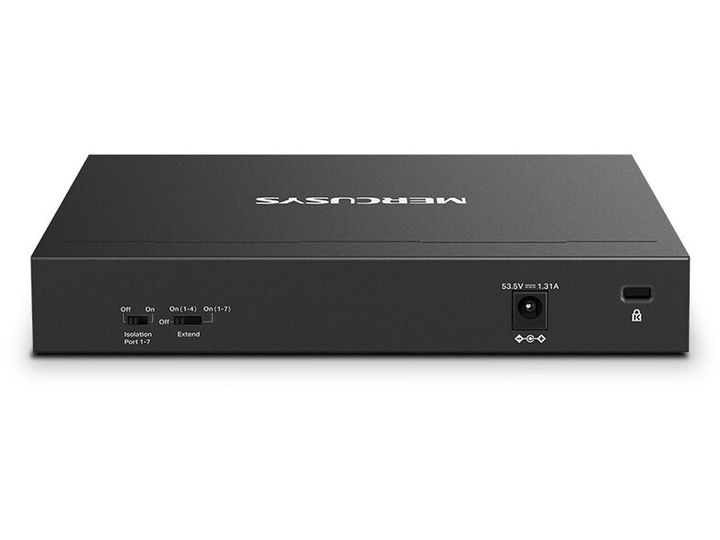

Traffic Separation With only one click, isolation mode divides traffic for ports 1-7 to prevent snooping/tampering and isolate broadcast storms for greater protection.
Port Prioritization Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.
Plug and Play MS108GP offers auto-negotiation (10/100/1000 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.
Durable and Silent MS108GP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.
Switch type
Managed
Web-based management
Yes
Traffic classification
Yes
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G support
No
Full duplex
Yes
Policy-based routing
Yes
Half duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
MAC address table
8000 entries
Store-and-forward
Yes
Rack mounting
No
Stackable
No
Product colour
Black
Housing material
Metal
Wall mountable
Yes
Power source
AC
Power supply included
Yes
AC input voltage
220 V
AC input frequency
50 Hz
Input current
1.31 A
Input voltage
53.5 V
Power consumption (typical)
5.07 W
Power consumption (max)
77.33 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
7
Power over Ethernet plus (PoE+) ports quantity
1
Power over Ethernet (PoE) power per port
65 W
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 95%
Heat dissipation
262.922 BTU/h
Width
171 mm
Depth
98 mm
Height
27 mm
Cables included
AC
Quick start guide
Yes
