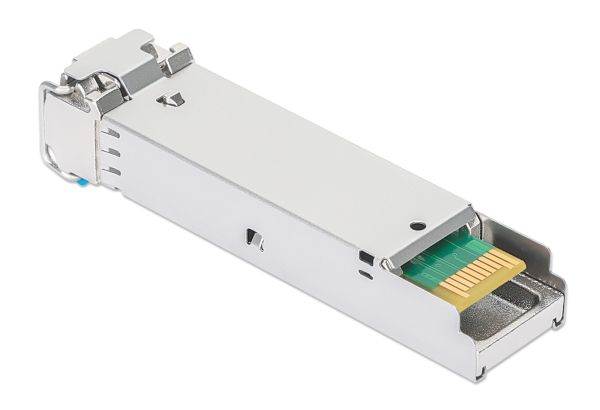

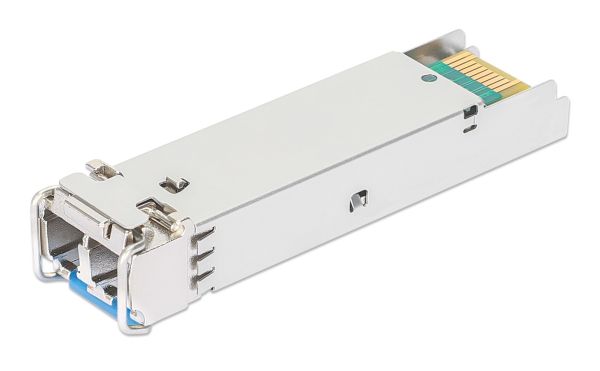

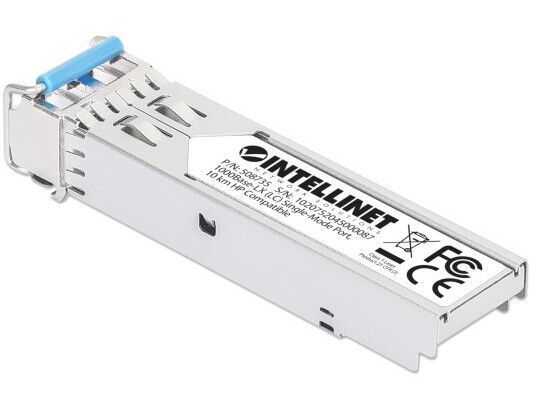

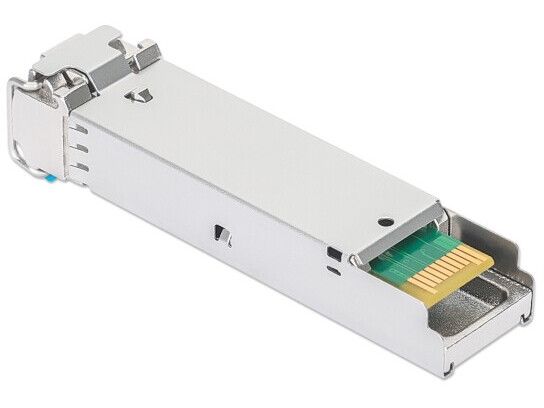

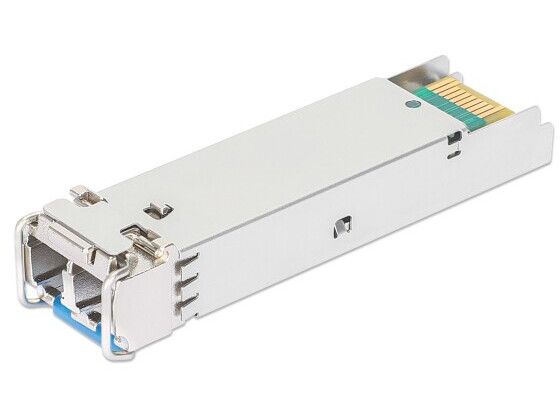

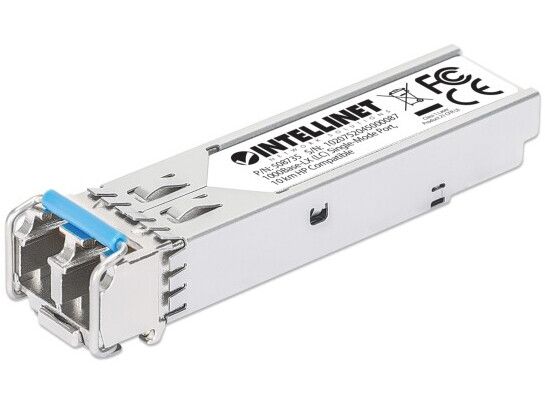

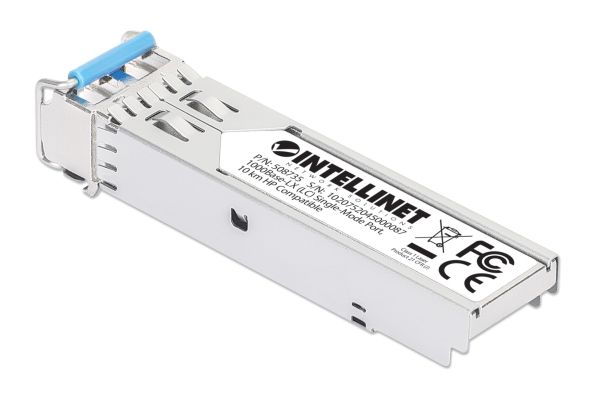

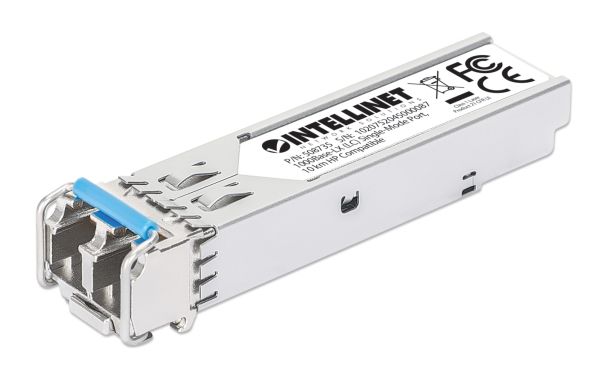

SFP Module – HP® / HPE® compatible, affordable premium performance The Small Form Factor Pluggable (SFP) Transceiver from Intellinet Network Solutions provides a great combination of performance and affordability. Also known as a mini-Gigabit Interface Converter (GBIC), this SFP module's metal housing reduces electromagnetic interference and increases its durability.
Small Size for High-density Fiber Connections The transceiver's mini-GBIC form factor helps it take up less space on the equipment it plugs into. It's ideal in environments that require many fiber connections.
Compatible with HP/HPE Compatibility in your network is everything, and this SFP Transceiver Module delivers. It has been designed, programmed and tested to work with HP / HPE-compatible switches and routers. Since it is set to broadcast the vendor part number J4859A / J4859B / J4859C / J4859D, it is compatible with your HPE gear.
Hot-pluggable This module is fully hot-pluggable, and that allows you to install it without rebooting your network switch, so network traffic is uninterrupted.

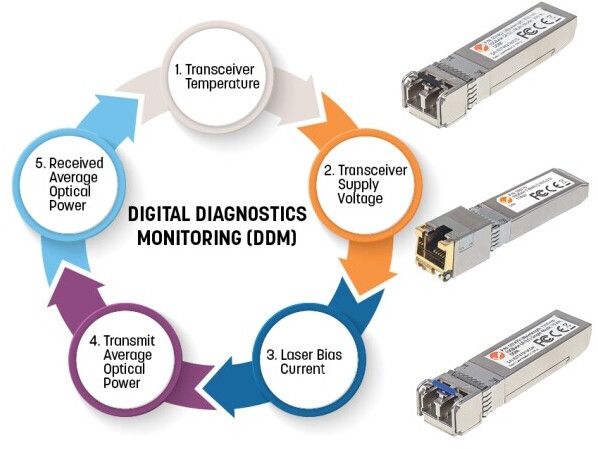

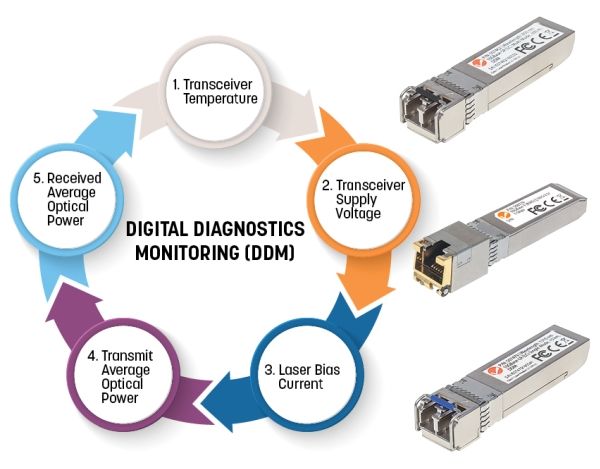

Digital Diagnostics Monitoring (DDM) This module supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). This lets you monitor parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, in real time.
SFP transceiver type
Fiber optic
Maximum data transfer rate
1000 Mbit/s
Interface type
SFP
Single-mode fiber (SMF) supported
Yes
Fiber optic connector
LC
Fiber cable diameters supported (core/cladding)
9/125 µm
SFP transceiver standard
LX
Maximum transfer distance
10000 m
Wavelength
1310 nm
Tx power (min)
9 dBmW
Tx power (max)
3 dBmW
Link budget
11 dB
Networking standards
IEEE 802.3z
Duplex system
Full
Digital Diagnostics Monitoring (DDM)
Yes
Product colour
Silver
Housing material
Metal
Hot-Plug support
Yes
Brand compatibility
HPE
Maximum voltage
3.3 V
Power consumption (typical)
1 W
Compliance certificates
CE, RoHS, Federal Communications Commission (FCC)
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
40 - 85 °C
Operating relative humidity (H-H)
10 - 85%
Width
14 mm
Depth
57 mm
Height
12 mm
Weight
20 g
Quantity per pack
1 pc(s)
Package width
56 mm
Package depth
120 mm
Package height
24 mm
Package weight
50 g
Package type
Box
Master (outer) case width
200 mm
Master (outer) case length
310 mm
Master (outer) case height
250 mm
Master (outer) case gross weight
2.6 kg
Products per master (outer) case
48 pc(s)
Sustainability compliance
Yes
