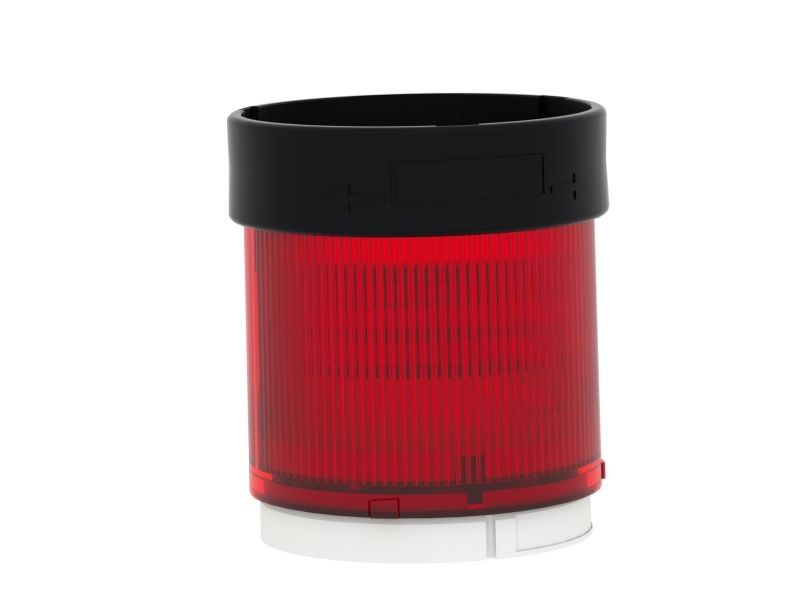

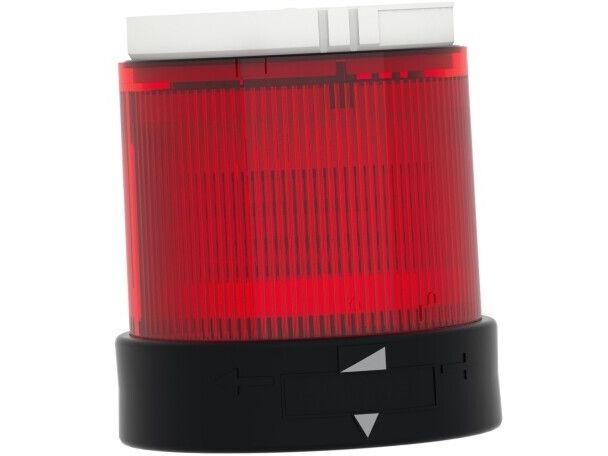

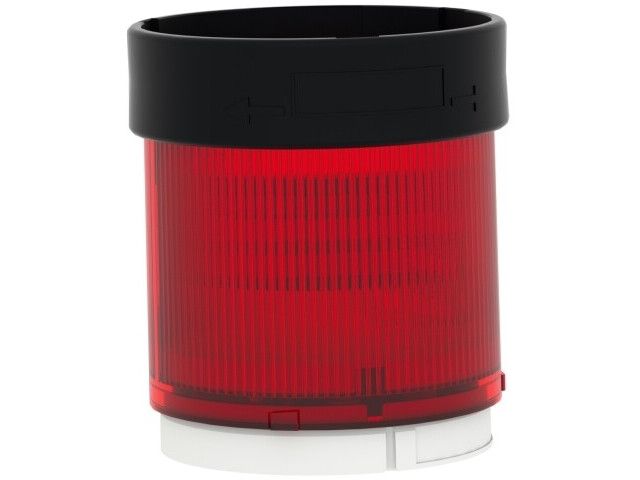

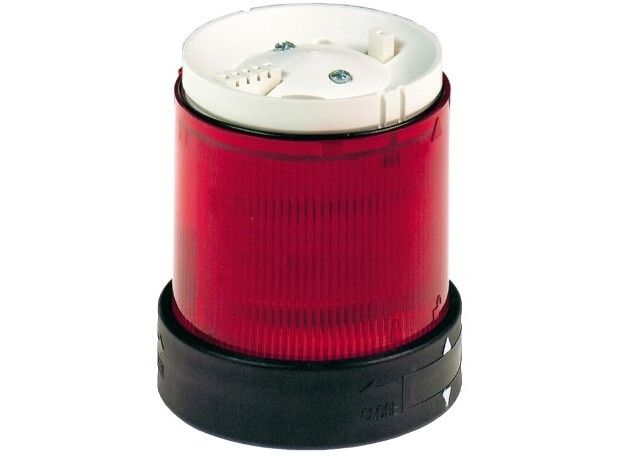

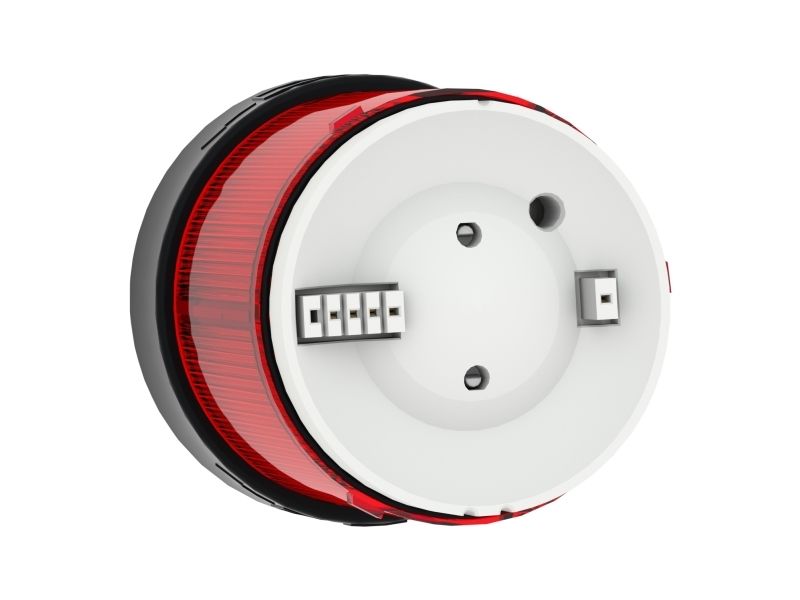

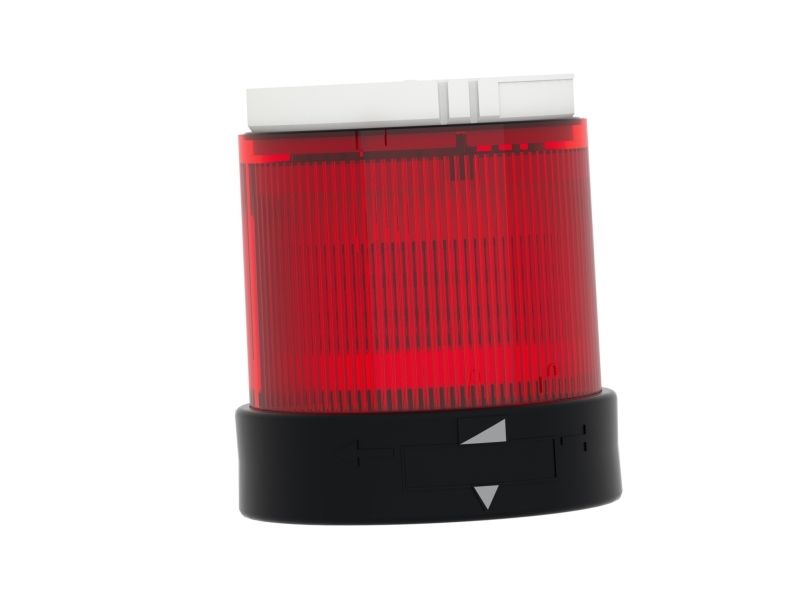

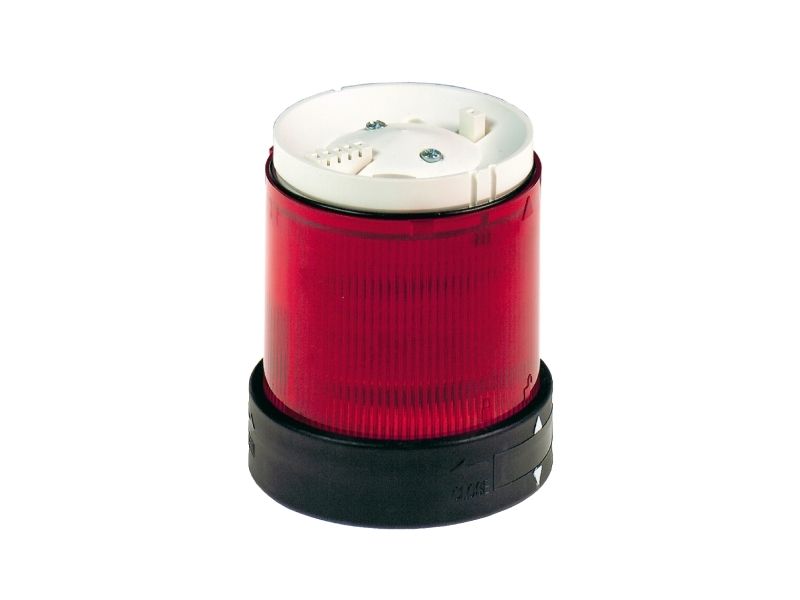

Schneider Electric Harmony XVB Series Red Flashing Effect Beacon Unit, 24 V ac/dc, LED Bulb, AC, DC, IP65, Warning lights, LED, 1 lamp(s), Red, CCC EAC CSA C22-2 No 14 UL 508, IP65, IP66
Item no.: [10243712] | Manufacturer: SCHNEIDER ELECTRIC | Model no.: 2126589 | EAN: 3389110144710 | UNSPSC.: 39111706
Remote stock (1-2 days)
The item is in a remote warehouse, delivery time is 1-2 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
143,96
Incl. VAT 179,95
Total incl. delivery
194,95
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Send på mail
Schneider Electric Harmony XVBC Series of Modular Beacons and Tower Lights
Available as full devices or modules, which can be individually combined, Schneider Electric present the user friendly XVBC Series range. Covering every application due to the easy mounting, customisation of products and the various combinations, they are a multi-purpose solution in visual and acoustic signalling towers.
Various states of operation can be indicated, such as: Start, Stop, Fault, Call technical staff and no material. Also offering a high degree of protection, extra brightness and reliability they can be adapted to any type of environment. Designed to provide high performance, simple set up and a choice of units they can be constructed up to a maximum of 5 lens units (or 4 lights and 1 sounder), with 6 colours available.
Features & Benefits
- 'LED Protected' technology offering 100,000 hours maintenance free lighting

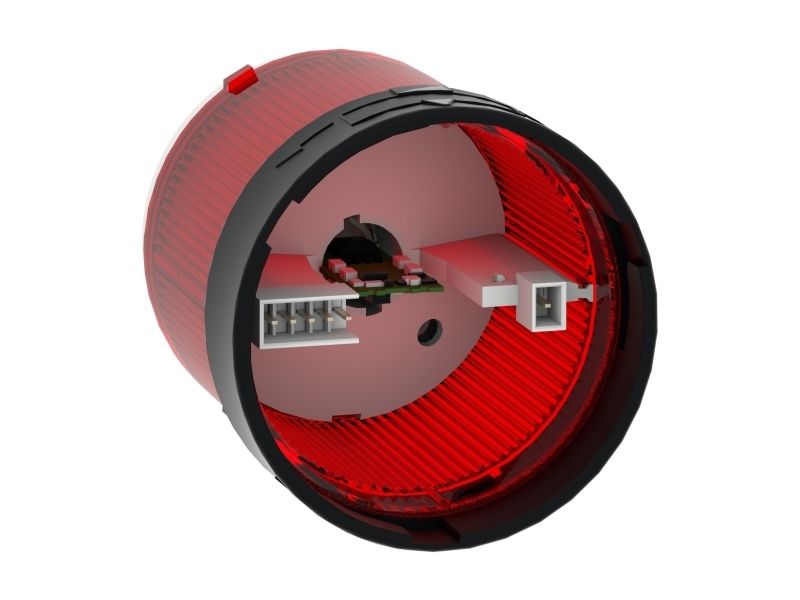

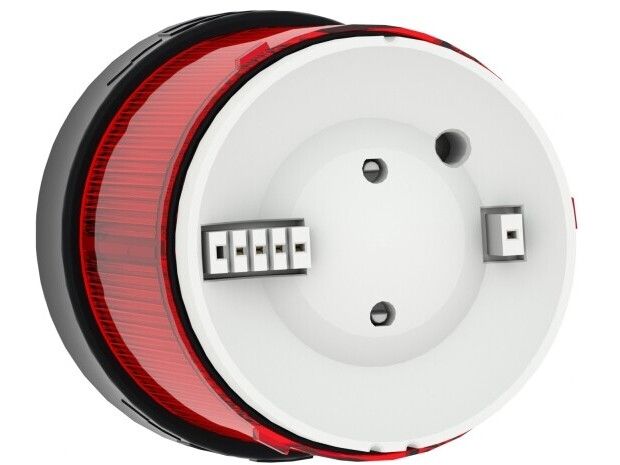

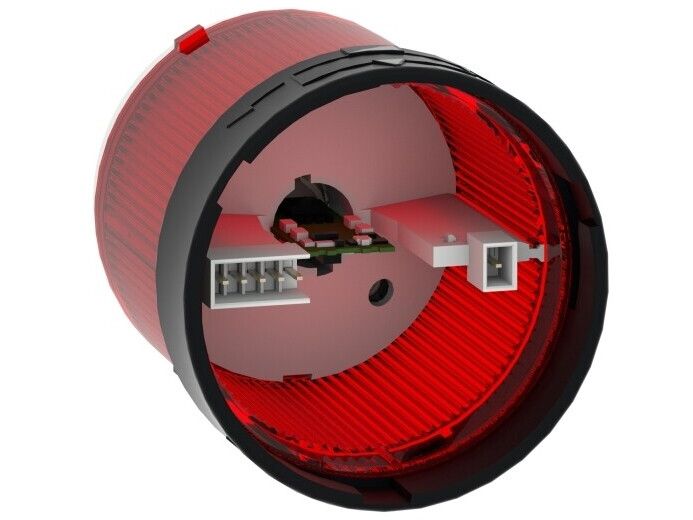

- Connector with removable base, axial or side cable entry
- Locking ring for assembly and fixing
- 3 types of light source
- Available as incandescent (bulbs must be ordered separately) or LED modules
- Buzzers available with intermittent or continuous tone
- All units have an operating temperature range of -25 to +50 ?°C (apart from the static lens units without lamps -25 to +70 ?°C)
- Long distance signalling 35 to 50m
Protection ratings & safety features
- High degree of protection: IP66
- International standards: CE, UL, CCC, CSA, Ghost

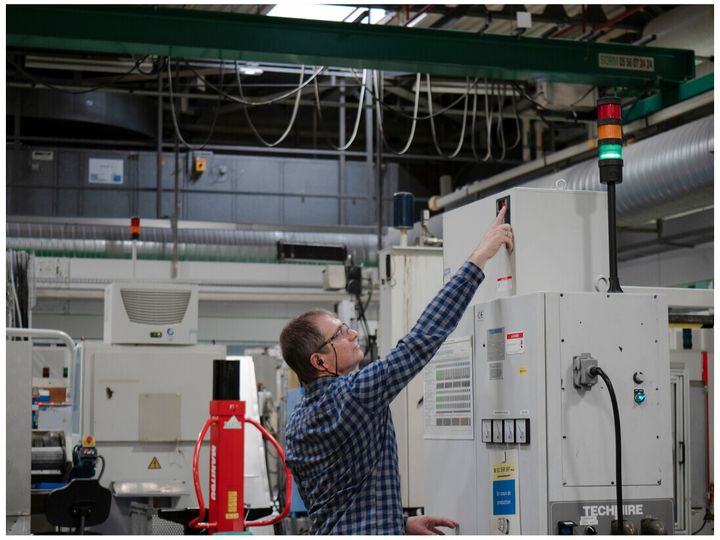

Applications

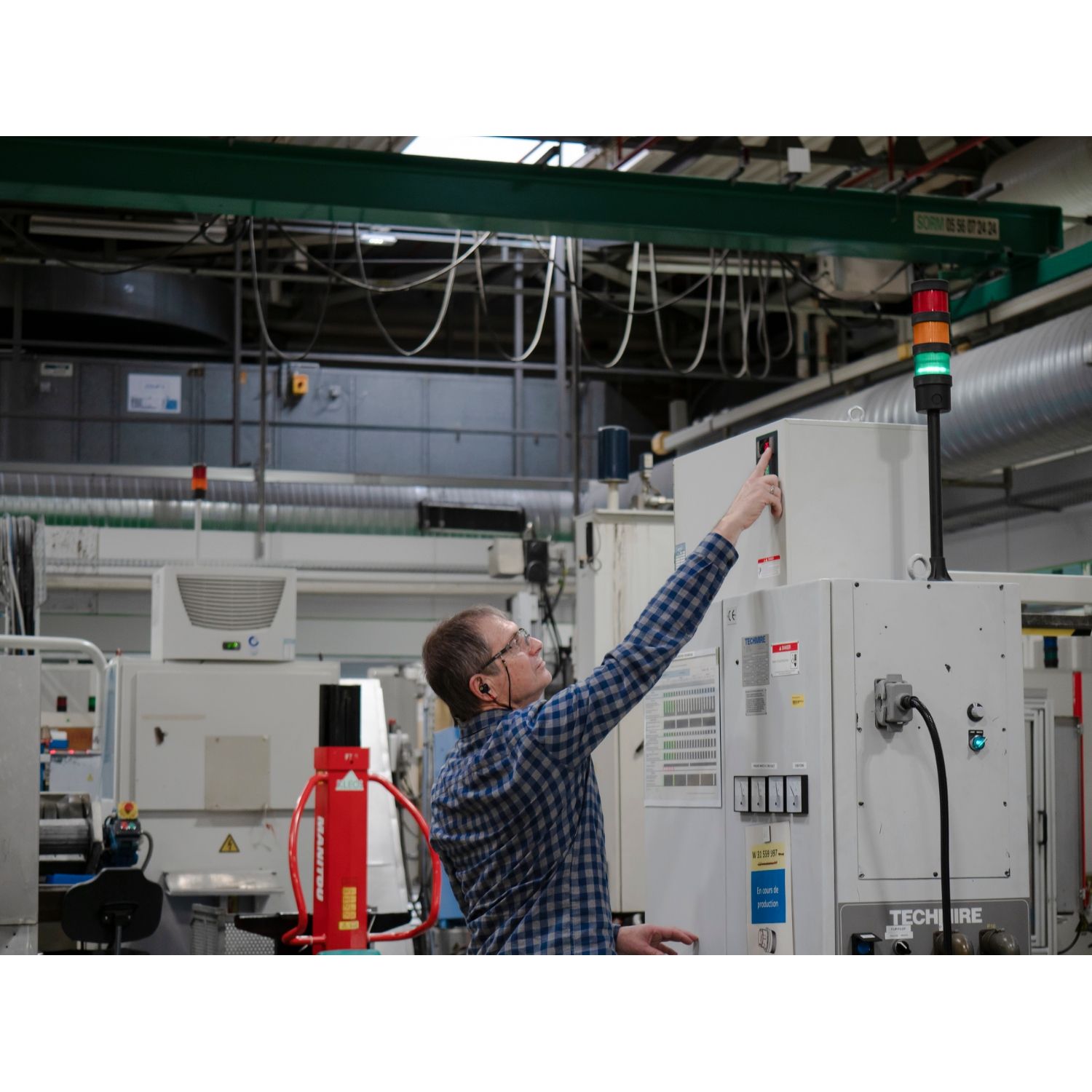

Loud, dangerous and busy environments often call for modular beacons and tower lights, from health & safety to preventing damage to machinery there are many applications. Below are some of the applications for the XVB Series:
- Assembly lines
- Mobile loads (travelling cranes, trolleys etc.)
- Motorway tolls
- Cash registers
- Distribution switchboards
- Alarms
Note
Bulbs, base and covers need to be ordered separately for mounting, accessories such as tubes and tube covers are also available for raising the beacons height.
Approvals
UL listed, CSA certified
