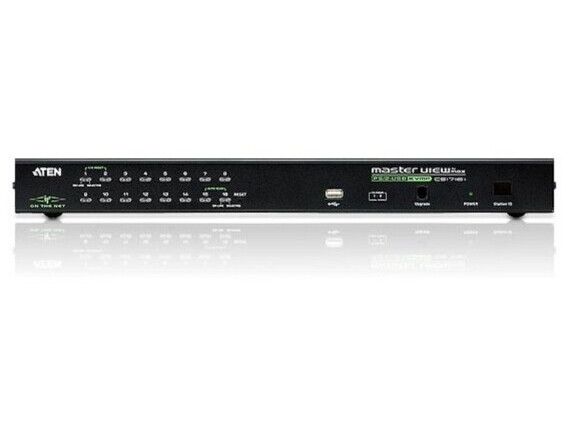

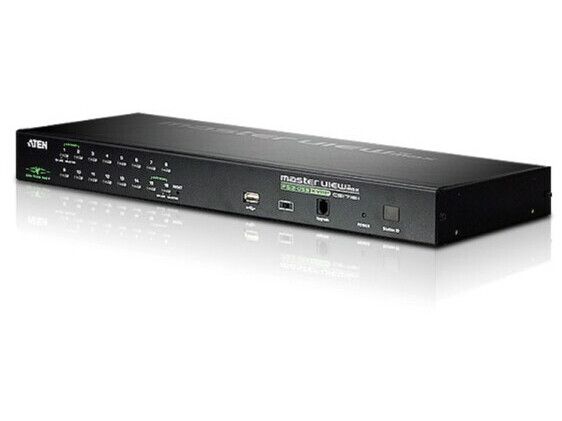

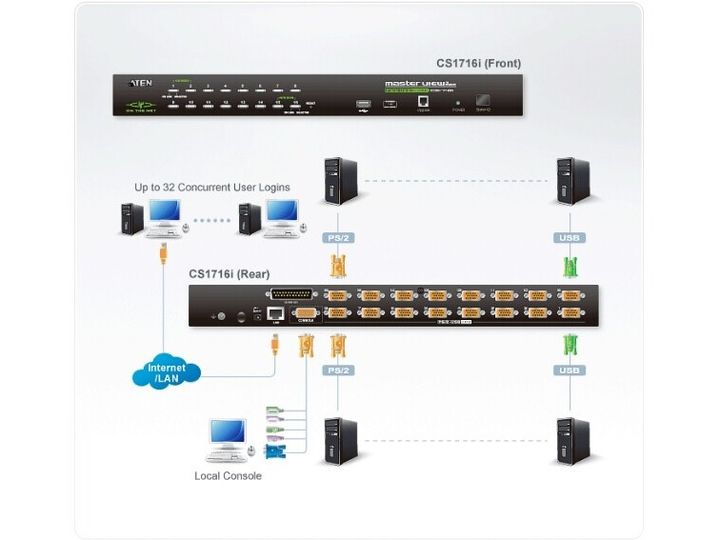

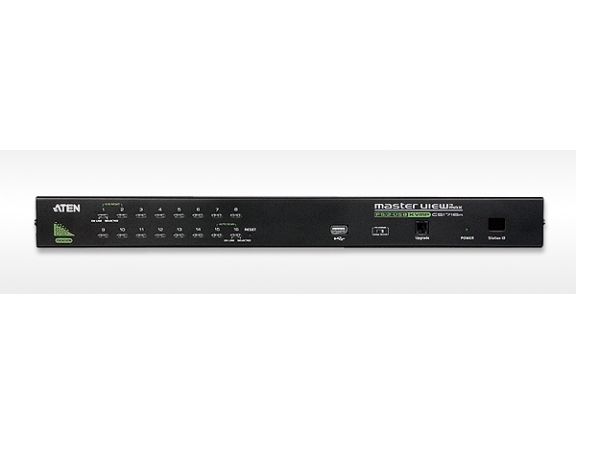

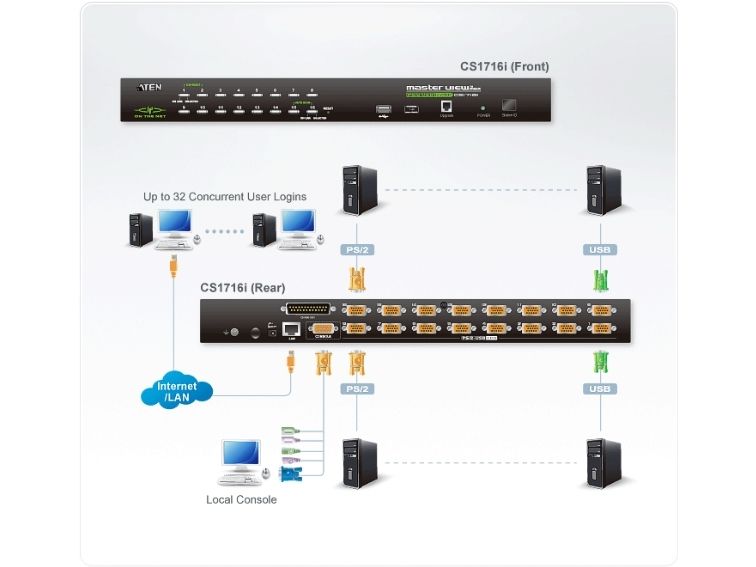

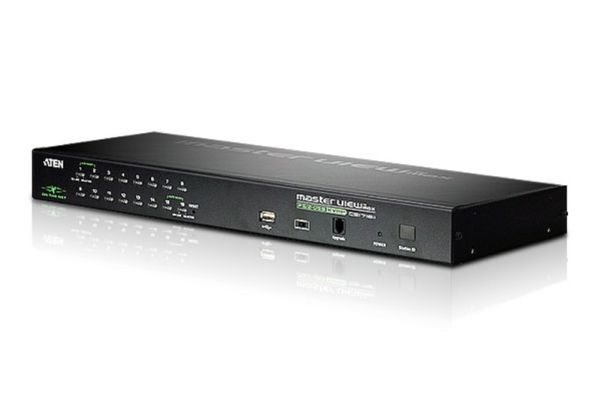

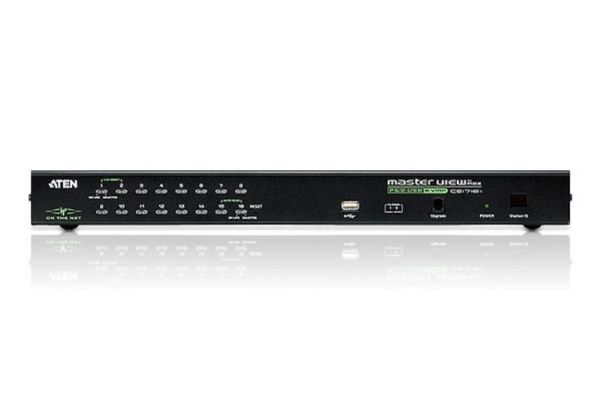

The CS1716i is a 16-port KVM switch in a 1U housing for convenient rack mounting. This device allows system administrators to access the attached servers both locally and over IP (LAN and/or WAN). CS1716i works platform independent and supports e.g. Windows, Linux, MAC, SUN
The special KVM cables and the Aten feature “Video DynaSync", makes sure that an optimal video resolution can be maintained. In addition it's easy to expand the KVM installation. By using Daisy Chain cables the number of accessible servers can be increased up to 256. 1x CS1716i KVM over IP Switch 1x 2L-5202P PS/2 KVM Cable 1x 2L-5202U USB KVM Cable 1x LIN5-27X6-U21G Console Cable 1x Firmware Upgrade Cable 1x Mounting Kit 1x Foot Pad Set (4 pcs) 1x 0AD8-1605-24M1 Power Adapter 1x User Instructions
Produktbeskrivelse
ATEN KVM over IP CS1716i - KVM switch - 16 porte - monterbar på stativ
Enhedstype
KVM switch - 16 porte - kan stables
Pakningstype
Monterbar på stativ 1U
Undertype
KVM
Porte
16 x KVM port(s)
Antal KVM-brugere
1 lokalbruger, 32 IP-brugere
Protokol til fjernadministration
HTTP
Egenskaber
Visning på skærm, håndterbar, MAC-adresse-filtrering, IPv6 understøttet, IP-adresse filtrering, firmware kan opgraderes, Video DynaSync, nulstillingsknap, Mouse DynaSync
Dimensioner (B x D x H)
43.72 cm x 15.98 cm x 4.4 cm
Vægt
3 kg
Generelt
Enhedstype
KVM switch - 16 porte - kan stables
Pakningstype
Desktop, monterbar på stativ 1U
Undertype
KVM
Porte
16 x KVM port(s)
Antal KVM lokalbrugere
1 lokalbruger
Antal KVM IP brugere
32 IP-brugere
Tastatur / Musse Grænseflade
PS/2, USB
Protokol til fjernadministration
HTTP
Krypterings algoritme
RC4, SSL
Autentificeringsmetode
RADIUS, LDAP, Active Directory
Maksimum opløsning
2048 x 1536
Egenskaber
Visning på skærm, håndterbar, MAC-adresse-filtrering, IPv6 understøttet, IP-adresse filtrering, firmware kan opgraderes, Video DynaSync, nulstillingsknap, Mouse DynaSync
Statusindikatorer
Portstatus, strøm, link/aktivitet
Ekspansion / Konnektivitet
Interface

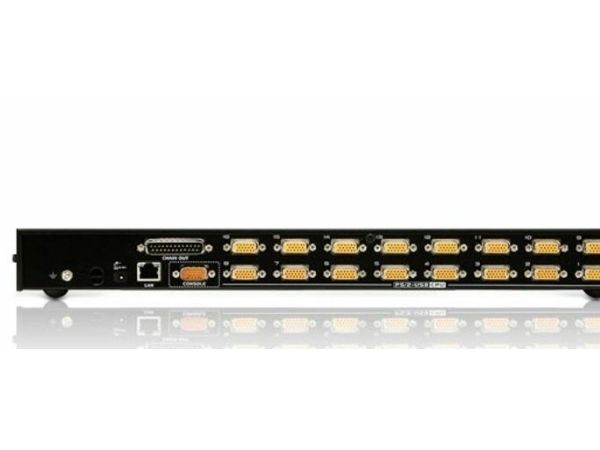

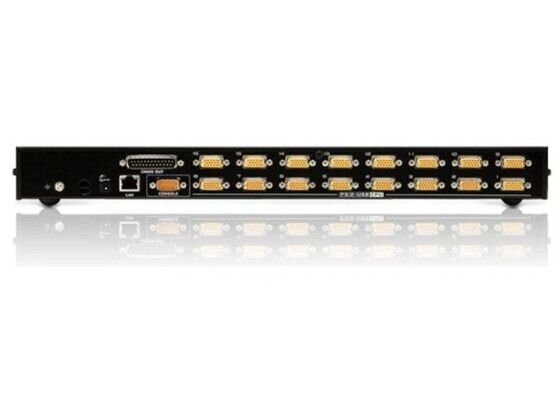

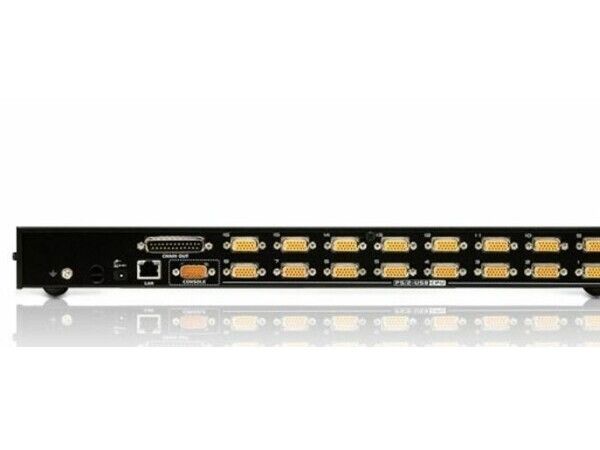

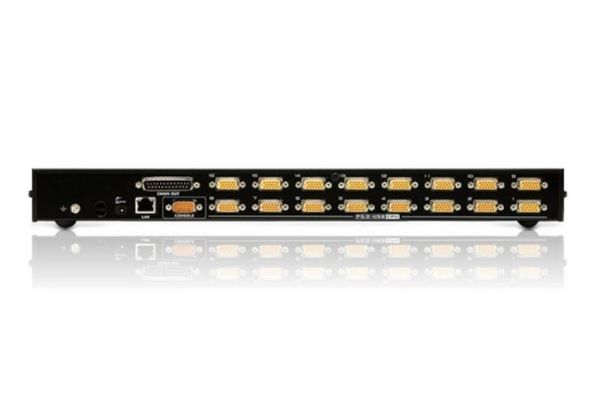

16 x KVM SPHD-17 1 x LAN RJ-45 1 x netværks stack-enhed DB-25 1 x USB Type A 1 x administration RJ-11 1 x konsol SPHD-18
Effekt
Strømenhed
Ekstern strømforsyning
Strømforbrug ved drift
11 watt
Diverse
Udstyr inkluderet
Fodsæt
Medfølgende ledninger
2 x tastatur- / mus- / videokabel 1 x konsolkabel
Rackmonteringspakke
Inkluderet
Overensstemmelsesstandarder
DDC-2B, RoHS, WEEE, FCC Part 15 A
Programmer / Systemkrav
Med software
Drivers & Utilities
Mål og vægt
Bredde
43.72 cm
Dybde
15.98 cm
Højde
4.4 cm
Vægt
3 kg
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
50 °C
Fugtighedsgrad ved brug
0 - 80 % (ikke-kondenserende)
Min. lagertemperatur
-20 °C
Maks. Opbevaringstemperatur
60 °C
