FLIR TKx, 101 mm, 38 mm, 38 mm, 170 g, -20 - 40 °C, Black, Grey

Discover the world like never before

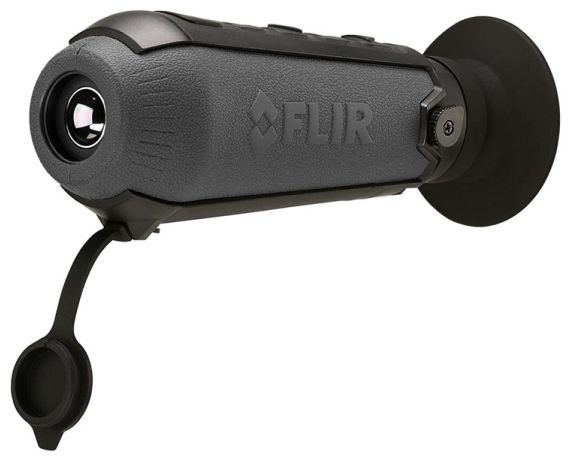

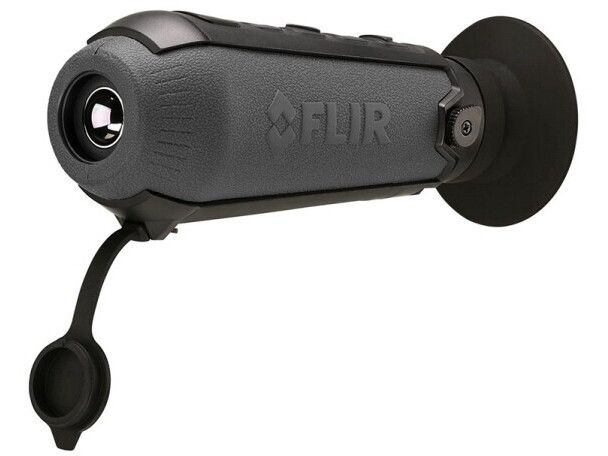

The FLIR Scout TK makes outdoor thermal imaging more accessible than ever before, allowing you to see thermal signatures in total darkness.

Easy to use

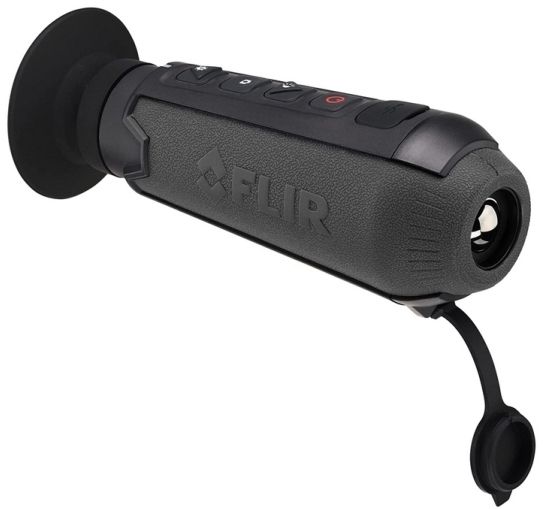

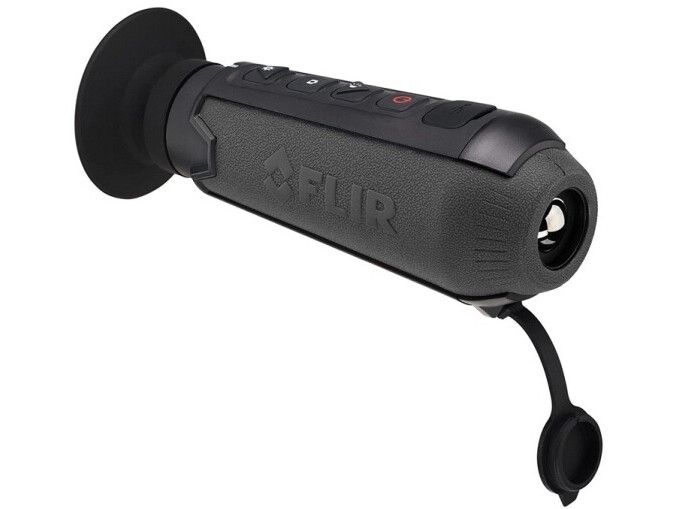

Pocket-sized and designed for one-handed use, the FLIR Scout TK has a simple four-button design with an intuitive interface.

Be aware, stay safe
The Scout TK is also a great everyday tool for personal and home protection at night.

Specification
- Drop test rating: 2m
- Operating temperature: -4°F to 104°F (-20°C to 40°C)
- Battery life: >5 hours
- Human detection (1.8 m x 0.5 m): 91 m
- Field of View (FOV): 20° × 16°

Sensor and optics
- Detector type: 160 × 120 VOx microbolometer
- Field of View (FOV): 20° × 16°
- Image Processing: FLIR Proprietary Digital Detail Enhancement™

Environment and testing
- Drop test rating: 2m
- Operating temperature: -4°F to 104°F (-20°C to 40°C)
- Rating: IP-67, waterproof
- Storage temperature: -40°F to 140°F (-40°C to 60°C)

Power
- Battery life: >5 hours
- Battery type: Li-Ion
- Start time: <5 seconds

File storage, communication and UI-UX
- Image download: USB
- Brightness button: brightness (switch up<>down)
- Built-in display: 640×480 LCD display
- Image photo: short press for image capture, long press for video recording
- On-screen symbology: standard
- Palette button: short press to toggle
- Power Button: On/Off
- Start screen: general
- Video refresh rate: <9Hz

System overview
- Color Palettes: Black Hot / White Hot / InstAlert™ / Rainbow / Iron / Lava / Arctic / Fire Degree
- Lens cover: yes
- Size: 101x38x38mm
- Warranty: 2 years standard, 3 years after product registration
- Wave range: 7.5 - 13.5 µm
- Weight [with lens]: 6 oz (170 g)

Kit includes
- A pocket thermal camera
- Neck strap
- USB cable
- The lens cap
