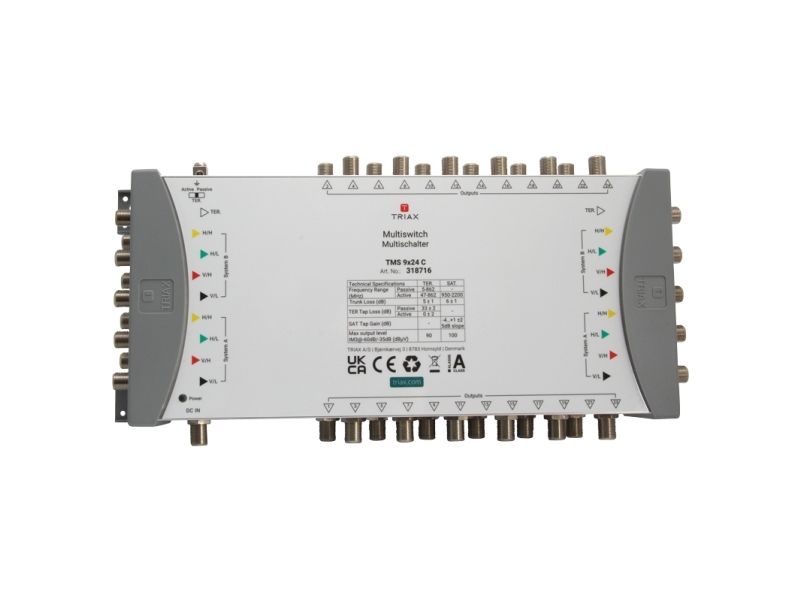

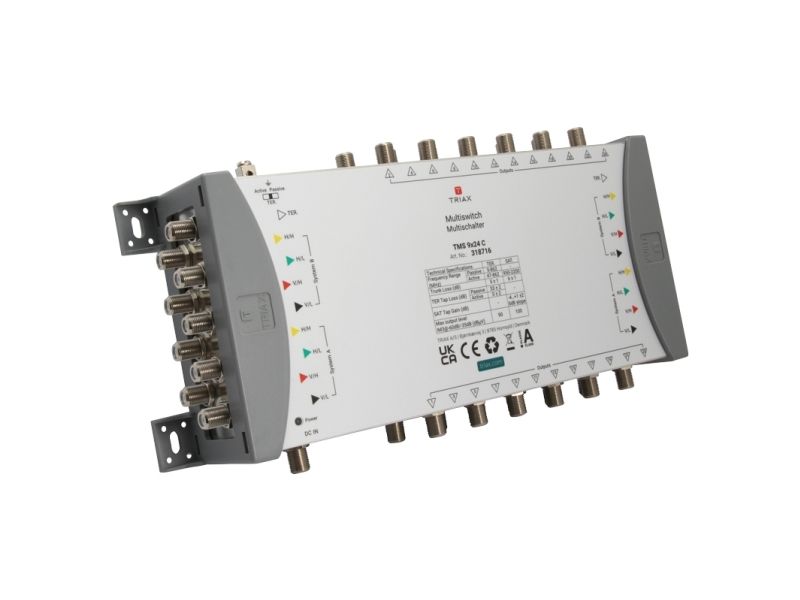

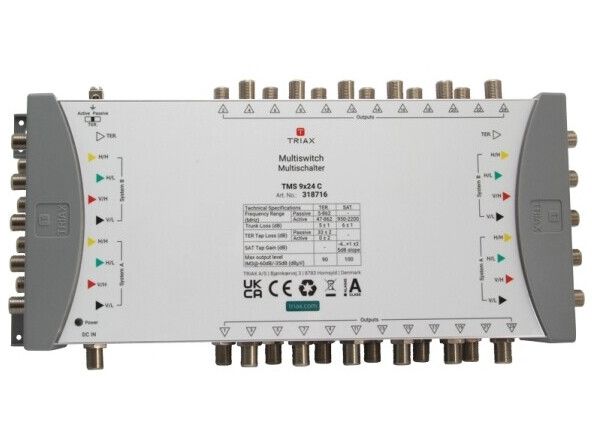

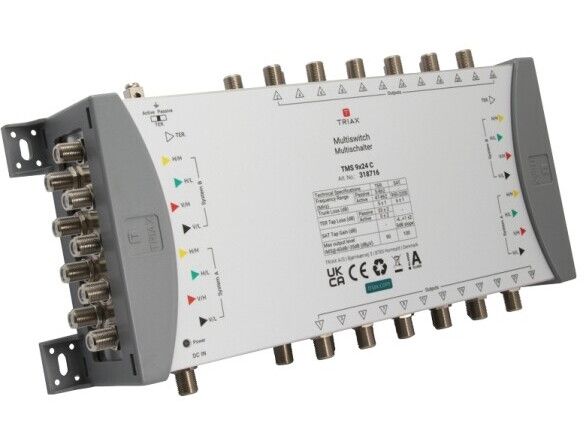

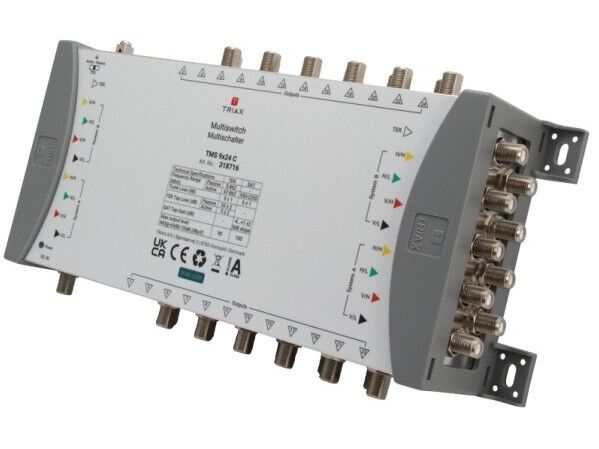

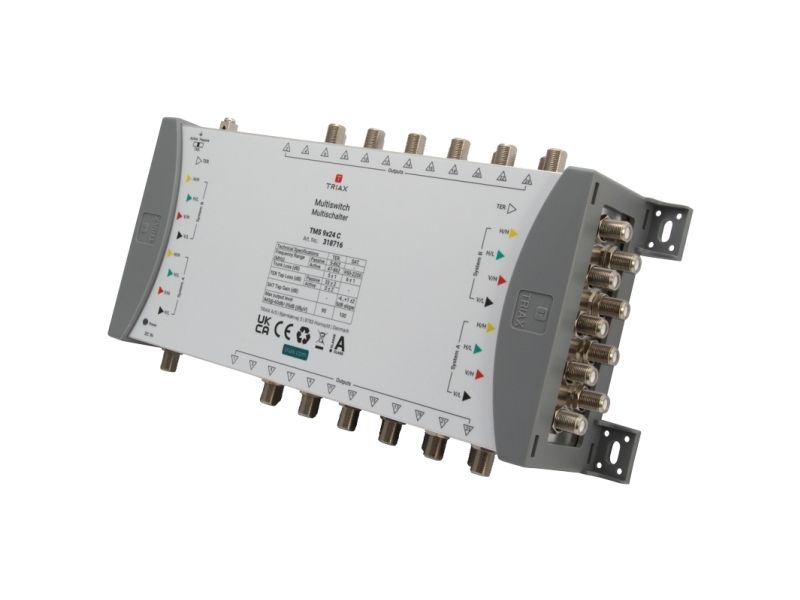

Triax 318716, 9 inputs, 24 outputs, 950 - 2200 MHz, 47 - 862 MHz, 1.0, 2.0, 90 - 99 dBµV

Cascade multiswitch for 2 Satellite positions with 9 inputs and 9 trunk outputs, suitable for distributing satellite and terrestrial signals in small to large sized systems. Available with 24 subscriber outputs and powered by the TMS PSU external power supply either directly or via the SAT trunk lines.

Dependability guaranteed: a 6-year warranty is our guarantee that TRIAX’s core values of reliability and innovation are the foundation of our new multiswitches.

The TMS 9x24 C offers excellent performance and flexibility, with a compact design for installations even in confined spaces.

Excellent performance
- Low insertion loss
- High isolation
- Low power consumption
- RED compliant
- ESD Protection

Flexibility
All the functionality you need in a simplified, streamlined range:
- Easier to select the right product
- Fewer products to stock
- Active/Passive Terrestrial Switch

Convenience
Designed with installer convenience in mind:
- Equidistant F-connectors on all multiswitches
- Colour-coded input labels
- LED power indicator
- Flexible power injection
