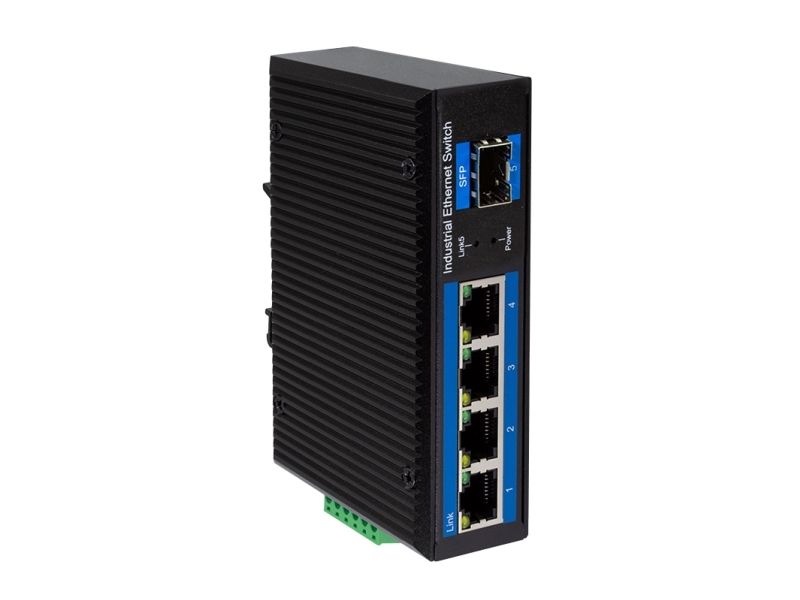

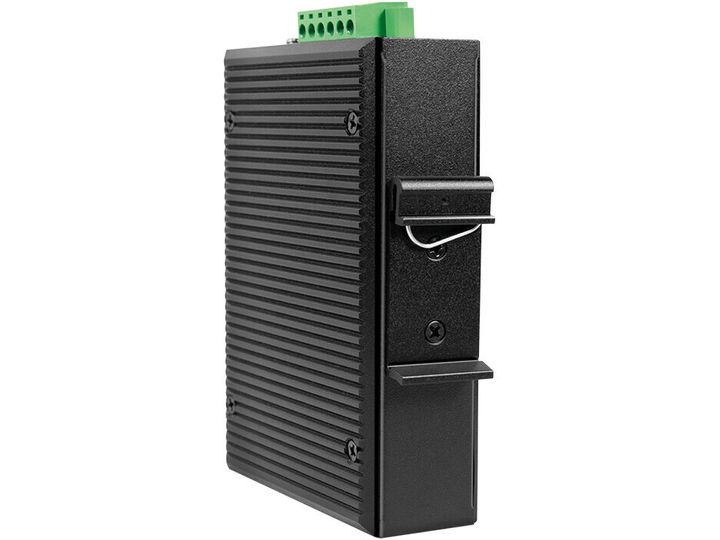

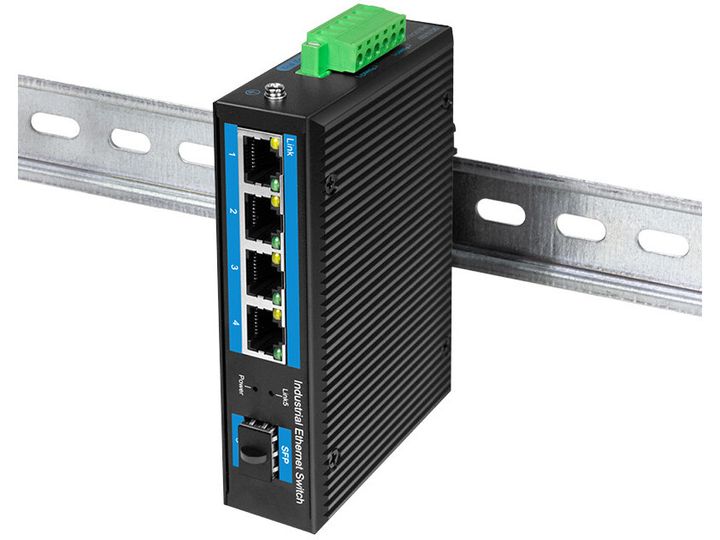

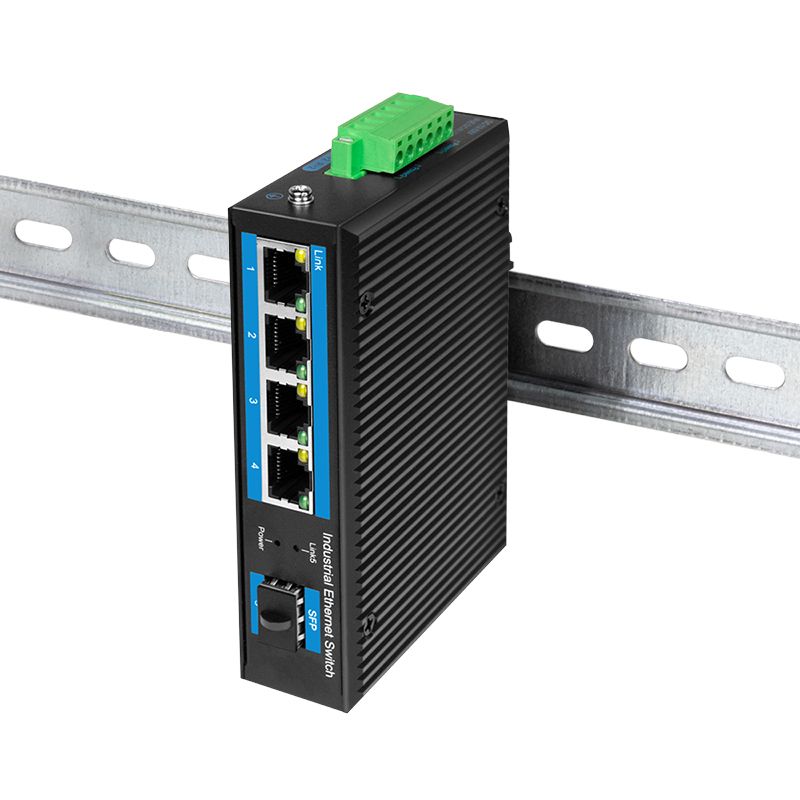

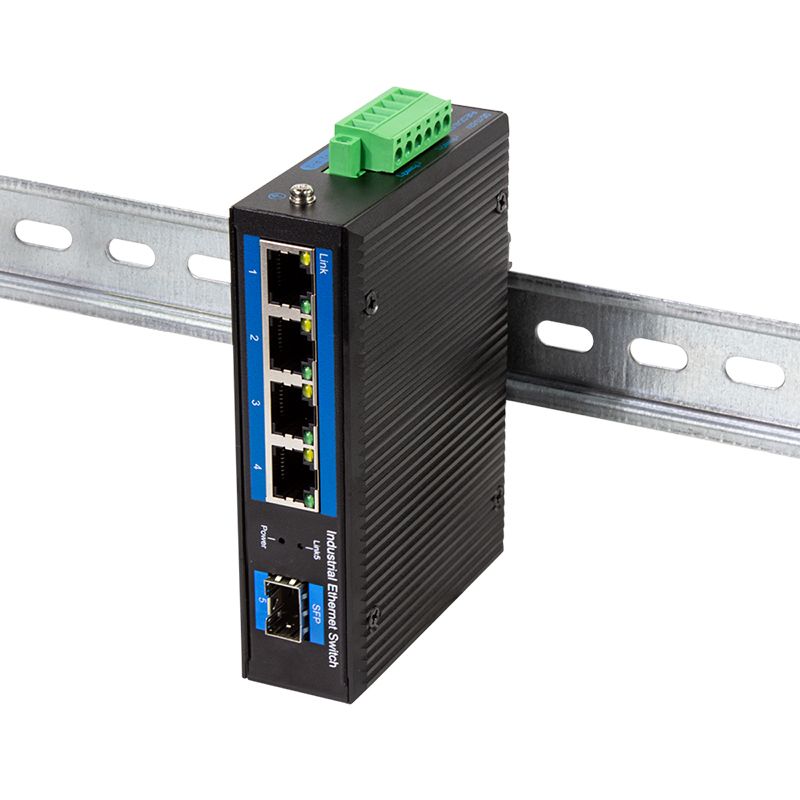

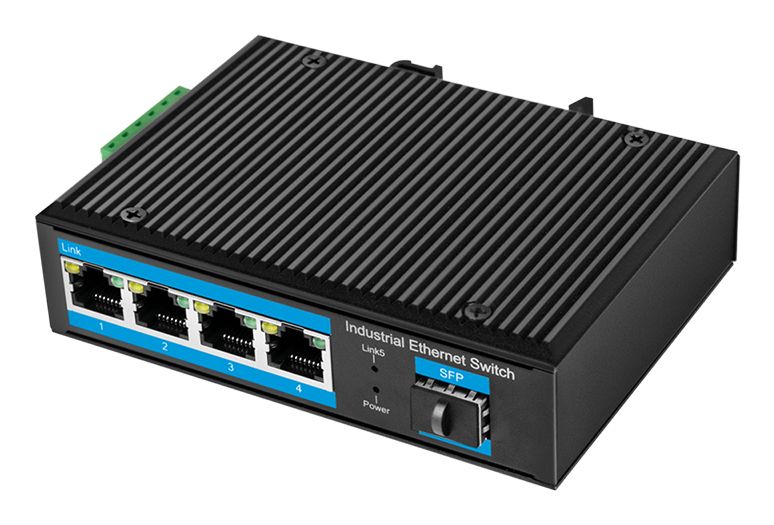

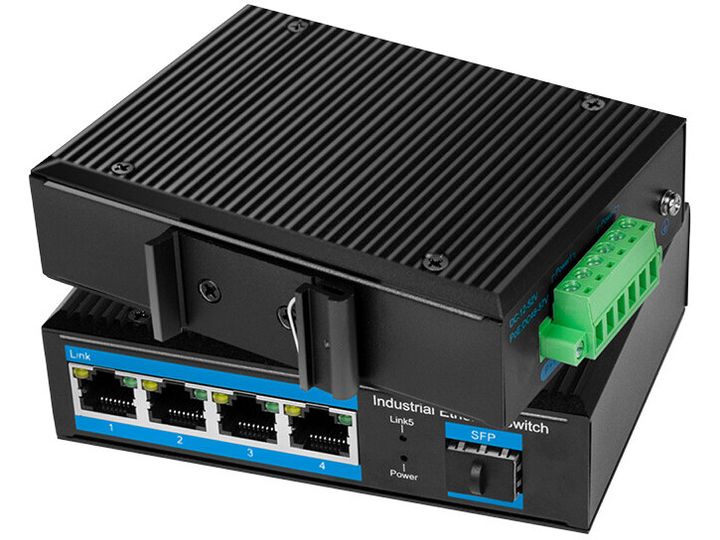

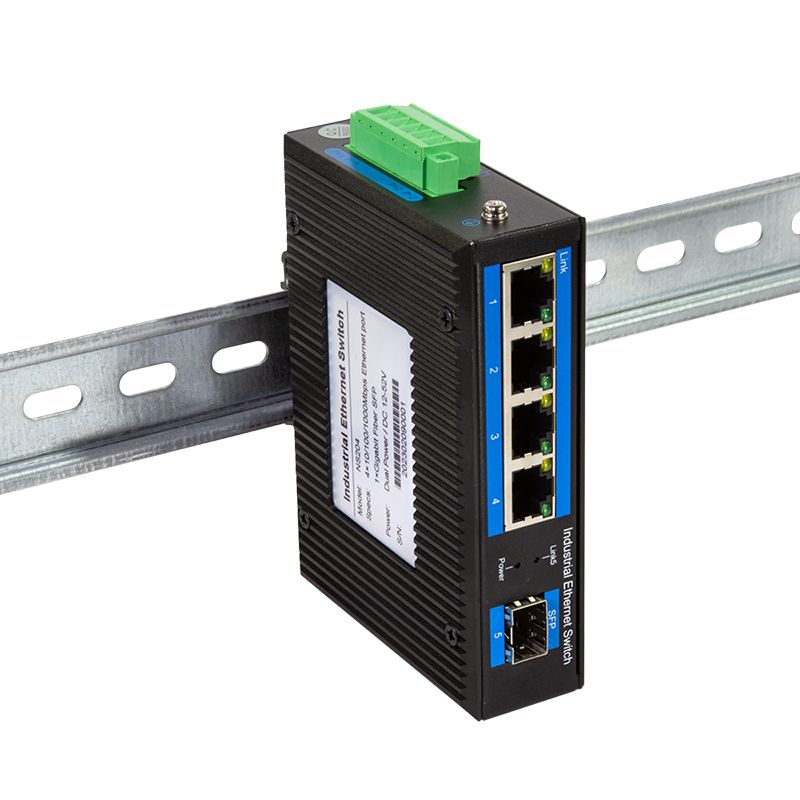

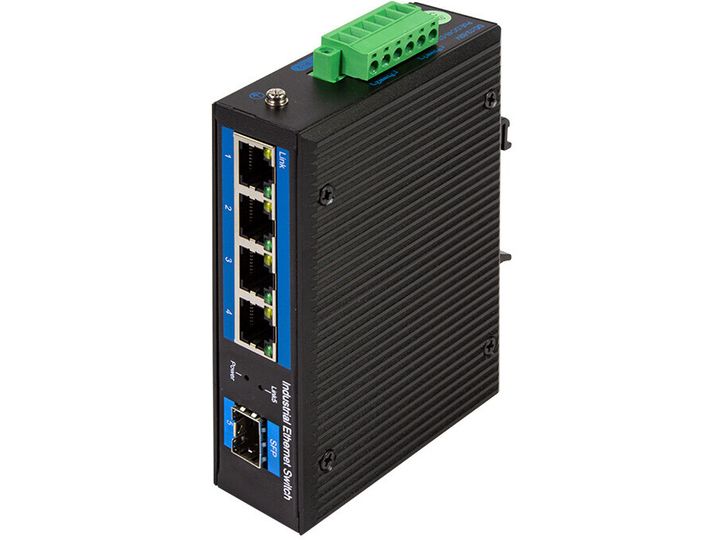

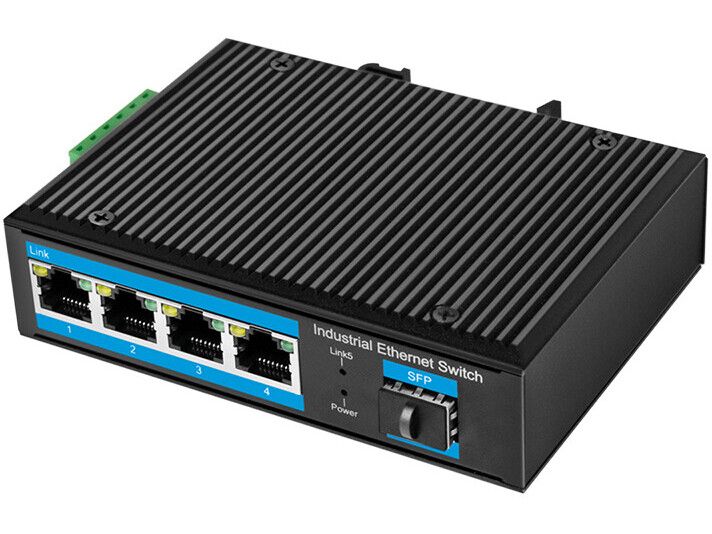

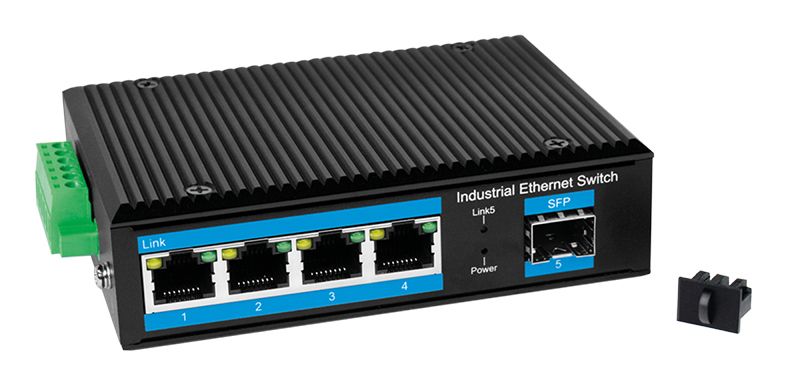

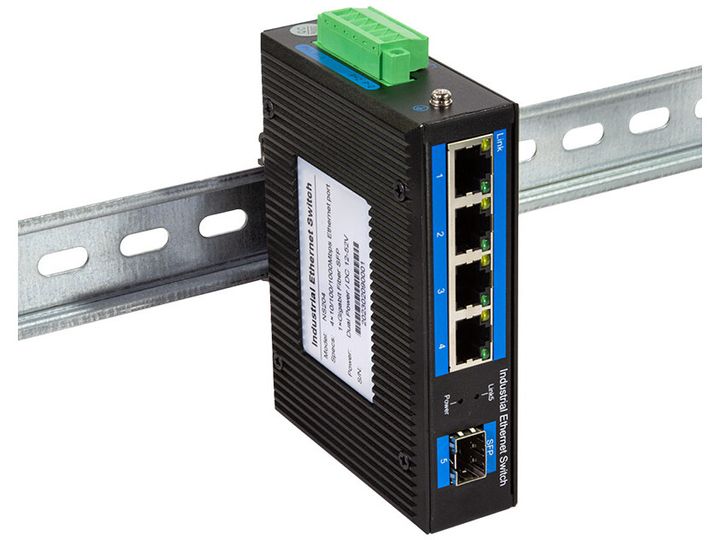

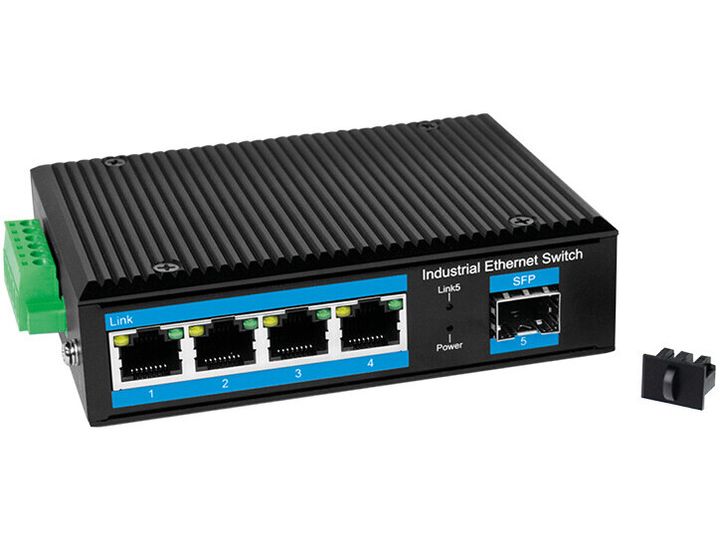

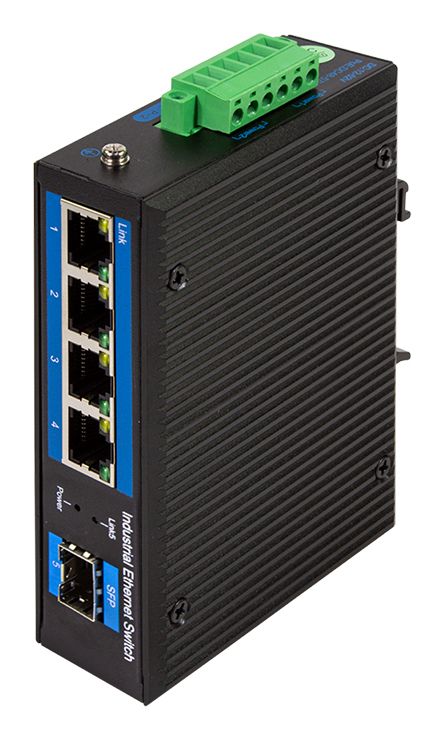

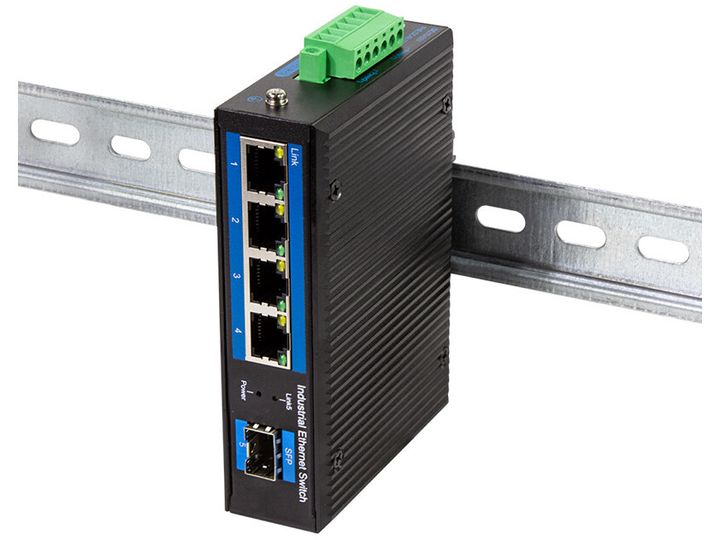

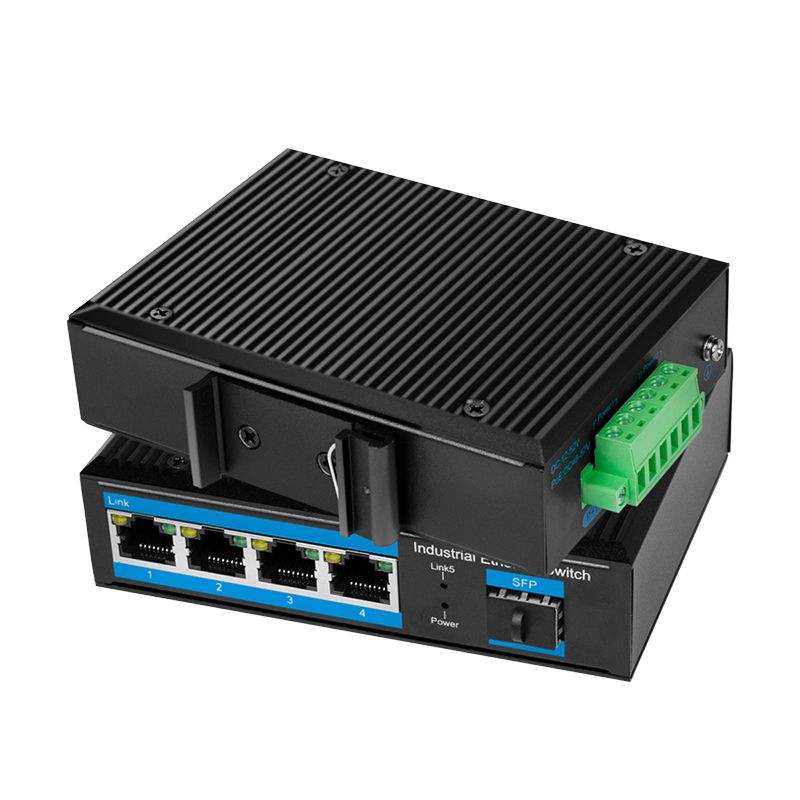

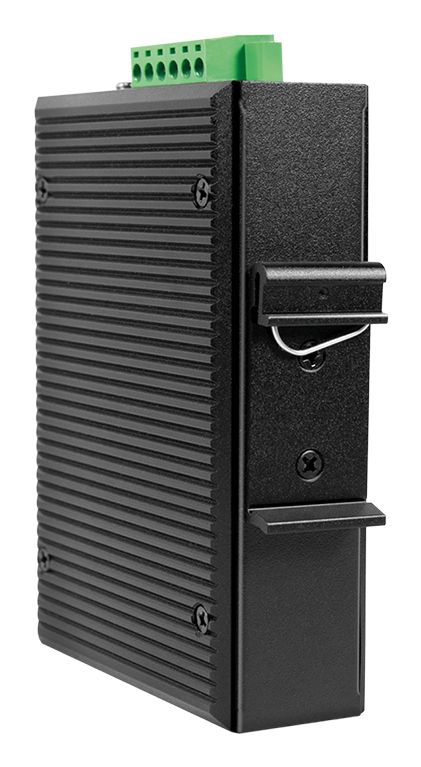

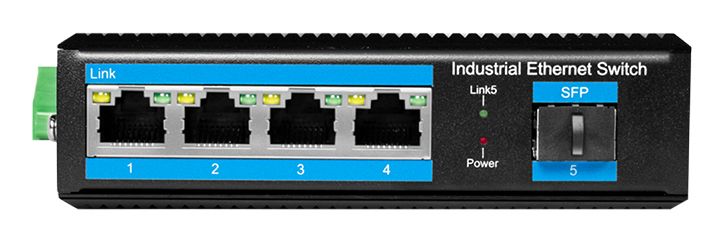

The unmanaged Industrial Ethernet switches from LogiLink are particularly suitable for use in harsh environments thanks to the extended temperature range of -40–80 °C. These robust and compact devices enable the connection of several end devices, optionally with power supply via the same Ethernet patch cable (PoE). Due to their flexibility (Giga or Fast Ethernet, with or without PoE) and simplicity (plug-and-play, unmanaged), these switches are not only suitable for industrial applications.
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
4
SFP module slots quantity
1
Networking standards
IEEE 802.3z, IEEE 802.3ab, IEEE 802.3u
Full duplex
Yes
Half duplex
Yes
MAC address table
2000 entries
Switching capacity
14 Gbit/s
Forwarding rate
10.5 Mpps
Access Control List (ACL)
Yes
Product colour
Black
Housing material
Aluminium

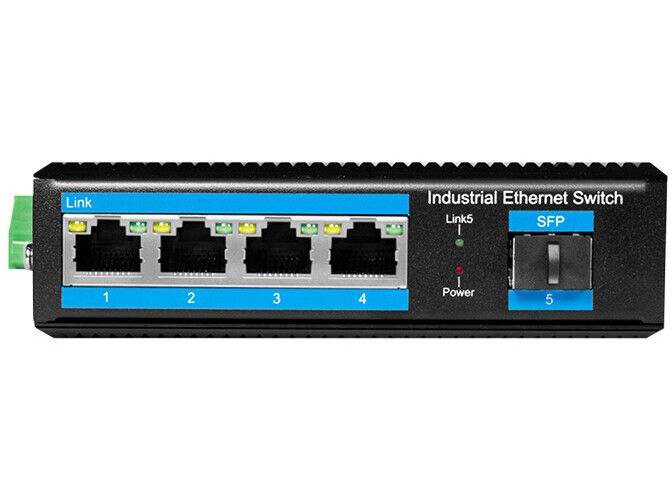

LED indicators
Activity, Link, Power
Wall mountable
Yes
Mean time between failures (MTBF)
300000 h
Power source
DC
Power supply included
Yes

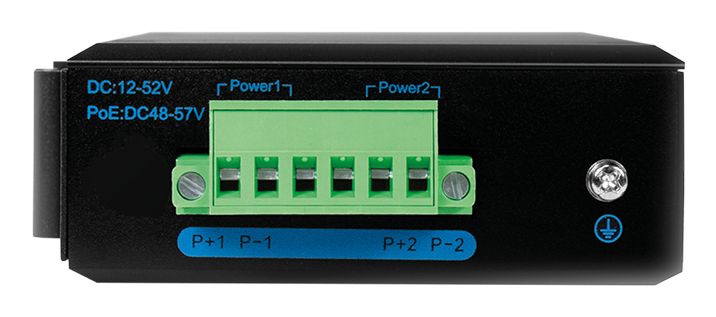

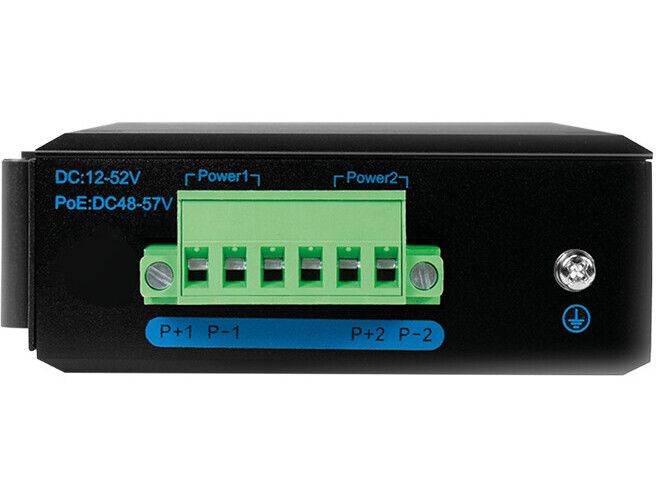

DC input voltage
12 - 52 V
Power consumption (max)
3 W
Operating temperature (T-T)
40 - 80 °C
Storage temperature (T-T)
40 - 80 °C
Storage relative humidity (H-H)
40 - 80%
Width
118 mm
Depth
86 mm
Height
33.5 mm
Weight
360 g
Manual
Yes
Package type
Box
Package width
165 mm
Package depth
135 mm
Package height
54 mm
Package weight
460 g
The item is known under the following item numbers in our system
EAN:
4052792070460
SKU:
NS204
