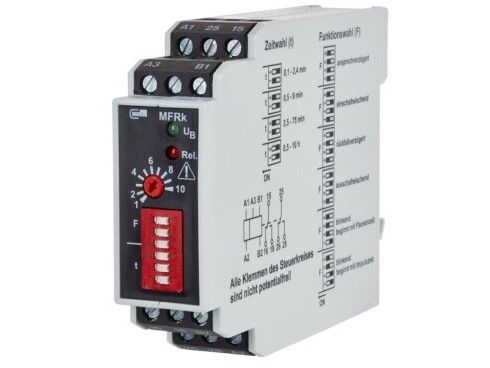

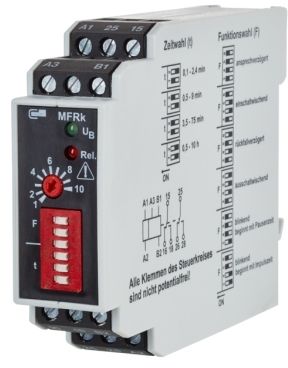

Multi-functional timer relay with incorporated coding switches to set functions. The time is set by means of a linear potentiometer on a relative scale.
Housing colour
Grey
Mounting position
Horizontal/Vertical
AWG wire size (min)
12
AWG wire size (max)
22
Minimum conductor cross section (solid)
0.2 mm²
Maximum conductor cross section (solid)
2.5 mm²
Contact material
AgNi
Nominal input voltage
230 - 400 V
Maximum switching voltage
250 V
LED indicators
Status
Pollution degree
2
Overvoltage category
CAT III
International Protection (IP) code
IP20, IP40
Operating temperature (T-T)
10 - 55 °C
Storage temperature (T-T)
25 - 70 °C
Lifetime (cycles)
10000000
Width
22.5 mm
Depth
95 mm
Height
75 mm
Weight
150 g
Country of origin
Germany
Sustainable technologies and materials
Polyamid 6.6 V0
Compliance certificates
REACH
