Fischer 564573, Brick, Concrete, Zinc plated steel, M6, 6 mm, 75 mm, 6 mm

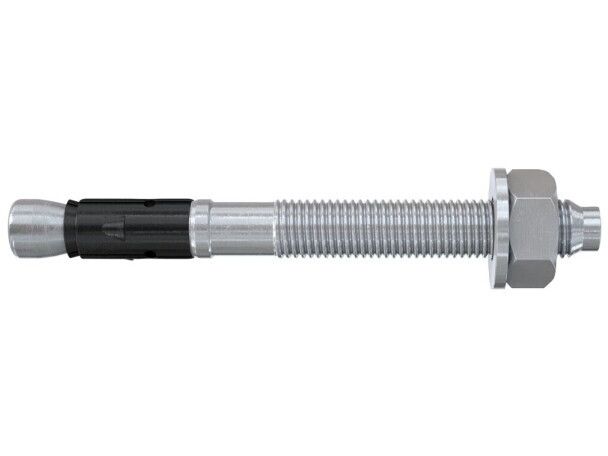

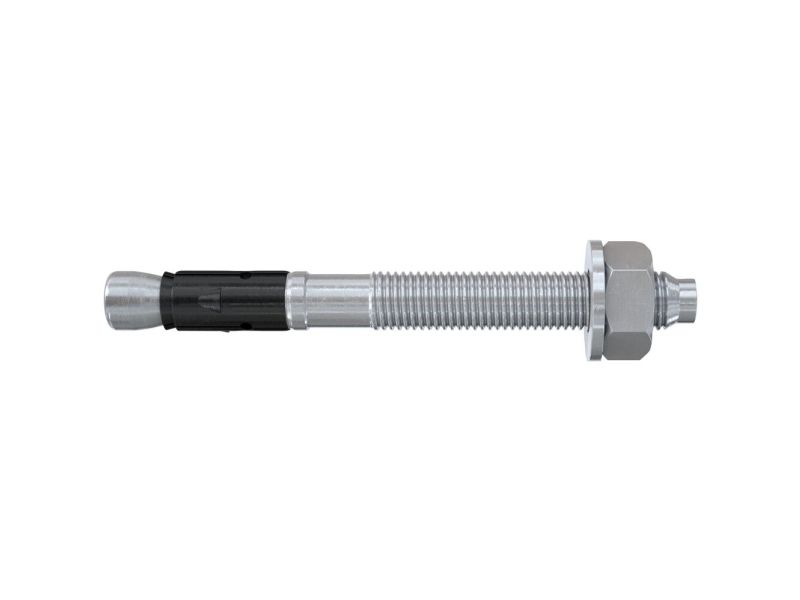

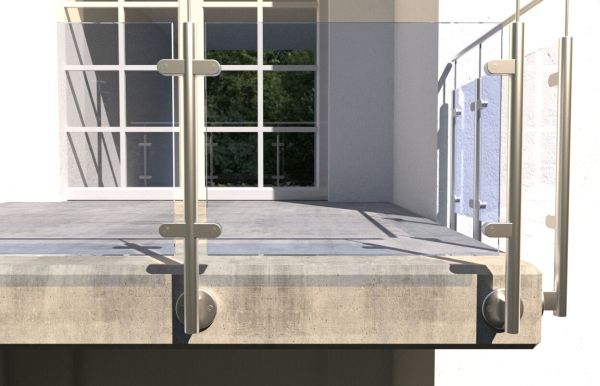

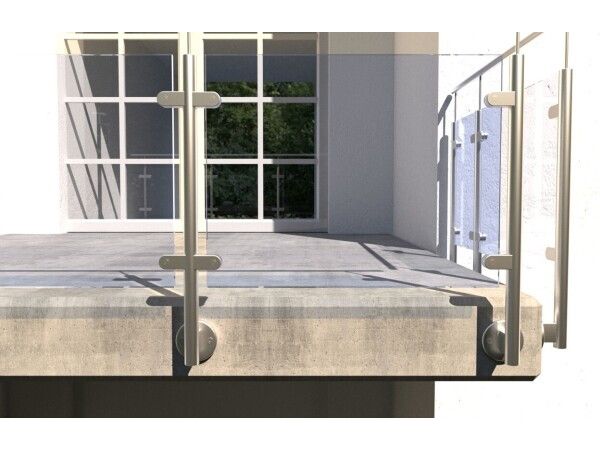

The fischer bolt anchor FAZ II Plus is the steel anchor for the highest demands, now with even higher tensile strengths. Heavy loads can be secured in cracked concrete using the steel anchor. The tried-and-tested expansion clip safely introduces the loads into the concrete and enables an immediately loadable, high load-bearing capacity. For example, the steel anchor is ideal for the anchoring of railings, cable trays, and consoles.

Advantages
- The first bolt anchor M6 with ETA evaluation option 1 ensures a safe and approved anchorage.
- Numerous approval certificates for different substrate materials (concrete C12/15-C80/90, steel fiber concrete, solid sand-lime brick) increase the number of applications and fields of use.
- With the new assessment (ETA), the tensile strengths increase decisively. As a result, fewer fixing points and anchors are required.
- The ETA evaluation, together with other test reports (RWS, ZTV, ETK), ensures high loads in case of fire.
- The variable anchorage depths allow a millimetre-accurate adjustment to the loads.

Functionality
- The FAZ II Plus is suitable for pre-positioned and push-through installation and is also ideal for stand-off installation thanks to the long thread.

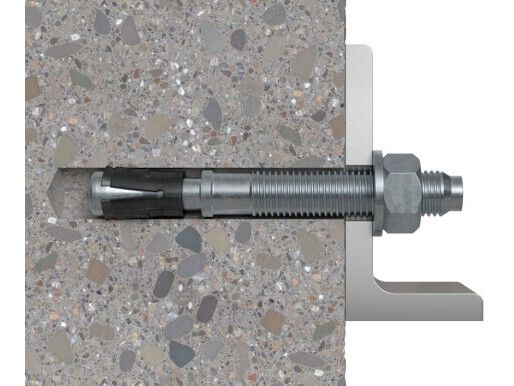

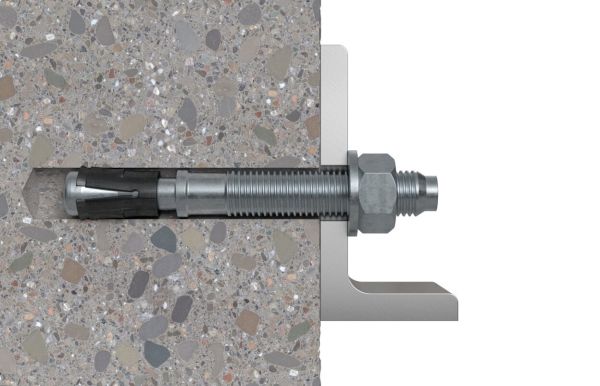

- When applying the torque, the cone bolt is pulled into the expansion sleeve and expands it against the drill hole wall.
- The anchor is set in line with the approval once the preset installation torque is achieved.
- In the case of series installation, we recommend using the FABS or FA-ST II anchor bolt setting tools.
