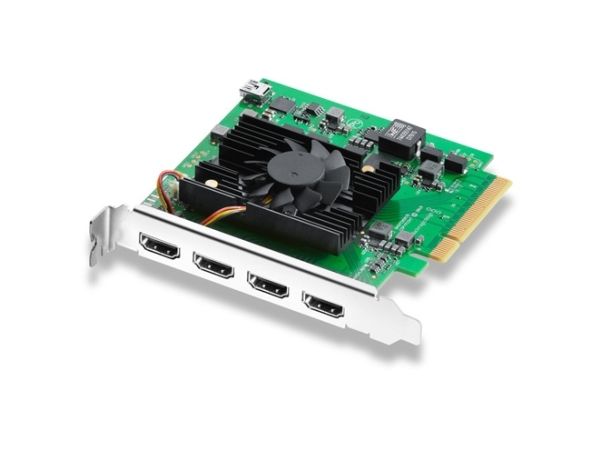

Blackmagic Design Decklink Quad HDMI Recorder

Item no.: [10309194] | Manufacturer: Blackmagic | Model no.: BM-BDLKDVQDHDMI4K | EAN: 9338716006094

Remote stock (5-7 days)

The item is in a remote warehouse, delivery time is 5-7 business days. More info

Shipping @price - GLS

12,00

EUR 520,60

Incl. VAT 650,75

Total incl. delivery 665,75

Read further specifications and description

DeckLink Quad HDMI Recorder is a high performance PCIe card that lets you capture from 4 different HDMI sources in any combination of SD, HD, Ultra HD, 4K and even computer formats, all at the same time! Featuring 4 independent HDMI 2.0b input connections, DeckLink Quad HDMI is like getting 4 separate and customizable capture cards in one, making it perfect for software live switching, real time computer game capture, streaming and more!

Produktbeskrivelse	Blackmagic DeckLink Quad HDMI Recorder - videooptagelsesadapter - PCIe 3.0 x8
Enhedstype	Videooptagelsesadapter
Grænsefladetype	PCIe 3.0 x8
Dimensioner (B x D x H)	10.9 cm
Vægt	128 g
Videoindgang	HDMI-indgang
Video Modes	1080/24p, 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 625/50p, 2160/24p, 2160/25p, 2160/30p, 2160/50p, 2160/60p, 4096/24p, 4096/50p, 4096/60p, 1080/59.94i, 1080/59.94p, 720/59.94p, 4096/30p, 1080/23.98p, 1080/29.97PsF, 2160/23.98p, 2160/29.97p, 4096/25p, 4096/23.98p, 4096/29.97p, 4096/59.94p, 525/59.94i, 2160/59.94p
Analogvideoformat	NTSC, PAL
Komprimeret video format	YUV 4:2:0, YUV 4:2:2, YUV 4:4:4
Digital videoformat	MPEG-2, DV, DVCPRO50, AVCHD, HDV, DVCPRO HD, AVC-Intra, ProRes 422, DNxHD, DPX, XDCAM EX, XDCAM HD, XDCAM HD422, ProRes 4444, ProRes 422 HQ, ProRes 422 Proxy, ProRes 422 LT, DNxHR
Opløsning ved digital videooptagelse	1280 x 720, 640 x 480, 1600 x 1200, 1440 x 1080, 800 x 600, 1920 x 1440, 1920 x 1080, 2560 x 1440, 2560 x 1600, 1920 x 1200, 1440 x 900, 4096 x 2160
Understøttelse af lydindgang	Standard
Lydindgangsmodus	24 bit - maks. målingshastighed: 48 kHz
Egenskaber	High Dynamic Range (HDR)
OS nødvendig	Linux, Windows 8.1 / 10 (64 bits), Apple macOS Catalina 10.15, Apple macOS Big Sur 11.1
Producentgaranti	3 års garanti

Generelt
Enhedstype	Videooptagelsesadapter
Grænsefladetype	PCIe 3.0 x8
Dybde	10.9 cm
Vægt	128 g
Video
Grænsefladetype	HDMI-indgang
Video Modes	1080/24p, 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 625/50p, 2160/24p, 2160/25p, 2160/30p, 2160/50p, 2160/60p, 4096/24p, 4096/50p, 4096/60p, 1080/59.94i, 1080/59.94p, 720/59.94p, 4096/30p, 1080/23.98p, 1080/29.97PsF, 2160/23.98p, 2160/29.97p, 4096/25p, 4096/23.98p, 4096/29.97p, 4096/59.94p, 525/59.94i, 2160/59.94p
Analogvideoformat	NTSC, PAL
Komprimeret video format	YUV 4:2:0, YUV 4:2:2, YUV 4:4:4
Digital videoformat	MPEG-2, DV, DVCPRO50, AVCHD, HDV, DVCPRO HD, AVC-Intra, ProRes 422, DNxHD, DPX, XDCAM EX, XDCAM HD, XDCAM HD422, ProRes 4444, ProRes 422 HQ, ProRes 422 Proxy, ProRes 422 LT, DNxHR
Opløsning ved digital videooptagelse	1280 x 720, 640 x 480, 1600 x 1200, 1440 x 1080, 800 x 600, 1920 x 1440, 1920 x 1080, 2560 x 1440, 2560 x 1600, 1920 x 1200, 1440 x 900, 4096 x 2160
Understøttelse af lydindgang	Standard
Audio Sampling Format	Stereo 24-bit / 48 kHz
Egenskaber	High Dynamic Range (HDR)
Lydindgang
Databredde	24 bit
Maks. prøvehastighed	48 kHz
Ekspansion / Konnektivitet
Interface	4 x audio / video - HDMI-indgang - 19 pin HDMI Type A
Kompatible åbninger	1 x PCI Express 3.0 x8
Effekt
Strømforbrug ved drift	23 Watt
Programmer / Systemkrav
Med software	Drivers & Utilities, Blackmagic Media Express, Blackmagic Disk Speed Test, Blackmagic Desktop Video Utility
OS nødvendig	Linux, Windows 8.1 / 10 (64 bits), Apple macOS Catalina 10.15, Apple macOS Big Sur 11.1
Producentgaranti
Service & Support	Begrænset garanti - 3 år
Miljømæssige parametre
Min. driftstemperatur	5 °C
Maks. driftstemperatur	40 °C
Fugtighedsgrad ved brug	0 - 90% (ikke-kondenserende)

The item is known under the following item numbers in our system

EAN:	9338716006094
SKU:	BM-BDLKDVQDHDMI4K

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
