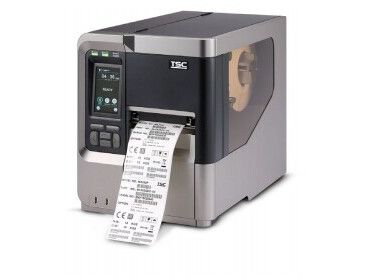

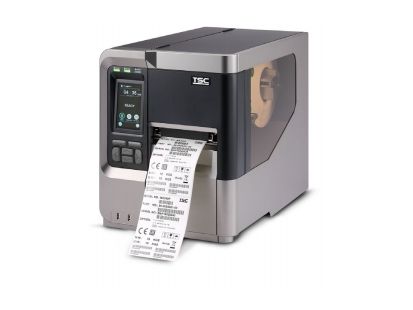

TSC MX240P, Direct thermal / Thermal transfer, 203 x 203 DPI, 457 mm/sec, Wired, Black, Grey
Item no.: [10321079] | Manufacturer: TSC | Model no.: 99-151A001-000M
Remote stock (14-21 days)
The item is in a remote warehouse, delivery time is 14-21 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
2.090,36
Incl. VAT 2.612,95
Total incl. delivery
2.627,95
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login
Send på mail
Do you need a spare part for your printer or scanner?
Our configurator shows exactly the parts that fit 99-151A001-000M - fusers, rollers, paper trays, print heads and much more.
The MX240P Series industrial thermal printer is ruggedly built for high volume, high quality, label printing. Featuring our fastest print speeds ever, the MX240P Series boosts productivity with faster processing power, communications and printing speeds. It is ideal for applications that include manufacturing, logistics, shipping, and product identification.

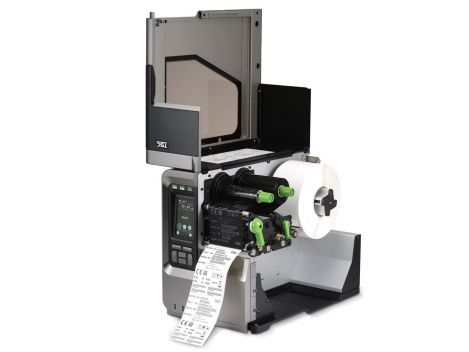

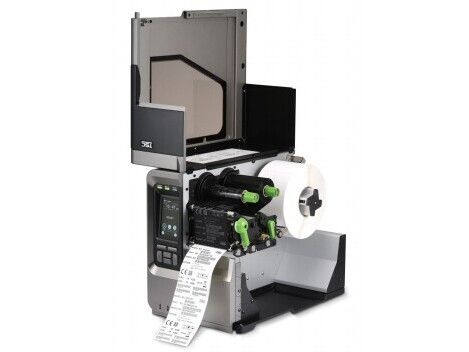

The new high performance MX240P Series was designed to deliver 24x7 high volume performance. It features a die-cast aluminum print mechanism housed in a very strong yet lightweight cabinet. This new design results in a more durable printer that is suited for your most heavy-duty demand cycles.
Superb resolution, great warranty There are three models available with the MX240P Series. The MX240P prints at 203 dpi at speeds up to an amazing 18 inches per second, MX340P offers higher 300 dpi resolution at speeds up to 14 inches per second, and the MX640P features 600 dpi high resolution which makes it ideal for printing very small 2D barcodes, graphics, fine print and other ultra-high-resolution images. All TSC printers feature a standard two-year limited warranty.
Loaded with standard features The MX240P Series printers are loaded with standard features including a color touch display with new GUI design and six menu buttons to provide a great user experience, support for 600 meter ribbons, 8" OD media rolls, built-in Ethernet, two USB hosts for keyboard and scanner connections, and USB 2.0 and serial interfaces. Parallel and GPIO ports are available as an option.
Memory to spare The MX240P Series offers plenty of memory with 512 MB SDRAM and 512 MB FLASH, which provides easy storage of fonts, international character sets and graphics. It also includes a secure digital (SD) FLASH memory card reader for inexpensively adding up to 32 GB of memory.
Powerful TSPL-EZ Printer Programming Language TSC ships TSPL-EZ firmware in all its printers. TSPL-EZ supports three different printer languages including TSC printer language, TPLE (Translation Printer Language Eltron), and TPLZ (Translation Printer Language Zebra). TSPL-EZ features internal scalable True Type fonts, and a BASIC interpreter with file manager for creating powerful printer interface applications with multiple type of hosts.
- High Volume Printing - Work In Process - Compliance Labeling - Inventory Management - Shipping/Receiving - Asset Management - Electronics & Jewelry Labeling
Print technology
Direct thermal / Thermal transfer
Colour
No
Maximum resolution
203 x 203 DPI
Print speed
457 mm/sec
Maximum printing width
10.4 cm
Minimum print length
2.54 cm
Ribbon width
11.5 cm
Ribbon length
600 m
Maximum roll diameter
20.3 cm
Media thickness
0.076 ~ 0.305 mm
Supported paper width
20 - 114 mm
Maximum media length
25.4 m
Core diameter
7.62 cm
Connectivity technology
Wired
Ethernet LAN
Yes
USB port
Yes
USB 2.0 ports quantity
1
RS-232 ports
1
Optional connectivity
Parallel
Page description languages
TSPL-EZ, EPL, ZPL, ZPL II
Internal memory
512 MB
Flash memory
512 MB
Built-in barcodes
Code 93, PLESSEY, Code-128 Codabar Library, POSTNET, AZTECCODE, Data Matrix, Interleaved 2/5, QR Code, CODABAR (NW-7), China post, EAN128, GS1 DataMatrix, MSI, Code 11, EAN13, GS1 Databar (RSS-14), MaxiCode, UPC-A, EAN8, UPC-E, Code 39, PDF417, GS1 DataBar
Built-in processor
Yes
Number of fonts
8
Compatible memory cards
MicroSD (TransFlash)
Tape end detection
Yes
Open cover detection
Yes
Certification
FCC Class B, CE Class B, C-Tick Class B, UL, cUL, TÜV/safety, CCC, CB, BIS, EAC, ENERGY STAR
Product colour
Black, Grey
Display
LCD
Built-in display
Yes
Display diagonal
10.9 cm (4.3")
Display resolution
480 x 272 pixels
Colour display
Yes
Backlight display
Yes
Control type
Buttons
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
AC adapter output voltage
24 V
AC adapter output current
5 A
Power source type
DC
Operating relative humidity (H-H)
25 - 85%
Storage relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
5 - 40 °C
Storage temperature (T-T)
40 - 60 °C
Width
300 mm
Depth
510 mm
Height
393 mm
Weight
18 kg
Cables included
DC
Sustainability certificates
ENERGY STAR
Compliance certificates
BIS, CE, China Compulsory Certification (CCC), EAC, Federal Communications Commission (FCC), TÜV mark, UL, cUL
