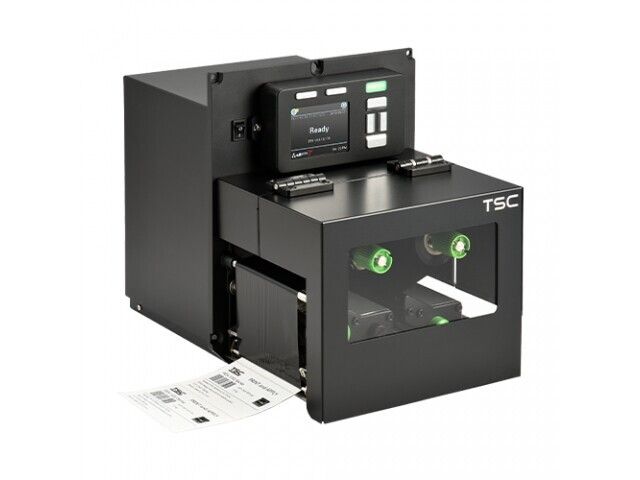

TSC PEX-1121, Direct thermal / Thermal transfer, 203 x 203 DPI, 457 mm/sec, Wired, Black
Item no.: [10321109] | Manufacturer: TSC | Model no.: PEX-1121-A001-0002
Remote stock (14-21 days)
The item is in a remote warehouse, delivery time is 14-21 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
3.160,39
Incl. VAT 3.950,49
Total incl. delivery
3.965,49
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login
Send på mail
Do you need a spare part for your printer or scanner?
Our configurator shows exactly the parts that fit PEX-1121-A001-0002 - fusers, rollers, paper trays, print heads and much more.
Igniting Output with An Enterprise-Level Print Engine The innovative PEX-1001 Series print engine incorporates a robust die-cast construction designed for years of reliability, ease of use, and cost-conscious serviceability. The PEX-1001 Series combines a precision print mechanism with high-performance electronics to produce labels at up to 18-inches per second, superior print speed in its class. Designed for ease of integration, the PEX-1001 Series features a bolt-compatible construction with a commonly used GPIO interface compatible with mainstream applicators. Capable of seamless connectivity, the PEX-1001 series supports 802.11 a/b/g/n/ac Wi-Fi and Ethernet enabling dynamic remote printer management powered by SOTI Connect and TSC Console that turns the barcode label printer into a connected network. Ideal for manufacturing and logistic applications where high-speed and high-demand label printing is required.
Print technology
Direct thermal / Thermal transfer
Colour
No
Maximum resolution
203 x 203 DPI
Print speed
457 mm/sec
Maximum printing width
10.4 cm
Number of printable dots
8 dot
Rotated printing
Yes
Ribbon length
600 m
Maximum label width
11.4 cm
Maximum label length
25.4 m
Media thickness
0.076 - 0.305 mm
Supported paper width
104 mm
Core diameter
2.54 cm
Connectivity technology
Wired
Ethernet LAN
Yes
Wi-Fi
No
USB port
Yes
USB 2.0 ports quantity
1
Parallel ports quantity
1
RS-232 ports
1
Page description languages
DPL, EPL, ZPL, ZPL II
Internal memory
512 MB
Flash memory
512 MB
Built-in barcodes
1D, 2D
Built-in processor
Yes
Number of fonts
8
Certification
BSMI, CB, CCC, CE Class A, EAC, FCC Class A, BIS, KC, cTUVus, Mexico CoC
Product colour
Black
Display
TFT
Built-in display
Yes
Display diagonal
8.89 cm (3.5")
Display resolution
320 x 240 pixels
Colour display
Yes
Control type
Buttons
AC input voltage
100-240 V
AC input frequency
50/60 Hz
Operating relative humidity (H-H)
25 - 85%
Storage relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
40 - 60 °C
Width
245 mm
Depth
390 mm
Height
300 mm
Weight
13 kg
Cables included
AC, USB
