The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
ATX 3.0 COMPATIBLE It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A750GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.
80 PLUS GOLD CERTIFIED The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
COMPACT SIZING Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.
ONLY WHAT YOU NEED The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

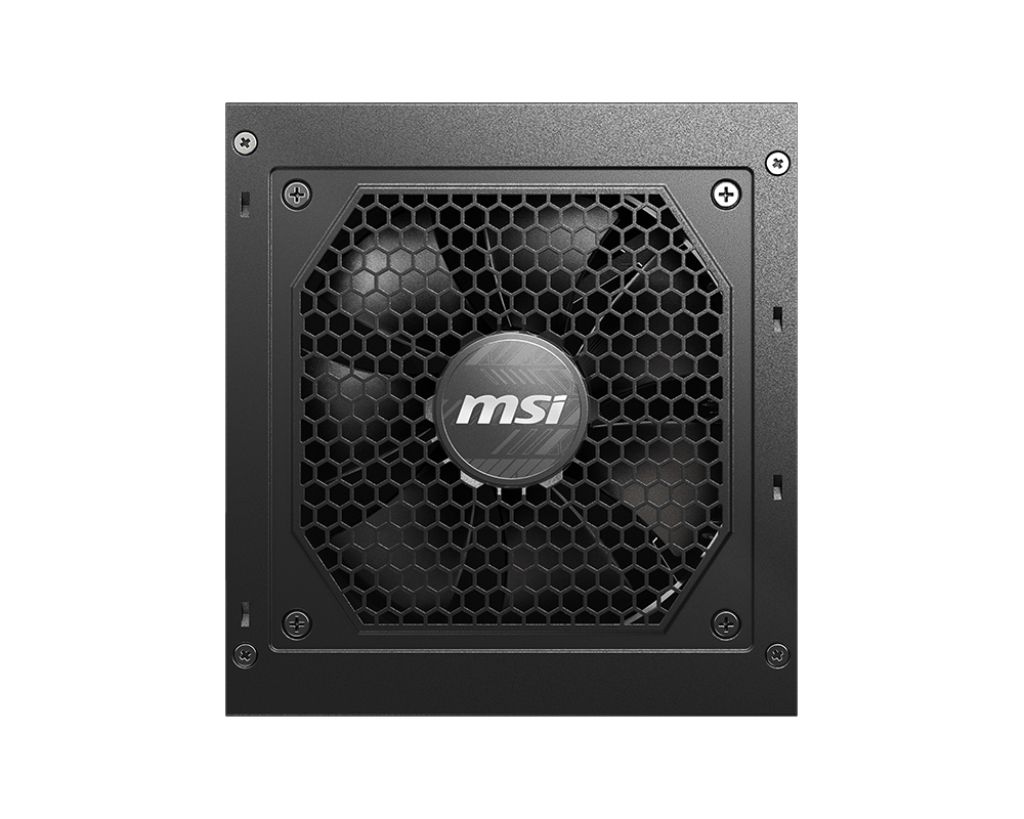

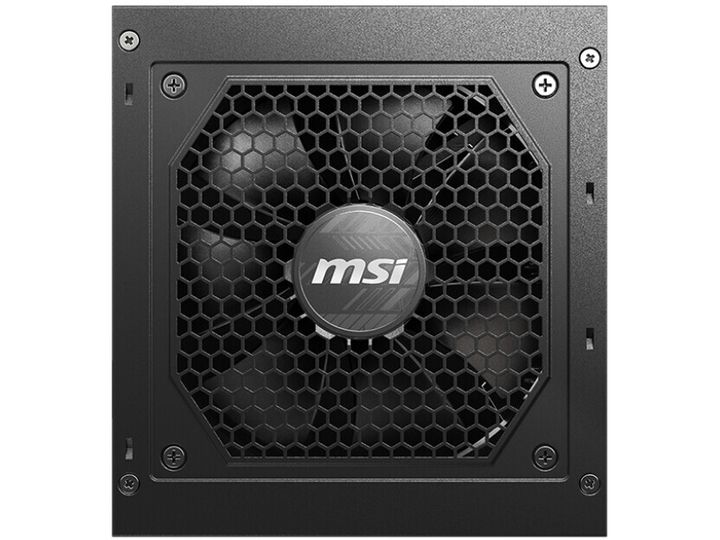

FLUID DYNAMIC BEARING The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.
DC TO DC & FULL BRIDGE DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
THE POWER YOU HAVE The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.
PROTECTION MECHANISMS To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
Produktbeskrivelse

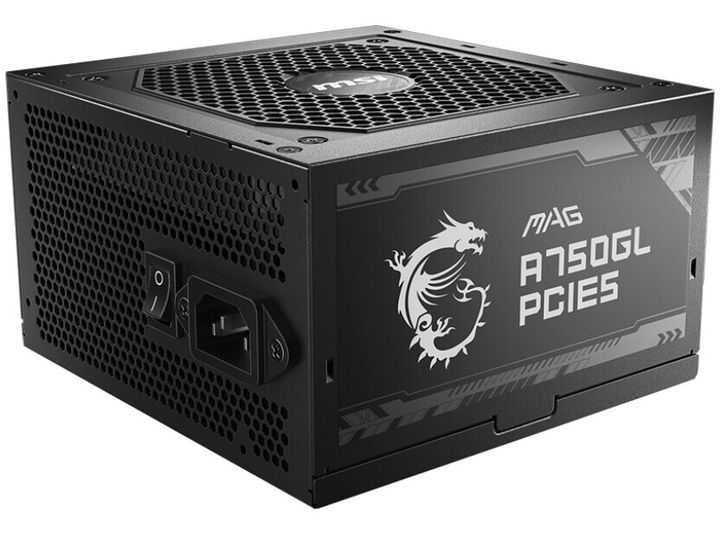

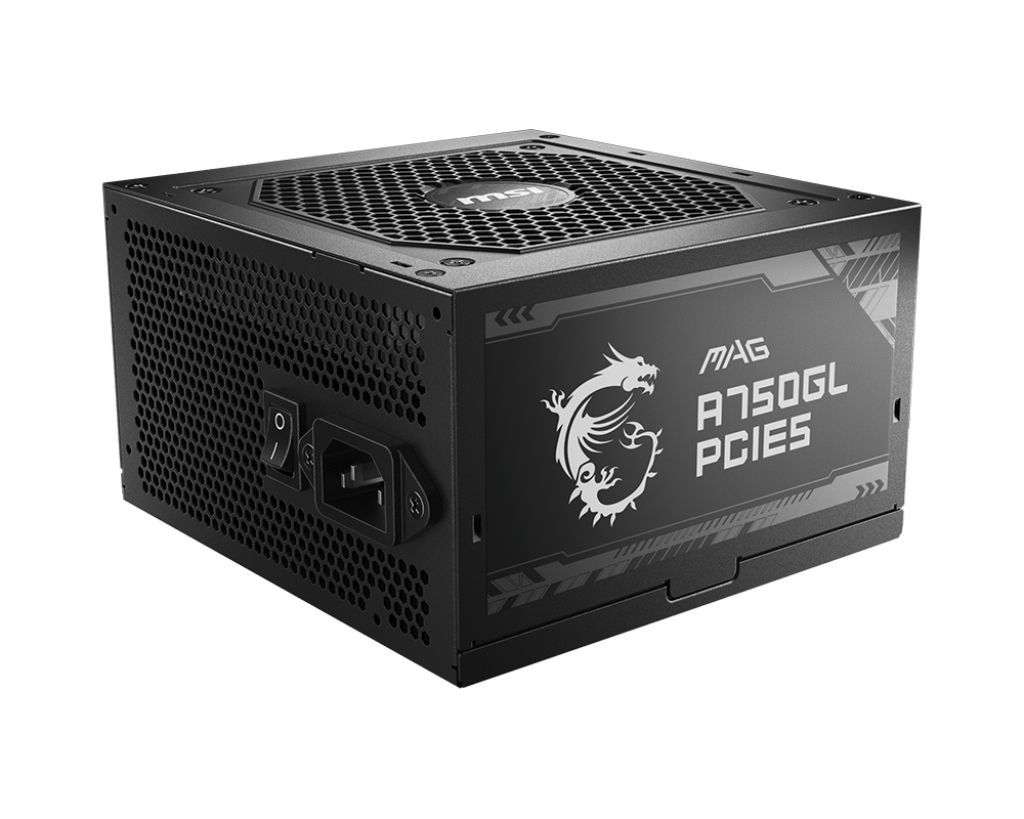

MSI MAG A750GL PCIE5 - strømforsyning - 750 Watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.0/ EPS12V
80 PLUS certificering
80 PLUS Gold
Indgangspænding
AC 100-240 V
Strømkapacitet
750 Watt
Output Current
+3.3V - 20 A +5V - 20 A -12V - 0.3 A +12V - 62 A +5VSB - 2.5 A
Output-stikforbindelser

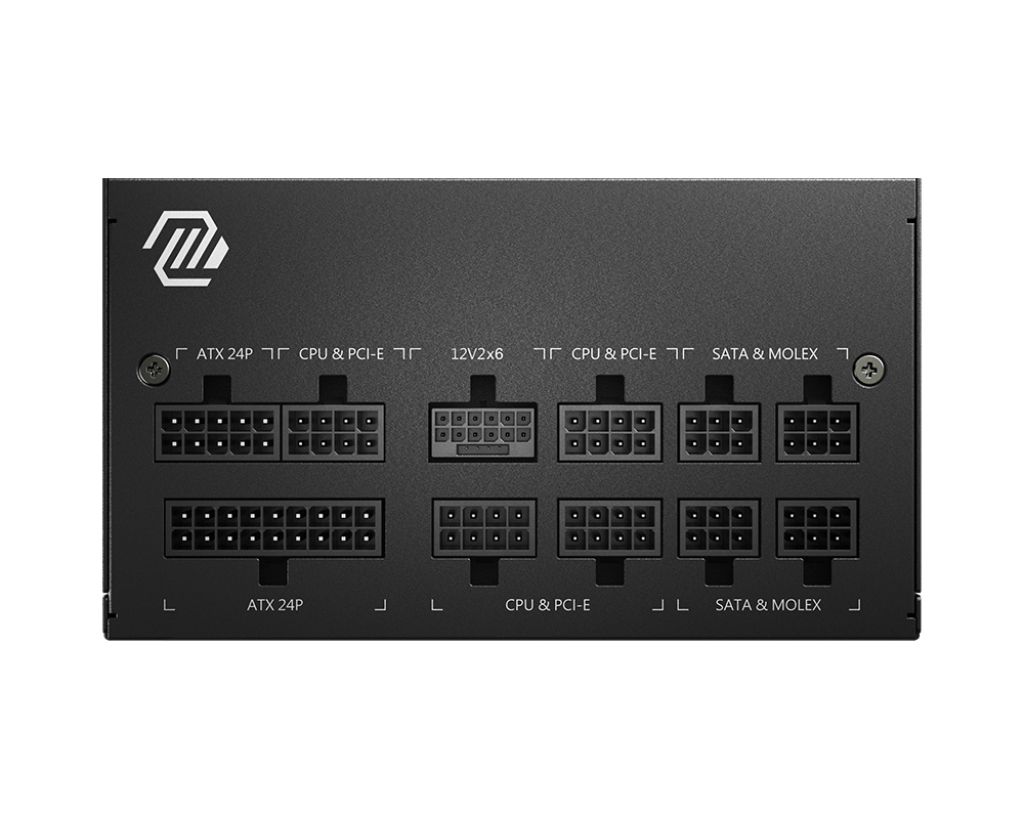

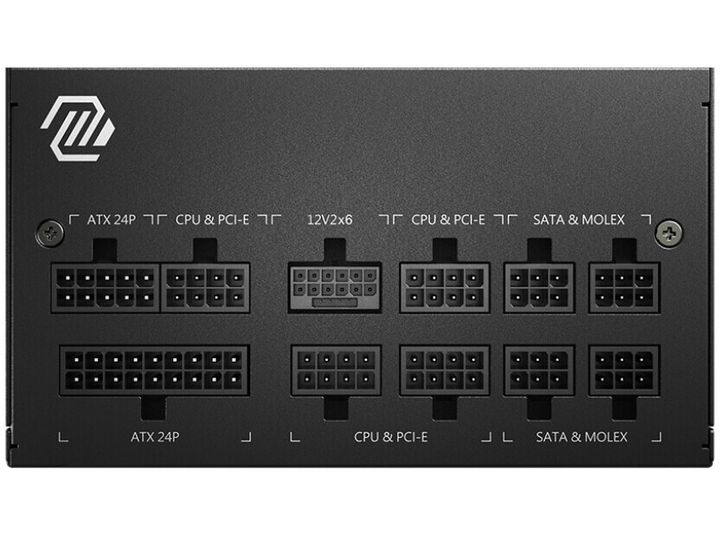

1 x strøm 24 pin ATX 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 1 x 12+4 pin PCI Express 5.0 strøm 3 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 8 x 15 pin Serial ATA strøm 5 x 4-PIN intern strøm
Modulær Kabel Administration
Ja
Kølesystem
120 mm ventilator
Dimensioner (B x D x H)
15 cm x 14 cm x 8.6 cm
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.0/ EPS12V
PSU formfaktor
ATX
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
47 - 63 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 1 x 12+4 pin PCI Express 5.0 strøm 3 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 8 x 15 pin Serial ATA strøm 5 x 4-PIN intern strøm
Strømkapacitet
750 Watt
Output Current
+3.3V - 20 A +5V - 20 A -12V - 0.3 A +12V - 62 A +5VSB - 2.5 A
Effektivitet
90%
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Gold
Diverse
Medfølgende ledninger
ATX-strømkabel 60 cm 16-pin 12VHPWR-strømkabel 60 cm 2x 8 pin PCI Express strøm med aftagelig 2 pin sektion modulært kabel 60 cm 2 x strøm 8 pin +12 V med aftageligt 4 pin sektion modulært kabel 70 cm 2 x strøm 15 pin SATA-kabel 4 pin internt strømkabel 8 pin PCI Express strøm med udtrækkelig 2 pin sektion modulærtkabel 60 cm
Kølesystem
120 mm ventilator
Egenskaber
Beskyttelse mod overophedning, beskyttelse mod overstrøm, overspændingsbeskyttelse, overbelastningsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, enkelt 12V skinne, DC-DC teknologi, køleblæser til flydende dynamisk leje, fuld modulær, LLC Full Bridge Topology
Mål og vægt
Bredde
15 cm
Dybde
14 cm
Højde
8.6 cm
GPSR
MSI Computer Europe B.V. Science Park Eindhoven 5706 5692 Eindhoven NL [email protected] https://www.msi.com
