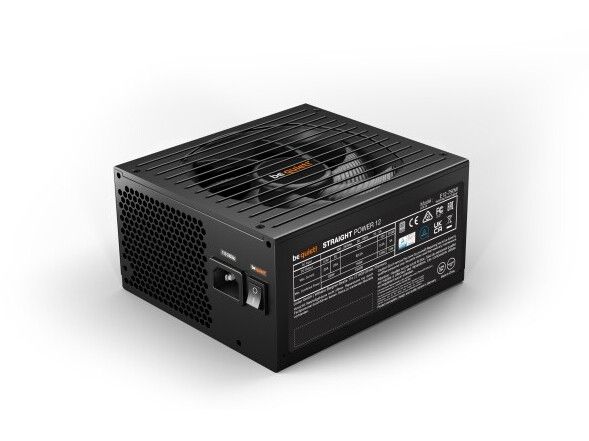

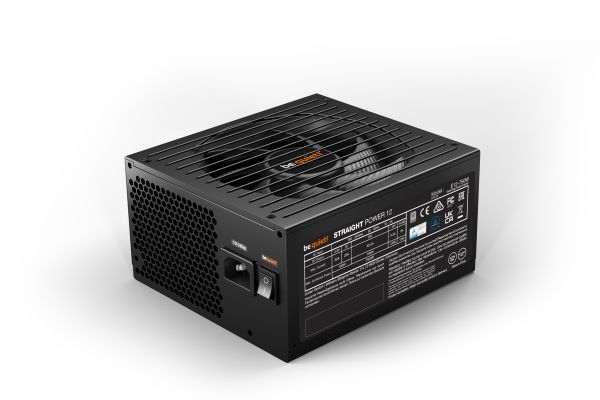

Straight Power 12 is a future-proof ATX 3.1 power supply with 80 PLUS® Platinum certification and virtually inaudible operation.
80 PLUS® PLATINUM CERTIFIED Highly efficient operation Straight Power 12 1500W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 93.9%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation.
FUTURE-PROOF YOUR SYSTEM Fulfills all ATX 3.1 specifications Straight Power 12 1500W is an ATX 3.1 PSU and comes with both native integration of 12V-2x6 connectors for next-generation PCIe 5.1 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.
THE NEW STANDARD OF POWER For massive transient loads Straight Power 12 offers 1500W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 1500W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
SILENT WINGS FAN Provides virtually inaudible operation The high-end Silent Wings fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal power consumption.
FLAWLESS COOLING CONCEPT For a longer lifespan The funnel-shaped fan inlet of the Straight Power 12 1500W increases airflow while reducing unwanted turbulence for a higher cooling performance. The wire-free design inside allows the cool air to reach all components which ultimately leads to a longer lifespan.
STATE-OF-THE-ART TECHNOLOGIES Rock-steady signal stability and efficiency With full bridge LLC Straight Power 12 1500W offers advanced technologies, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.
JAPANESE 105°C CAPACITORS A testament to high quality Only premium components are used in Straight Power 12 1500W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.

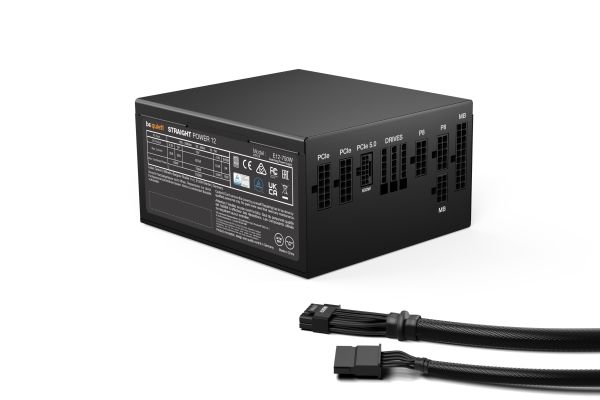

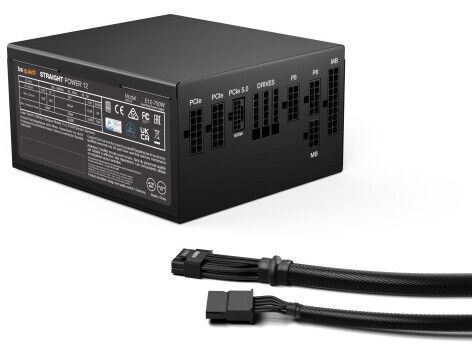

CONVENIENCE AND CONNECTIVITY Maximum utility Modular, sleeved cables of up to 100cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling - even in the largest PC cases.
Produktbeskrivelse

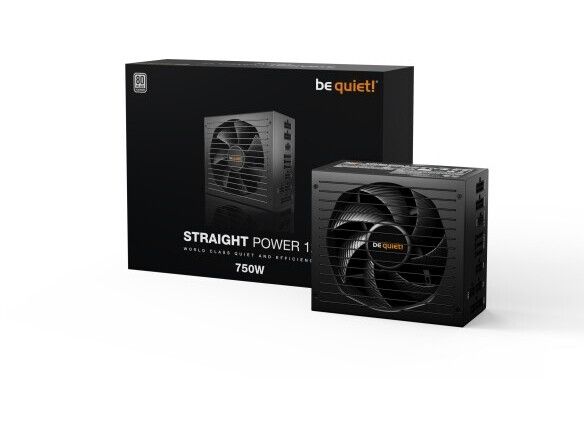

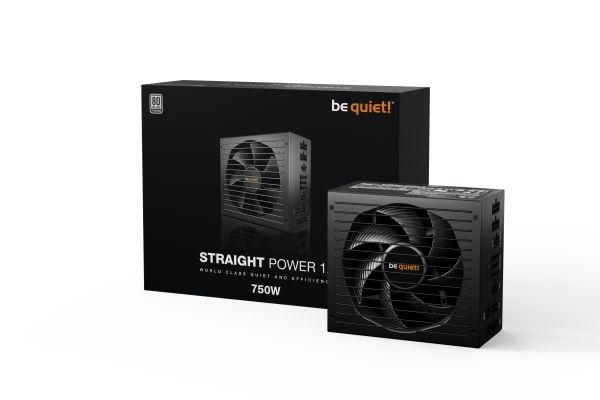

be quiet! Straight Power 12 - strømforsyning - 750 watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.0/ EPS12V 2.92
80 PLUS certificering
80 PLUS Platinum
Vægt
1.76 kg
Lokalisering
Europa
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
750 watt
Output Current
+3.3V - 25 A +5V - 25 A +12V - 62.5 A -12V - 0.3 A +5VSB - 3 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x strøm 8 pin +12 V med aftagelig 4 pin sektion 1 x strøm 8 pin EPS12 V 1 x 12VHPWR 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 9 x 15 pin Serial ATA strøm 2 x Parallel ATA
Modulær Kabel Administration
Ja
Kølesystem
135 mm ventilator
Udstyr inkluderet
Kabelbånd, skruer
Farve
Sort
Dimensioner (B x D x H)
15 cm x 16 cm x 8.6 cm
Miljømæssige standarder
ENERGY STAR
Producentgaranti
10-års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.0/ EPS12V 2.92
PSU formfaktor
ATX
Farve
Sort
Lokalisering
Europa
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x strøm 8 pin +12 V med aftagelig 4 pin sektion 1 x strøm 8 pin EPS12 V 1 x 12VHPWR 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 9 x 15 pin Serial ATA strøm 2 x Parallel ATA
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
750 watt
Output Current
+3.3V - 25 A +5V - 25 A +12V - 62.5 A -12V - 0.3 A +5VSB - 3 A
Effektivitet
65% at 2% Load (230 VAC), 88.3% at 10% Load (230 VAC), 92.6% at 20% Load (230 VAC), 93.8% at 50% Load (230 VAC), 92.9% at 100% Load (230 VAC)
Strømfaktor (PF)
0.99
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Platinum
Diverse
Udstyr inkluderet
Kabelbånd, skruer
MTBF (forventet tid mellem fejl)
100,000 timer
Kølesystem
135 mm ventilator
Egenskaber
Køleblæser til flydende dynamisk leje, High Quality Capacitor
Listan GmbH Wilhelm-Bergner-Str. 11c 21509 Glinde DE [email protected] https://www.bequiet.com
