ASUS PRIME B650M-K, AMD, Socket AM5, AMD Ryzen 7000 Series, Socket AM5, DDR5-SDRAM, 96 GB
Item no.: [10371890] | Manufacturer: ASUS | Model no.: 90MB1F60-M0EAY0 | EAN: 4711387236628
Remote stock (2-3 days)
The item is in a remote warehouse, delivery time is 2-3 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
125,76
Incl. VAT 157,20
Total incl. delivery
172,20
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.

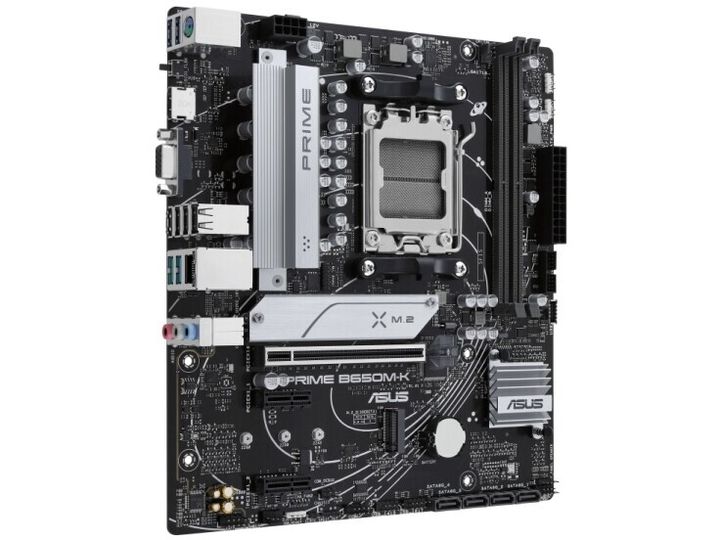

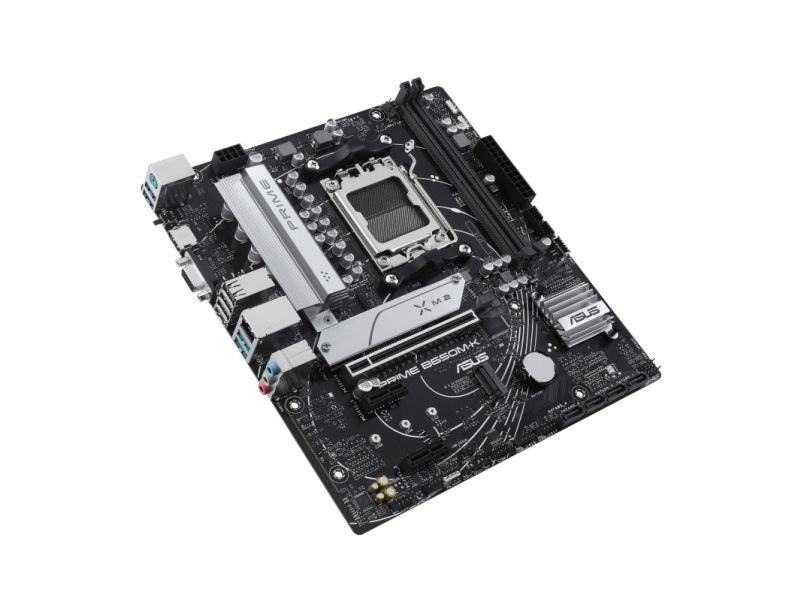

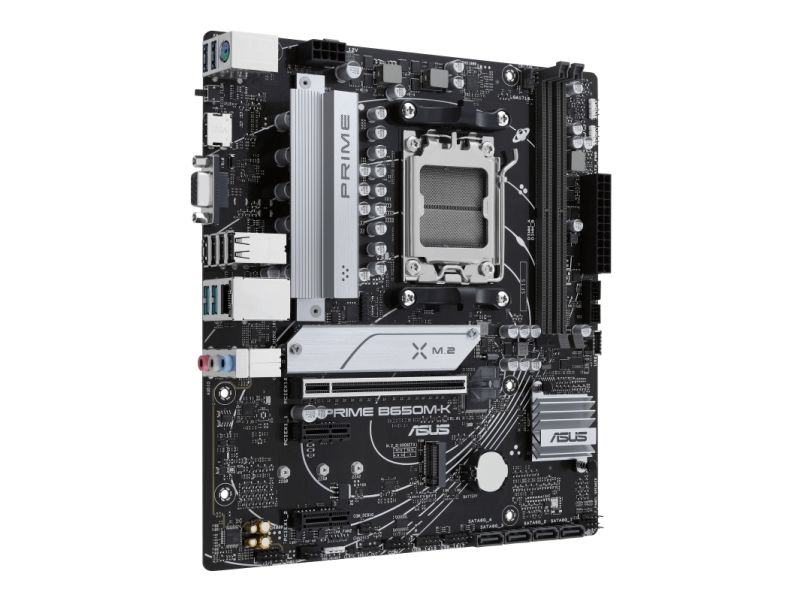

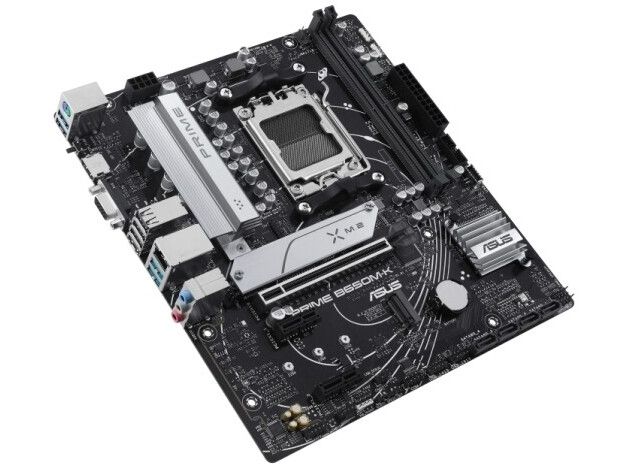

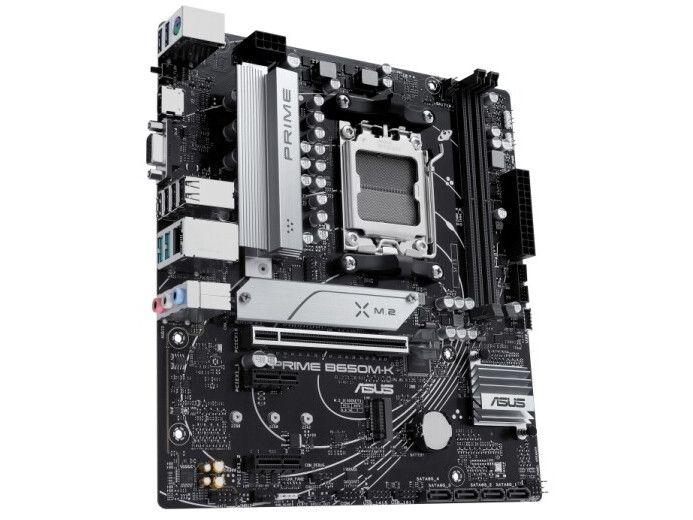

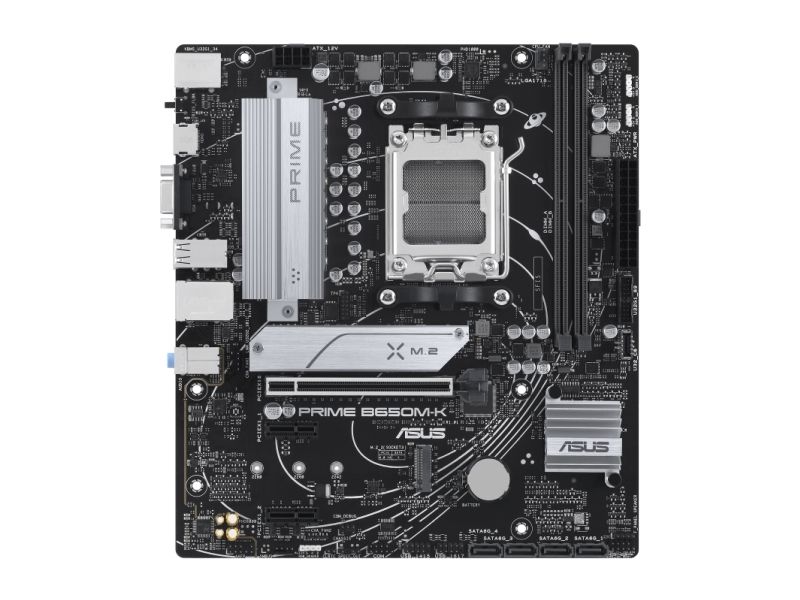

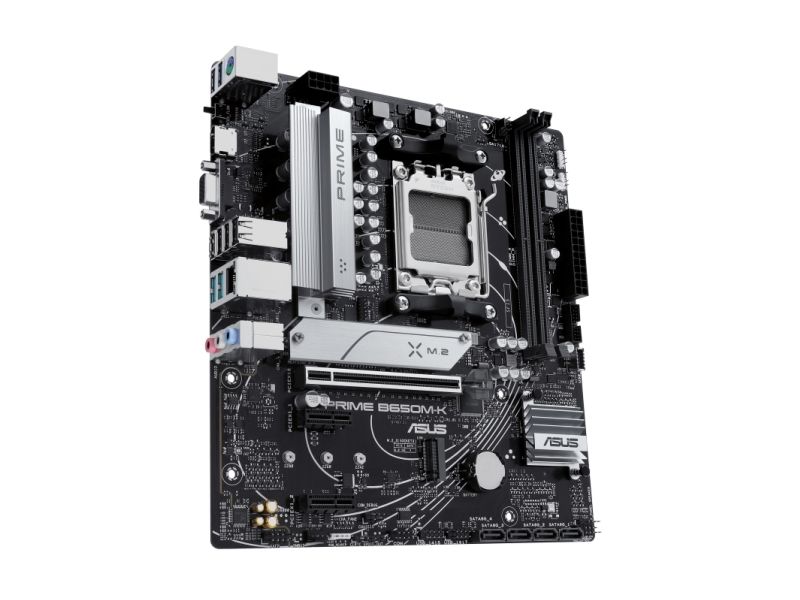

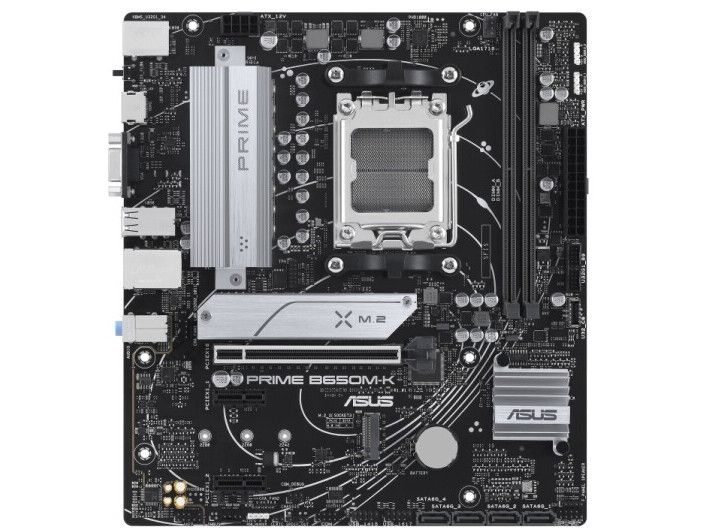

The ASUS PRIME B650M-K motherboard combines advanced technology and robust build quality to offer a solid foundation for your next PC build. Designed with the future in mind, it supports Ryzen 7000 Series processors on the Socket AM5 platform, ensuring compatibility with advanced CPU technology. With support for DDR5 memory at overclocked speeds up to 8000 MHz, it enhances system speed and responsiveness. The motherboard is equipped with advanced connectivity options, including USB 3.2 Gen 2 and 2.5 Gigabit Ethernet, providing fast data transfer and reliable network connections. Expansion is made easy with PCIe 4.0 and 5.0 slots, alongside versatile M.2 sockets for fast storage. ASUS's commitment to quality is evident in the motherboard's comprehensive cooling solutions, which ensure stable performance under any load. Whether you're a gamer, content creator, or enthusiast, the PRIME B650M-K offers the features and reliability you need to build a powerful, up-to-date system.
Produktbeskrivelse
ASUS PRIME B650M-K - bundkort - micro ATX - Socket AM5 - AMD B650
Produkttype
Bundkort - micro ATX
Chipsættype
AMD B650
Processor-socket
1 x Socket AM5
Kompatible processorer
Ryzen (understøtter Ryzen 7000 Series)
Max RAM-størrelse
96 GB
RAM understøttet
2 DIMM slots - DDR5, ikke-ECC, on-die ECC, ikke bufferet
Lagringsporte
4 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte
2 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 1 x USB 3.2 Gen 1 + 2 x USB 2.0 via samlekasser)
Dobbelt kanal hukommelses arkitektur, AMD EXPO-teknologi
Audio
Type
HD Audio (8-kanaler)
Overensstemmelsesstandarder
High Definition Audio
LAN
Netværks interfaces
2.5 Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger
1 x CPU 2 x DIMM 288-pins 1 x PCIe 4.0 x16 2 x PCIe 4.0 x1 2 x M.2 socket (2242/2260/2280 M.2 Key M åbning)
Grænseflade (lagring)
PCIe 4.0 -stikforbindelser: 1 x M.2 PCIe 5.0 -stikforbindelser: 1 x M.2 SATA-600 -stikforbindelser: 5 x 7pin SATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
RAID-egenskaber
AMD RAID Xpert2 Technology
Interface

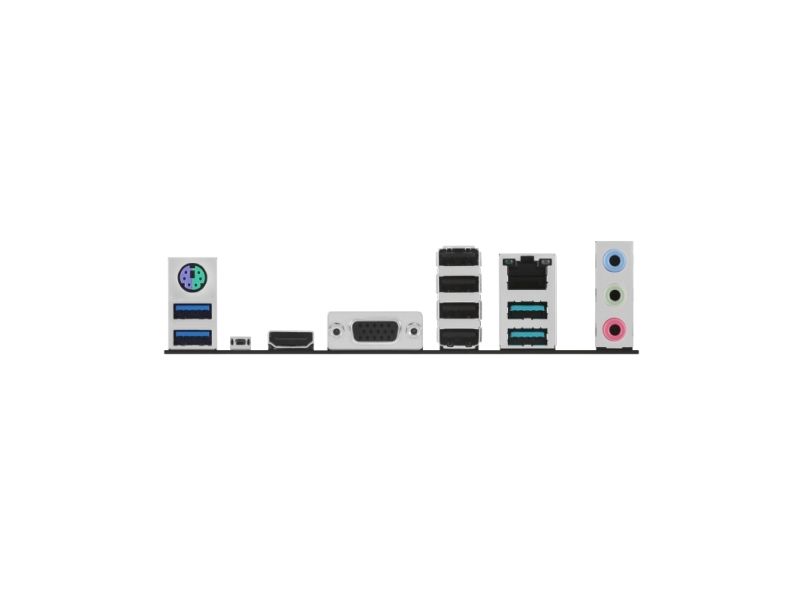

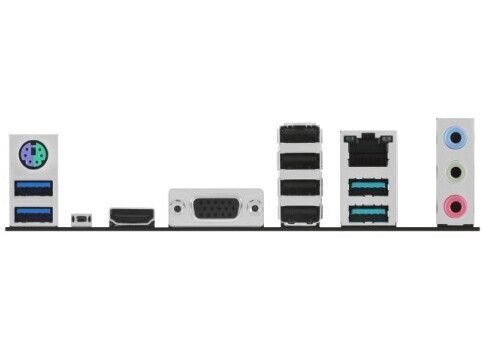

1 x HDMI 1 x VGA 2 x USB 3.2 Gen 2 2 x USB 3.2 Gen 1 4 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x PS/2-tastatur/mus 1 x audio linje-ud/hovedtelefoner - mini-jack 1 x mikrofon - mini-jack 1 x audio linje-ind - mini-jack
Interne interfaces
2 x USB 2.0 - intern stik 1 x USB 3.2 Gen 1 - intern stik 1 x USB-C 3.2 Gen 1 - intern stik 1 x højttaler - intern stik 1 x SPDIF ud - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3
Sov/ Vågn
Vågn på PME
Hardware egenskaber
Overspændingsbeskyttelse, VRM kølelegemedesign, ASUS OptiMem II, Preboot eXecution Environment (PXE), ASUS EZ DIY, CrashFree BIOS 3, LANGuard, ASUS Overvoltage Protection, ASUS SafeSlot Core+, Q-DIMM, Q-LED Core, Q-Slot, M.2 kølelegeme, BIOS FlashBack-knap, BIOS FlashBack LED, ASUS Aura Sync, AURA RGB Lighting Control, 6 Layer PCB
Diverse
Udstyr inkluderet

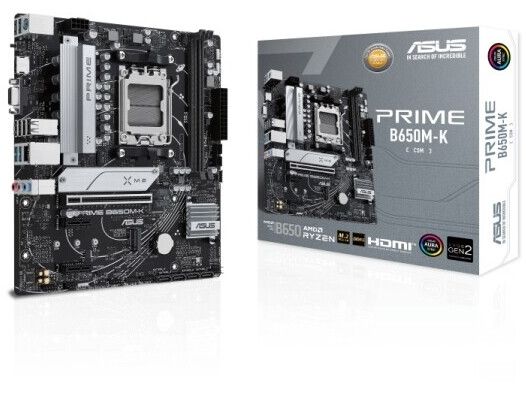

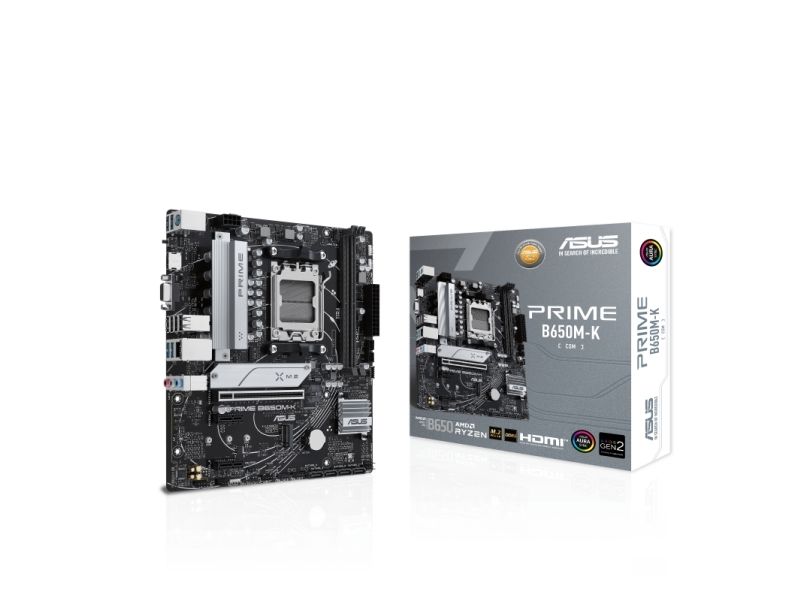

I/O-bagdække, 2 x M.2 gummipakke, M.2 skruepakke
Medfølgende ledninger
2 x Seriel ATA kabel
Med software
ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS AI Suite III, ASUS TurboV EVO Utility, PC Cleaner, ASUS CPU-Z, Norton 360 Deluxe (60 dages prøvetid), WinRAR, Armoury Crate
Bredde
24.4 cm
Dybde
22.1 cm
Producentgaranti
Service & Support
Begrænset garanti - 3 år
