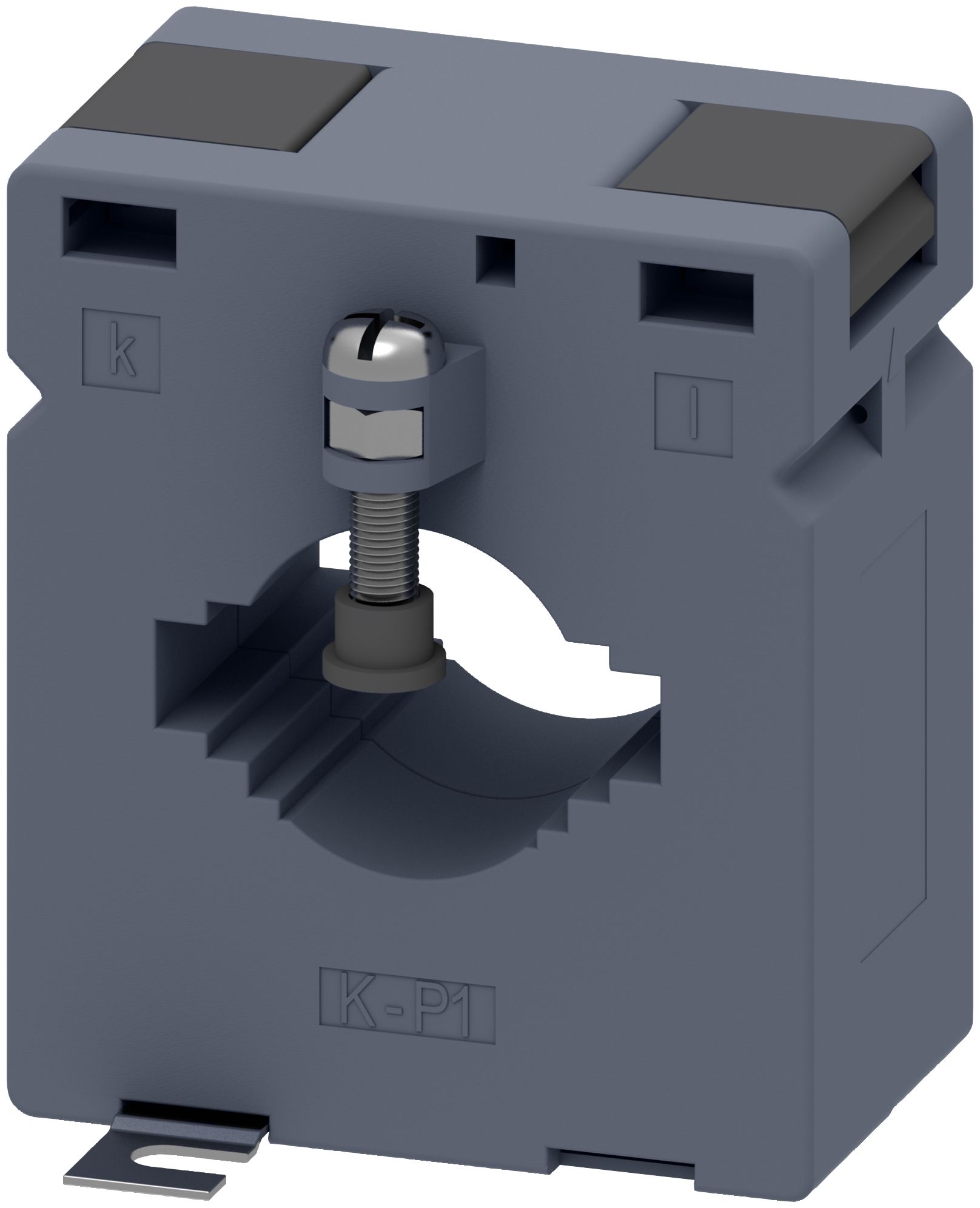

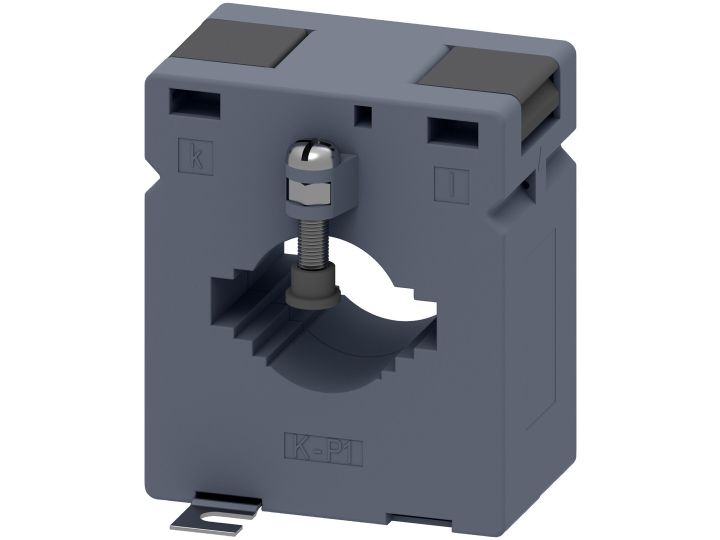

current transformer 500/5 A, 5 VA, Cl. 0.5 4NC bushing type current transformer The bushing-type current transformers are used for primary rated currents from 40 A to 3000 A, a secondary rated current 5 A or 1 A and in classes 0.2S, 0.5, and 1. They are also suitable for measurement functions with PAC and AI Energy Meter due to better accuracy and are used in mechanical engineering, especially in new plants with medium electrical power or in plant construction.
Package weight
600 g
Package depth
125 mm
Package width
90 mm
Package height
80 mm
Accuracy
0.5%
Rated current
500 A
Compliance certificates
CE, RoHS
Number of input phases
1
Factory-calibrated
No
Opening diameter
3.6 cm
Installation opening width
5.1 cm
Installation opening height
2.1 cm
Contact protection
Yes
Rated current (secondary)
5 A
Copper rail
No
Snap mounting
No
Rated secondary apparent power
5 W
