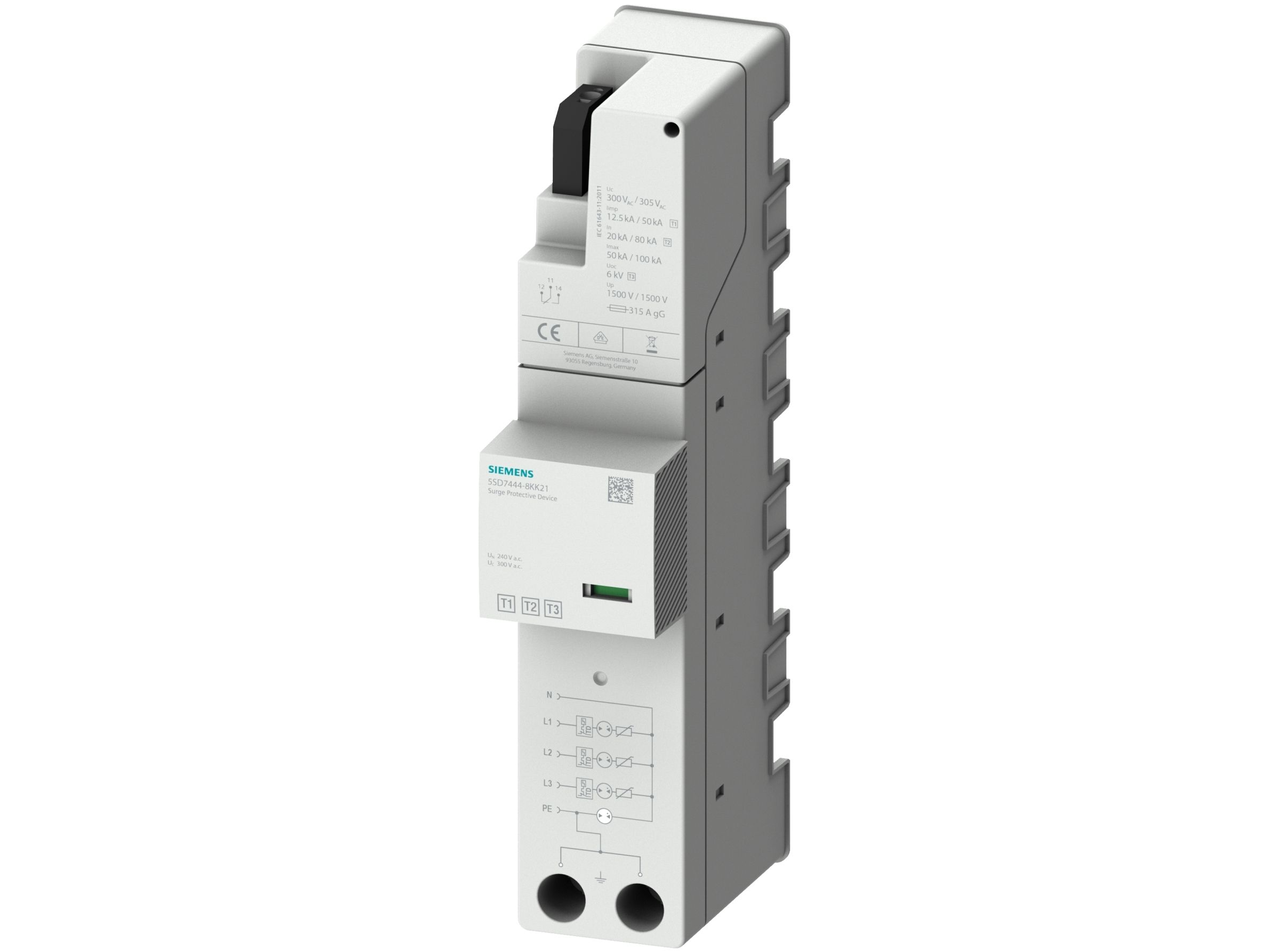

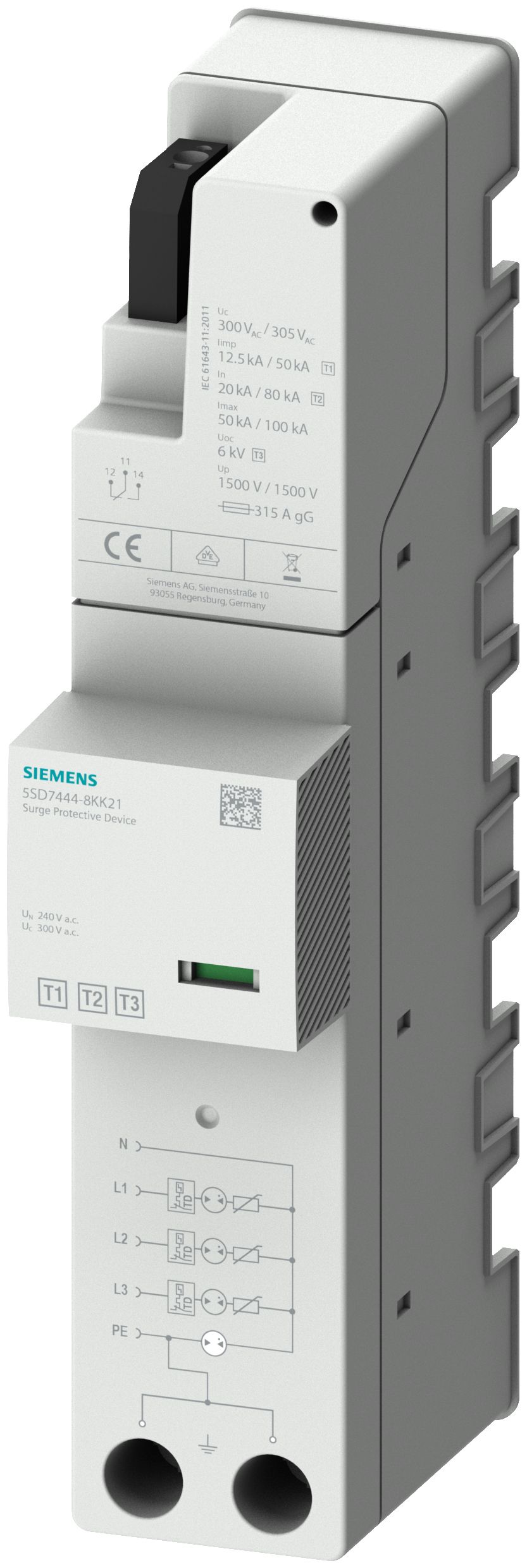

Siemens 5SD74448KK21 surge arrester combo Overspensation protection for 40 mm busbar 12.5 kA 1 pc
Input voltage
230 V
Breaking capacity
25 A
International Protection (IP) code
IP20
Package width
97 mm
Package depth
115 mm
Package height
86 mm
Package weight
805 g
Compliance certificates
CE, RoHS
Mounting method
Busbar mounted
Battery included
No
Minimum order quantity
1 pc(s)
Number of conductors (without earthing)
4
Remote signalling contact
Yes
Integrated backup fuse
No
Integrated short-circuit protection
No
Maximum conductor cross section solid (solid, stranded)
35
Signalling at the device
Optical
Maximum discharge surge current (8/20)
50 A
Maximum continuous voltage (AC)
300 V
Maximum conductor cross section flexible (fine-strand)
25
Nominal discharge surge current (8/20)
50 A
Voltage protection level L-N
1.5 kV
Voltage protection level N-Pe
1.5 kV
Voltage protection level
1.5 kV
