Xilence XP1050MR9.2, 1050 W, 100 - 240 V, 50/60 Hz, 15 A, Active, 20 A

Item no.: [10442409] | Manufacturer: Xilence Technology | Model no.: XN176 | EAN: 4044953503498

Remote stock (2-3 days)

The item is in a remote warehouse, delivery time is 2-3 business days. More info

Shipping @price - GLS

12,00

EUR 117,39

Incl. VAT 146,74

Total incl. delivery 161,74

Read further specifications and description

The fully modular power supplies of the X+ series are capable of absorbing high load peaks above the normal rated power in the shortest possible time and comply with Intel's Design Guide 3.0. Thus, the power supplies are ideally
suited for driving the latest and most powerful gaming graphics cards with PCI Express 5 specifications. An 80+ Gold certification confirms a high efficiency and energy efficiency of this power supply series. Six different protection circuits (OCP, OVP, UVP, SCP, OPP, OTP) ensure safe operation even in heated gaming sessions. The fans of the ATX 3.0 power supplies run with Fluid Dynamic Bearing technology and are very quiet. In addition, they convince with an extremely long durability and their excellent cooling performance. All of these specifications make the affordable Performance X+ series ideal for use with the latest gaming PC systems.

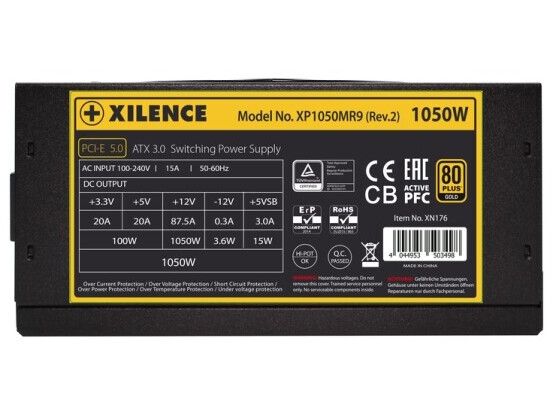

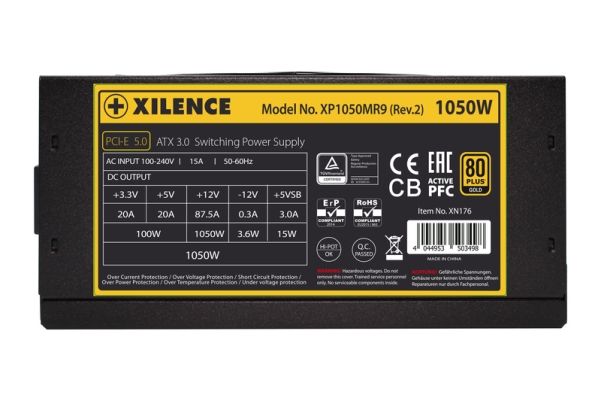

Produktbeskrivelse	Xilence Performance X+ Series XP1050MR9.2 - strømforsyning - 1050 Watt
Enhedstype	Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse	ATX12V 3.0
80 PLUS certificering	80 PLUS Gold
Indgangspænding	AC 100-240 V
Udgangspænding	+3.3, +5, ±12 V
Strømkapacitet	1050 Watt
Output Current	+3.3V - 20 A +5V - 20 A +12V1 - 87.5 A -12V - 0.3 A +5VSB - 3 A
Output-stikforbindelser	1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x strøm 8-pin med aftagelig 4-pin sektion 1 x 8 pin intern strøm 1 x 12VHPWR 12 x 15 pin Serial ATA strøm 3 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 4 x 4-PIN intern strøm
Modulær Kabel Administration	Ja
Kølesystem	140 mm ventilator
Farve	Sort
Dimensioner (B x D x H)	15 cm x 18 cm x 8.6 cm

Generelt
Enhedstype	Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse	ATX12V 3.0
PSU formfaktor	ATX
Farve	Sort
Strømenhed
Indgangspænding	AC 100-240 V
Nødvendig frekvens	50 - 60 Hz
Detaljer om strømudgangskonnektorer	1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x strøm 8-pin med aftagelig 4-pin sektion 1 x 8 pin intern strøm 1 x 12VHPWR 12 x 15 pin Serial ATA strøm 3 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 4 x 4-PIN intern strøm
Udgangspænding	+3.3, +5, ±12 V
Max. elektrisk strøm	15 A
Strømkapacitet	1050 Watt
Output Current	+3.3V - 20 A +5V - 20 A +12V1 - 87.5 A -12V - 0.3 A +5VSB - 3 A
Effektivitet	92% at 50% Load, 90% at 20% Load, 89% at 100% Load, 85% at 10% Load
Modulær Kabel Administration	Ja
80 PLUS certificering	80 PLUS Gold
Diverse
Kølesystem	140 mm ventilator
Egenskaber	Beskyttelse mod overophedning, beskyttelse mod overstrøm, overbelastningsbeskyttelse, overbelastningsbeskyttelse, kortslutnings beskyttelse, fuld modulær, underspændingskorrektion
Overensstemmelsesstandarder	PCT, CB, RoHS, WEEE, ErP 2014, TUV Rheinland, PCIe 5.0
Mål og vægt
Bredde	15 cm
Dybde	18 cm
Højde	8.6 cm
Mål & vægt (forsendelse)
Bredde ved forsendelse	19.5 cm
Dybde ved forsendelse	33.5 cm
Højde ved forsendelse	9.5 cm
Vægt ved forsendelse	3.26 kg

The item is known under the following item numbers in our system

EAN:	4044953503498
SKU:	XN176

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
