Vi gør opmærksom på at der ved køb af Cisco Meraki produkter samtidig skal
købes en licens. Ved køb af Cisco Meraki Firewalls og Switche skal der
desuden bruges et strømkabel tilsvarende varenummer 897706. Dette gælder dog
ikke ved køb af POE injektorer og Strømforsyninger. Kontakt salg på 7022 2332 for
yderligere spørgsmål. Se følgende links for yderligere info. Cisco Meraki og Cisco Meraki
Licensing
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
1.605,57
Incl. VAT 2.006,96
Total incl. delivery
2.021,96
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login
The Cisco Catalyst 9166 series Wi-Fi 6E access points enable operation in the 6GHz band to produce a network that is more reliable and secure, with higher throughput, more capacity, and less device interference. These access points provide three 4x4 radios and a host of cutting-edge features, including integrated environmental sensors and IoT radios. The Catalyst 9166 Series even offers an internal directional antenna model - the Catalyst 9166D1 - designed for use cases and areas with high ceilings such as auditoriums, warehouses, and other large open space areas. The Catalyst 9166D1 should be leveraged where typically external antennas would be required. And because the Catalyst 9166D1 uses a built-in directional antenna, it eliminates the need for additional hardware to achieve ideal wireless coverage.
Operational management is flexible because customers can change their network management whenever they want. If a network with Cisco Catalyst 9166 Series Access Points was originally an on-premises deployment, it can be changed to cloud-based management without the need to purchase and redistribute additional hardware, saving you money as you network your way.
With the industry’s leading on-premises network platform (Catalyst) joining the industry’s leading cloud IT platform (Meraki), these access points provide an unparalleled network experience. For organizations that need a wireless solution to deliver a reliable, flexible, and superior experience for your users, the Cisco Catalyst 9166 Series Access Points are the best choice.
Produktbeskrivelse

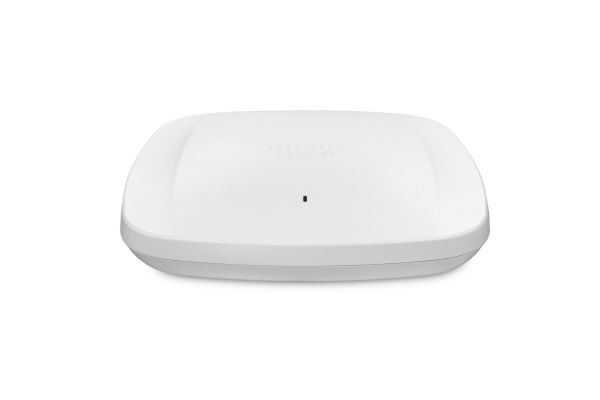

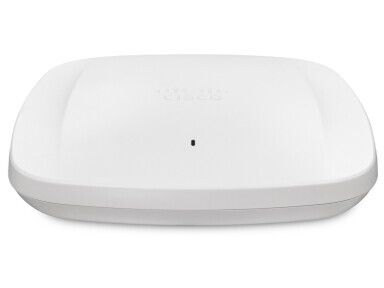

Cisco Catalyst 9166D1 - trådløs forbindelse - Wi-Fi 6E, Bluetooth
Enhedstype
Trådløs forbindelse
Formfaktor
Ekstern
RAM
2 GB
Flashhukommelse
1 GB
Dataforbindelsesprotokol
Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.1 LE
Frekvensbånd
2.4 GHz, 5 GHz, 6 GHz
Kapacitet
Rumlige strømme: 12
OS nødvendig
Cisco IOS XE 17.12.1 or later
Power Over Ethernet (PoE) understøttet
UPOE
Dimensioner (B x D x H)
24.13 cm x 24.13 cm x 5.79 cm
Vægt
1.59 kg
Producentgaranti
Begrænset livtidsgaranti
Generelt
Enhedstype
Trådløs forbindelse
Indbygget udstyr
Luftkvalitetssensor, temperature sensor, fugtighedssensor
Bredde
24.13 cm
Dybde
24.13 cm
Højde
5.79 cm
Vægt
1.59 kg
Processor / Hukommelse / Lagring
RAM
2 GB
Flashhukommelse
1 GB
Netværk
Model
Ekstern
Forbindelsesteknologi
Trådløs
Dataoverførselshastighed
7.78 Gbps
Liniekodningsformat
OFDMA, 1024 QAM
Dataforbindelsesprotokol
Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.1 LE
Spread-spectrum metode
OFDMA
Frekvensbånd
2.4 GHz, 5 GHz, 6 GHz
Kapacitet
Rumlige strømme: 12
Statusindikatorer
Status
Egenskaber
XOR, DFS uden ventetid, Dynamic Frequency Selection (DFS), radioressourceadministration (RRM), CleanAir Pro-teknologi, Client Steering, uplink/downlink MU-MIMO, BSS Coloring, Target Wake Time (TWT), billedunderskrivning, sikkerhedsstøvle, Cisco Trust Anchor-modul, 4x4:4 MU-MIMO technology, Maximal Ratio Combining, pakkesammenlægning A-MPDU, pakkesammenlægning A-MSDU, cyklisk skiftdiversitet (CSD), stråleformeteknologi, Tri-Band 4x4, LLDP support, båndstyring, universel power over Ethernet (UPOE)
1 x 100M/1G/2.5/5 Gigabit Ethernet (UPOE) - RJ-45 1 x administration - RJ-45 1 x USB 2.0
Diverse
Overensstemmelsesstandarder
FCC Part 15.247, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.407, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, UL Class III, CNS13438:2006, RSS-247, AS/NZS 2772.2, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016, RSP-100, RSS-GEN, EN 301 893 V2.1.1, AS/NZS 4268:2017, EN 300 328 V2.2.2, EN 50385:2017, 47 CFR Part 2.1091, QCVN 112:2017, Japan Std. 66, Japan Std. 71, EN 55032:2015/A11:2020, EN 61000-3-3:2013+A1:2019, IEC 61000-3-2:2019, CAN/CSA-C22.2 No. 62368-1 Third Edition, UL 62368-1 Third Edition, EN 62368-1 Third Edition, IEC 62368-1 Third Edition, EN 301 489-17 V3.2.4 (2020-09), EN 301 489-1 V2.2.3 (2019-11), KS C 9832, EN 62311:2020, KS X 3124:2020, KS X 3126:2020, EN 61000-6-1:2019, Draft EN 303 687 V0.0.14, EN55035:2017+A11:2020, AS/NZS 62368-1 Third Edition, CISPR 32:2015+AMD1:2019, AS/NZS CISPR32:2015+AMD1:2020, ICES-003 issue 7 Class B, KS C 9835:2019, LP002
Effekt
Power Over Ethernet (PoE) understøttet
UPOE
Strømenhed
Ekstern strømforsyning
Programmer / Systemkrav
OS nødvendig
Cisco IOS XE 17.12.1 or later
Producentgaranti
Service & Support
Begrænset garanti - livstid
Miljømæssige parametre
Min. driftstemperatur
-20 °C
Maks. driftstemperatur
50 °C
Fugtighedsgrad ved brug
10 - 90 % (ikke-kondenserende)
The item is known under the following item numbers in our system
EAN:
0889728523295
UPC:
889728523295
SKU:
CW9166D1-E
Why do I find that the same product is available on different item numbers?
Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries.
We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
