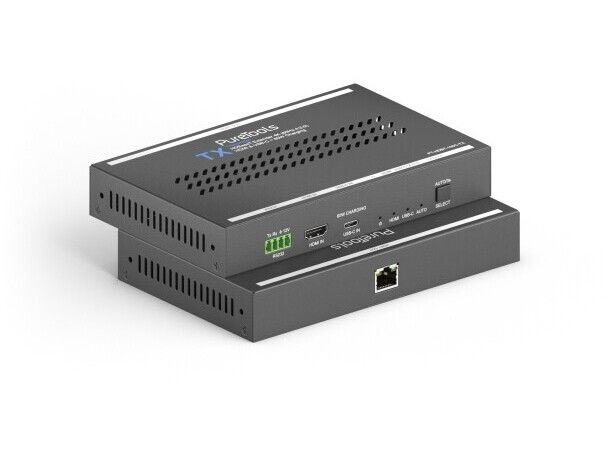

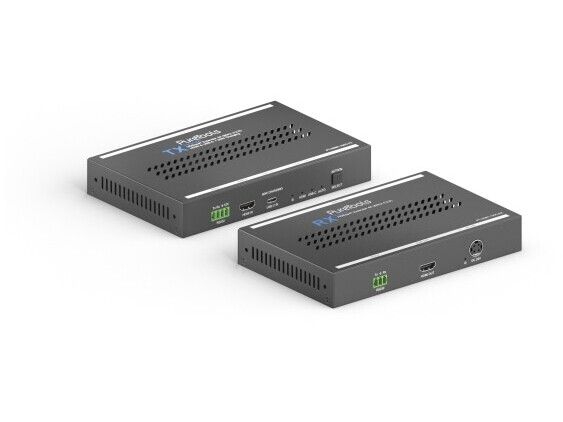

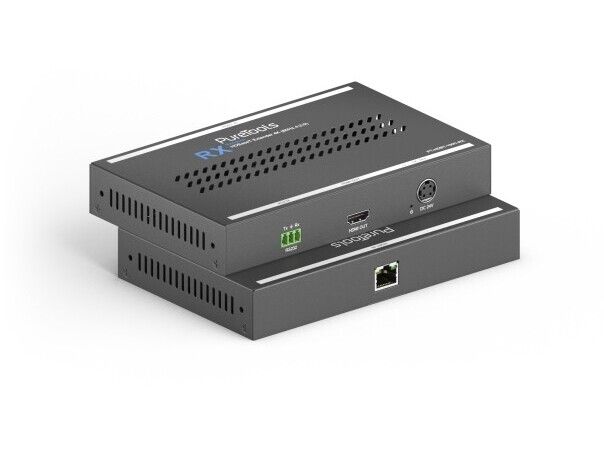

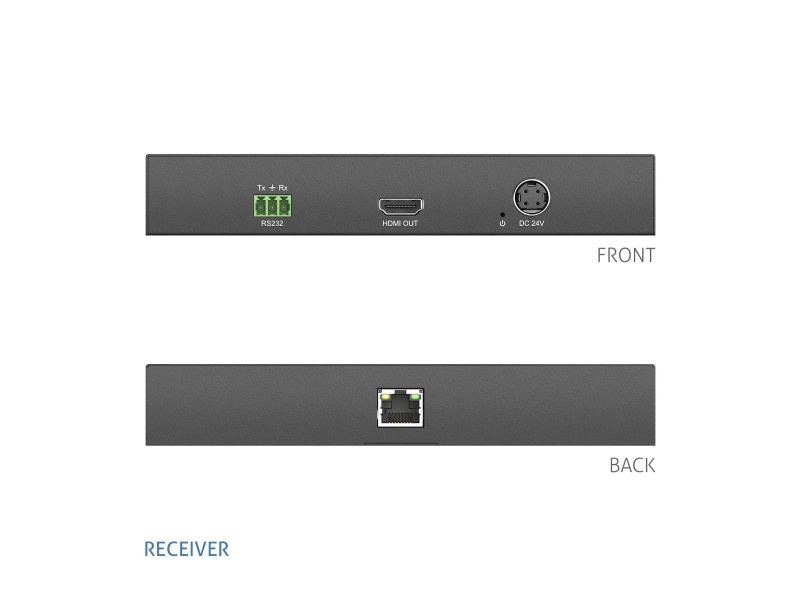

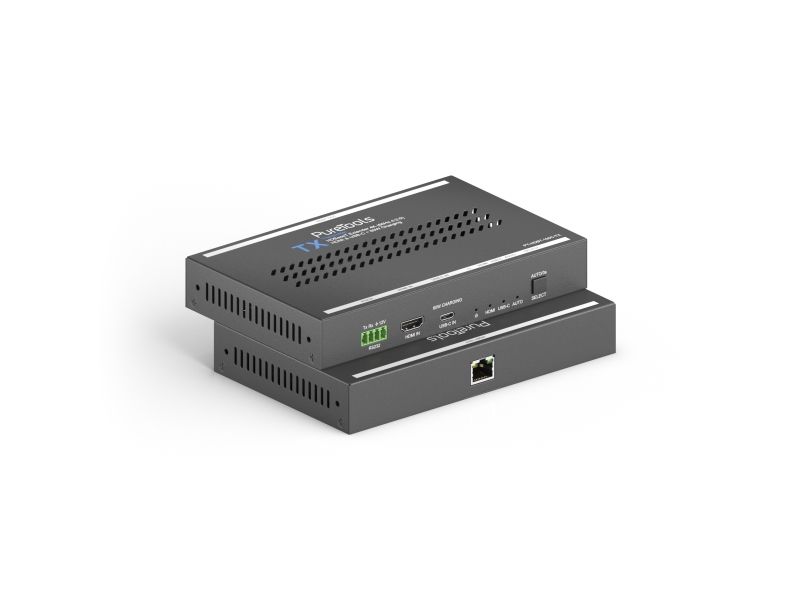

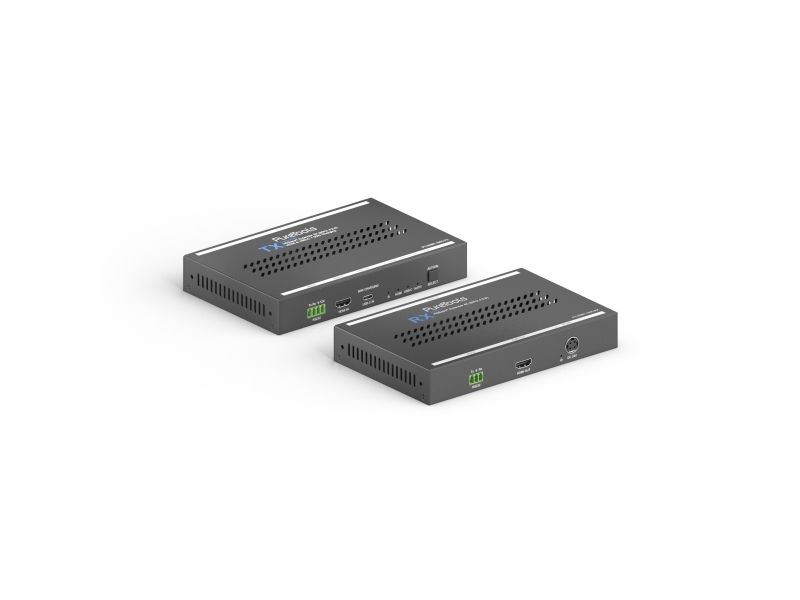

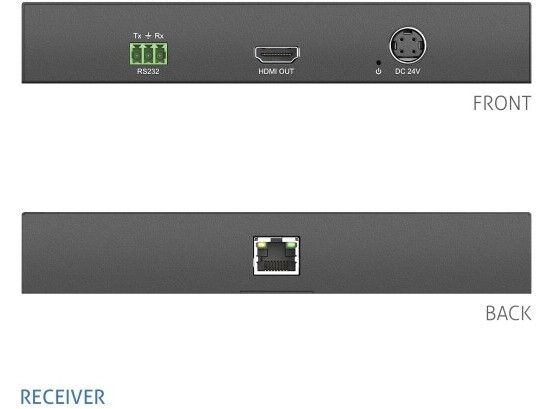

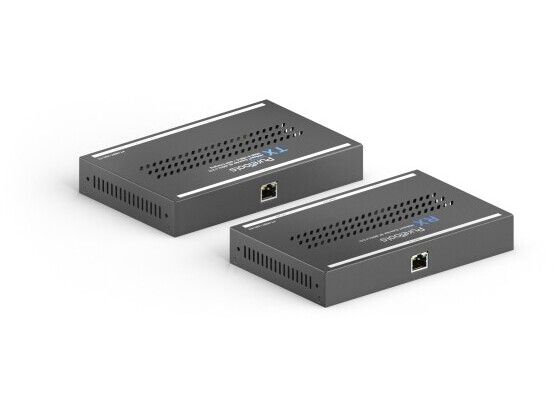

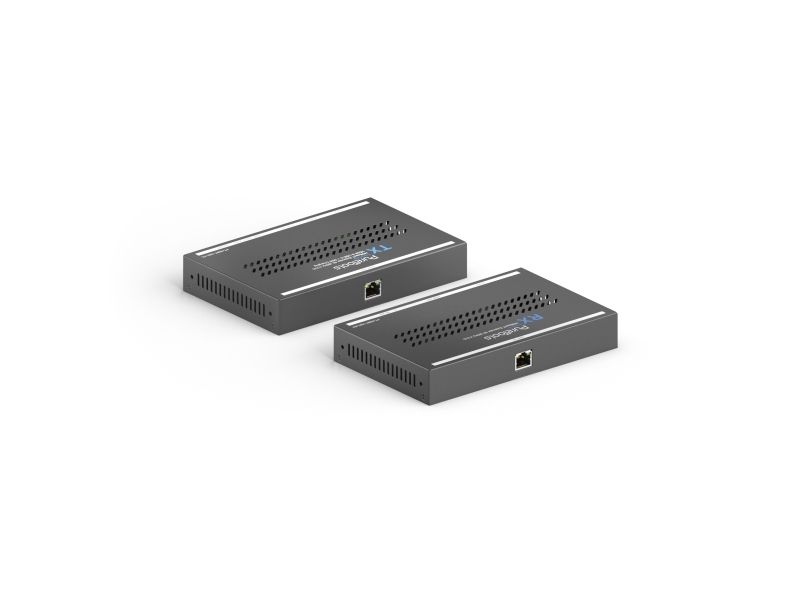

PureTools HDBaseT Extender Pair with HDMI and USB-C input The PT-HDBT-100C is a 4K 2x1 multiformat extender set that consists of one transmitter and receiver. It supports HDMI 1.4, 4K@60 4:2:0, HDCP 2.2. The product can transmit 1080p/4K video signals up to 70m /40m (PoC). It also supports CEC / RS232 pass-through as well as selectable 5v or TMDS auto switching for both the USB-C and HDMI inputs. In addition, the USB-C input supports 60W charging.
4K HDMI and USB-C over HDBaseT PureTools HDBaseT Extender Pair with HDMI and USB-C Input - 10.2Gbps, (4K 60Hz 4:2:0), HDCP 2.2, over HDBaseT, HDMI and USB-C video-only input with 60W charging, PoE from RX to TX, RS232 pass through and auto switching, 4K at 40m and 1080p at 70m
Type
AV transmitter & receiver
Maximum transfer distance
70 m
Maximum refresh rate
60 Hz
RS-232 pass-through
Yes
CEC pass-through
Yes
LED indicators
Yes
Supported video modes
1080p
Bandwidth
10.2 Gbit/s
HDCP
Yes
Consumer Electronics Control (CEC) support
Yes
HDCP version
2.2
Product colour
Black
Connectivity technology
Wired
HDMI in
1
Number of HDMI outputs
1
HDMI version
1.4
USB ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
RS-232 input ports
2
Power source type
DC
Operating voltage
24 V
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
60 W
Power over Ethernet (PoE)
Yes
Width
110 mm
Depth
180 mm
Height
60 mm
Weight
1.5 kg
Package width
190 mm
Package depth
250 mm
Package height
160 mm
Package weight
1.6 kg
