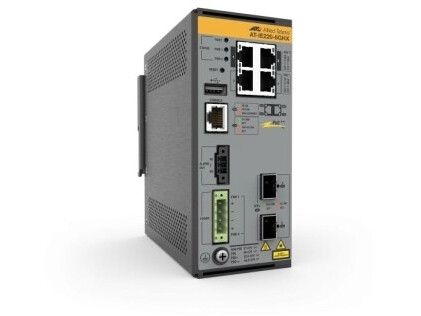

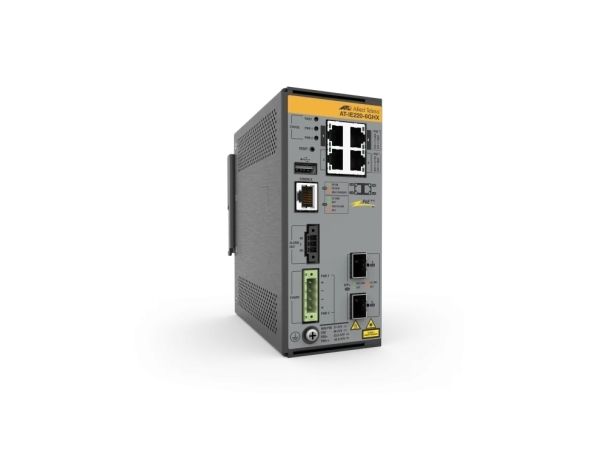

Allied Telesis AT-IE220-6GHX-80, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable

Item no.: [10465001] | Manufacturer: Allied Telesyn International | Model no.: AT-IE220-6GHX-980 | EAN: 0767035226408

Remote stock (2-3 days)

The item is in a remote warehouse, delivery time is 2-3 business days. More info

Shipping @price - GLS

12,00

EUR 752,81

Incl. VAT 941,01

Total incl. delivery 956,01

Read further specifications and description

Industrial Ethernet Layer 2+ PoE++ Switches with 10G uplinks
Ruggedized switches built for enduring performance in harsh environments. Power over Ethernet (PoE++) connects and powers environmental, system control, and other key IIoT devices for a reliable and high-performing solution and 10G fiber uplinks ensure capacity for demanding edge applications. The IE220 Series enables safety, security, and smooth operation for building automation, intelligent transportation, and smart city networks.

Produktbeskrivelse	Allied Telesis AT IE220-6GHX - switch - 6 porte - Administreret
Enhedstype	Switch - 6 porte - L2+ - Administreret
Undertype	Gigabit Ethernet
Porte	4 x 10/100/1000Base-T + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)	PoE++
PoE-budget	180 W
Præstation	Skift af stofbåndbredde: 48 Gbps Videresendelseshastighed: 35.7 Mpps
Kapacitet	Bufferkapacitet (MB): 2 Prioritetskøer: 8 Samtidige VLANs: 4000 Multicast-grupper: 1023
MAC adresse table størrelse	16K indtastningshukommelse
Jumborammesupport	12KB
Routingprotokol	Statisk IP routing, RSTP, MSTP, STP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2
Protokol til fjernadministration	NETCONF, RESTCONF, YANG, CLI, HTTP, HTTPS, DHCP, Telnet, SSH, SNMP 1, SNMP 2c, SNMP 3, MIB, TFTP, RMON 1, RMON 2, RMON 3, RMON 9, Syslog
Egenskaber	Datatransport, blæserløs, strømstødsbeskyttelse, Active Fiber Monitoring, MRP, EPSRing, OpenFlow support, SDN, QoS, UFO, LAG, LACP, sFlow, LLDP-MED, RSPAN, ACL support, VLAN-spejling, BIST, Cable fault locator (TDR), CFM, CCP, DDM, UDLD, sort hul-routing, IP Directed Broadcast, DiffServ understøttet, PVST+, stormbeskyttelse, AAA, BPDU-beskyttelse, DoS, DHCP snooping, DAI, SCP, nulstillingsknap
Overensstemmelsesstandarder	IEEE 802.3at, IEEE 802.3bt, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ag, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1ad, IEEE 802.1Q, IEEE 802.1v, IEEE 802.3ac
Dimensioner (B x D x H)	15.5 cm x 13.7 cm x 6.5 cm
Systemkrav	AlliedWare Plus
Producentgaranti	5 års garanti

Generelt
Enhedstype	Switch - 6 porte - L2+ - Administreret
Pakningstype	DIN monterbar på skinne, væg-monterbar
Undertype	Gigabit Ethernet
Porte	4 x 10/100/1000Base-T + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)	PoE++
PoE-budget	180 W
Præstation	Skift af stofbåndbredde: 48 Gbps Videresendelseshastighed: 35.7 Mpps
Kapacitet	Bufferkapacitet (MB): 2 Prioritetskøer: 8 Samtidige VLANs: 4000 Multicast-grupper: 1023
MAC adresse table størrelse	16K indtastningshukommelse
Jumborammesupport	12KB
Routingprotokol	Statisk IP routing, RSTP, MSTP, STP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2
Protokol til fjernadministration	NETCONF, RESTCONF, YANG, CLI, HTTP, HTTPS, DHCP, Telnet, SSH, SNMP 1, SNMP 2c, SNMP 3, MIB, TFTP, RMON 1, RMON 2, RMON 3, RMON 9, Syslog
Krypterings algoritme	TLS, MD5, 3DES, DES, RSA, SHA-1, SSL, TTLS, PEAP, TLS 1.2, SHA-2
Autentificeringsmetode	RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2)
Egenskaber	Datatransport, blæserløs, strømstødsbeskyttelse, Active Fiber Monitoring, MRP, EPSRing, OpenFlow support, SDN, QoS, UFO, LAG, LACP, sFlow, LLDP-MED, RSPAN, ACL support, VLAN-spejling, BIST, Cable fault locator (TDR), CFM, CCP, DDM, UDLD, sort hul-routing, IP Directed Broadcast, DiffServ understøttet, PVST+, stormbeskyttelse, AAA, BPDU-beskyttelse, DoS, DHCP snooping, DAI, SCP, nulstillingsknap
Overensstemmelsesstandarder	IEEE 802.3at, IEEE 802.3bt, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ag, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1ad, IEEE 802.1Q, IEEE 802.1v, IEEE 802.3ac
RAM	512 MB DDR SDRAM
Flashhukommelse	128 MB
Statusindikatorer	Fejl, link/aktivitet, PoE, strøm 1, strøm 2
Ekspansion / Konnektivitet
Interface	2 x 1000Base-T RJ-45 PoE+ - 30 W 2 x 1000Base-T RJ-45 PoE++ - 60 W 2 x 1000Base-X/10GBase-X SFP+ uplink 1 x seriel (konsol) RJ-45 administration 1 x USB 2.0 Type A 1 x alarm 3-pins terminalblok
Effekt
Strømenhed	Intern strømforsyning
Egenskaber	Redundant Power System (RPS) konnektor
Diverse
Udstyr inkluderet	Monteringssæt
Overensstemmelsesstandarder	IP30, ITU-T G.8032, IEC 62439-2, UL 2043, EN 50021, EN 60715, AS/NZS 62368-1, AS/NZS CISPR 32 Class A, China RoHS, CISPR 32 Class A, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, FCC, FCC CFR47 Part 15 B Class A, ICES, ICES-003 Klasse A, IEC 60068-2-27, IEC 60068-2-31, IEC 60068-2-6, IEC 60512-99-002, IEC 60950-22, IEC/EN 61000-3-3, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-29, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN/UL 62368-1, NEMA TS-2, RCM, REACH, RoHS, SCIP, TEC, TSCA, UKCA, UL, UL/CSA 62368-1, VCCI, VCCI Class A, WEEE
Programmer / Systemkrav
OS nødvendig	AlliedWare Plus
Mål og vægt
Bredde	15.5 cm
Dybde	13.7 cm
Højde	6.5 cm
Producentgaranti
Service & Support	Begrænset garanti - 5 år
Miljømæssige parametre
Min. driftstemperatur	-40 °C
Maks. driftstemperatur	75 °C
Fugtighedsgrad ved brug	5 - 95 % (ikke-kondenserende)
Min. lagertemperatur	-40 °C
Maks. Opbevaringstemperatur	85 °C
Lagerfugtighedsgrad	5 - 95 % (ikke-kondenserende)
