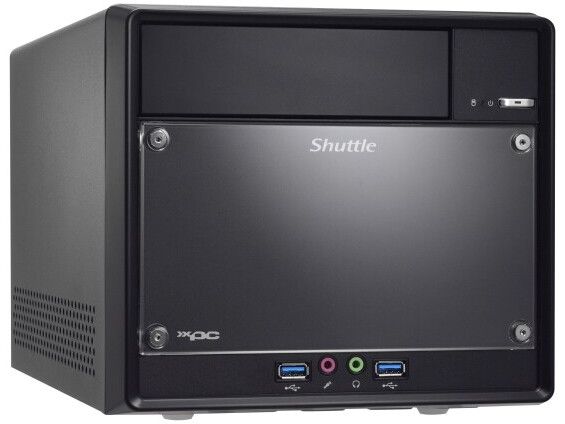

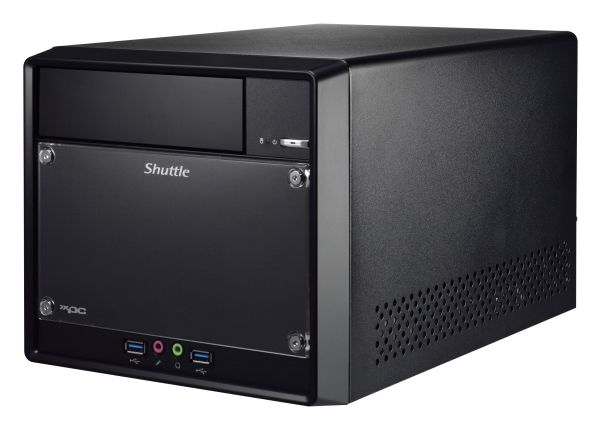

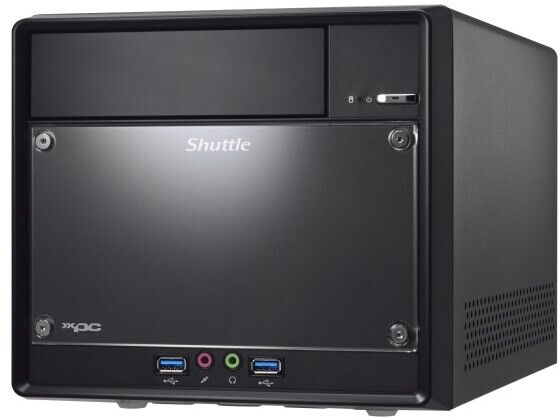

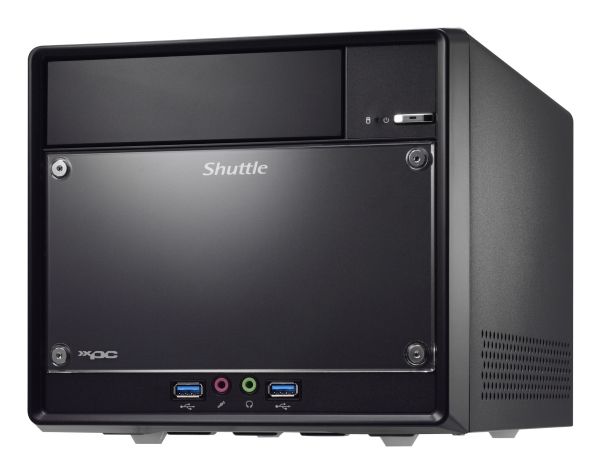

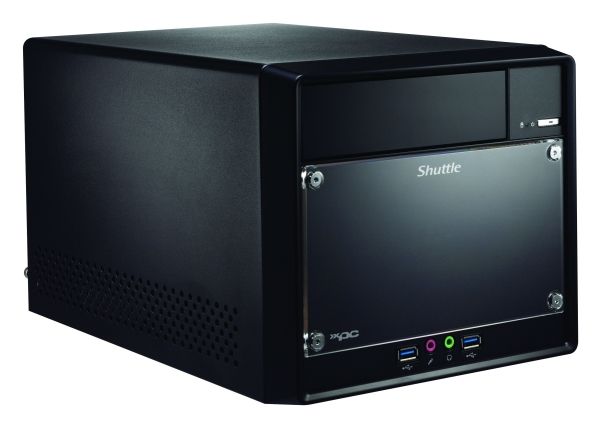

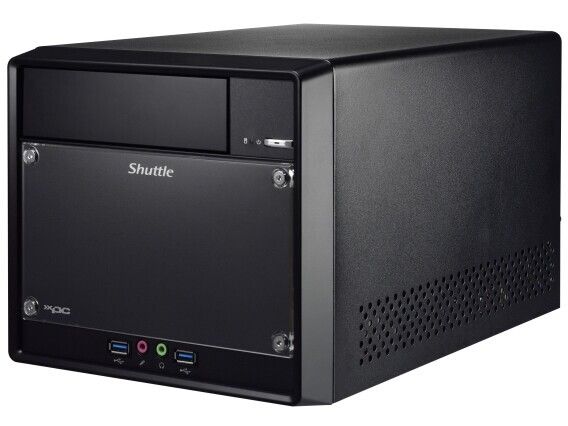

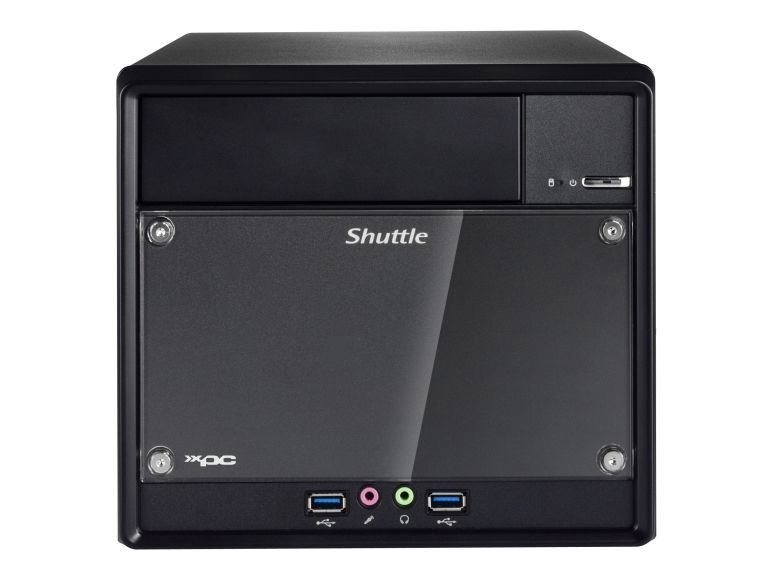

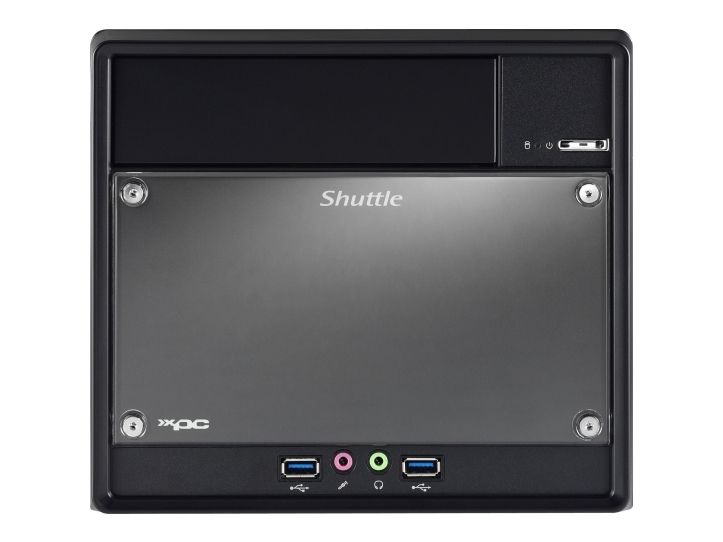

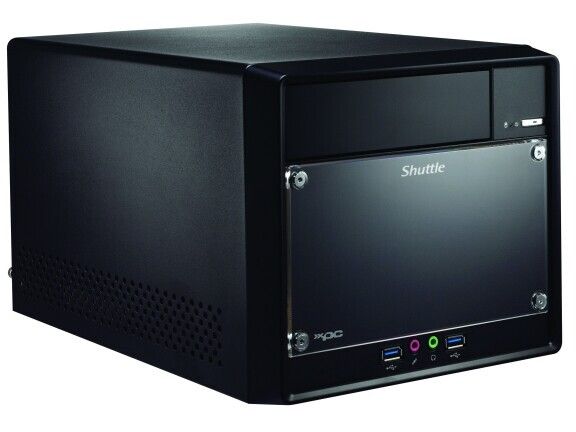

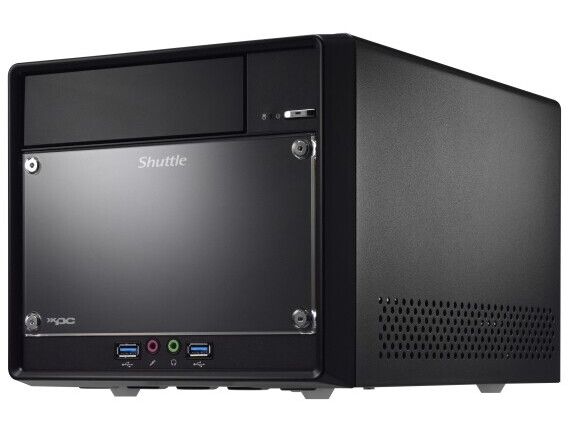

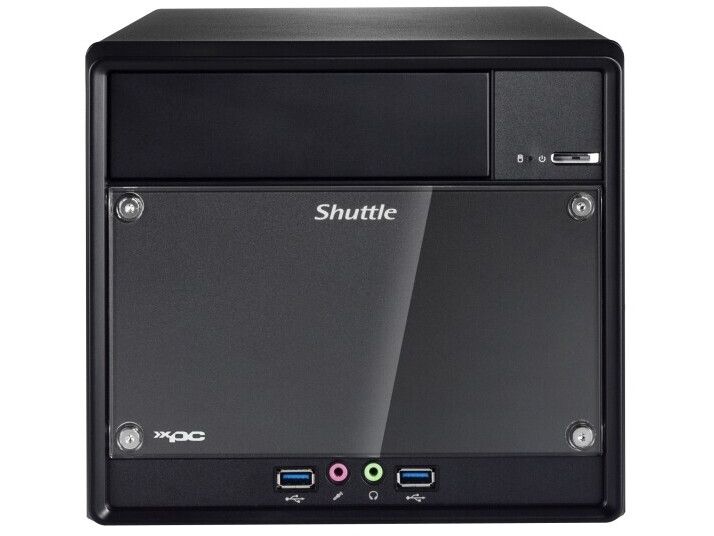

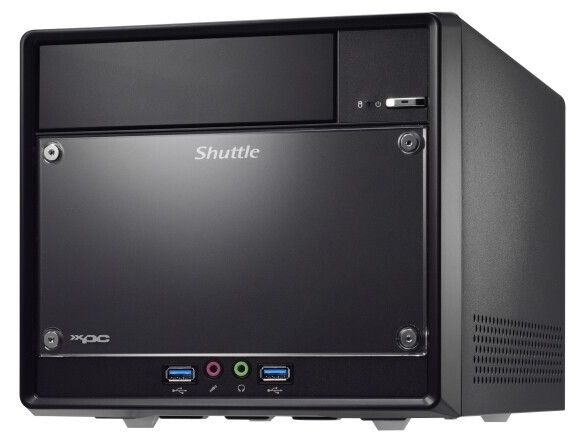

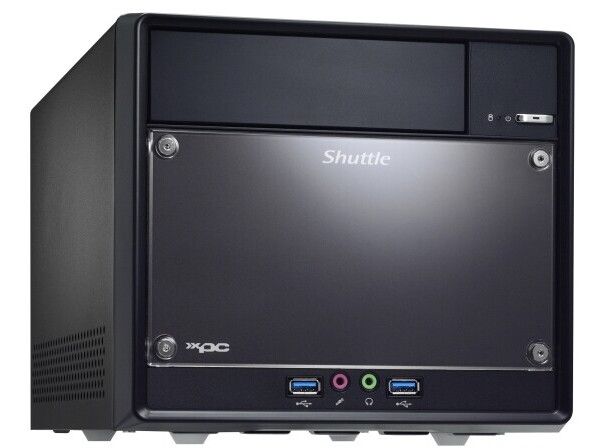

Shuttle XPC cube Barebone SH610R4 - S1700, Intel H610, 1x PCIe X16, 1x PCIe X1, 1x LAN,1x HDMI, 2x DP, 1x VGA 2x 3.5" HDD bays, Cube, PC barebone, Intel H610, LGA 1700, DDR4-SDRAM, PCI Express, Serial ATA III
Item no.: [10505619] | Manufacturer: Shuttle Computer Group | Model no.: SH610R4 | EAN: 0887993005911
out of stock
The item is not in stock. More info
Udsolgt
Varen er ikke på lager.
Brug funktionen ”Giv mig besked..." herunder for opdateringer.
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
91,67
Incl. VAT 114,59
Total incl. delivery
129,59
Notify me when the item is in stock again
Email:
Stock agent created. We will send an email when the item is in stock again.
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.

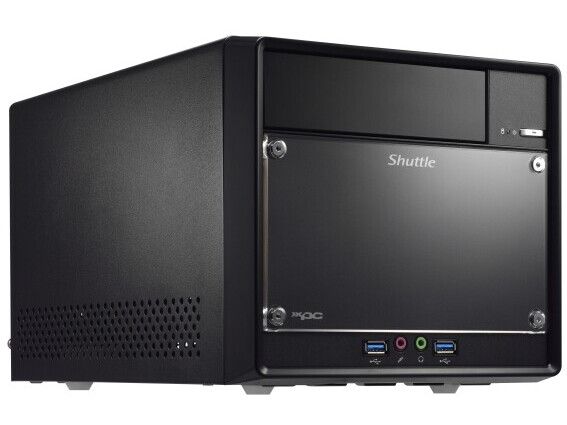

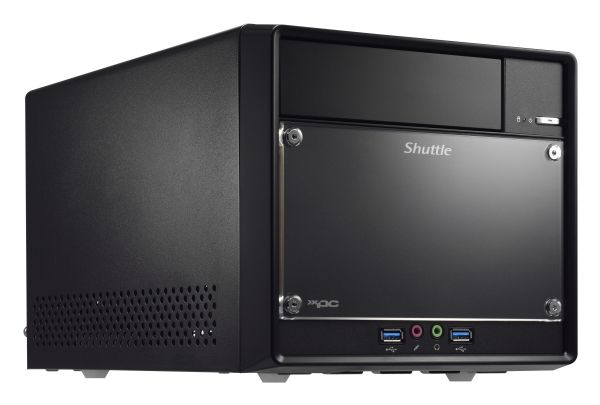

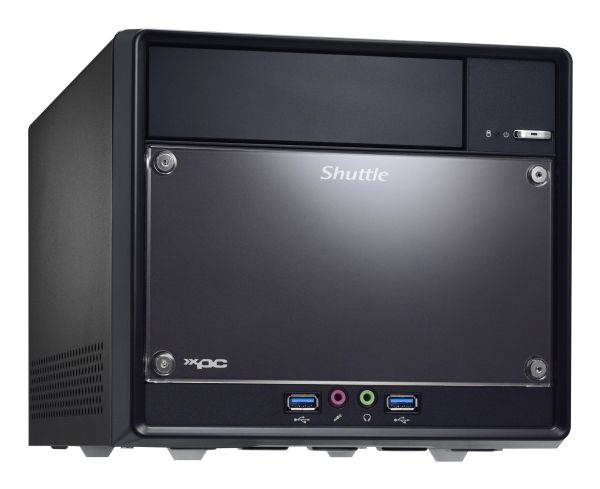

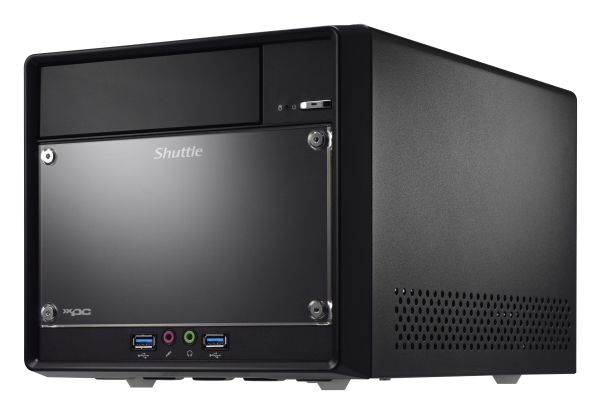

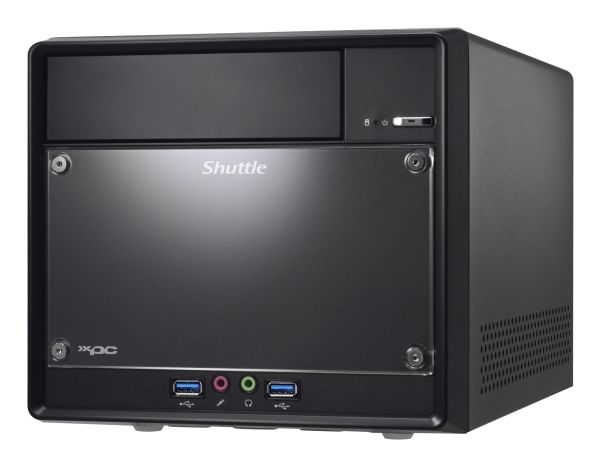

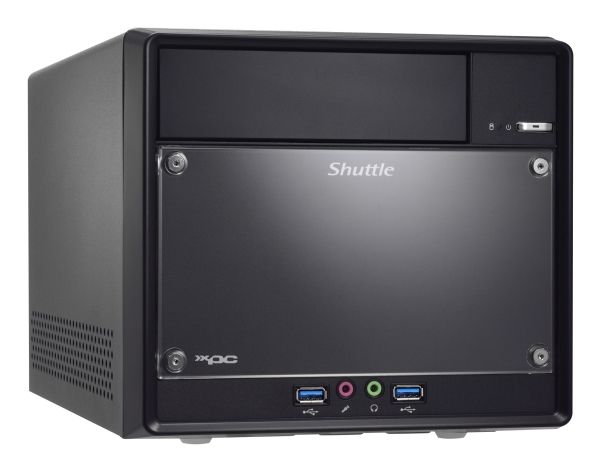

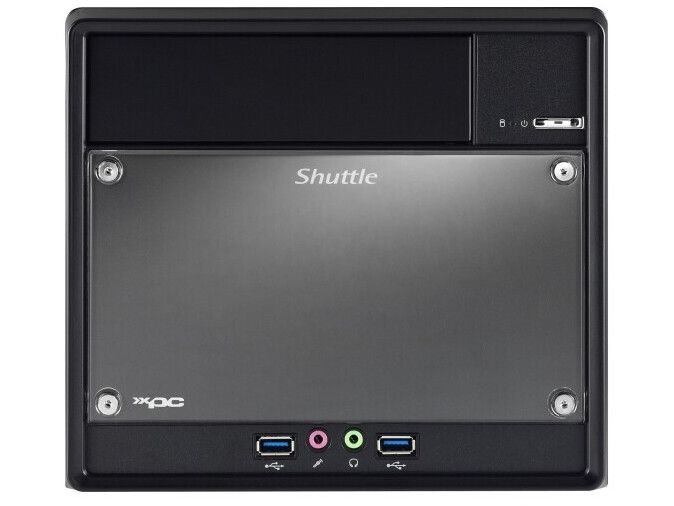

The Shuttle XPC cube Barebone SH610R4 supports the 12th and 13th generation of Intel Core desktop processor for socket LGA1700, DDR4-3200 memory, three 4K displays at 60 Hz via 2x DisplayPort and HDMI, high-performance M.2 SSDs and up to four USB 3.2 devices. The SH610R4 can be expanded with a high-performance graphics card for demanding applications while the second PCIe-X1-slot can be used for other expansion cards. WLAN and COM port can be additionally installed as well. The SH610R4 comes with a built-in 80 PLUS power supply and Shuttle's I.C.E. heatpipe cooling which means it is energy-efficient and ready for long-term operation.
Produktbeskrivelse
Shuttle XPC cube SH610R4 - mini PC uden CPU - 0 GB - ingen HDD
Type
PC barebone - mini PC
Processor
Uden CPU
Processor-socket
LGA1700 sokkel
RAM
0 GB (installeret) / 64 GB (maks.) - DDR4 SDRAM
Controller for lagring
SATA (SATA 6Gb/s)
Harddisk
Ingen HDD
Optisk lagring
Intet optisk drev
Grafik controller
Uden grafik
Lydudgang
5.1 kanal surround
Netværk
1GbE
Med OS
Intet operativt system
Farve
Sort
Dimensioner (B x D x H)
21.6 cm x 33.2 cm x 19 cm
Generelt
Type
PC barebone
Produktmodel
Mini PC
Farve
Sort
Processor / Chipset
CPU
Uden CPU
Maks. antal CPU'er
1
Opgraderbarhed af CPU
Kan opgraderes
CPU Socket
LGA1700 sokkel
Chipsættype
Intel H610
RAM
Installeret størrelse
0 GB (installeret) / 64 GB (maks.)
Teknologi
DDR4 SDRAM
Model
DIMM 288-PIN
Holdere
2 (Total) / 2 (ubrugt)
Egenskaber
Dobbelt kanal hukommelses arkitektur
Harddisk
Type
Ingen HDD
Controller for lagring
Type
1 x SATA
Controller-grænsefladetype
SATA 6Gb/s
Optisk lagring
Type
Intet optisk drev
Monitor
Monitortype
Ingen.
Grafik controller
Grafik-processor
Uden grafik
Lydudgang
Lydudgangsmodus
5.1 kanal surround
Overensstemmelsesstandarder
High Definition Audio
Netværk
Ethernet Controller
Intel I219
Dataforbindelsesprotokol
Ethernet, Gigabit Ethernet, Fast Ethernet
Egenskaber
Wake on LAN (WoL), PXE support
Ekspansion / Konnektivitet
Båse
1 (total) / 1 (fri) x ekstern 5.25" 2 (total) / 2 (fri) x intern 3.5" 1 (total) / 1 (fri) x intern M.2 2280 1 (total) / 1 (fri) x intern M.2 2230
Holdere
1 (total) / 1 (fri) x PCIe 5.0 x16 1 (total) / 1 (fri) x PCIe 3.0 x1
Interface

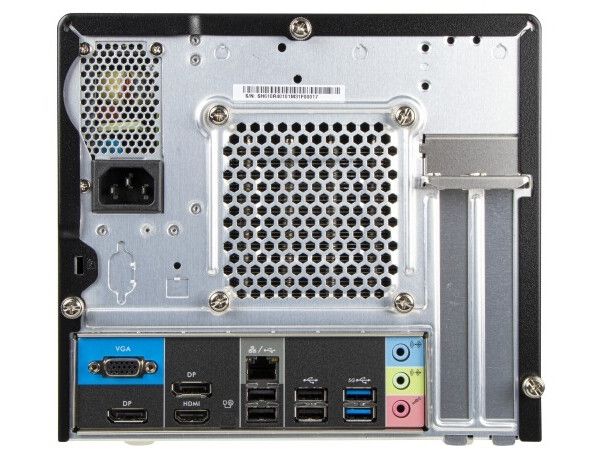

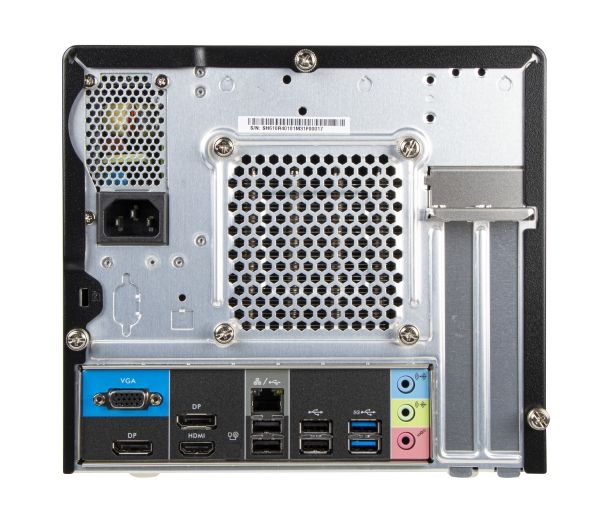

2 x mikrofon - mini-jack (1 front, 1 bag) 1 x hovedtelefoner - mini-jack 4 x USB 3.2 Gen 1 4 x USB 2.0 1 x audio linje-ind - mini-jack 1 x audio linje-ud - mini-jack 1 x VGA 1 x HDMI 2 x DisplayPort 1 x LAN (Gigabit Ethernet)
Diverse
Tyveri/Indtrængningsbeskyttelse
Sikkerhedslåseåbning (kabellåse solgt separat)
Sikkerhedsåbningstype
Kensington-sikkerhedsåbning
Overensstemmelsesstandarder
FCC, BSMI, C-Tick, RoHS
Effekt
Enhedstype
Strømforsyning
Strømforsyning
300 watt
80 PLUS certificering
80 PLUS Bronze
Operativsystem / Programmer
Med OS
Intet operativt system
Mål og vægt
Bredde
21.6 cm
Dybde
33.2 cm
Højde
19 cm
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
40 °C
