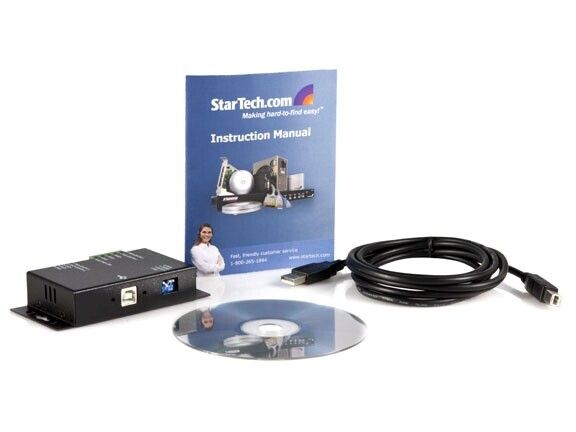

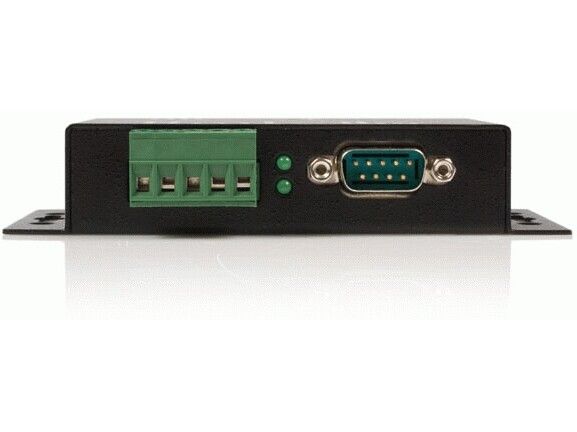

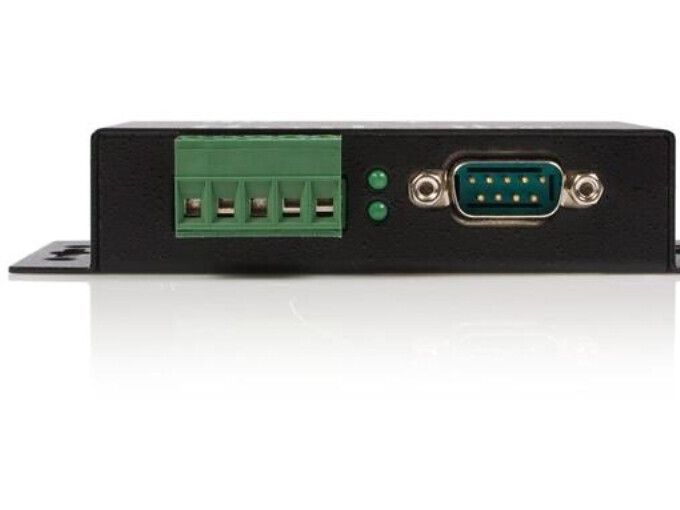

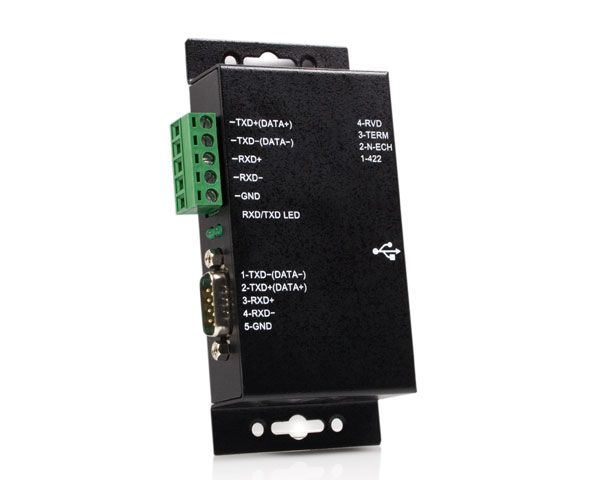

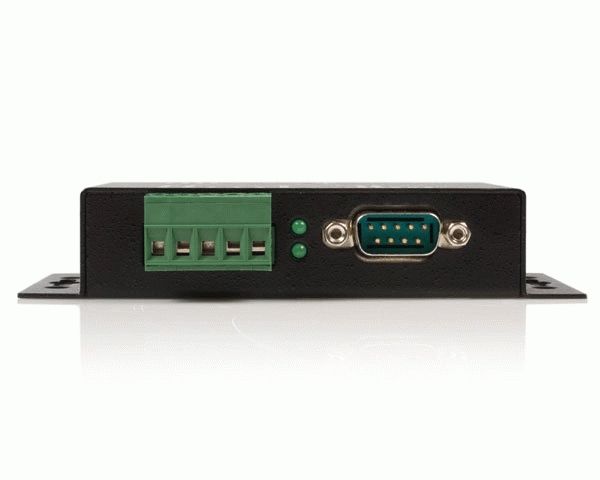

Add an R422/485 serial port to your laptop or desktop computer through USB. The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block. The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices. The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere.
Produktbeskrivelse
Startech 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation (ICUSB422IS) - seriel adapter - USB
Enhedstype
Seriel adapter
Model
Ekstern
Grænseflade (bus) type
USB
Dimensioner (B x D x H)
5.4 cm x 2.3 cm x 9.3 cm
Vægt
300 g
Dataforbindelsesprotokol
RS-422, RS-485
Dataoverførselshastighed
921.6 Kbps
Farve
Sort
Systemkrav
Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Linux Kernel 3.0 eller nyere, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, kun Linux LTS-versioner, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Microsoft Windows 11, Apple macOS 13.0
Producentgaranti
2 års garanti
Generelt
Enhedstype
Seriel adapter
Model
Ekstern
Grænseflade (bus) type
USB
Netværk
Forbindelsesteknologi
Kablet
Dataforbindelsesprotokol
RS-422, RS-485
Dataoverførselshastighed
921.6 Kbps
Egenskaber
Strøm fra USB
Ekspansion / Konnektivitet
Interface

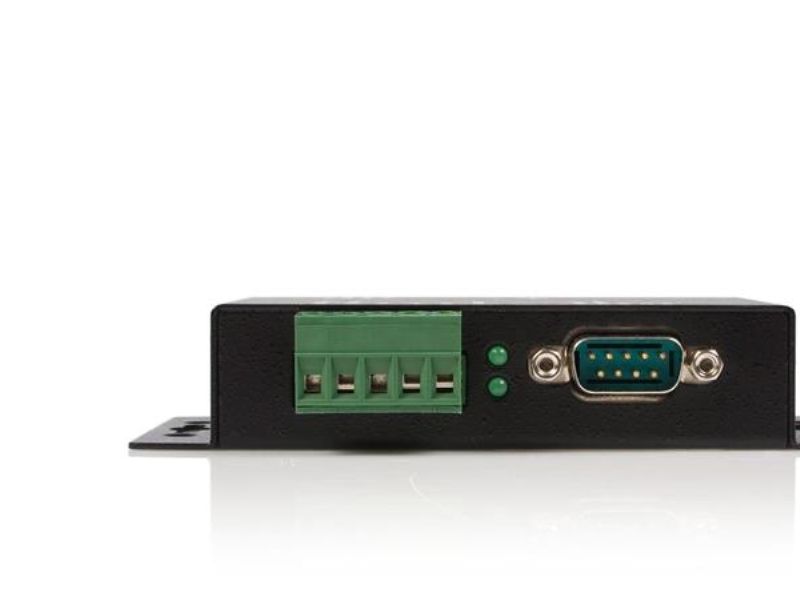

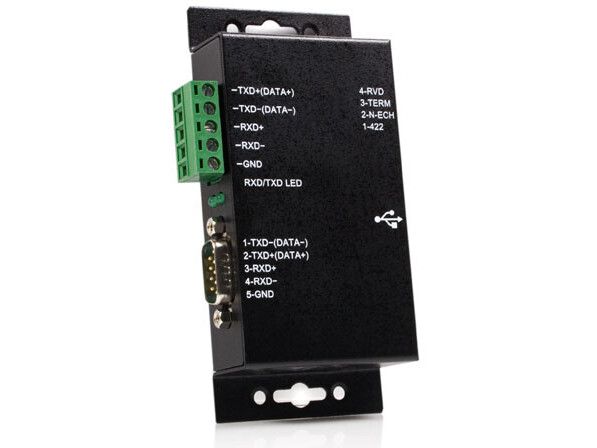

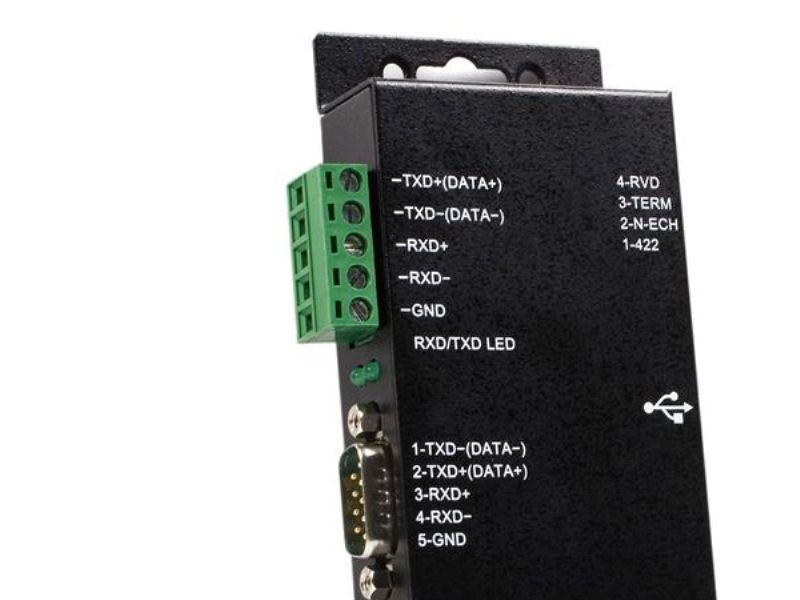

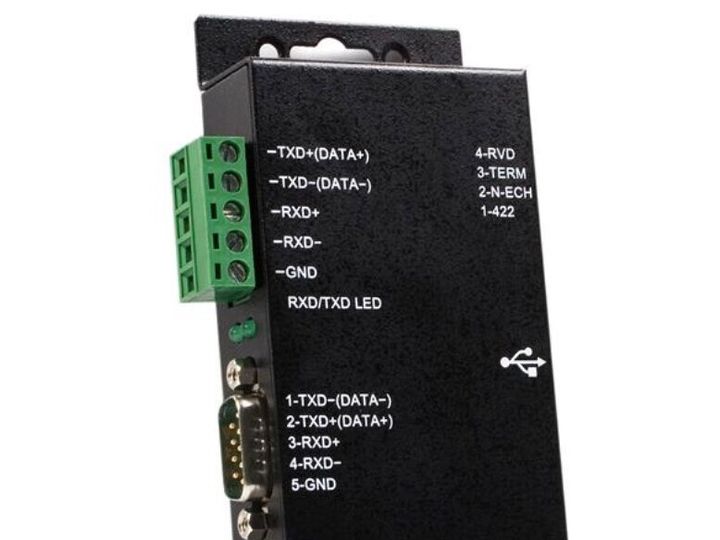

1 x RS-422/485 - 9-pin D-Sub (DB-9) 1 x RS-422/485 - terminalblok
Tilslutninger

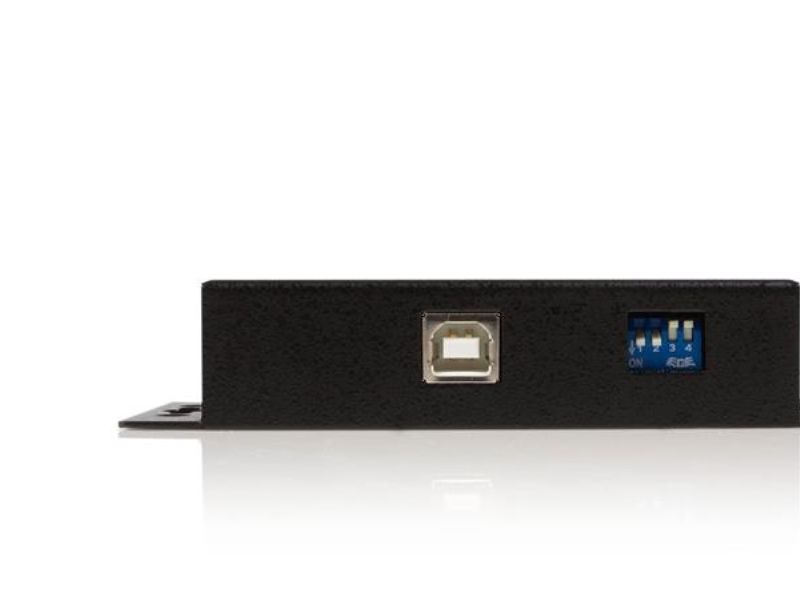

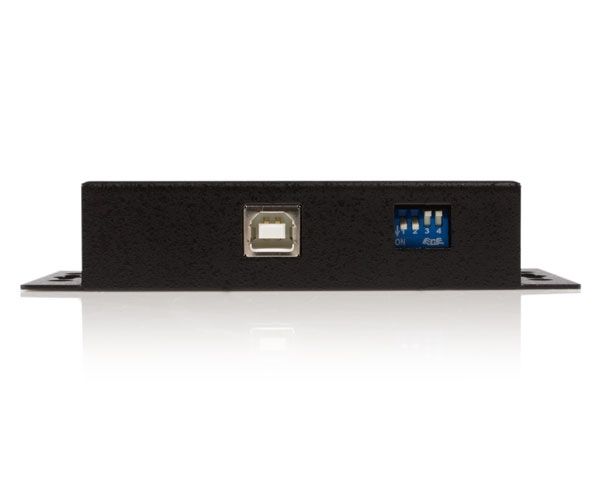

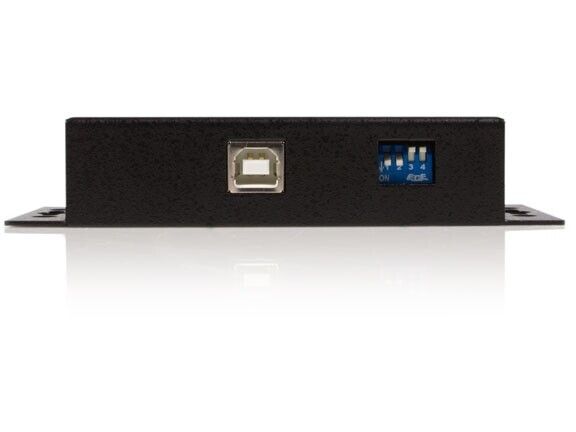

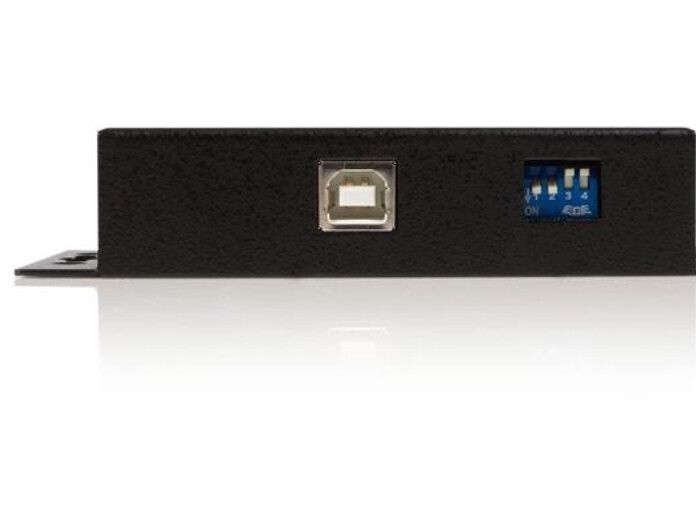

1 x USB - 4 pin USB Type B
Diverse
Medfølgende ledninger

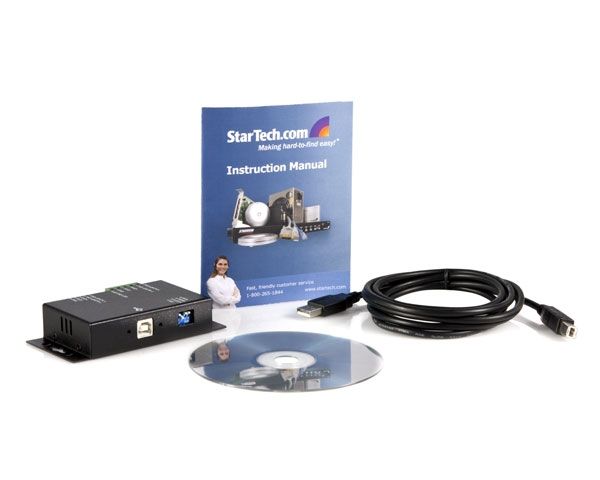

1 x USB-kabel (ekstern) - 1.8 m
Overensstemmelsesstandarder
FCC, RoHS
Farve
Sort
Programmer / Systemkrav
Med software
Drivers & Utilities
OS nødvendig
Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Linux Kernel 3.0 eller nyere, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, kun Linux LTS-versioner, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Microsoft Windows 11, Apple macOS 13.0
Mål og vægt
Bredde
5.4 cm
Dybde
2.3 cm
Højde
9.3 cm
Vægt
300 g
Producentgaranti
Service & Support
Begrænset garanti - 2 år
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
55 °C
Fugtighedsgrad ved brug
5 - 95%
