Obo Bettermann 1801 VDE, 1 pc(s)
Item no.: [10553126] | Manufacturer: OBO Bettermann | EAN: 4012195378556
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
35,14
Incl. VAT 43,93
Total incl. delivery
58,93
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail

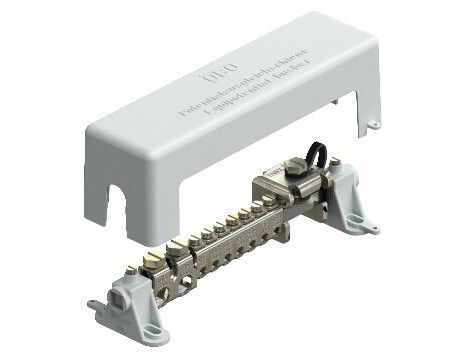

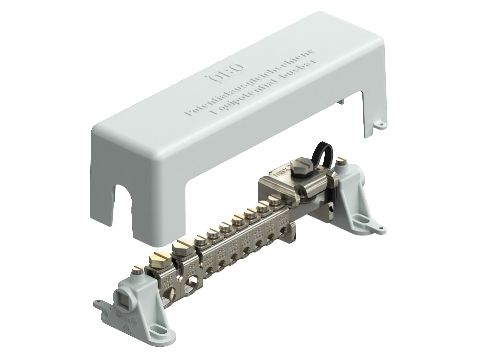

Equipotential busbar for equipotential bonding according to DIN VDE 0100-410 / -540 and lightning protection equipotential bonding according to DIN VDE 0185-305
• According to VDE 0618, part 1
• With clamping rail 10 x 10 mm, nickel-plated brass
• With close-contact series terminals made of electrogalvanised steel
• Cover hood and rail stand made of grey polystyrene
• Lightning current carrying capacity 100 kA (10/350)
• Tension clamp with screw lock against self-loosening
(e.g. required in industry and in explosion-protected areas)
Connection options:
• 7 single or multi-wire cables 2.5-25 mm² or fine-wire cables to 16 mm² (max. Ø 7 mm)
• 2 single or multi-wire cables 25-95 mm² or fine-wire cables to 70 mm² (max. Ø 13.5 mm)
• 1 flat conductor 30 x 3.5 mm
• According to VDE 0618, part 1
• With clamping rail 10 x 10 mm, nickel-plated brass
• With close-contact series terminals made of electrogalvanised steel
• Cover hood and rail stand made of grey polystyrene
• Lightning current carrying capacity 100 kA (10/350)
• Tension clamp with screw lock against self-loosening
(e.g. required in industry and in explosion-protected areas)
Connection options:
• 7 single or multi-wire cables 2.5-25 mm² or fine-wire cables to 16 mm² (max. Ø 7 mm)
• 2 single or multi-wire cables 25-95 mm² or fine-wire cables to 70 mm² (max. Ø 13.5 mm)
• 1 flat conductor 30 x 3.5 mm
