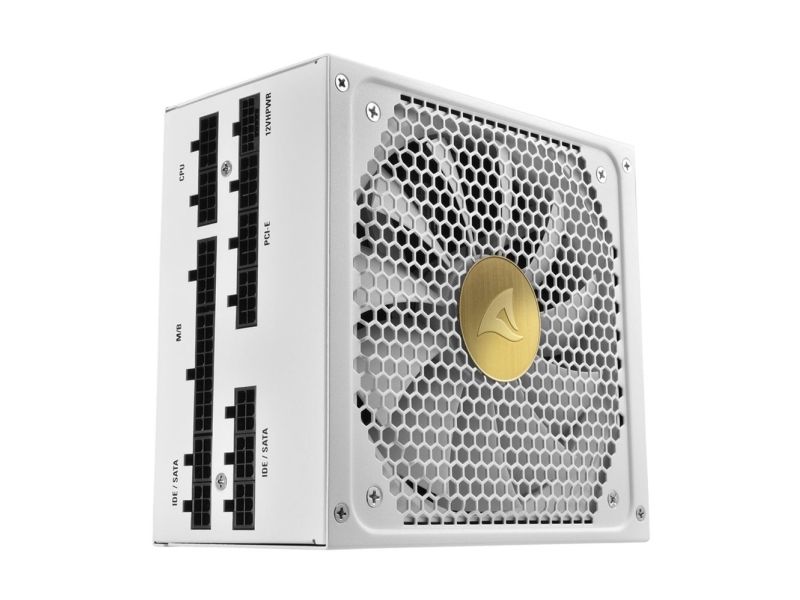

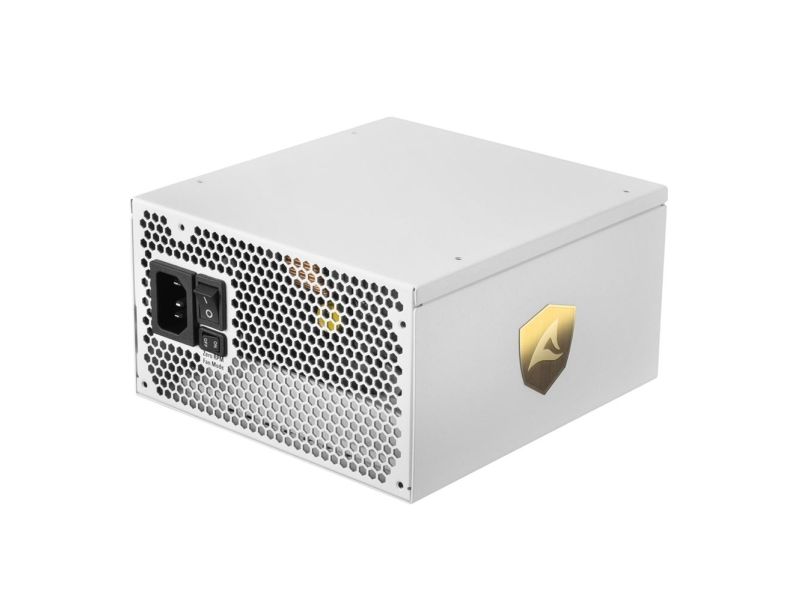

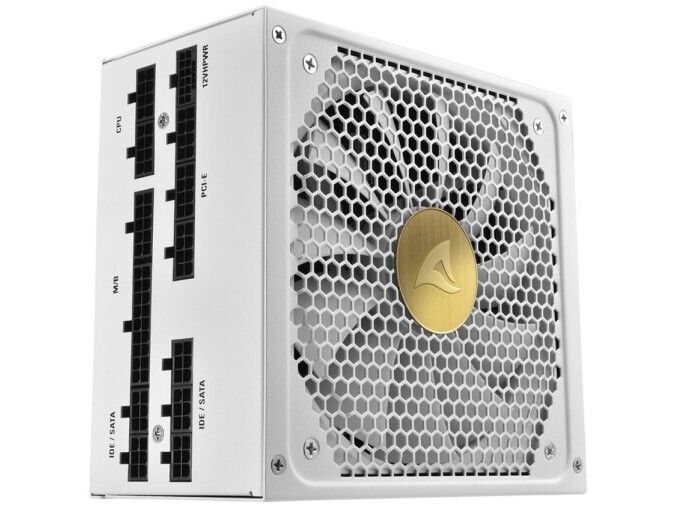

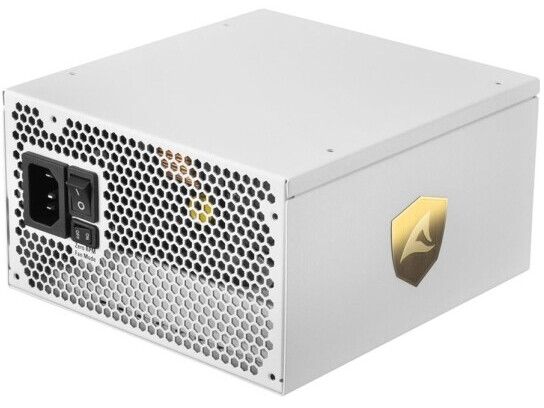

The Sharkoon Rebel P30 is a fully modular internal power supply designed for desktop PCs and servers that require reliable and efficient power delivery. It delivers high conversion efficiency certified by 80 PLUS Gold, helping reduce energy waste and maintain stable voltages for modern components. Built with DC-DC and LLC resonant converter technology, the unit includes extensive protection features and a Zero RPM fan mode to balance cooling and acoustics for everyday and demanding use. The modular flat cables and a wide selection of connectors, including 12VHPWR and multiple SATA power outputs, simplify system building and cable management while supporting ATX12V 3.0 and EPS12V standards for broad compatibility.
Produktbeskrivelse
Sharkoon Rebel P30 - strømforsyning - 1000 watt
Enhedstype
Strømforsyning - intern
Specifikationsoverensstemmelse
ATX12V 3.0/ EPS12V
80 PLUS certificering
80 PLUS Gold
Vægt
1.7 kg
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
1000 watt
Output Current
+3.3V - 24 A +5V - 24 A +12V - 83.3 A -12V - 0.5 A +5VSB - 3 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x strøm 8-pin CPU med 4 aftagelige 4-pin 1 x strøm 8 pin CPU 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 1 x 12VHPWR 12 x 15 pin Serial ATA strøm
Modulær Kabel Administration
Ja
Kølesystem
135 mm ventilator
Udstyr inkluderet

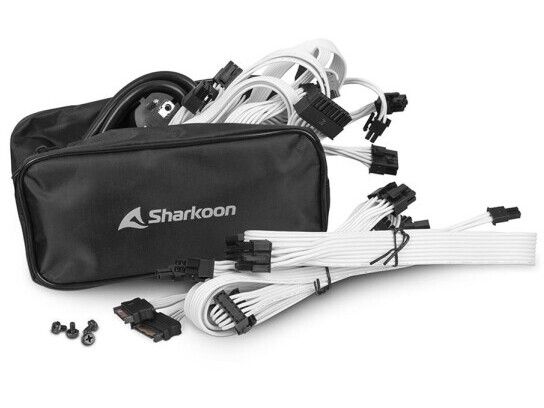

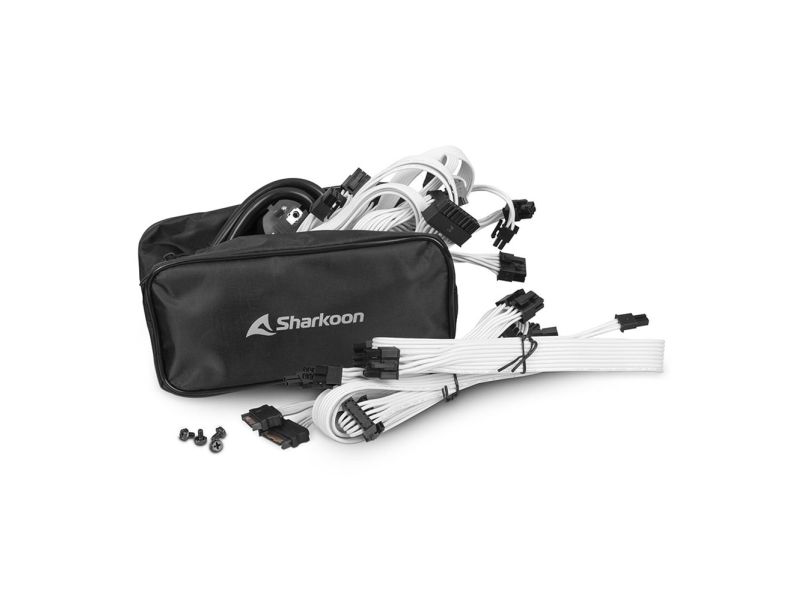

Modulære kabler, skruer, kabelpose
Farve
Hvid
Dimensioner (B x D x H)
15 cm x 16 cm x 8.6 cm
Producentgaranti
10-års garanti
Generelt
Enhedstype
Strømforsyning - intern
Specifikationsoverensstemmelse
ATX12V 3.0/ EPS12V
PSU formfaktor
ATX
Farve
Hvid
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x strøm 8-pin CPU med 4 aftagelige 4-pin 1 x strøm 8 pin CPU 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 1 x 12VHPWR 12 x 15 pin Serial ATA strøm
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
1000 watt
Output Current
+3.3V - 24 A +5V - 24 A +12V - 83.3 A -12V - 0.5 A +5VSB - 3 A
Effektivitet
89% at 100% Load, 90% at 20% Load, 92% at 50% Load
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Gold
Diverse
Udstyr inkluderet
Modulære kabler, skruer, kabelpose
Medfølgende ledninger
Strømkabel - aftagelig
MTBF (forventet tid mellem fejl)
100,000 timer
Kølesystem
135 mm ventilator
Egenskaber

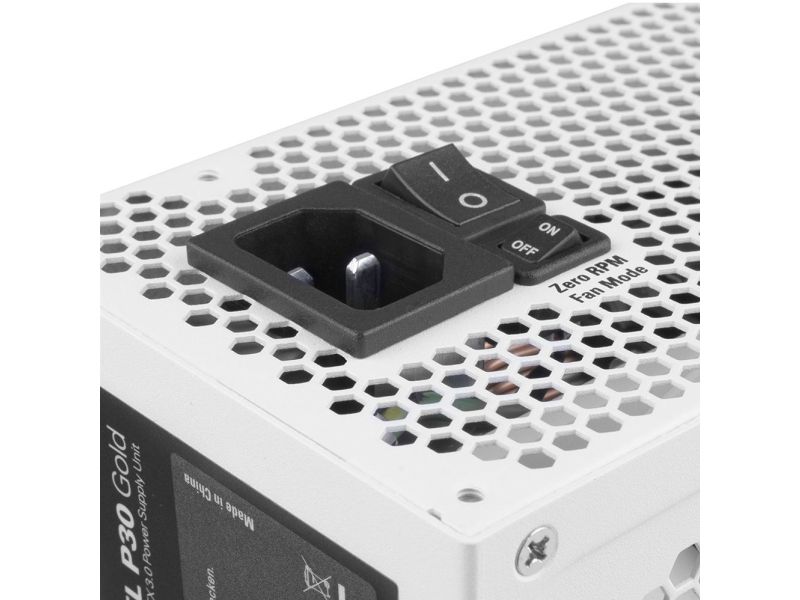

Flade kabler, DC-DC teknologi, LLC resonant konverteringsteknologi, fuld modulær, køleblæser til flydende dynamisk leje, beskyttelse mod overstrøm, overspændingsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, beskyttelse mod overophedning, overbelastningsbeskyttelse, Zero RPM-blæsermodus
Overensstemmelsesstandarder
ERP, FCC, CB, UKCA
Producentgaranti
Service & Support
Begrænset garanti - 10 år
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
40 °C
Mål og vægt
Bredde
15 cm
Dybde
16 cm
Højde
8.6 cm
Vægt
1.7 kg
