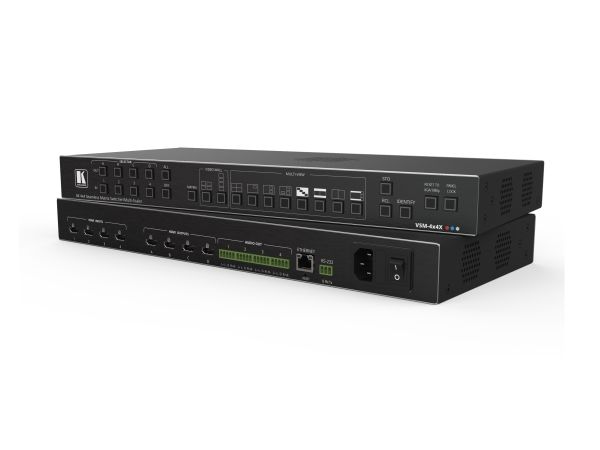

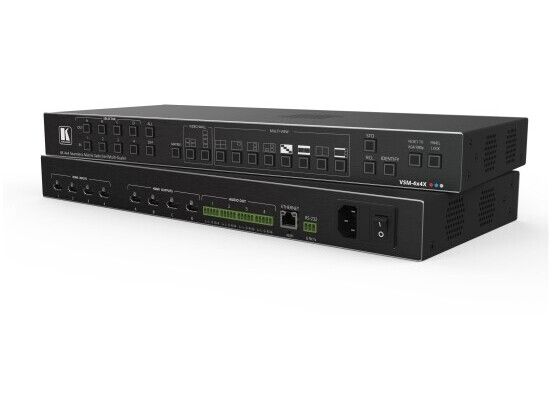

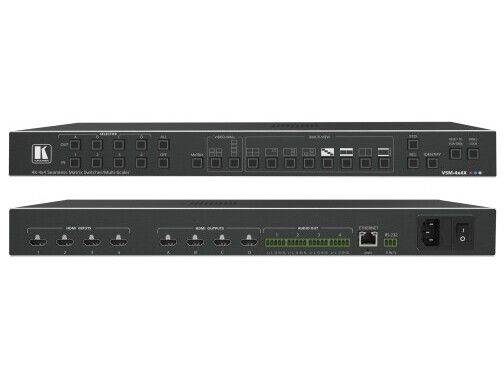

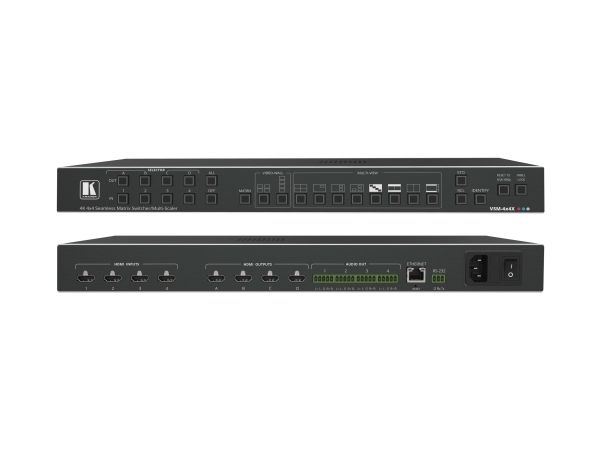

Kramer's VSM 4x4X is a 4X4 seamless matrix switcher that can also be used as a video wall driver (2X2 or 1X4), a quad-viewer, or a 4 picture multi-viewer.
The unit allows instantaneous switching between inputs (that is, with a clean, frame-to-frame video cut). The VSM 4x4X supports HDMI 2.0 and HDCP 2.2, with resolutions up to 4K60 4:4:4, per-port HDCP and EDID settings, passing of 4 channels of embedded audio, and analog stereo de-embedded audio for each of the 4 outputs.
Product type
Media presentation matrix switcher
Bandwidth
18 Gbit/s
HDCP
Yes
HDCP version
1.4
Housing colour
Black
Housing material
Aluminium
Rack mounting
Yes
Rack capacity
1U
Control type
Buttons
Cooling type
Active
Certification
CE, FCC, RoHs, WEEE
Built-in display
No
HDMI input ports quantity
4
HDMI output ports quantity
4
HDMI version
2.0
RJ-45 input ports
1
RJ-45 output ports
1
RS-232 ports
1
Power consumption (max)
55 W
AC input voltage
100 – 240
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
40 - 70 °C
Heat dissipation (max)
188 BTU/h
Width
436 mm
Depth
183 mm
Height
44 mm
Weight
1.8 kg
Package width
550 mm
Package depth
276 mm
Package height
107 mm
Package weight
2.9 kg
Cables included
Power
