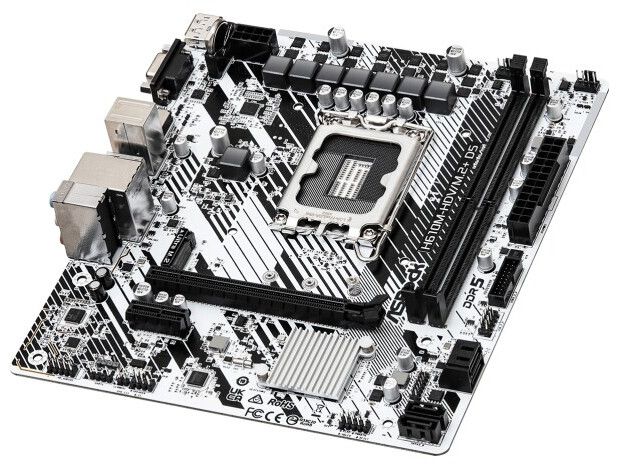

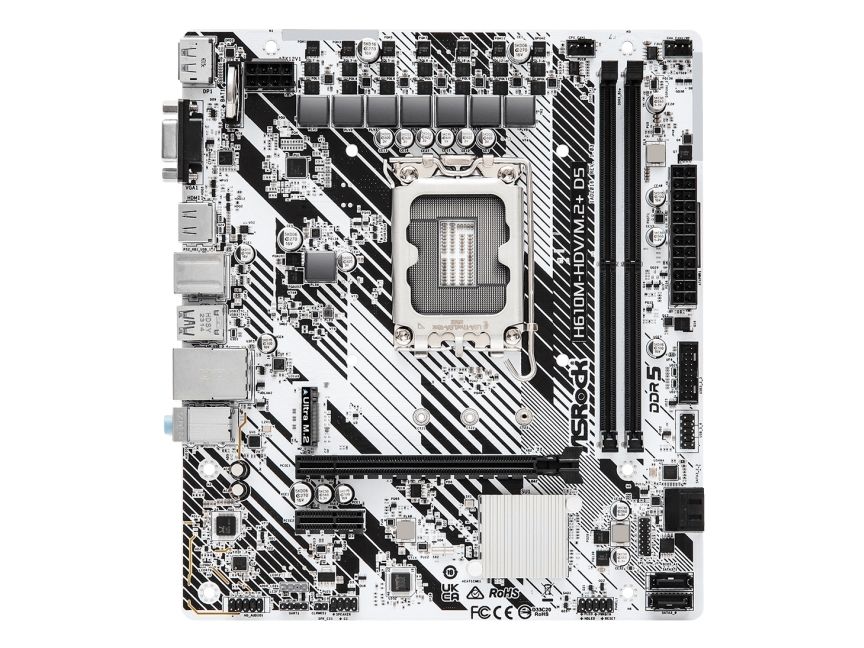

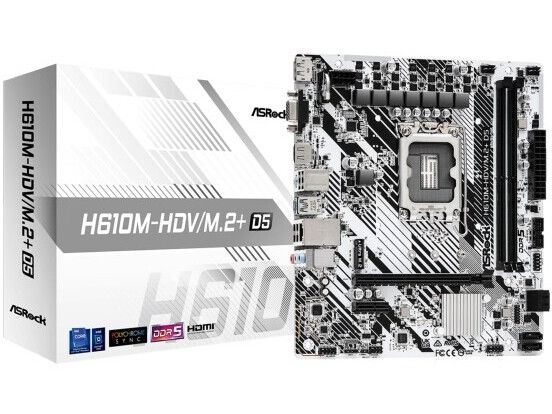

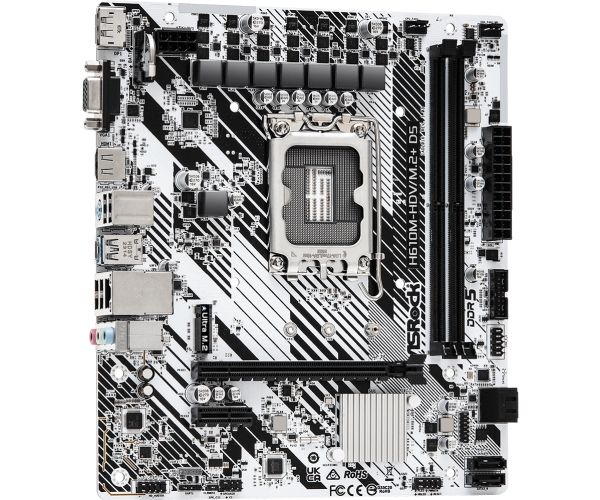

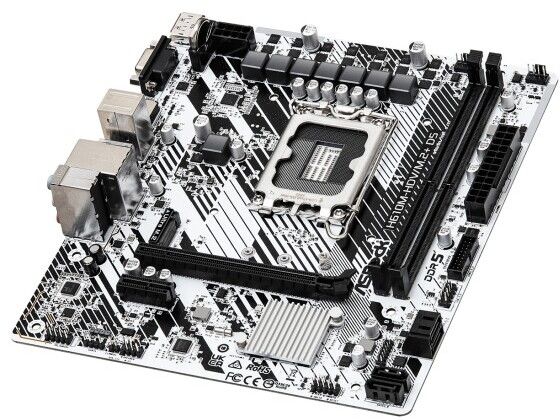

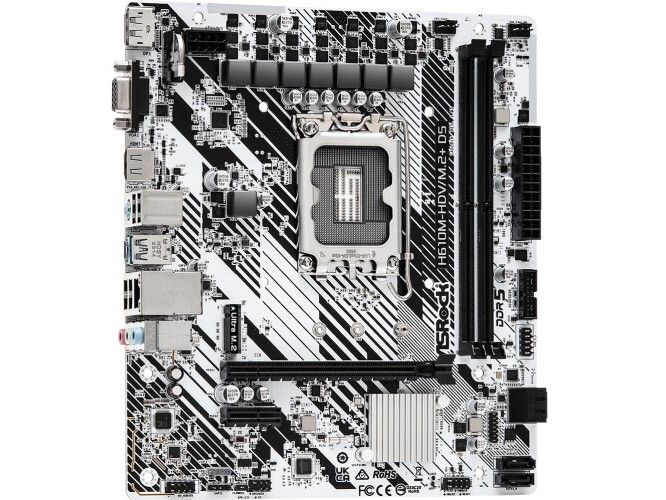

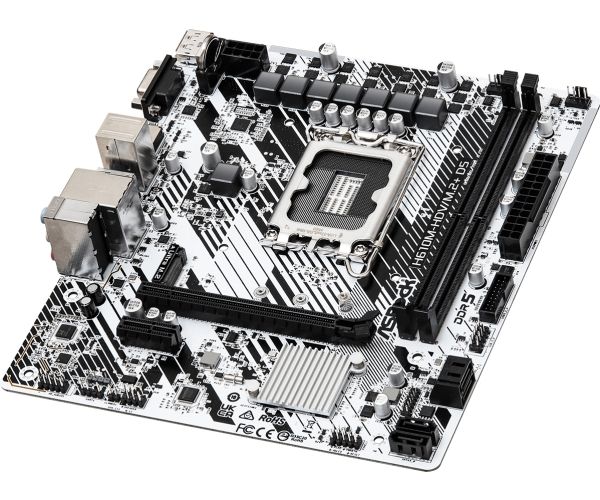

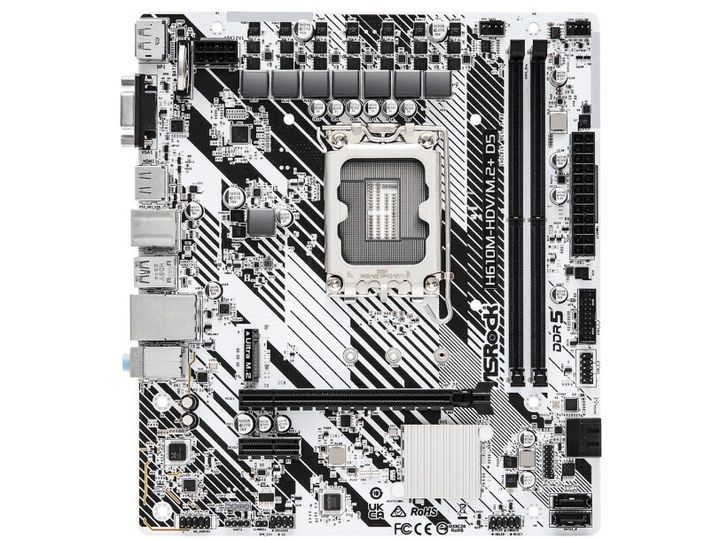

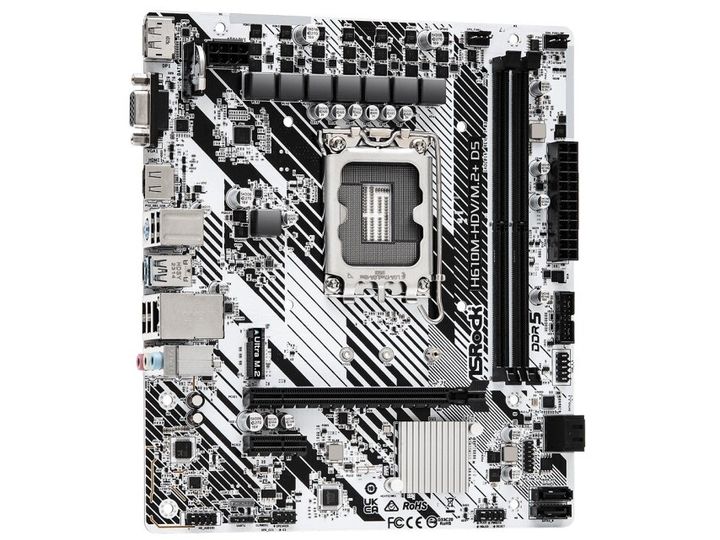

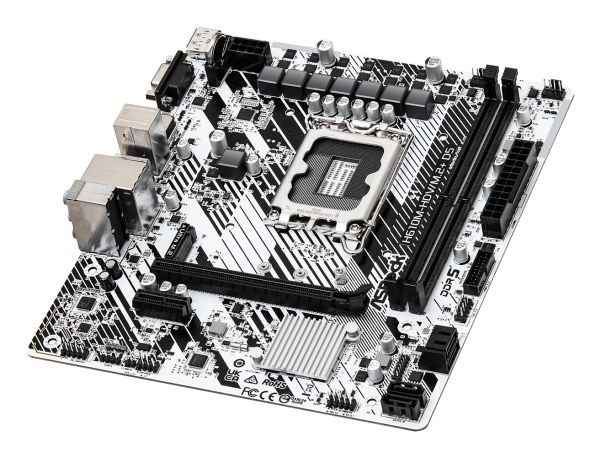

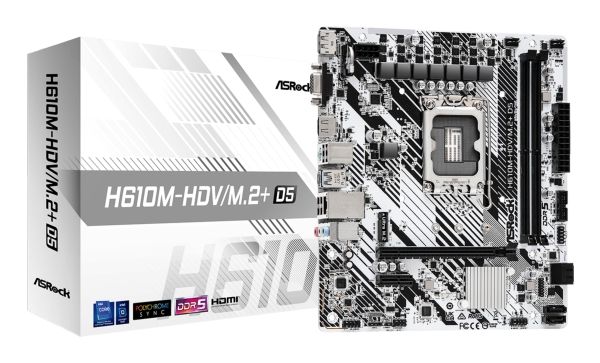

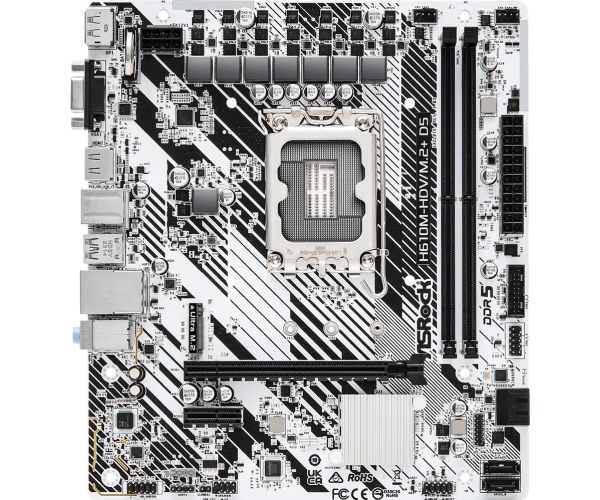

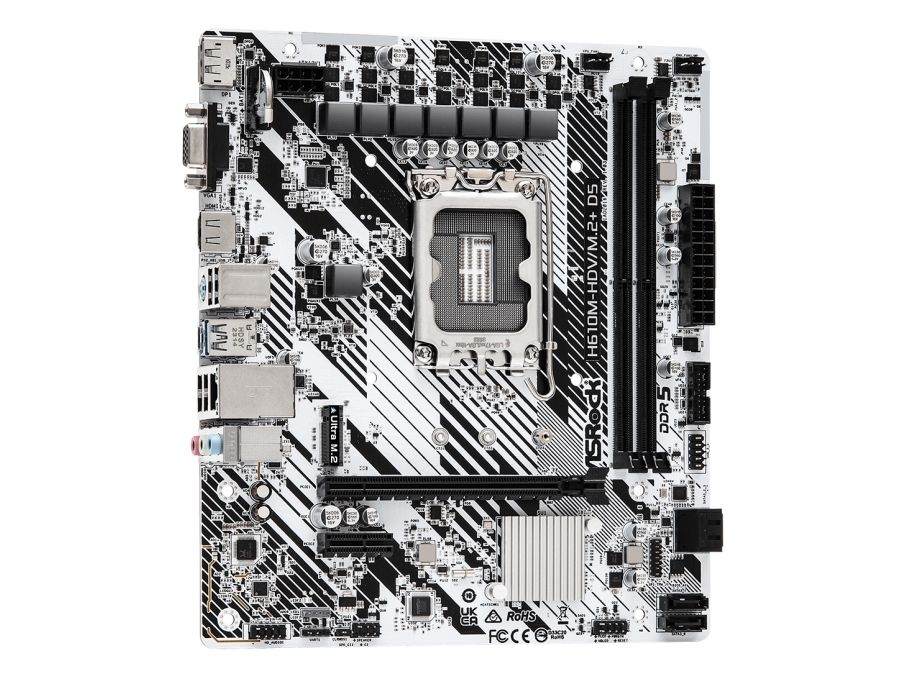

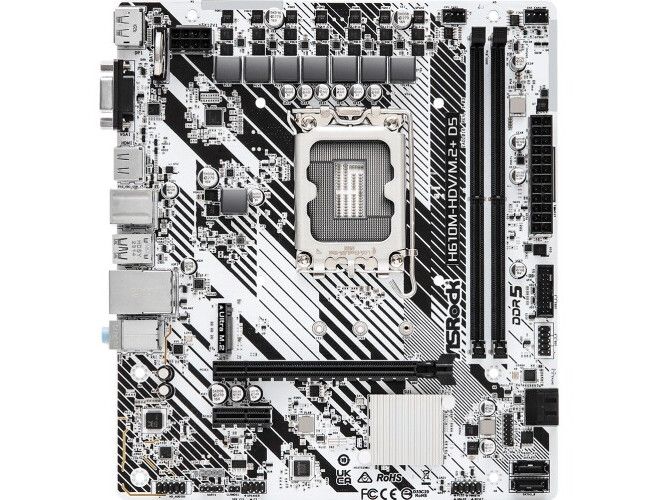

Discover the ASRock H610M-HDV/M.2+ D5 motherboard, designed to elevate your computing experience. This motherboard is built on the Intel H610 chipset and supports the LGA1700 socket CPUs, making it a solid foundation for building a powerful PC. With support for DDR5 SDRAM at speeds of up to 5600 MHz, it ensures that your system can handle demanding applications and multitasking with ease.
The motherboard features high definition audio (8-channel) for an immersive sound experience, whether you're gaming or enjoying media. It also offers a variety of connectivity options, including USB-C 3.2 Gen 1 and USB 3.2 Gen 1 ports, providing high-speed connections for your peripherals. The 6+1+1 Phase Power Design ensures stable and reliable power delivery to your components, enhancing overall system performance.
For those looking to expand their system, the motherboard includes a range of expansion slots, including PCIe 4.0 x16 and PCIe 3.0 x1, as well as a 2242/2260/2280 M.2 Key M slot for SSDs. With its micro ATX form factor, it offers a compact solution without compromising on performance or features. Whether you're building a new PC or upgrading an existing one, the ASRock H610M-HDV/M.2+ D5 motherboard offers a solid foundation with room to grow.
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 3.0, understøttede ECC-moduler fungerer i ikke-ECC-tilstand
Audio
Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC897
Overensstemmelsesstandarder
High Definition Audio
LAN
Netværk controller
Realtek RTL8111H
Netværks interfaces
Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger
1 x CPU 2 x DIMM 288-pins 1 x PCIe 4.0 x16 1 x PCIe 3.0 x1 1 x Ultra M.2 (2242/2260/2280 M.2 Key M åbning)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA PCIe 3.0 -stikforbindelser: 1 x Ultra M.2
Interface

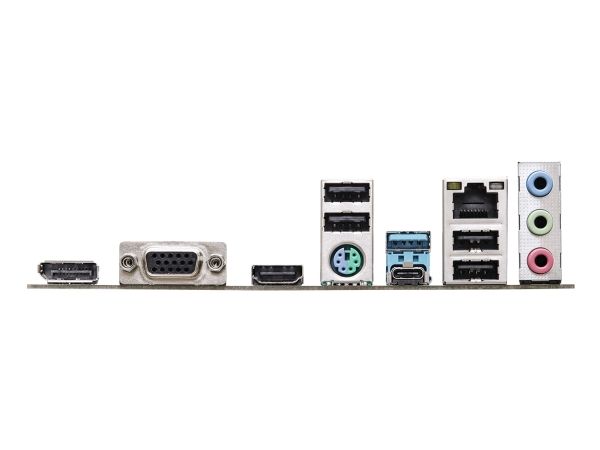

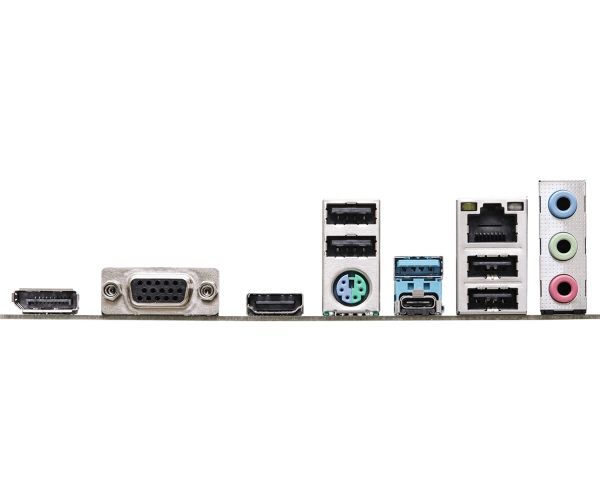

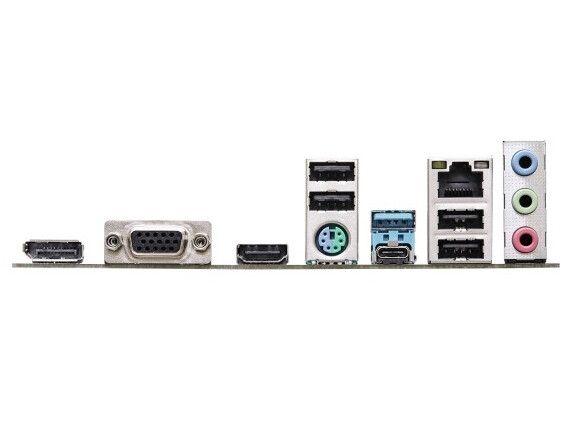

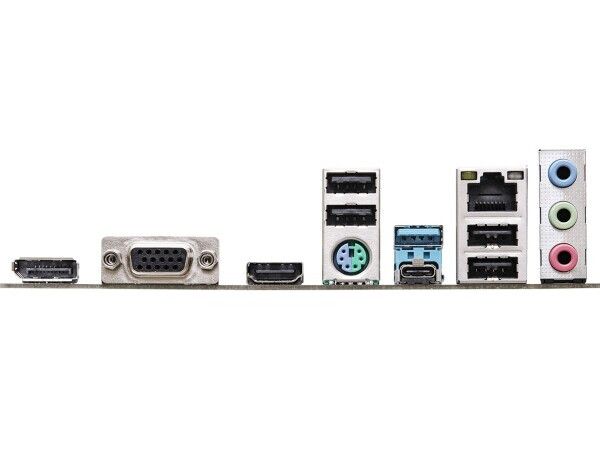

1 x PS/2-tastatur/mus 1 x VGA 1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen 1 1 x USB 3.2 Gen 1 4 x USB 2.0 1 x LAN (Gigabit Ethernet) 1 x audio linje-ind - mini-jack 1 x audio linje-ud - mini-jack 1 x mikrofon - mini-jack
Interne interfaces
1 x SPI - intern stik 1 x højttaler - intern stik 1 x audio - intern stik 2 x USB 2.0 - intern stik 2 x USB 3.2 Gen 1 - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
UEFI BIOS
Hardware egenskaber
6+1+1 Phase Power Design, Water Pump Header, Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Auto Driver Installer, ASRock Instant Flash, ASRock Polychrome RGB
