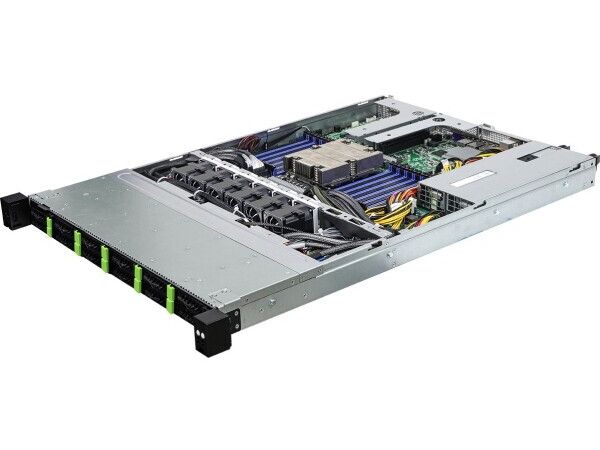

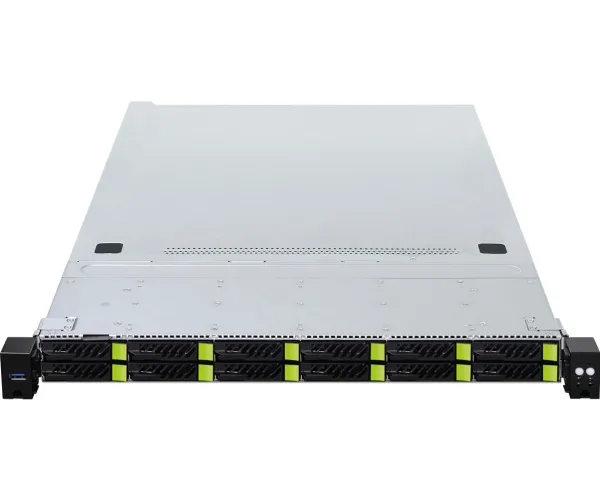

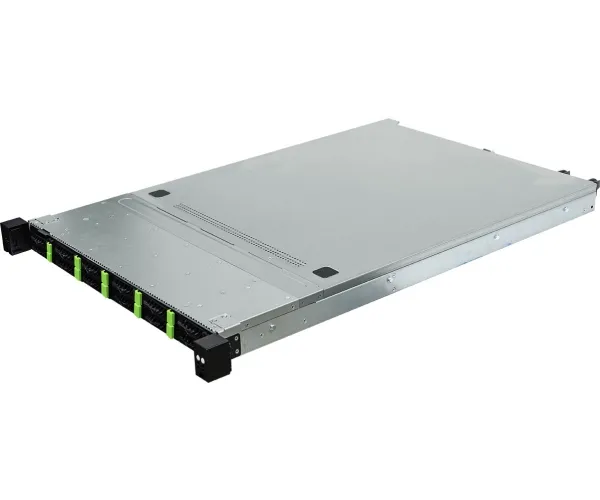

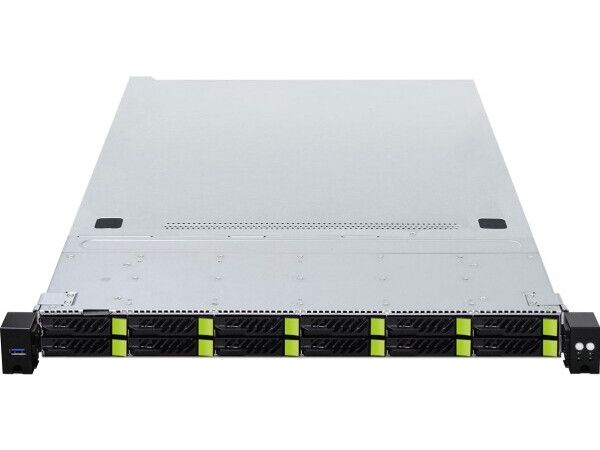

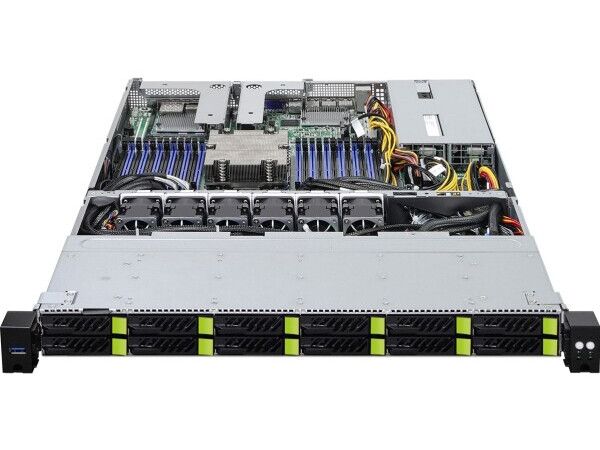

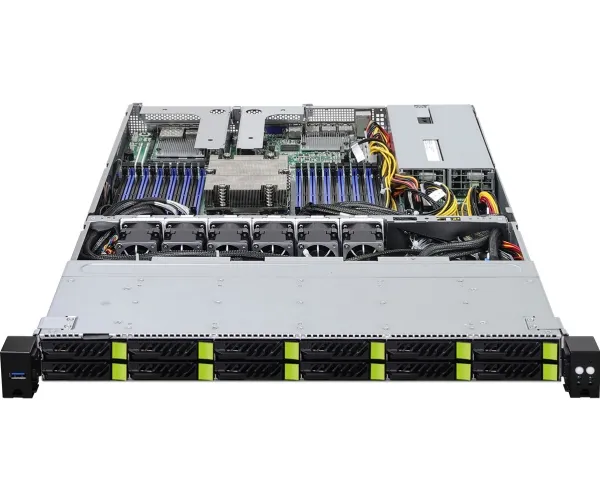

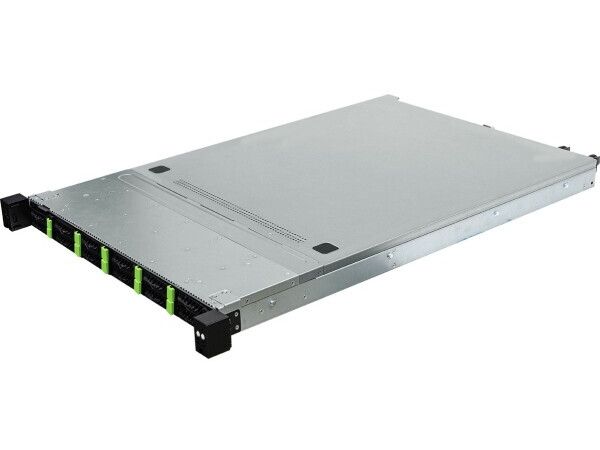

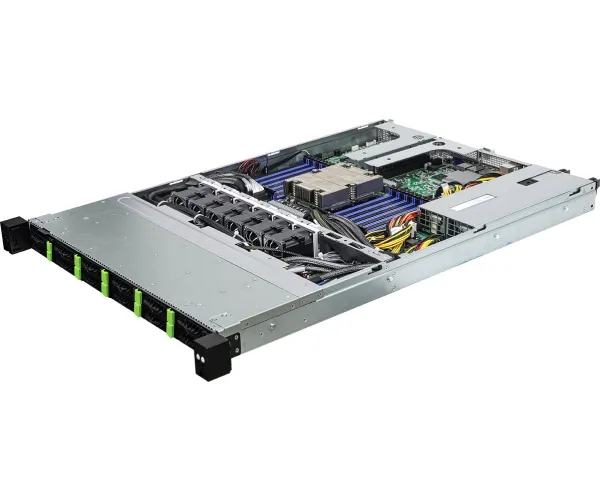

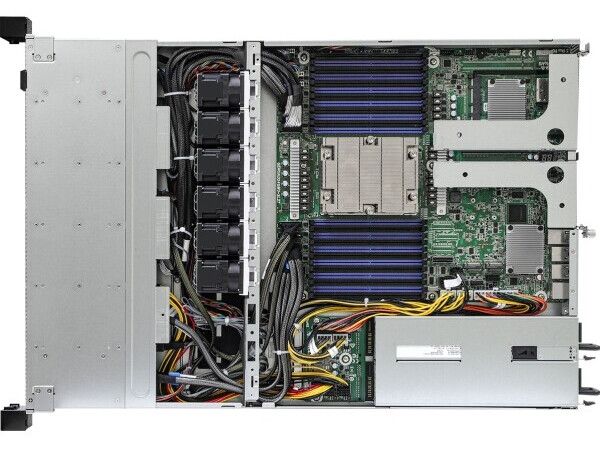

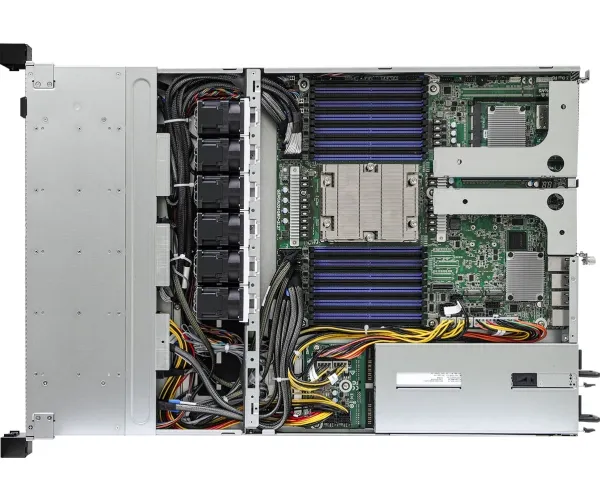

The ASRock Rack 1U12E-GENOA/2L2T is designed for efficient server performance in a compact, rack-mountable format, facilitating optimal space utilization. Featuring hot-swap capability with 12 storage bays, it supports both SATA and NVMe interfaces, allowing for seamless expansion and maintenance without downtime. The system operates within a temperature range of 10°C to 35°C, making it suitable for various environments while ensuring stable operation during critical tasks. With two 10 Gigabit Ethernet ports and multiple LAN connections, networking capabilities are assured. The power supply is rated at 1000 watts with 80 PLUS Platinum certification for energy efficiency, ensuring reliable performance. Expandability is also a key aspect of this model, with ample space for RAM and PCIe slots, allowing adaptability for various server needs and upgrades.
Produktbeskrivelse
ASRock Rack 1U12E-GENOA/2L2T - rack-monterbar uden CPU - 0 GB - ingen HDD
Type
Server - rack-monterbar
Højde (rackenheder)
1U
Serverskalerbarhed
Envejs
Processor
Uden CPU
Processor-socket
LGA6096 Socket
RAM
0 GB DDR5 SDRAM
Controller for lagring
SATA
Server-lagringsenheder
Hot-swap 2.5"
Harddisk
Ingen HDD
Optisk lagring
Intet optisk drev
Grafik controller
ASPEED AST2600
Videohukommelse
512 MB DDR4 SDRAM
Netværk
1GbE, 10GbE
Effekt
(50 - 60 Hz)
Overskudsspænding
Ja
Med OS
Intet operativt system
Dimensioner (B x D x H)
43.8 cm x 67.65 cm x 4.34 cm
Generelt
Type
Server
Produktmodel
Rack-monterbar - 1U
Indbygget udstyr
6 x hot-swap-blæsere
Serverskalerbarhed
Envejs
Antal hot-swap bays
12
Processor / Chipset
CPU
Uden CPU
Maks. antal CPU'er
1
Opgraderbarhed af CPU
Kan opgraderes
CPU Socket
LGA6096 Socket
Motherboardnavn
ASRock Rack GENOAD24QM3-2L2T/BCM
RAM
Installeret størrelse
0 GB
Teknologi
DDR5 SDRAM
Model
DIMM 288-PIN
Holdere
24 (Total) / 24 (ubrugt)
Egenskaber
Registreret, 3DS-registrering
Harddisk
Type
Ingen HDD
Controller for lagring
Type
1 x SATA
Optisk lagring
Type
Intet optisk drev
Monitor
Monitortype
Ingen.
Grafik controller
Grafik-processor
ASPEED AST2600
Videohukommelse
512 MB DDR4 SDRAM
Video-interfaces
VGA
Netværk
Ethernet Ports
2 x 10 Gigabit Ethernet, 2 x Gigabit Ethernet
Ethernet Controller
Broadcom BCM57416, Intel I210
Dataforbindelsesprotokol
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Ekspansion / Konnektivitet
Båse
12 (total) / 12 (fri) x hot-swap 2.5"
Holdere
2 (total) / 2 (fri) x PCIe 5.0 x16 - halv længde, fuld højde 2 (total) / 2 (fri) x M.2 Card - 2260/2280/22110 (Key M, PCIe 5,0 x4 og SATA-tilstand) 1 (total) / 1 (fri) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0
Interface
2 x LAN (10Gigabit Ethernet) - RJ-45 2 x LAN (Gigabit Ethernet) - RJ-45 3 x USB 3.2 Gen 1 (1 front, 2 bag) 1 x administration 1 x VGA
Effekt
Enhedstype
Strømforsyning
Overskudsspænding
Ja
Skema til overskudsspænding
1+1
Antal installeret
2
Maks. antal understøttet
2
Nødvendig spænding
AC 100-240 V (50 - 60 Hz)
Strømforsyning
1000 watt
80 PLUS certificering
80 PLUS Platinum
Operativsystem / Programmer
Med OS
Intet operativt system
Mål og vægt
Bredde
43.8 cm
Dybde
67.65 cm
Højde
4.34 cm
Miljømæssige parametre
Min. driftstemperatur
10 °C
Maks. driftstemperatur
35 °C
