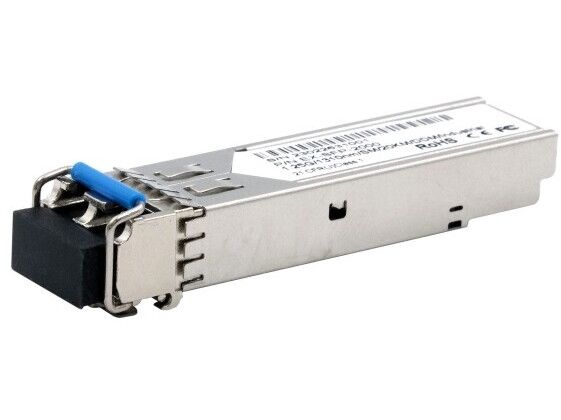

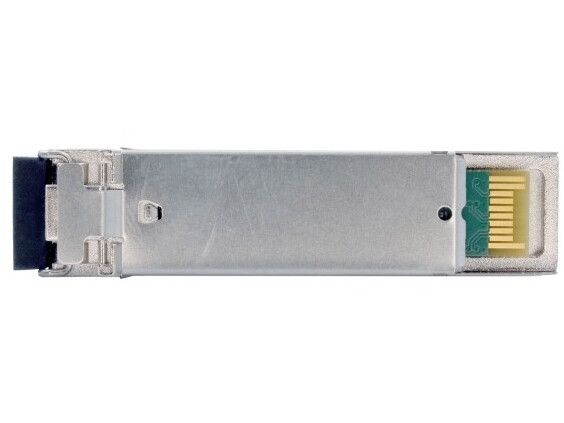

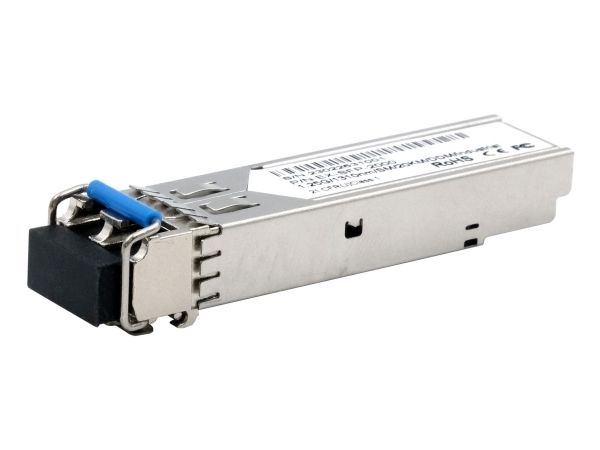

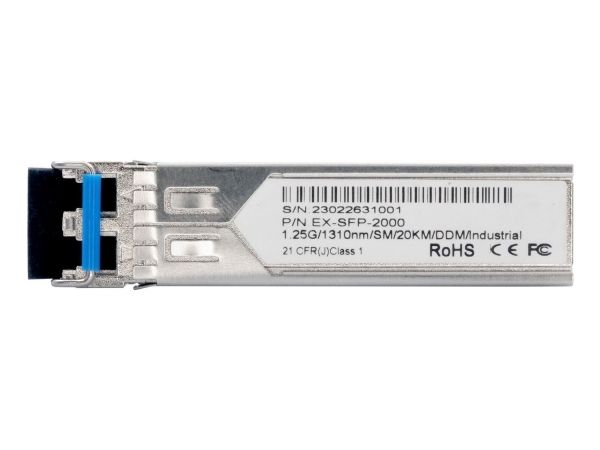

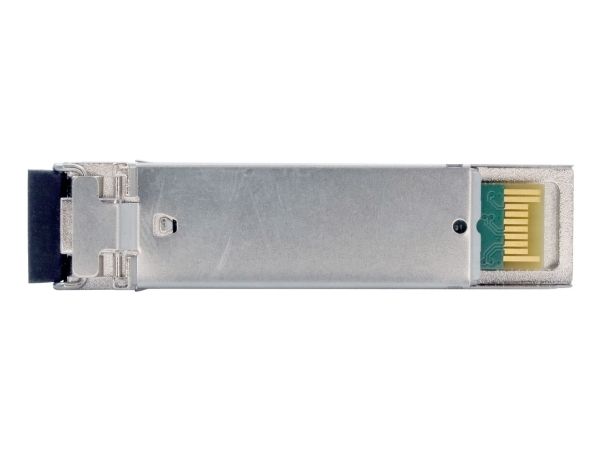

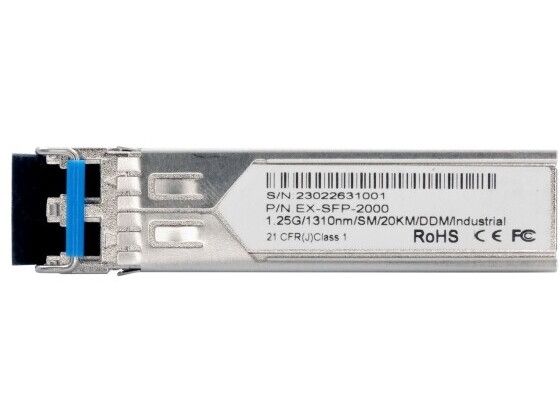

EXSYS GmbH SFP Transceiver, LC, Duplex, Singlemode, 20km, -40°C bis 85°C (EX-SFP-2000)

Item no.: [10695241] | Manufacturer: Exsys | Model no.: EX-SFP-2000 | EAN: 4718359020018
Remote stock (14-21 days)
The item is in a remote warehouse, delivery time is 14-21 business days. More info
Delivery options  - Select at checkout
Shipping @price - GLS
12,00
EUR 37,50
Incl. VAT 46,88
Total incl. delivery 61,88
Read further specifications and description
The EX-SFP-2000 SFP transceiver is a high-performance, cost-effective module with a data rate of 1.25 Gbps and a transmission distance of up to 20 km over single-mode fiber. The transceiver consists of three parts: a Fabry-Pérot (FP) laser transmitter, a PIN photodiode integrated with a transimpedance preamplifier (TIA), and an MCU control unit. All modules meet Laser Safety Class I requirements. The transceivers are SFP Multi-Source Agreement (MSA) and SFF-8472 compliant.
