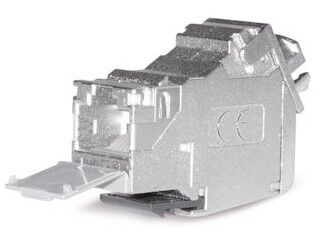

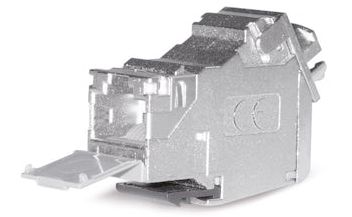

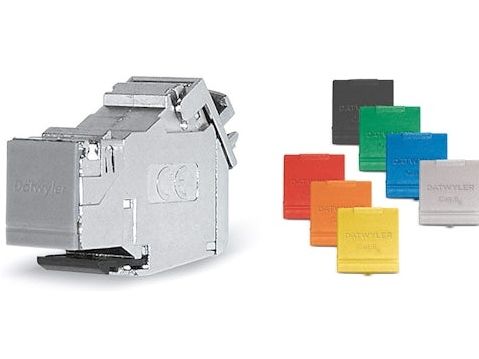

Dätwyler Cables 440005, Flat, Silver, RJ-45, Female, 10GBase-T, 22/24
Item no.: [10746604] | Manufacturer: Dätwyler | Model no.: 440005
Remote stock (14-21 days)
The item is in a remote warehouse, delivery time is 14-21 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
15,90
Incl. VAT 19,88
Total incl. delivery
34,88
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail
For the transmission of digital and analogue voice, video and data signals.
The MS-K Plus RJ45 module is specified up to 500 MHz in accordance with the component standard IEC 60 603-7-51.
In combination with shielded Category 6A, 7 and 7A data cables all applications up to Class EA are applicable, that is including 10GBase-T (IEEE 802.3an).
Useable for Power over Ethernet Plus (PoE+) in accordance with IEEE 802.3at. Compact zinc die casting housing.
Special construction for high packing density in faceplates/outlets (up to 3 modules).
Tool-less wire termination. 360° braid connection to the strain relief bar.
Strain relief bar fixed with a cable tie.
With snap-in mounting in patch panels and faceplates by a special kind of Keystone fitting (180° turned).
The MS-K Plus RJ45 module is specified up to 500 MHz in accordance with the component standard IEC 60 603-7-51.
In combination with shielded Category 6A, 7 and 7A data cables all applications up to Class EA are applicable, that is including 10GBase-T (IEEE 802.3an).
Useable for Power over Ethernet Plus (PoE+) in accordance with IEEE 802.3at. Compact zinc die casting housing.
Special construction for high packing density in faceplates/outlets (up to 3 modules).
Tool-less wire termination. 360° braid connection to the strain relief bar.
Strain relief bar fixed with a cable tie.
With snap-in mounting in patch panels and faceplates by a special kind of Keystone fitting (180° turned).
