InLine Installation cable Cat.7a, S/FTP (PiMF) 4x2x0.58 AWG23 1200MHz B2ca 500m, 500 m, Cat7a, S/FTP (S-STP), Orange
Item no.: [10758282] | Manufacturer: Inline | Model no.: 71500I | EAN: 4043718312641
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
159,20
EUR
498,95
Incl. VAT 623,69
Total incl. delivery
822,69
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Send på mail

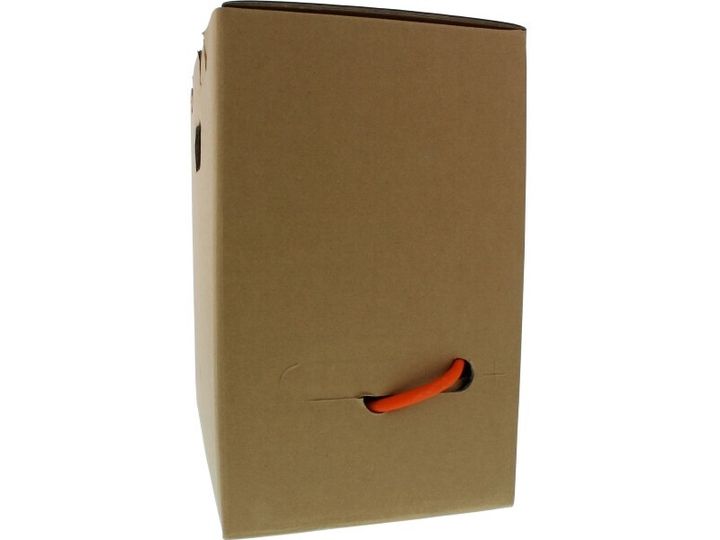

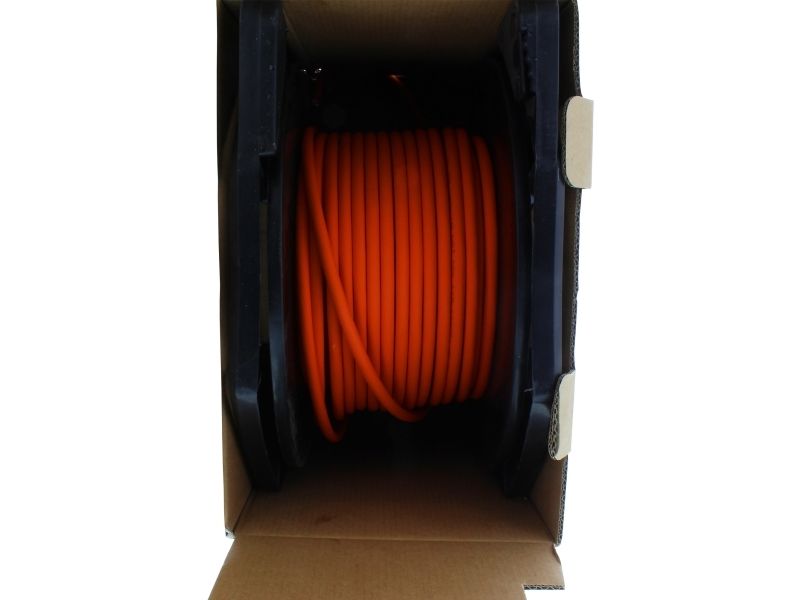

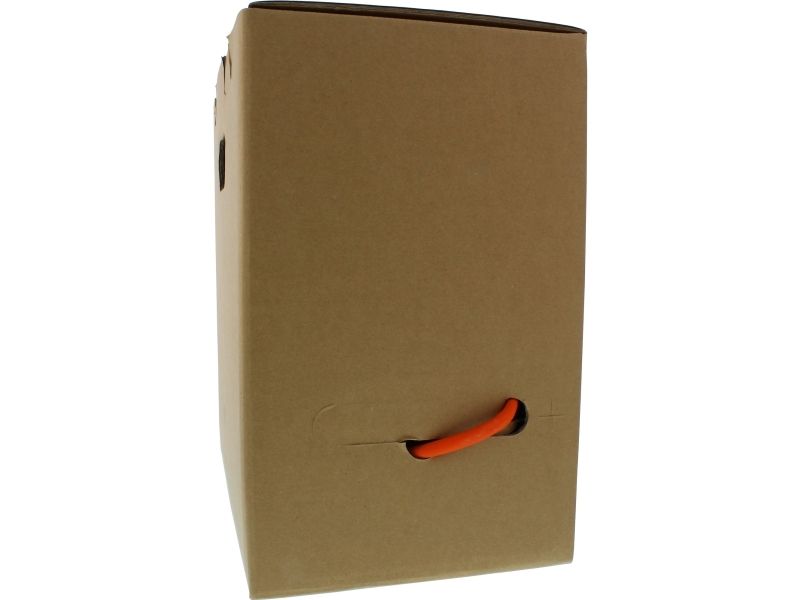

The installation cable is delivered in a drum box for easy removal of the required length. The packaging consists of a plastic reel on which the data cable is rolled up. This roll is fixed in a reinforced cardboard box, which ensures simple and tangle-free unrolling. The reel box offers the following advantages:
Cost reduction through easy handling on the construction site without additional unwinding device
Handy and stackable packaging, convenient to transport in the construction site vehicle
Low weight (can also be sent by parcel service)
Avoidance of soiling and transport damage to the cable through repackaging by means of cardboard
Reduction of cutting costs for small quantities

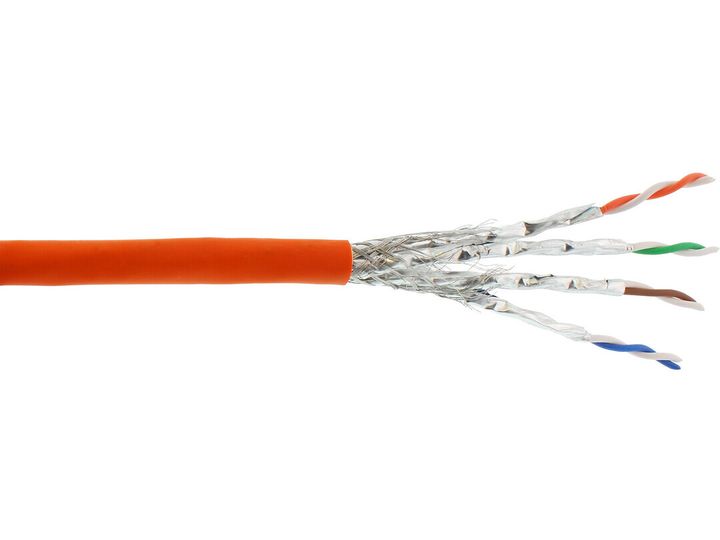

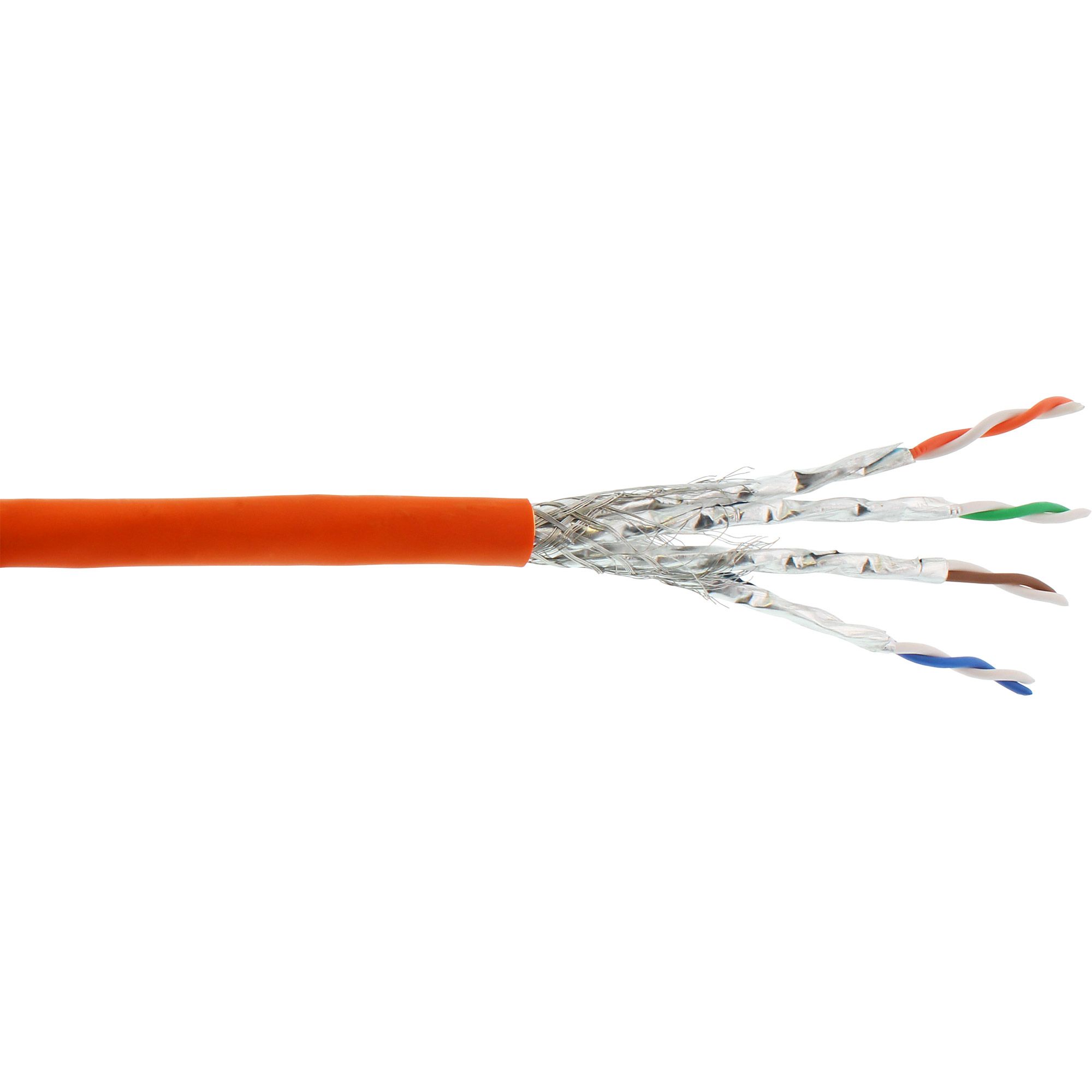

Technical data:
Cable for installation
Cat. 7a installation cable up to 1200MHz
Construction: 4x2xAWG23/1 PIMF (0.58mm2)
Suitable up to 10 Gbit
Full copper cores
Impedance: 100Ohm, DC resistance: max. 93.8 Ohm/km
Sheath halogen-free LSZH
Sheath colour orange
Construction: In pairs in metal foil
Overall braided shielding
Cable diameter approx. 7.8mm
Installation temperature: 0 - 50°C, Operating temperature: -20°C - 60°C, Storage temperature: -20°C - 50°C
With remaining metre indication on cable
Fire behaviour B2ca according to EN 50575: 2014 / A1:2016
Note: The drum box is only available for the bundles 50m, 100m, 300m, whereas 500m is delivered on a drum, the lengths 10m and 25m are delivered in a box.
Cost reduction through easy handling on the construction site without additional unwinding device
Handy and stackable packaging, convenient to transport in the construction site vehicle
Low weight (can also be sent by parcel service)
Avoidance of soiling and transport damage to the cable through repackaging by means of cardboard
Reduction of cutting costs for small quantities
Technical data:
Cable for installation
Cat. 7a installation cable up to 1200MHz
Construction: 4x2xAWG23/1 PIMF (0.58mm2)
Suitable up to 10 Gbit
Full copper cores
Impedance: 100Ohm, DC resistance: max. 93.8 Ohm/km
Sheath halogen-free LSZH
Sheath colour orange
Construction: In pairs in metal foil
Overall braided shielding
Cable diameter approx. 7.8mm
Installation temperature: 0 - 50°C, Operating temperature: -20°C - 60°C, Storage temperature: -20°C - 50°C
With remaining metre indication on cable
Fire behaviour B2ca according to EN 50575: 2014 / A1:2016
Note: The drum box is only available for the bundles 50m, 100m, 300m, whereas 500m is delivered on a drum, the lengths 10m and 25m are delivered in a box.
