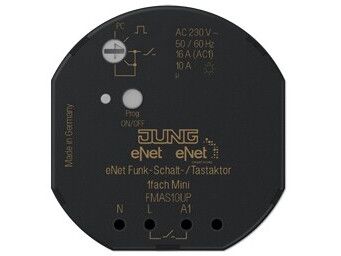

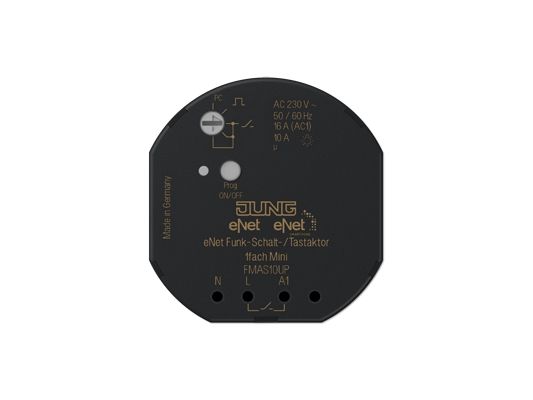

JUNG FM AS 10 UP, Switching actuator, Flush-mounted, 868 MHz, 20 mW, 100 m, Black
Item no.: [10761230] | Manufacturer: Jung | Model no.: FMAS10UP | EAN: 4011377086838
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
94,50
Incl. VAT 118,13
Total incl. delivery
133,13
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail
New system feature: Fully-encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Intended use
Switching of lighting
Operation with suitable eNet radio transmitters
Mounting in appliance box according to DIN 49073 in combination with a suitable cover
Mounting in surface-mounted housing or built-in housing (ref.-no. FM-EBG) for false ceilings
Product characteristics
Operating mode switch for: switch/push-button actuator or parameterisation via eNet server
Status feedback to radio transmitter
Scene operation possible
Switchable output with Prog button
Status indication with LED
Switching operation:
Switch-on telegram: Device switches on
Switch-off telegram: Device switches off
Push-button operation:
Relay contact remains closed as long as ON or OFF telegrams are being received
The maximum switch-on time is 60 seconds
Can be set with eNet server:
Flash function
Run-on time
Switch-on delay / switch-off delay
Operation as NO or NC contacts
Switch-off warning
Minimum switching repeat time
Operation locks
Continuous on, Continuous off
Supplementary functions with eNet server:
Fully-encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Update of the device software
Repeater function
Reading of error memory
