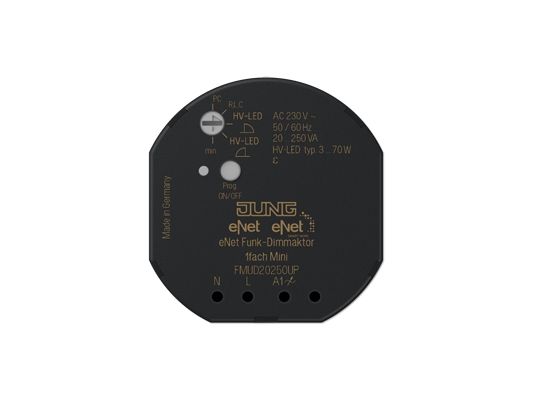

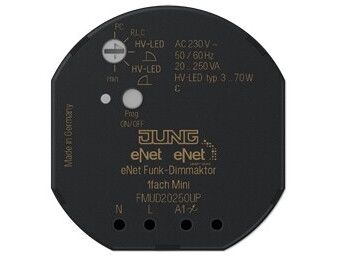

JUNG FM UD 20250 UP, Dimming actuator, Flush-mounted, 868 MHz, 20 mW, 100 m, Black
Item no.: [10761260] | Manufacturer: Jung | Model no.: FMUD20250UP | EAN: 4011377086876
Remote stock (14-21 days)
The item is in a remote warehouse, delivery time is 14-21 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
122,37
Incl. VAT 152,96
Total incl. delivery
167,96
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail
New system feature: Fully-encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Intended use
Switching and dimming of incandescent lamps, HV halogen lamps, electronic transformers for halogen or LED lamps, dimmable inductive transformers for halogen or LED lamps, HV-LED or compact fluorescent lamps
Operation with suitable eNet radio transmitters
Mounting in appliance box according to DIN 49073 in combination with a suitable cover
Mounting in surface-mounted housing or built-in housing (ref.-no. FM-EBG) for false ceilings
Product characteristics
Switch-on via bulb-preserving soft start
Switch-on brightness can be saved permanently
Minimum brightness can be saved permanently
Scene operation possible
Status indication with LED
Status feedback to radio transmitter
Switchable with Prog button
Electronic short-circuit protection with permanent switch-off after 7 seconds at the latest
Electronic over-temperature protection
Automatic or manual setting of the dimming principle suitable for the load
Power extension possible by means of power boosters
Can be set with eNet server:
Maximum brightness
Dimming speed
Switch-on delay / switch-off delay
Dim up/dim down ramp
Switch-off warning
Operation locks
Continuous on, Continuous off
Hotel function
Run-on time
Supplementary functions with eNet server:
Fully-encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Update of the device software
Repeater function
Reading of error memory
