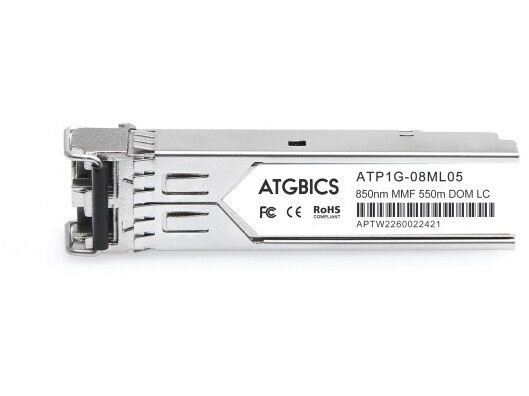

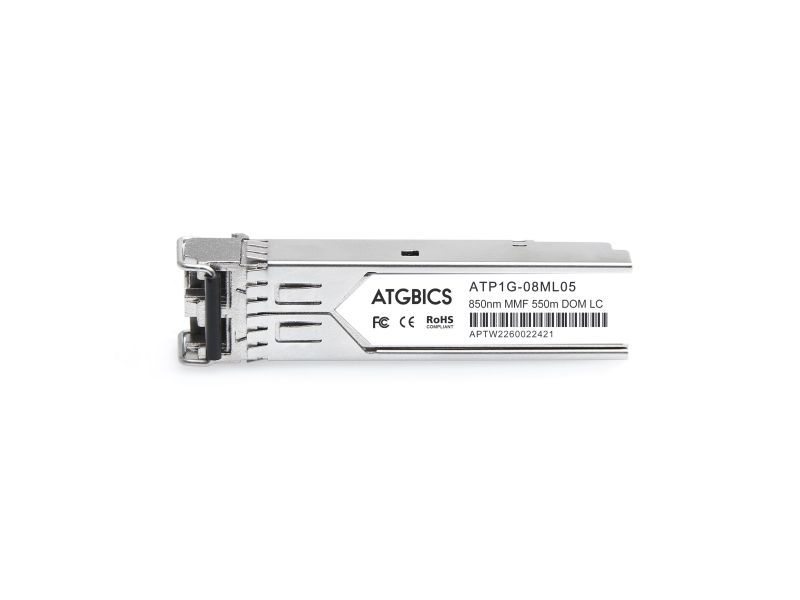

ATGBICS Arista compatible SFP-1G-SX SFP 1000Base-SX form factor network transceiver supports a distance of up to 550m over multi-mode fibre (MMF) using a wavelength of 850nm via an LC Duplex connector. This product operates within a commercial temperature range. Digital optical monitoring (DOM) support is also present enabling real-time monitoring of the parameters of the fibre optic transceiver. Our product meets the specification of Arista SFP-1G-SX and we proudly offer a compatibility guarantee and limited lifetime warranty. Our rigorously tested products record a unique traceable serial number and are fully compliant with all MSA (Multi-Source Agreement) and IEEE standards & protocols.
SFP transceiver type
Fiber optic
Maximum data transfer rate
1000 Mbit/s
Interface type
SFP
Single-mode fiber (SMF) supported
No
Multi-mode fiber (MMF) supported
Yes
Fiber optic connector
LC
SFP transceiver standard
SX
Maximum transfer distance
550 m
Wavelength
850 nm
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Fiber ethernet cabling technology
1000BASE
Digital Diagnostics Monitoring (DDM)
Yes
Wavelength-division multiplexing (WDM)
No
Product colour
Silver
Housing material
Metal
Plug and Play
Yes
Hot-Plug support
Yes
Hot-swap
Yes
Easy to install
Yes
Brand compatibility
Arista Networks
Input voltage
3.3 V
Maximum voltage
3.5 V
Power consumption (typical)
0.8 W
Compliance certificates
TÜV mark, UKCA, UL, US FDA, REACH, Federal Communications Commission (FCC), RoHS, CE
Certification
CE, FCC, RoHS, REACH
Doesn't contain
Lead
Minimum operating temperature
0 °C
Maximum operating temperature
70 °C
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Width
13.4 mm
Depth
56.5 mm
Height
8.5 mm
Weight
20 g
Quantity per pack
1 pc(s)
Package type
Box
Country of origin
China
Sustainability compliance
Yes
