A matrix switch is a multi-port solution for distributing content from multiple sources to several displays in a variety of configurations.

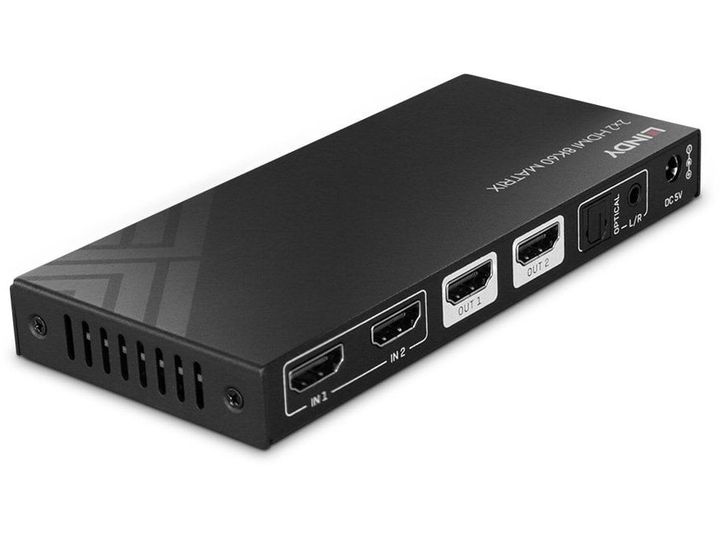

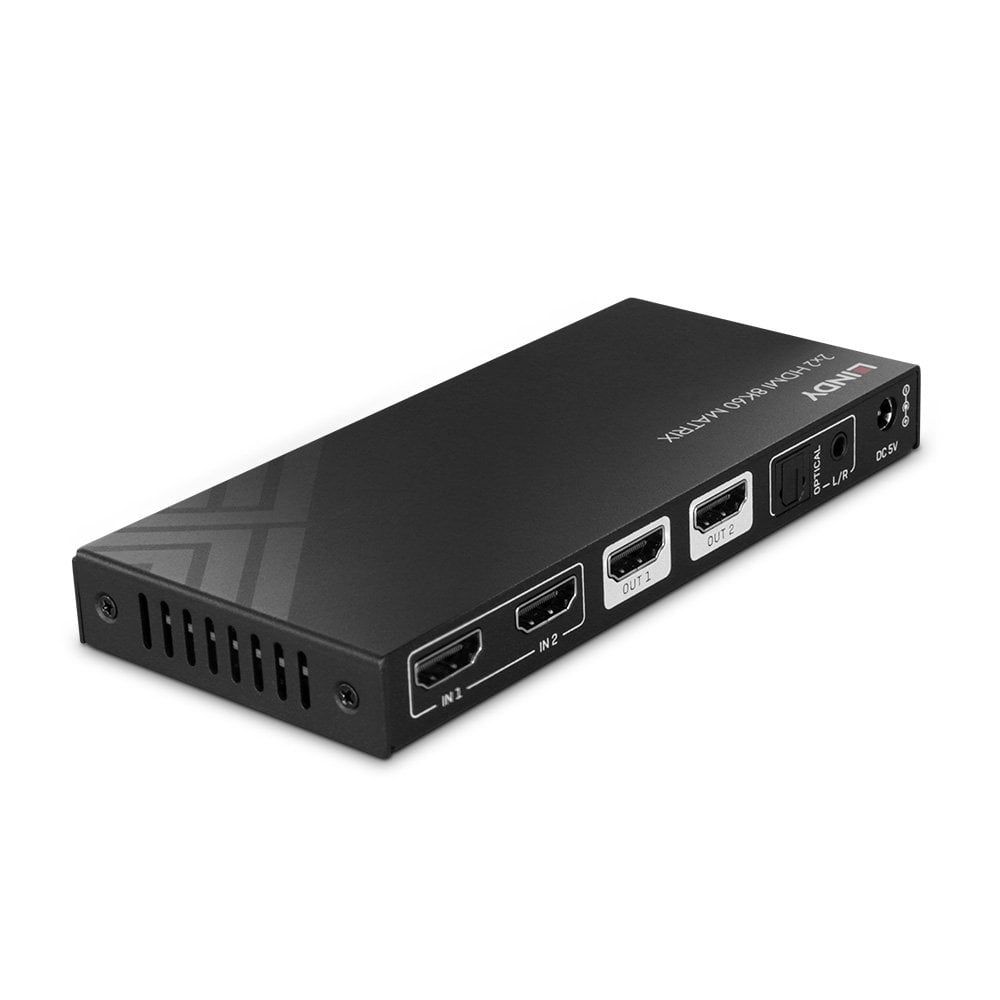

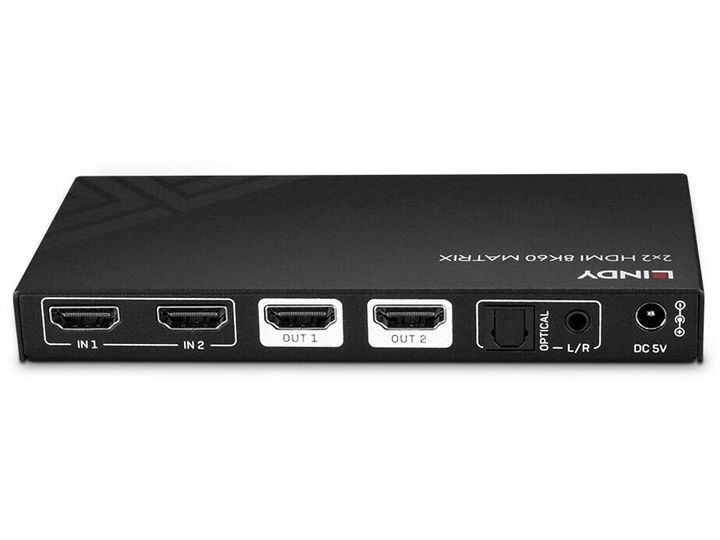

The Lindy 2x2 HDMI 8K60 Matrix Switch is a premium, compact solution for distributing content from two devices to two displays. Dual HDMI inputs and outputs provide the ability to switch between 2 separate source devices or 2 connected HDMI displays, or output video simultaneously.
With support for HDMI 8K signals, this matrix allows for the transmission of high quality 4K UHD 3840x2160@120Hz or 8K 7680x4320@60Hz resolutions, while additional support for HDR (High Dynamic Range) ensures video content can be viewed with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for high quality residential setups or small scale digital signage installations in retail.
HDCP 2.3 support ensures there are no compatibility issues with 8K content when connected to source devices including set top boxes, Blu-Ray players and 8K HDR media players. Simple EDID management via an integrated switch allows the user to control and ensure the optimum resolution based on their connected displays.

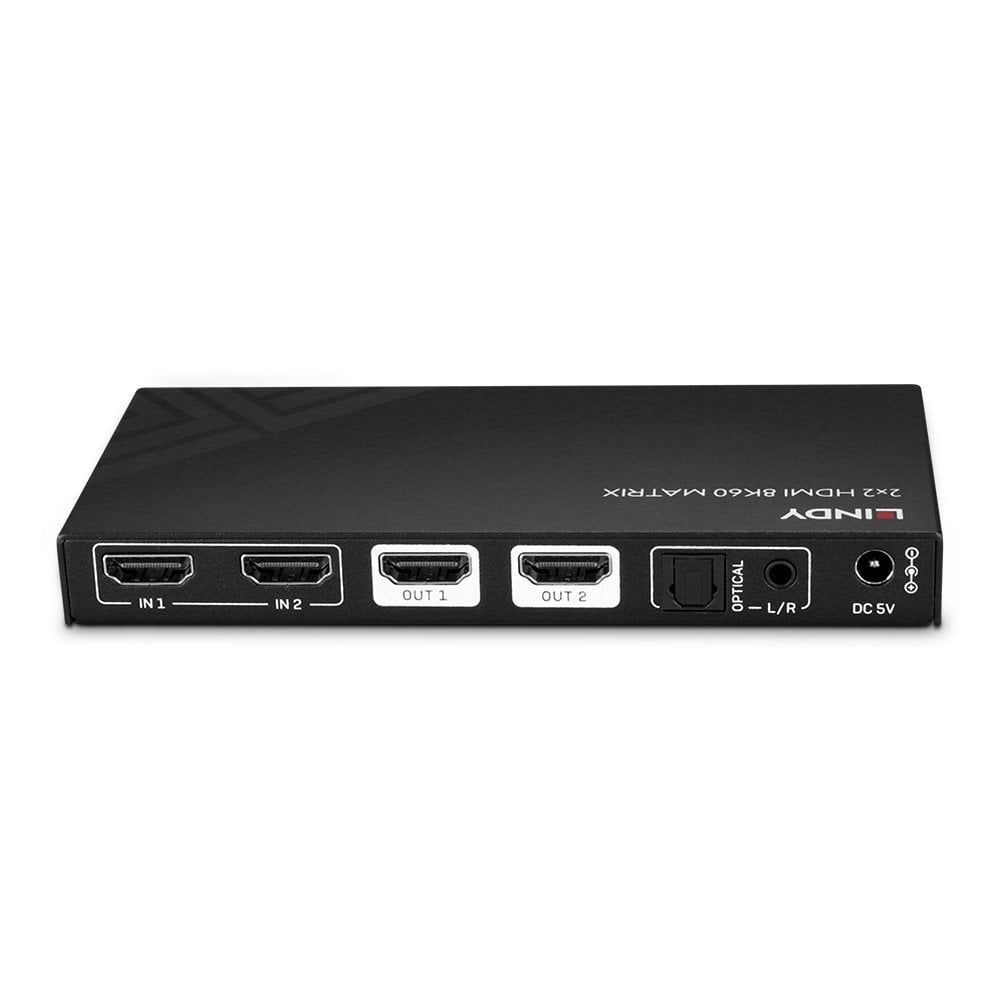

As well as HDMI audio pass-through, a 3.5mm audio port allows for a separate connection of both analogue speaker systems, and optical audio devices such as soundbars and amplifiers, for creating immersive audio experiences to compliment the video on screen.

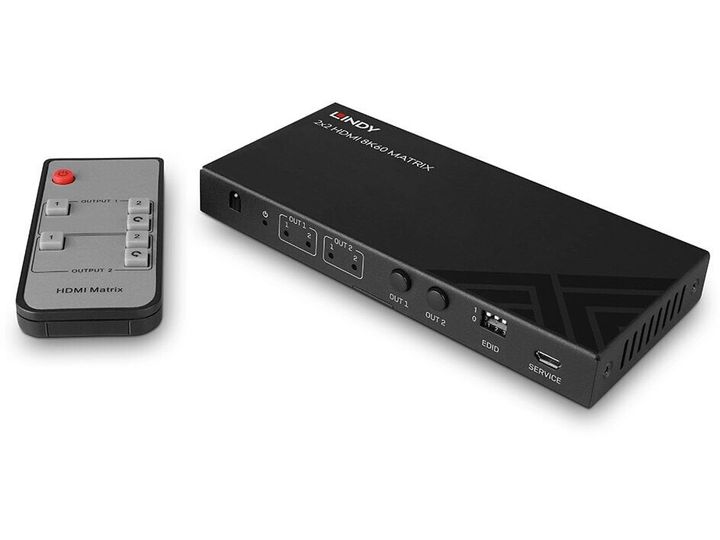

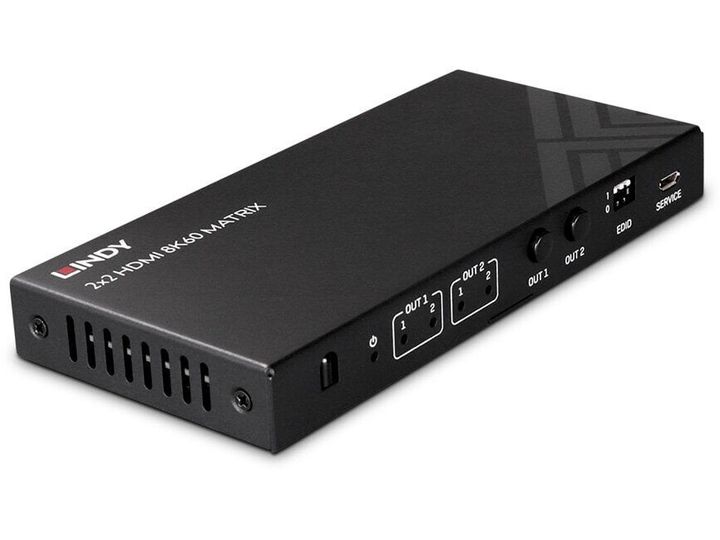

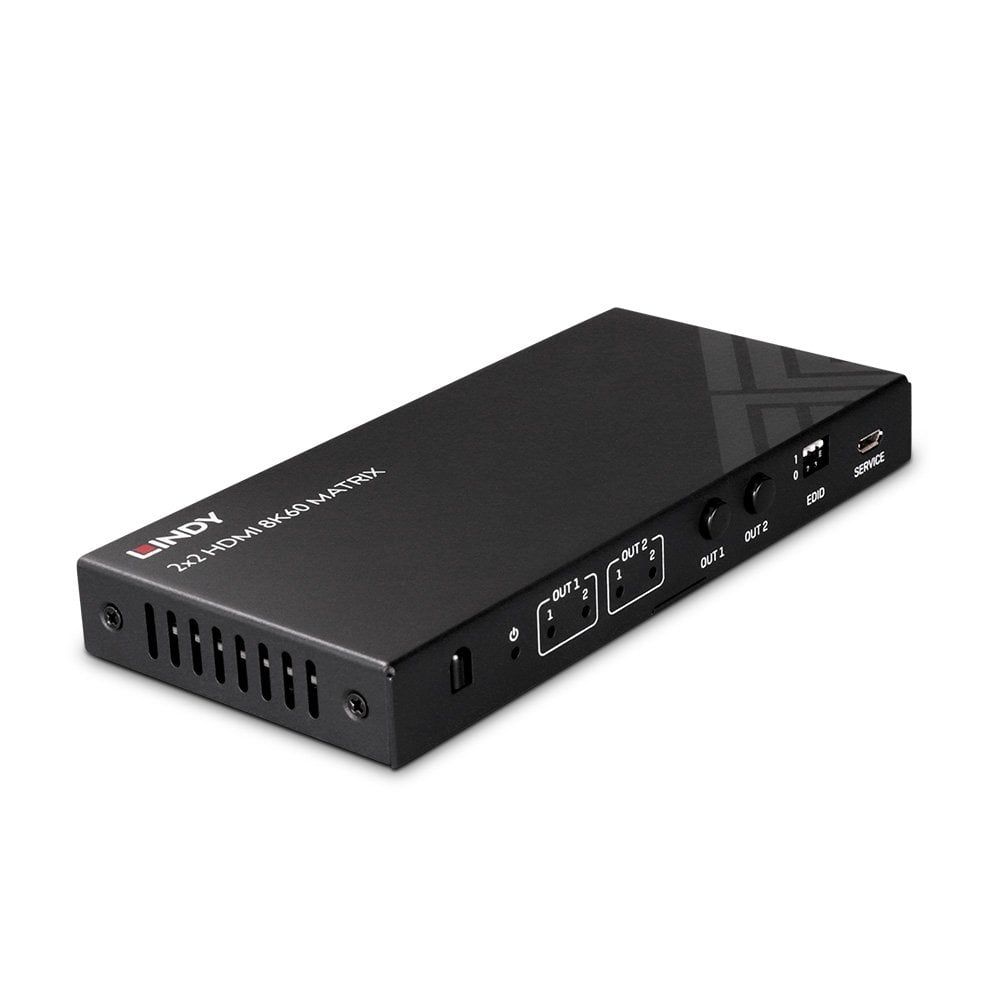

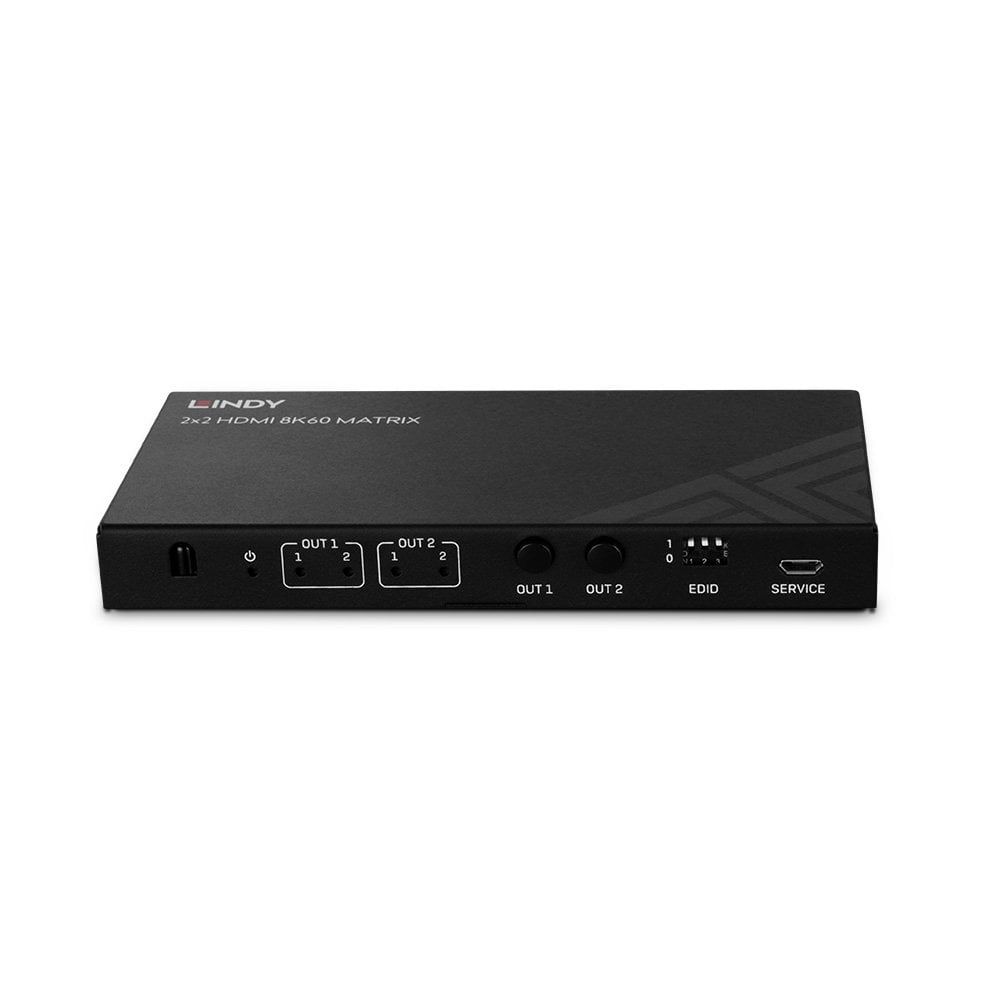

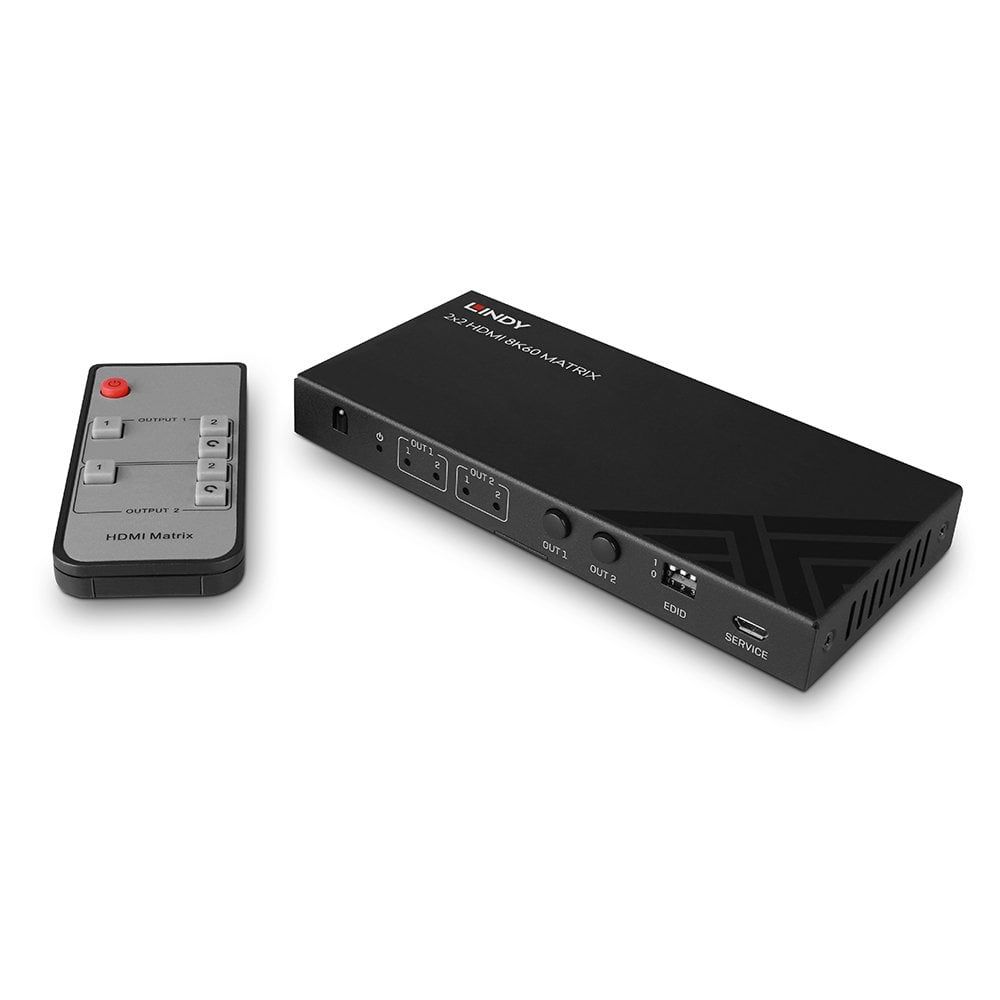

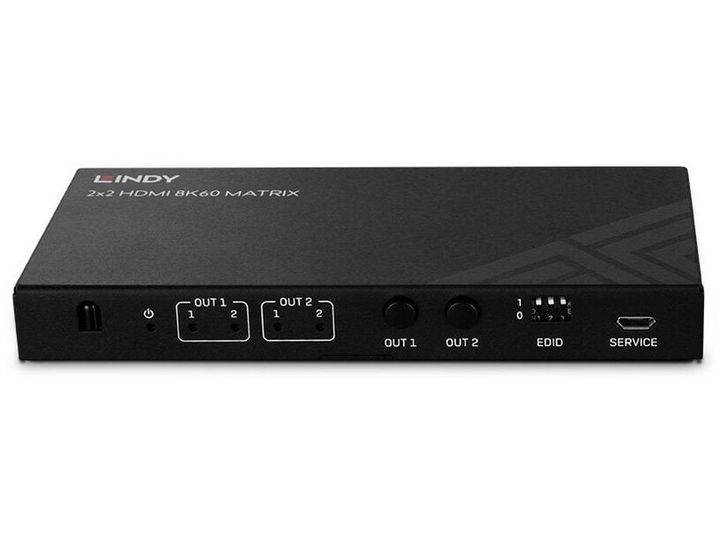

This matrix can be easily controlled via push button switching on the unit, while the included remote control also allows the user to have better control over multiple videos and displays, great for trade shows, training presentations or sales demonstrations.
Product type
AV matrix switcher
Maximum resolution
7680 x 4320 pixels
Bandwidth
40 Gbit/s
HDCP
Yes
HDCP version
2.3
EDID management
Yes
Audio formats supported
LPCM
Housing colour
Black
Housing material
Metal
Control type
Buttons
Remote control included
Yes
Certification
POP, CP65
Built-in display
No
HDMI input ports quantity
2
HDMI output ports quantity
2
HDMI version
2.1
Digital audio optical out
1
USB connector type
Micro-USB
USB ports quantity
1
Audio (L/R) out
1
DC-in jack
Yes
Power consumption (max)
6.2 W
Input current
2 A
Output voltage
5 V
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Warranty period
2 year(s)
Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Width
145 mm
Depth
68 mm
Height
17 mm
Package width
200 mm
Package type
Box
Package depth
113 mm
Package height
70 mm
Package weight
482 g
Manual
Yes
Sustainability compliance
Yes
