Device networking is what powers M2M (machine to machine) communication. The UDS family of device servers enables users to connect, manage and control just about any piece of equipment with a serial port from virtually anywhere over Ethernet or the Internet.
With the UDS1100 Series, virtually any piece of equipment can be added to an Ethernet network in a matter of minutes! This single-port device server is a quick, simple and inexpensive way to bring the advantages of remote management to equipment not currently connected to a network.
Produktbeskrivelse

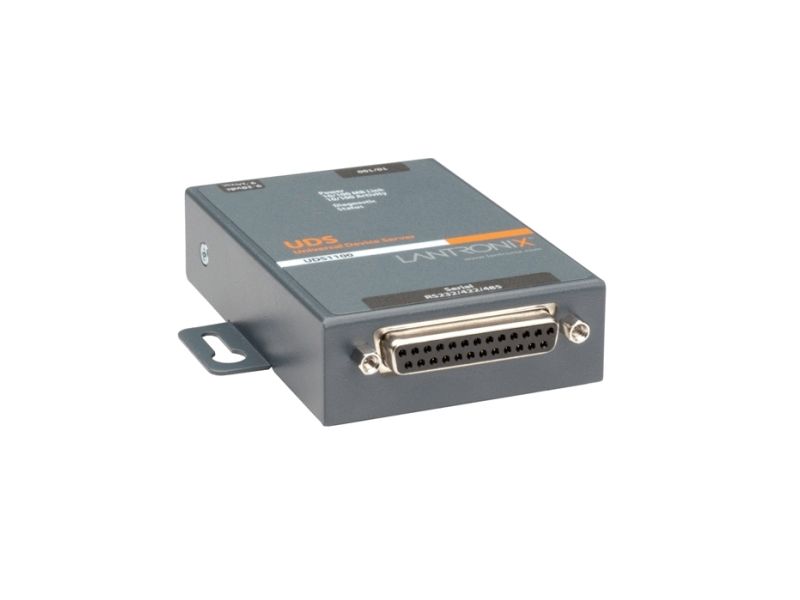

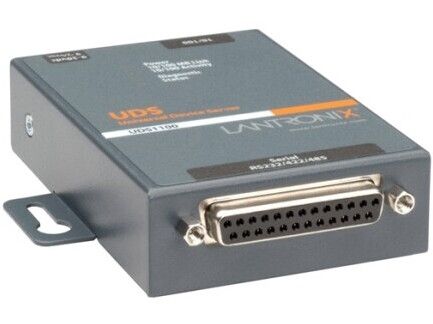

Lantronix Device Server UDS1100 One Port Serial (RS232/ RS422/ RS485) to IP Ethernet, UL864 with Power Over Ethernet (PoE) - enhedsserver
Enhedstype
Enhedsserver
Formfaktor
Ekstern
Processor
1 x 48 MHz
RAM
256 KB
Flashhukommelse
2 MB
Dataforbindelsesprotokol
Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
OS nødvendig
Microsoft Windows 98/ME/NT/2000/XP
Power Over Ethernet (PoE) understøttet
PoE
Dimensioner (B x D x H)
6.4 cm x 9 cm x 2.3 cm
Vægt
200 g
Producentgaranti
2 års garanti
Generelt
Enhedstype
Enhedsserver
Bredde
6.4 cm
Dybde
9 cm
Højde
2.3 cm
Vægt
200 g
Processor / Hukommelse / Lagring
Antal installerede processorer
1 x 48 MHz
Maks. antal understøttet
1
RAM
256 KB SRAM
Flashhukommelse
2 MB
Netværk
Model
Ekstern
Forbindelsesteknologi
Kablet
Dataforbindelsesprotokol
Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
Netværks/overføselsprotokol
TCP/IP, UDP/IP, ICMP/IP
Protokol til fjernadministration
SNMP, Telnet, HTTP
Statusindikatorer
Strøm, status, link/aktivitet
Egenskaber
Datatransport, DHCP-understøttelse, understøttet af ARP, halv dupleksmodus, fuld dupleksmodus
Overensstemmelsesstandarder
IEEE 802.3af
Ekspansion / Konnektivitet
Interface
1 x serial 1 x 100Base-TX (PoE) - RJ-45
Diverse
Overensstemmelsesstandarder
FCC Klasse A certificeret, CSA, TUV, VCCI, C-Tick, CISPR 22 Klasse A, EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 15, ICES-003 Klasse A, EN 61000-4-5, FCC, EN 61000-4-11, RoHS, EN 61000-4-8
Effekt
Power Over Ethernet (PoE) understøttet
PoE
Programmer / Systemkrav
Med software
Drivers & Utilities
OS nødvendig
Microsoft Windows 98/ME/NT/2000/XP
Producentgaranti
Service & Support
Begrænset garanti - 2 år
Miljømæssige parametre
Min. driftstemperatur
5 °C
Maks. driftstemperatur
50 °C
