SUNIX Group USB4300N, PCIe, USB 3.2 Gen 1 (3.1 Gen 1), EUR: CE, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3 US: FCC Part 15 Class B TAIWAN: BSMI:..., 5 Gbit/s, 0 - 57 °C, -20 - 85 °C
Item no.: [1134805] | Manufacturer: Sunix Group | Model no.: USB4300N | EAN: 4710747387925
Remote stock (1-2 days)
The item is in a remote warehouse, delivery time is 1-2 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
33,30
Incl. VAT 41,63
Total incl. delivery
56,63
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login

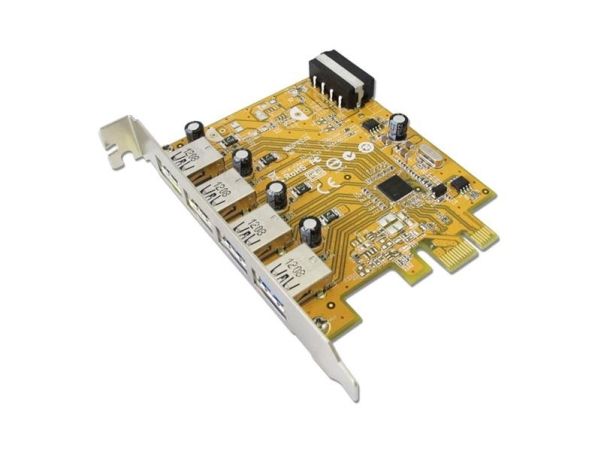

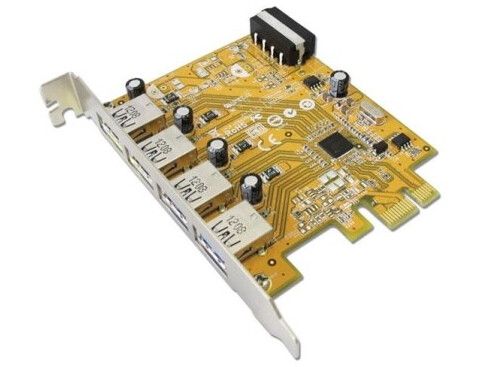

Super-Speed USB 3.0 interface is the next revolution in I/O interconnect standards that will deliver the bandwidth and features required by PCs, consumer electronics and communications devices. With 10 times faster throughput than USB 2.0 standard and backward compatible with current USB device features, USB 3.0 interface will be the trendy of IT technology. SUNIX USB4300N is a four-port Super-Speed USB 3.0 PCI Express card, and it is compliant with the PCI Express Generation 2 specification for host PC system. It works up to 5 Gbps for data transfer when connecting to USB 3.0 compliant peripherals, while maintaining compatibility with existing USB peripheral devices. With USB Hot-Swapping and Plug-n-Play function, you don't have to worry about running out of slots on your mother board or complicated hardware installation process. SUNIX USB4300N card supports USB 3.0 High-Speed device and backward compatible with USB 2.0 High-Speed and USB 1.1 Full-Speed devices. It is an ideal choice for external storage devices, MP3 players, external writer, digital cameras, webcam, networking and video devices, and all other USB devices.
Host interface
PCIe
Output interface
USB 3.2 Gen 1 (3.1 Gen 1)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Peripheral (Molex) power connectors (4-pin)
1
Internal
Yes
Certification
EUR: CE, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3US: FCC Part 15 Class BTAIWAN: BSMI: CNS13438JAPAN: VCCI
Data transfer rate (max)
5 Gbit/s
Operating temperature (T-T)
0 - 57 °C
Storage temperature (T-T)
20 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Compliance certificates
RoHS
Width
78 mm
Depth
121 mm
Height
18 mm
Manual
Yes
